OSD Audio - XMP300 GEN2 600W Class D Stereo Amplifier with A/B Speaker Switching and 24/192 USB Audio - Black
Reviews coming soon
About this product
The XMP300 GEN2 is a high-output Class D stereo amplifier for home, studio and distributed audio systems. It delivers 150W x2 RMS into 8 ohms, 300W x2 RMS into 4 ohms, or 600W bridged mono into 8 ohms, with a signal-to-noise ratio above 90dB for clear, low-noise sound. Four separate inputs include 24/192 USB audio and dual line-level inputs with automatic source switching: connect a TV or digital audio device as the main source and a music streamer to the interrupt input, and the amplifier switches automatically when the secondary source starts, then returns to the primary when it stops. Front-panel volume, balance and A/B speaker selection plus bass and treble controls tune the sound to the room. Two 8-ohm speaker pairs can be connected and switched on or off independently, making it easy to add outdoor or second-room speakers. Trigger and auto-sensing power modes allow the amplifier to be installed out of sight. Multi-voltage 100V to 240V operation with a 2-year warranty.
Features
600W Bridged or 300W x2 at 4 Ohms
Class D amplification supplies 150W x2 RMS into 8 ohms, 300W x2 RMS into 4 ohms, or 600W bridged mono into 8 ohms from the A or B output. That is triple the output of the XMP100 GEN2, giving the headroom to drive large rooms, low-sensitivity speakers or long distributed audio runs.
Automatic Interrupt Source Switching
Dual line-level inputs manage a main source plus an interrupt source. Connect a TV or digital player as the primary and a streamer such as the SRT1 Gen2 to the interrupt input. The amplifier detects the incoming signal, switches automatically, then returns to the primary source when playback ends.
A and B Speaker Switching for Two Zones

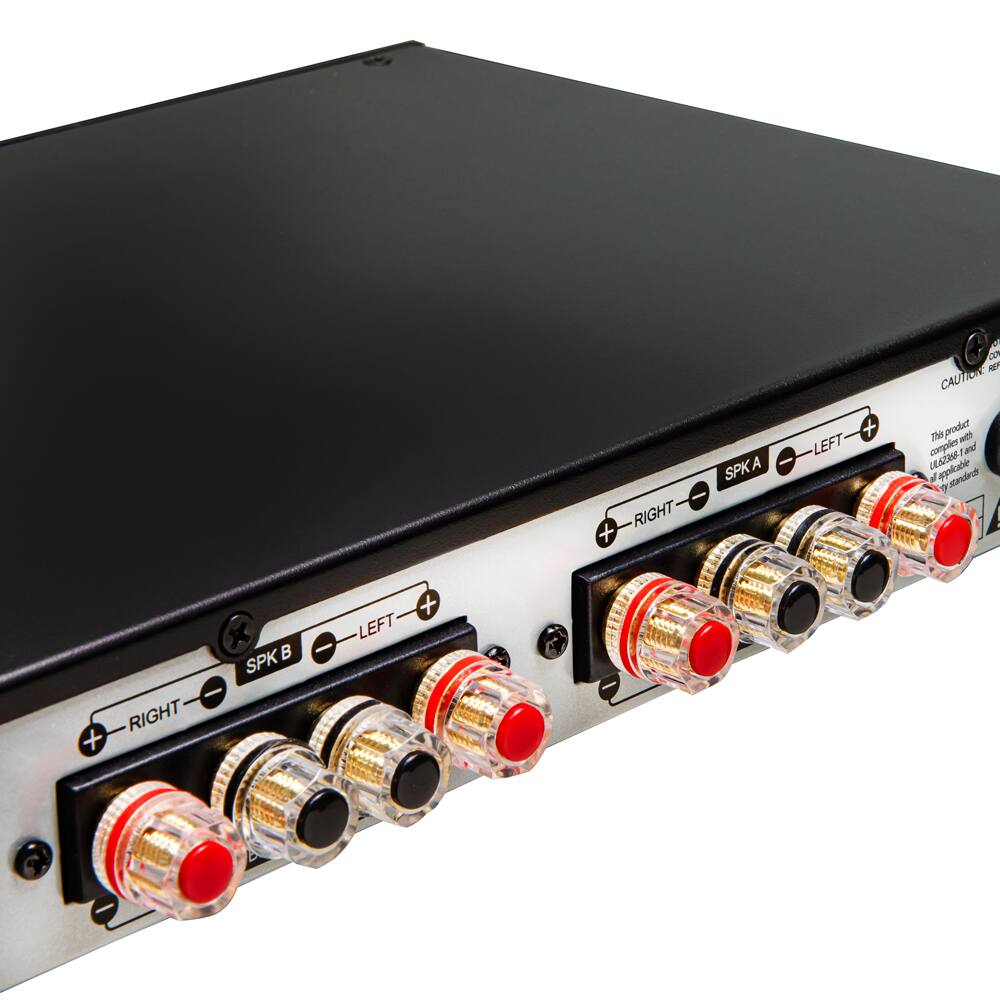

Two 8-ohm speaker pairs connect simultaneously and switch on or off from the front panel. One amplifier covers a main listening area and a patio or second room, avoiding the cost of a second amplifier or a dedicated distribution system for a simple two-zone setup.
24/192 USB Audio and Tone Controls
A USB Type-A input supports high-definition audio up to 24-bit/192kHz alongside RCA line and interrupt inputs, with signal-level and speaker-level outputs. Bass and treble controls provide plus or minus 12dB at 100Hz and 10kHz, and front-panel balance and volume complete the adjustment set.
Stereo or Bridged Mono, Multi-Voltage Power
A rear-panel switch configures stereo or bridged mono output, and trigger functions support automated systems. The 16.92 by 1.73 by 7.92 inch chassis weighs 8 pounds and accepts 100V to 240V, 50 to 60Hz. Signal-to-noise above 90dB, 20Hz to 20kHz response, 2-year warranty.
Specifications
- Continuous Watts x Channel @ Ohms300W x 2 @ 4 Ohms; 150W x 2 @ 8 OhmsNumber of Channels4Number of Audio Zones1Network Connector(s)No network connectors
