OSD Audio - XPA1000 Commercial 70V/100V Amplifier, 1000W 2-Channel Class D with RS232 and 12V Trigger - Black
Reviews coming soon
About this product

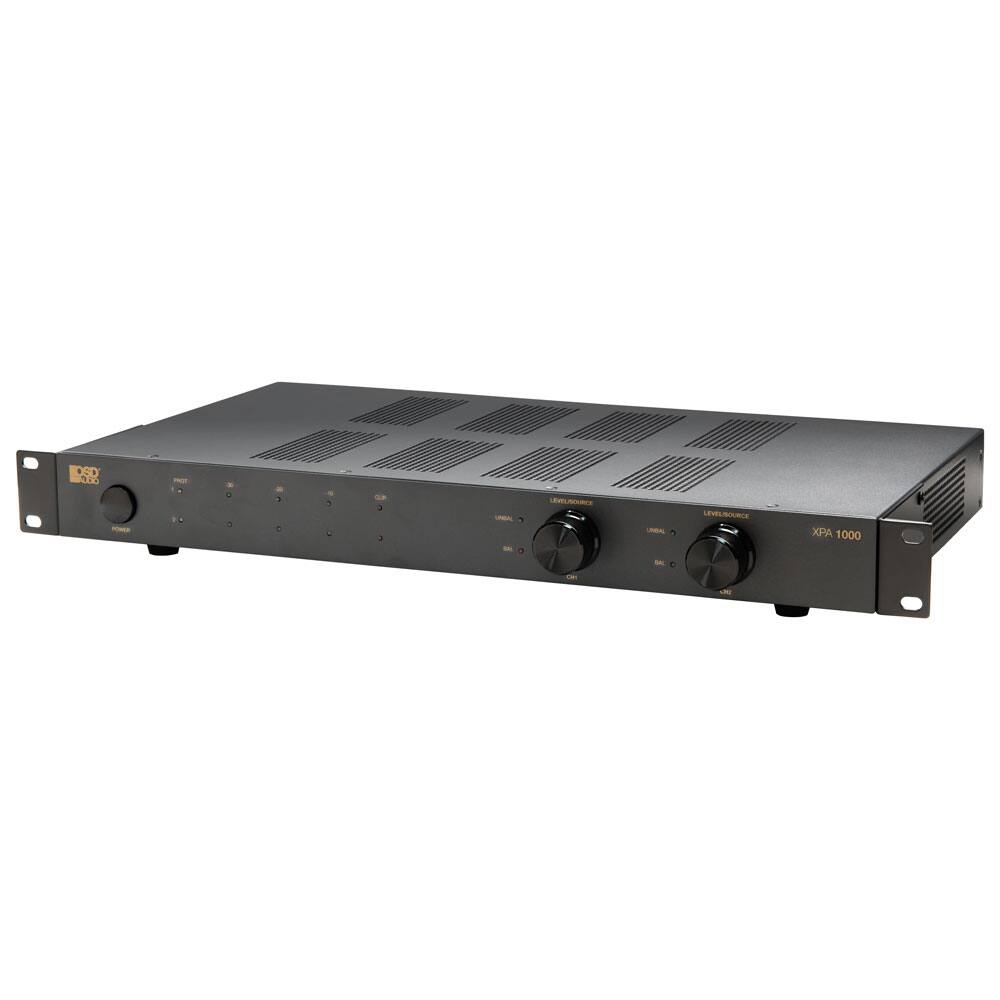

The XPA1000 is a commercial-grade 2-channel Class D amplifier designed for large-scale audio installations in restaurants, conference centers, sports arenas and corporate offices. Total output capacity is 1000 watts, configured as 2 x 500W channels, delivering clean power across distributed speaker systems while maintaining high energy efficiency and reliability. Both 70V and 100V operation are supported through a rear-panel switch, and a multi-voltage selector handles 115V or 230V mains for North American and international installations. Balanced and unbalanced inputs integrate with professional audio sources and mixers, while an unbalanced mono loop output lets additional amplifiers be daisy-chained for system expansion. RS232 control with documented queries and commands, plus 12V trigger in and out, simplify integration with automation and control systems. An IR remote is included with a hard-wired IR receiver option and available codes. The 1U rack chassis is fan cooled with thermal and short-circuit protection and front-panel level metering.
Features
1000W Total Across Two 70V/100V Channels
Two channels rated at 500W each provide 1000 watts total, enough for large distributed speaker systems with high tap settings or long runs. A rear-panel switch selects 70V or 100V constant-voltage operation, covering North American and international installation standards from a single product.
RS232 and 12V Trigger for Control Systems
Documented RS232 queries and commands allow full integration with automation and control platforms. A 12V trigger input handles remote turn-on and a trigger output can fire a downstream device, which makes sequenced rack startup and shutdown straightforward in a large installation.
Balanced and Unbalanced Professional Inputs

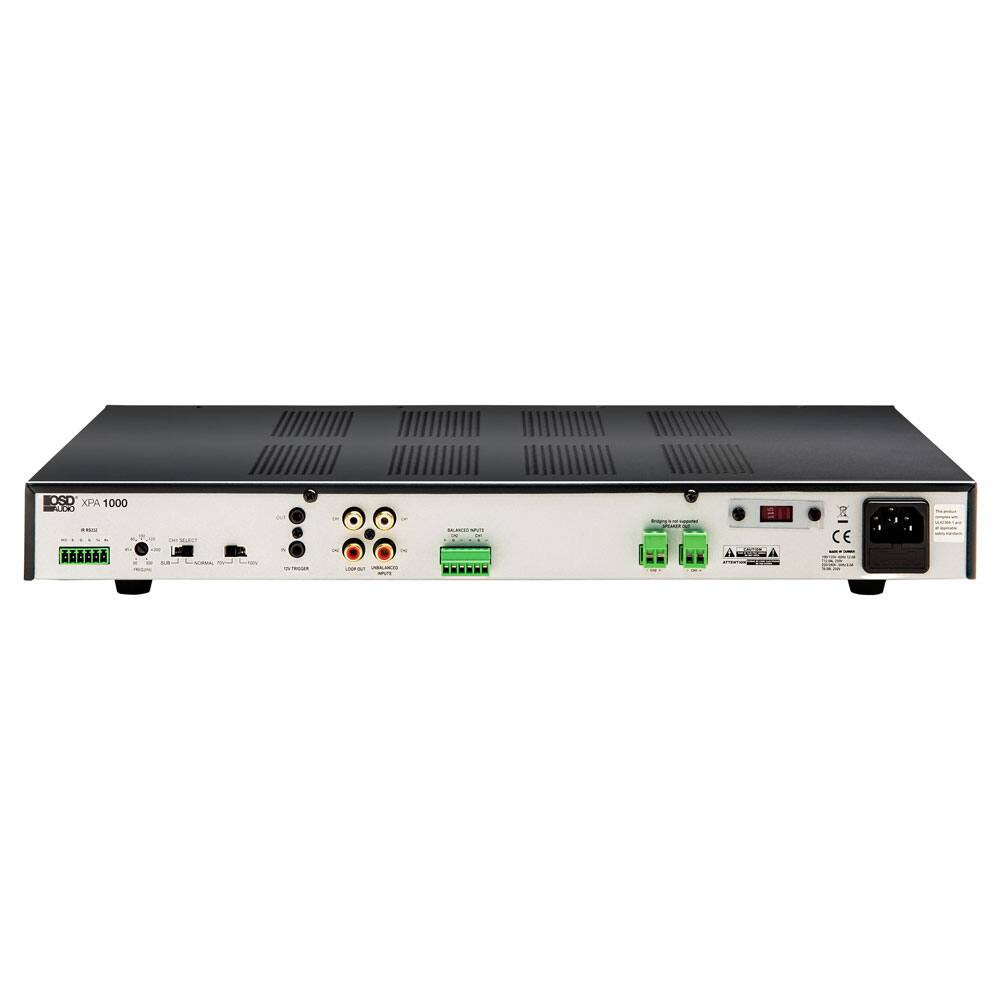

Balanced inputs connect to professional mixers and sources over long cable runs with low noise pickup, while unbalanced inputs accept consumer-level equipment. An unbalanced mono loop line output passes signal to another amplifier, so expanding the system means adding a unit and a patch cable.
Fan-Cooled 1U Chassis with Protection
Class D efficiency keeps consumption and heat low while active fan cooling supports continuous operation in demanding environments. Thermal and short-circuit protection guard both the amplifier and the speaker line. Front-panel level metering with protection and warning LEDs shows status at a glance.
IR Remote and Multi-Voltage Operation
An IR remote is included, with a hard-wired IR receiver option and available control codes for custom integration. Multi-voltage AC 115/230V operation suits international deployments. Frequency response spans 20Hz to 22kHz (+0/-2dB), signal-to-noise exceeds 90dB A-weighted. 17 by 1.7 by 9.4 inches, 9.25 lbs, 2-year warranty.
Specifications
- Continuous Watts x Channel @ Ohms500W x 2 @ 70V; 500W x 2 @ 100VNumber of Channels2Number of Audio Zones1Network Connector(s)1 x RS-232
Reviews
This product doesn't have any reviews yet.
Compare similar products
The XPA1000 is a commercial-grade 2-channel Class D amplifier designed for large-scale audio installations in restaurants, conference centers, sports arenas and corporate offices. Total output capacity is 1000 watts, configured as 2 x 500W channels, delivering clean power across distributed speaker systems while maintaining high energy efficiency and reliability. Both 70V and 100V operation are supported through a rear-panel switch, and a multi-voltage selector handles 115V or 230V mains for North American and international installations. Balanced and unbalanced inputs integrate with professional audio sources and mixers, while an unbalanced mono loop output lets additional amplifiers be daisy-chained for system expansion. RS232 control with documented queries and commands, plus 12V trigger in and out, simplify integration with automation and control systems. An IR remote is included with a hard-wired IR receiver option and available codes. The 1U rack chassis is fan cooled with thermal and short-circuit protection and front-panel level metering.
The MX1280 GEN2 is a 6-zone, 12-channel Class D amplifier for residential and commercial distributed audio systems requiring reliable power across many rooms. Each channel supplies 80W into 4 ohms and 50W into 8 ohms, and every zone includes a bridge switch that combines both channels into a single 160W output at 8 ohms. The GEN2 revision adds front-panel on and off buttons for each stereo zone, so unused areas can be shut down individually to reduce power consumption without touching the rear panel or a control system. Independent zone control with global and per-zone triggering lets each area run its own source through its line input, or follow a shared feed through Bus In 1 and Bus In 2. Signal auto-sensing powers the amplifier up when audio is detected and down when it stops. Protection circuitry guards against thermal overload and short circuits. The slim 2U chassis is rack mountable with hardware included and pairs with the CONTROL12 for a complete distributed audio setup.
The MX880 is a 4-zone, 8-channel Class D amplifier for residential and commercial distributed audio systems that need reliable power across multiple rooms. Each channel is rated at 80W into 4 ohms and 50W into 8 ohms, and every zone includes a bridge switch that combines both channels into a single 160W output at 8 ohms for larger spaces or 70V-style long runs. Independent zone control with global and per-zone triggering lets each area run its own source through the zone line input, or follow a shared bus feed through Bus In 1 and Bus In 2. Signal auto-sensing powers the amplifier up when audio is detected and down when it stops, reducing standby consumption in always-on installations. Protection circuitry guards against thermal overload and short circuits. The slim 2U chassis is rack mountable with hardware included, runs cool thanks to Class D efficiency, and provides individual output level controls plus detachable speaker terminals accepting up to 14AWG.
The SMP200 is a compact Class D mono subwoofer amplifier built to power passive subwoofers in home theater and whole-house audio systems. It supplies 120W RMS at 8 ohms with 240W peak, or 200W RMS at 4 ohms with 400W peak, giving in-wall and stand-alone passive subs the power they need for low-frequency impact on movie and music soundtracks. An advanced crossover circuit adjusts from 35Hz to 160Hz using the front-panel control knob, with additional front-panel phase and volume controls to dial in the right amount of low-frequency effect for the room. Inputs accept either speaker-level or line-level RCA connections, so the amplifier works with both modern receivers and older source equipment. Auto-sensing turns the amplifier on when a signal is detected and off when it is not, and a 12V trigger mode supports integration with automated systems. The chassis measures 8.5 by 1.75 by 9.8 inches and weighs 6.7 pounds, fitting easily into a rack or cabinet.
