Televes - Low Noise Single Input Full Band Preamplifier (560381)
Reviews coming soon
About this product
Every amplifier adds noise to the signal it amplifies, and in over-the-air TV that noise can be the difference between watching a weak, distant channel and losing it. Noise figure measures exactly that, and it is one of the most important specifications in a preamplifier. The Televes Preamp 3 delivers an ultra low noise figure across the entire TV band — Low VHF, High VHF, and UHF, at 0.9 dB and reaching as low as 0.5 dB on UHF — making it the lowest-noise TV preamplifier available with automatic gain control and built-in filtering. That last part matters. Achieving a relatively low noise figure is relatively easy in a basic, fixed-gain amplifier with no protection. Doing it while keeping steep FM, LTE, and 5G filtering and intelligent automatic gain control is not, because those features normally tax the noise performance. Using state-of-the-art low-noise components and RF design, Televes engineered the Preamp 3 to deliver both, so you get the cleanest possible signal without giving up the features that protect it. At its core is Televes' proprietary TForce automatic gain control, which continuously adapts to changing conditions. When signals are strong, gain adjusts down to avoid overload. When signals are weak, gain increases to compensate. The result is a consistently clean, balanced output at all times, without any manual adjustment. The integrated FM, LTE, and 5G filters ensure only the TV signals you want are amplified, blocking the most common interference and overload sources before they can degrade your picture. Housed in an all-new rugged outdoor enclosure with a high-screening metal chassis, the Preamp 3 mounts directly to your antenna mast and is powered over the same coaxial cable through the included UL-listed power supply, which provides two outputs for distributing the amplified signal to multiple TVs. This is the single-input version, optimized for use with one antenna covering the full TV band.If you plan to combine two or more antennas, to combine signals from multiple directions or multiple broadcast markets, the Televes SmartKom (531983) is the right solution.
Features
The lowest noise of any intelligent TV preamplifier
Ultra low 0.9 dB noise figure across the entire TV band — Low VHF, High VHF, and UHF — reaching as low as 0.5 dB on UHF. Noise figure is the spec that decides whether weak, distant channels are watchable, and no other preamplifier with automatic gain control and built-in filtering comes close.
Built-in filtering means nothing extra to buy
Steep, precision-tuned filters block FM radio, LTE, and 5G cell signals (above 608 MHz) before they reach your system, eliminating the most common sources of OTA interference and amplifier overload right at the antenna.

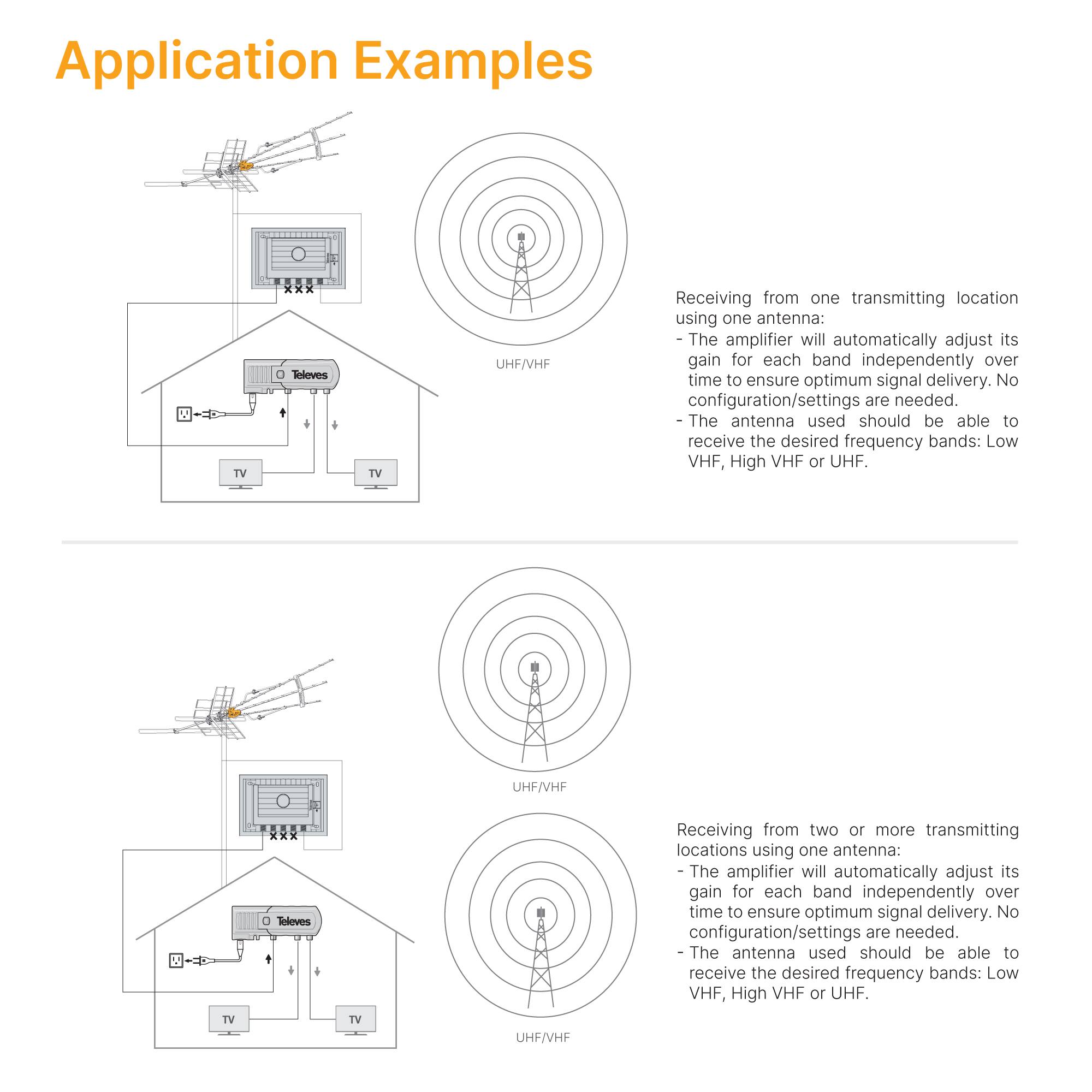

One input, full band, serious gain
Designed for single-antenna installations covering the complete TV band with 33 dB of gain and high 48 dBmV output. And thanks to the TForce automatic gain control, those 33 dB never underdrive or overdrive your system — the preamp applies exactly the gain your signal needs at every moment. Works with any TV antenna, bringing professional-grade low-noise amplification to third-party antennas too.
All-new rugged outdoor chassis

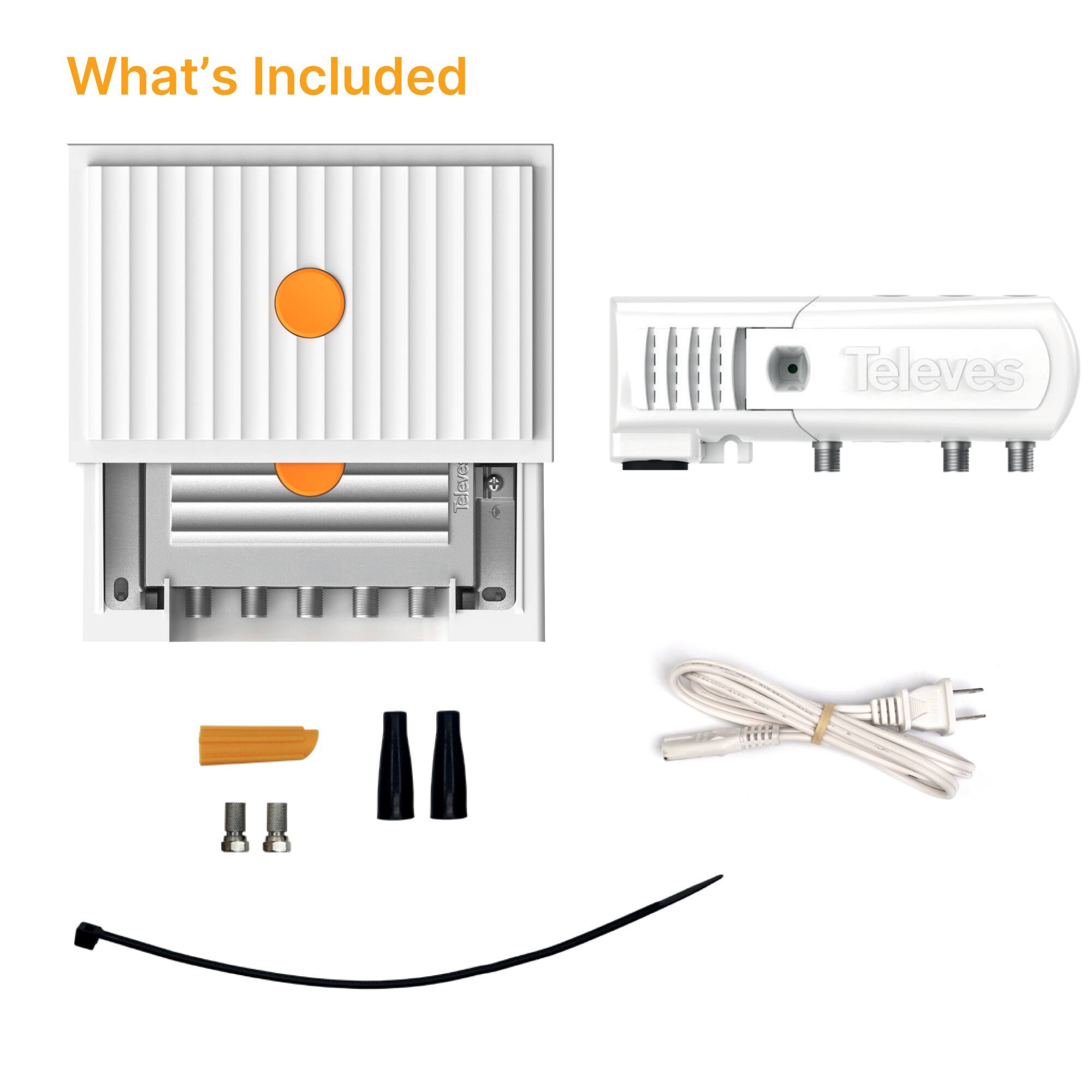

Next-generation enclosure with high-screening metal chassis for best-in-class electromagnetic shielding, rated IP23 for reliable outdoor mast mounting. Includes a UL-listed low-consumption power supply with 2 outputs for convenient whole-home distribution, powering the preamp over the same coax.
S Ready, NextGen TV compatible, Made in Spain
Fully optimized for the current US TV broadcast frequencies and ready for ATSC 3.0 (NextGen TV / 4K OTA). Designed and manufactured by Televes in Spain on fully automated, robotized Industry 4.0 production lines, with over 65 years of amplification engineering behind every unit.

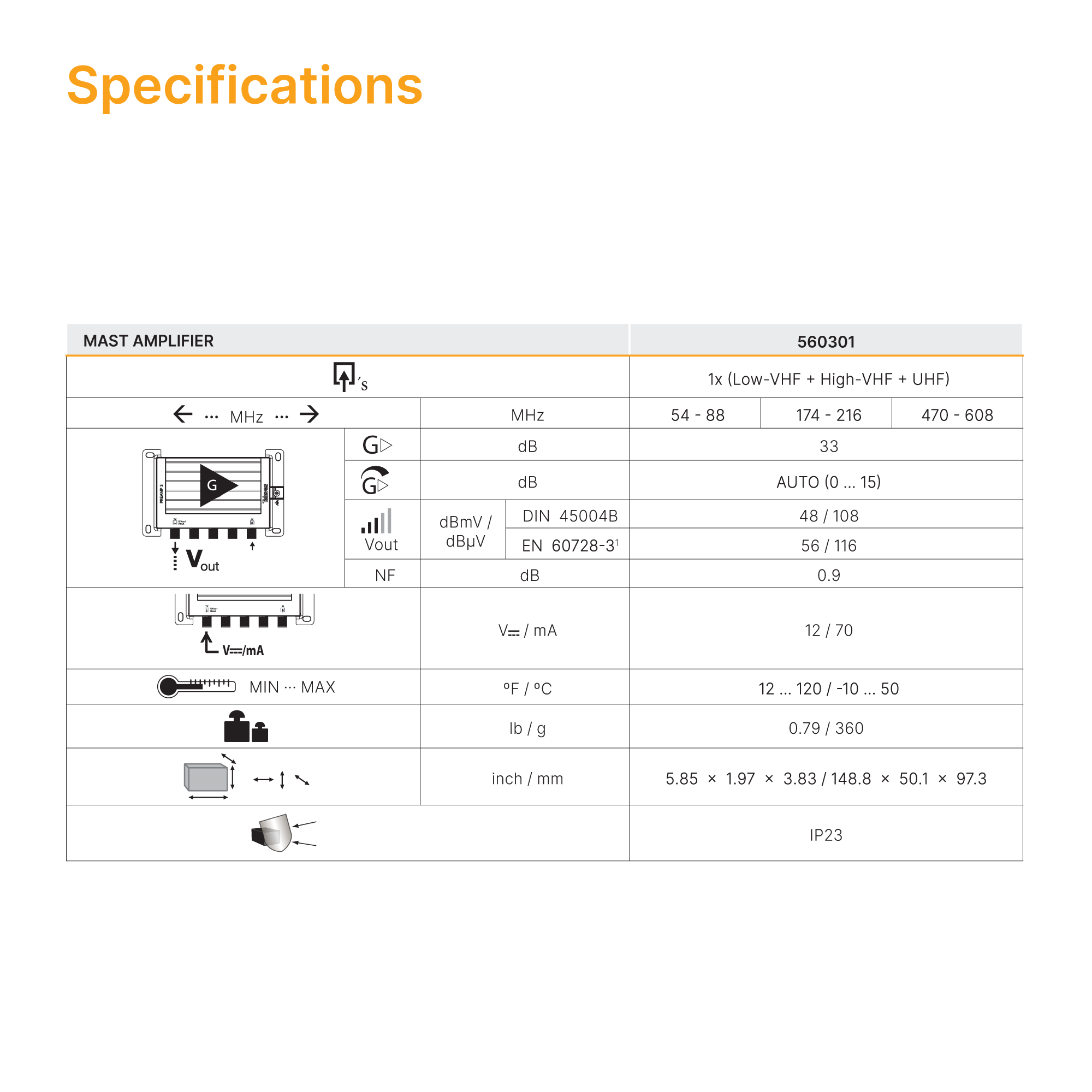

Specifications
- Continuous Watts x Channel @ OhmsNot ApplicableNumber of Channels1Network Connector(s)No network connectorsWireless ConnectivityNone
Reviews
This product doesn't have any reviews yet.
