Wavtech - LINK750.1PLUS 750 Watt Mono Amplifier - Black/Gray
Related Item
Specifications
- Amplifier ClassDNumber Of Channels1Bass BoostVariable
- Key Specs
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 1
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- General
- Brand: Wavtech
- Model Number: LINK750.1PLUS
- Product Name: Wavtech LINK750.1PLUS 750 Watt Mono Amplifier
- Color: Black/Gray
- Audio Power
- Total Power Handling RMS: 750 watts
- Total Power Handling Maximum: 1500 watts
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 1
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features
- Bluetooth Enabled: false (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Marine: false
- Dimensions
- Product Height: 11.000 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 2.000 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 6.000 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 5.0 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1-Year Manufacturer Warranty
- Warranty - Labor: None
- Other
- UPC: 700987201543

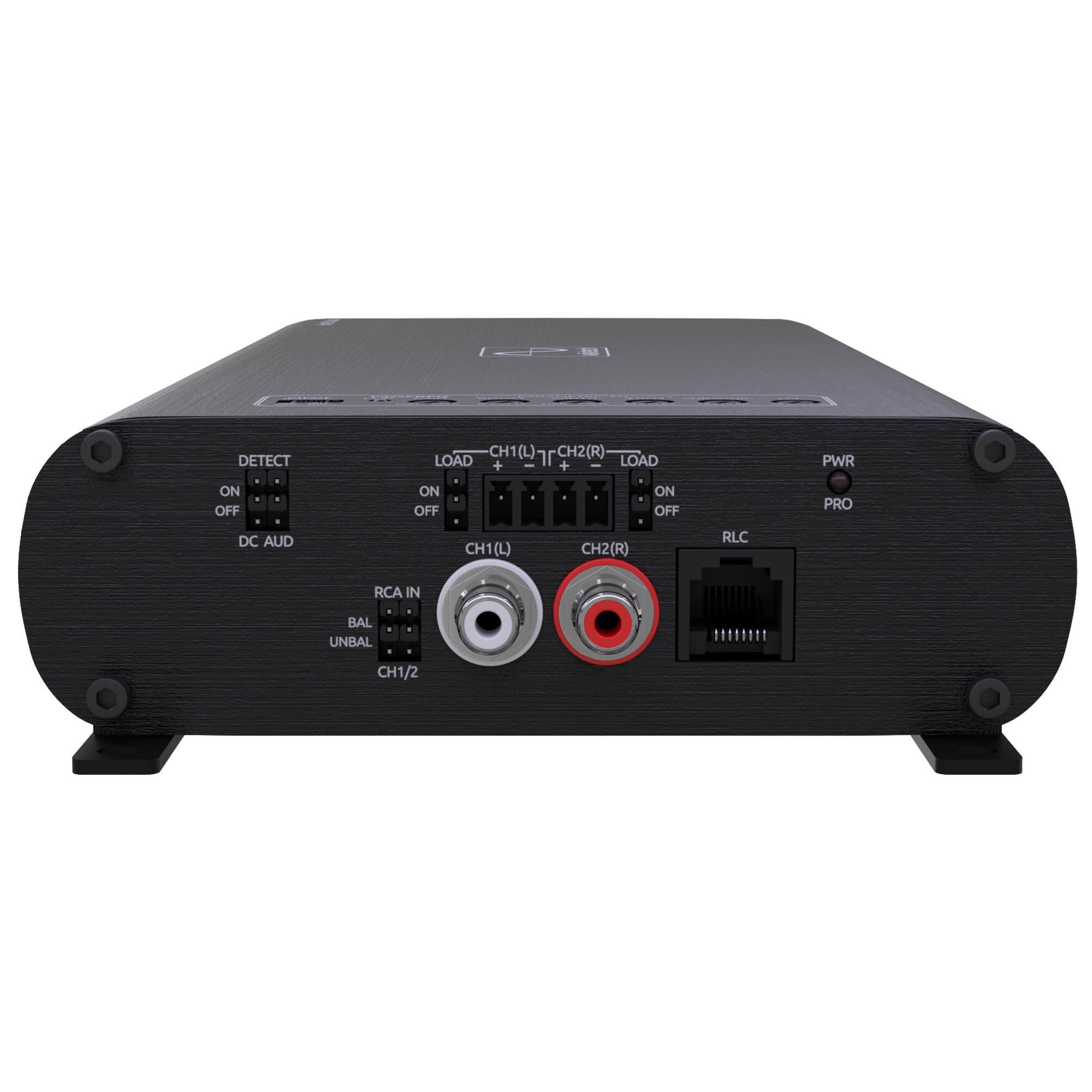

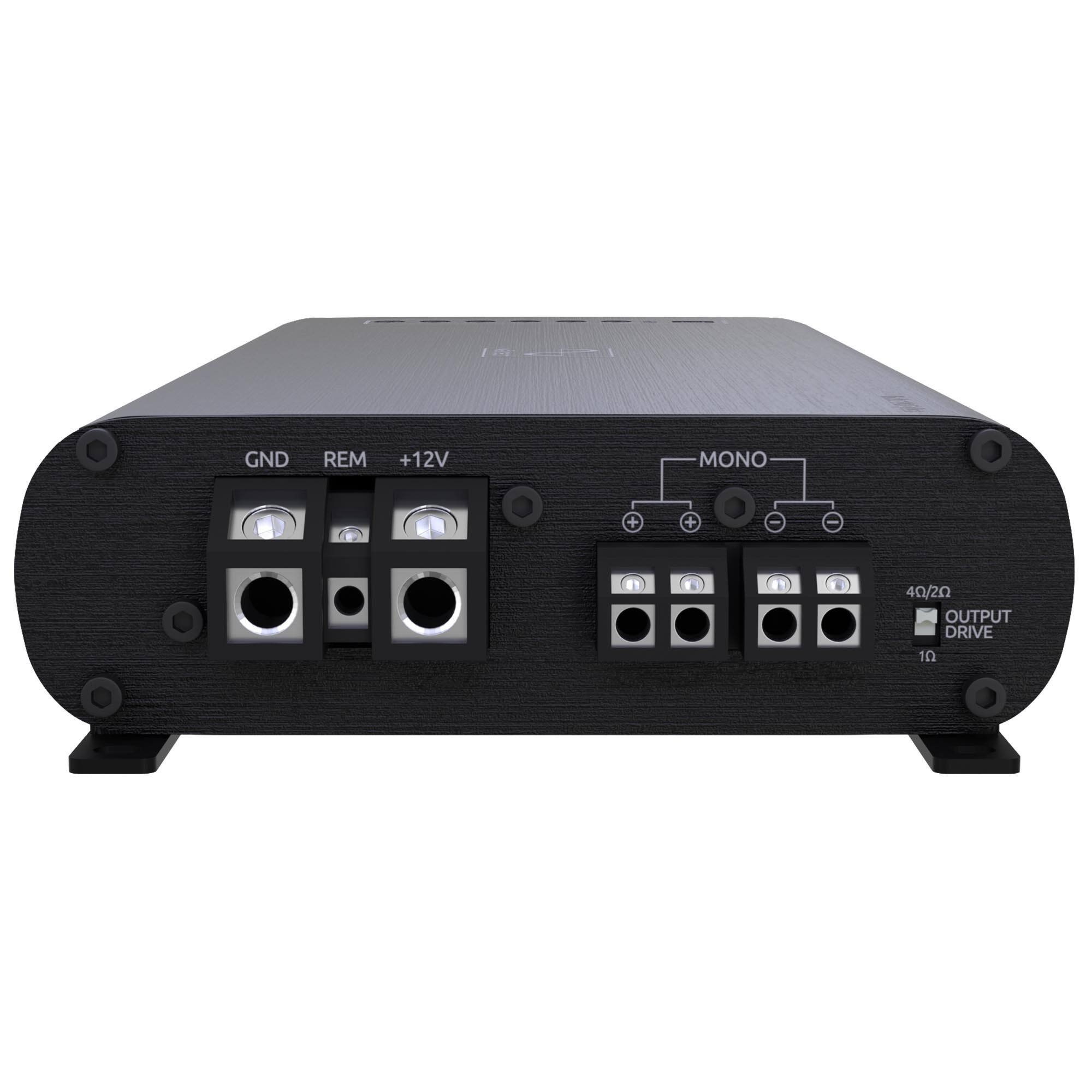

If your system requires a 1 ohm stable amplifier, but doesn’t need the power of link1500.1plus, the link750.1plus is the solution. Utilizing our proprietary Dual Rail Voltage Power Supply, the amp produces the same power output at either 2 or 1 ohm. During installation, select the impedance that matches your subwoofers using the 4/2 or 1 ohm switch and the amp does the rest. The link750.1plus can handle up to 40V and has our adaptive loading technology for OEM systems. It is also compatible with OEM start/stop systems. The bassFREQ preamp has a 24dB per octave crossover, adjustable parametric EQ and 24dB per octave subsonic filter for the best subwoofer tuning possible. It is compatible with the optional linkRC remote control. link750.1plus Features 750 Watt Mono Amplifier 400 watts x 1 @ 4 ohms 750 watts x 1 @ 2 ohms 750 watts x 1 @ 1 ohm Small Footprint Only 10.25”x5.5”x1.65” Dual Rail Voltage Power Supply Fully Adjustable Parametric EQ Variable Low-Pass Crossover (-24dB/oct) Variable Subsonic Filter (-24dB/oct) Remote Level Control (RLC) w/Optional linkRC bassFREQ Bass Processor w/Parametic EQ Active Thermal Management Start/Stop System Compatible Adaptive OEM Load Technology 40V Input Capability Differential Balanced Inputs Variable Gain Adjustment w/Clip LED Auto Turn-On via DC-Offset or Audio Signal Detect Locking Detachable Hi-Level Speaker Terminals 4 Gauge Power/Ground Terminals Professional Grade Panel Mount RCA’s Compact Aluminum Chassis w/Detachable Mounting tabs link750.1plus Specifications Input Sensitivity SPK: 1-20Vrms, 2-40Vrms RCA: 0.2V-5Vrms, 0.4V-10Vrms Max Input Voltage (SPK): 40Vrms Frequency Response: 500Hz (=0/-3dB) THD+N: <1% at rated power S/N: >78dBA (1W, 4Ω)
- Key Feature: Dual Rail Voltage Power Supply
- Key Feature: Fully Adjustable Parametric EQ
- Key Feature: Variable Low-Pass Crossover (-24dB/oct)
- Key Feature: Variable Subsonic Filter (-24dB/oct)
- Key Feature: Remote Level Control (RLC) w/Optional linkRC
Whats Included
- Wavtech LINK750.1PLUS 750 Watt Mono Amplifier
Compare similar products
If your system requires a 1 ohm stable amplifier, but doesn’t need the power of link1500.1plus, the link750.1plus is the solution. Utilizing our proprietary Dual Rail Voltage Power Supply, the amp produces the same power output at either 2 or 1 ohm. During installation, select the impedance that matches your subwoofers using the 4/2 or 1 ohm switch and the amp does the rest. The link750.1plus can handle up to 40V and has our adaptive loading technology for OEM systems. It is also compatible with OEM start/stop systems. The bassFREQ preamp has a 24dB per octave crossover, adjustable parametric EQ and 24dB per octave subsonic filter for the best subwoofer tuning possible. It is compatible with the optional linkRC remote control. link750.1plus Features 750 Watt Mono Amplifier 400 watts x 1 @ 4 ohms 750 watts x 1 @ 2 ohms 750 watts x 1 @ 1 ohm Small Footprint Only 10.25”x5.5”x1.65” Dual Rail Voltage Power Supply Fully Adjustable Parametric EQ Variable Low-Pass Crossover (-24dB/oct) Variable Subsonic Filter (-24dB/oct) Remote Level Control (RLC) w/Optional linkRC bassFREQ Bass Processor w/Parametic EQ Active Thermal Management Start/Stop System Compatible Adaptive OEM Load Technology 40V Input Capability Differential Balanced Inputs Variable Gain Adjustment w/Clip LED Auto Turn-On via DC-Offset or Audio Signal Detect Locking Detachable Hi-Level Speaker Terminals 4 Gauge Power/Ground Terminals Professional Grade Panel Mount RCA’s Compact Aluminum Chassis w/Detachable Mounting tabs link750.1plus Specifications Input Sensitivity SPK: 1-20Vrms, 2-40Vrms RCA: 0.2V-5Vrms, 0.4V-10Vrms Max Input Voltage (SPK): 40Vrms Frequency Response: 500Hz (=0/-3dB) THD+N: 78dBA (1W, 4Ω)
Enhance your factory or aftermarket radio and sound system with the Alpine OPTIM 8. Featuring a built-in 8-channel amplifier with Hi-Res Audio playback up to 96kHz/24Bit, the OPTIM 8 is the all-in-one sound solution to amplify and effortlessly sound-tune your system in minutes.
The Pioneer GM-DX874 four-channel amplifier will deliver up to 150 watts RMS to each of your front and rear speakers for powerful music. Highly efficient Class D technology keeps this powerful amp running as cool as it looks, and allows for a compact chassis that fits in a lot of out of the way spaces. The frequency response of this amplifier stretches up to 50,000 Hz, for Hi-Res Audio Certified playback. Pioneer uses high-grade electronic parts and gold-plated RCA connections to ensure maximum performance. Speaker-level inputs allow you to install this amp in a factory system with no RCA connections. The amplifier switches its input mode automatically when it detects the high-level signal, eliminating the need to run a turn-on lead to your receiver or fuse box. Built-in high- and low-pass filters let you adjust the sound for your vehicle's interior, whether you're driving speakers or subs.
| Pros for Wavtech - LINK750.1PLUS 750 Watt Mono Amplifier - Black/Gray | |||
|---|---|---|---|
| There were no pros for this product— | There were no pros for this product— | There were no pros for this product— | Sound Quality, Power, Installation Ease, Size |
| Cons for Wavtech - LINK750.1PLUS 750 Watt Mono Amplifier - Black/Gray | |||
| There were no cons for this product— | There were no cons for this product— | There were no cons for this product— | Heat Dissipation |
