Zephyr - 36 inches - Convertible - Wall Range Hood - Stainless Steel/Glass
Color
Stainless Steel/GlassDelivery to
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Related Item
Specifications
- Color FinishStainless steelProduct Height23 inchesProduct Width35.1875 inchesProduct Depth19.75 inchesExhaust Vent LocationTopVent TypeDucted, Ductless
- Key Specs
- Color Finish: Stainless steel
- Product Height: 23 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35.1875 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19.75 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Zephyr
- Model Number: BMI-E36DG

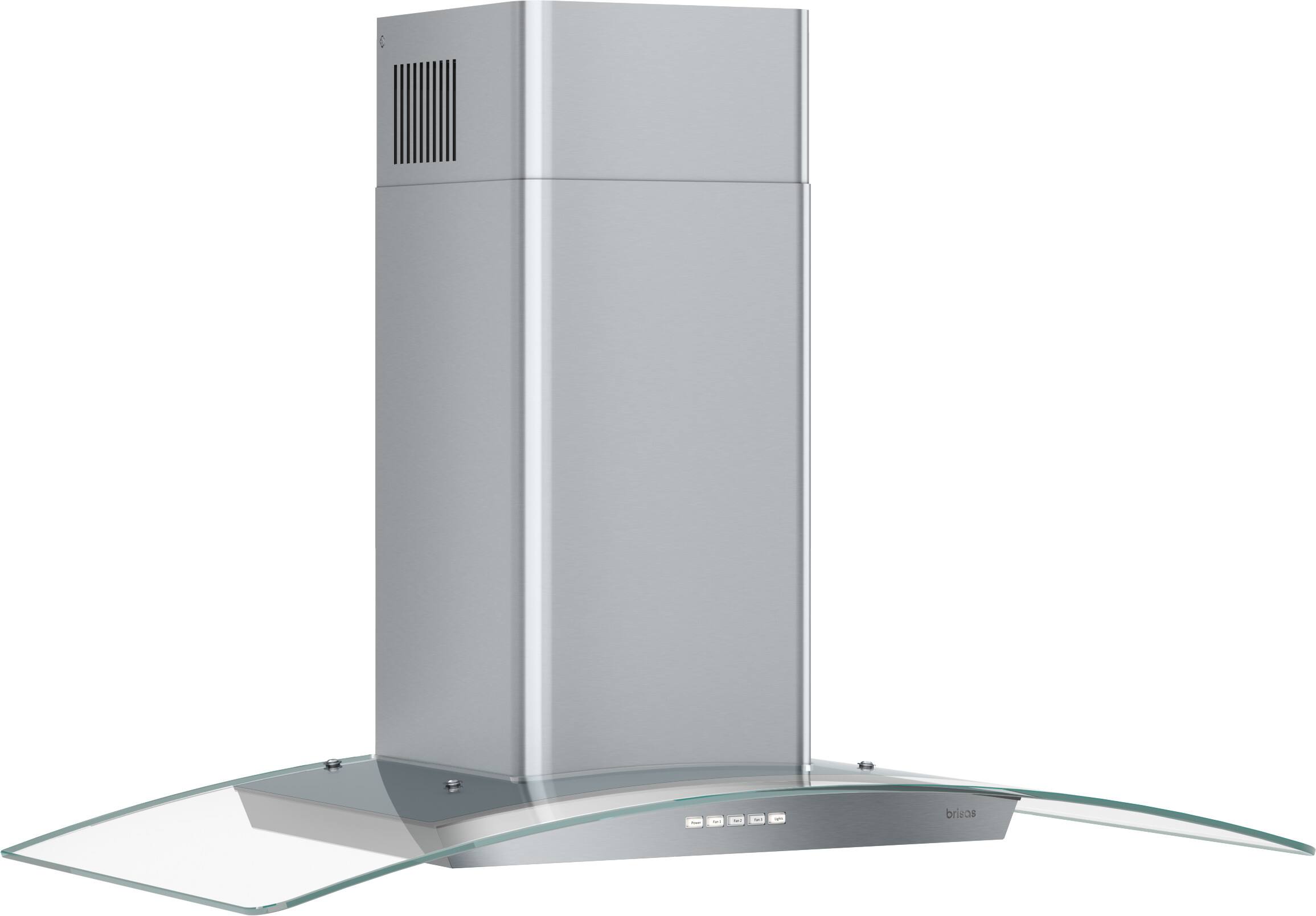

- Product Name: Brisas 36 in. 600 CFM Curved Glass Wall Mount Range Hood with LED Lights
- Color: Stainless Steel/Glass
- Color Finish: Stainless steel
- Dimensions
- Product Height: 23 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 24 inches
- Product Width: 35.1875 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19.75 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 50 pounds (The out of box weight of the item.)
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Wall
- Number of Fan Speeds: 3
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: true
- Remote Control: false
- Damper Included: false
- Performance
- Maximum Air Flow Capacity: 600 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 290 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Maximum Operating Sound Level: 6 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Filter Material: Mesh
- Dishwasher-Safe Filter: true
- Electrical Specification
- Amperage: 2.6 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 646328012563
Modeled after the classic European design range hoods, Brisas BMI also performs like one. Its 600-CFM motor is at home over induction or gas ranges, and its supersized 5-ply aluminum mesh filter can handle even the greasiest dish. Crowned with a clear, curved-glass canopy, Brisas BMI is always in style. Upgraded with LumiLight LED lighting and electronic touch controls.

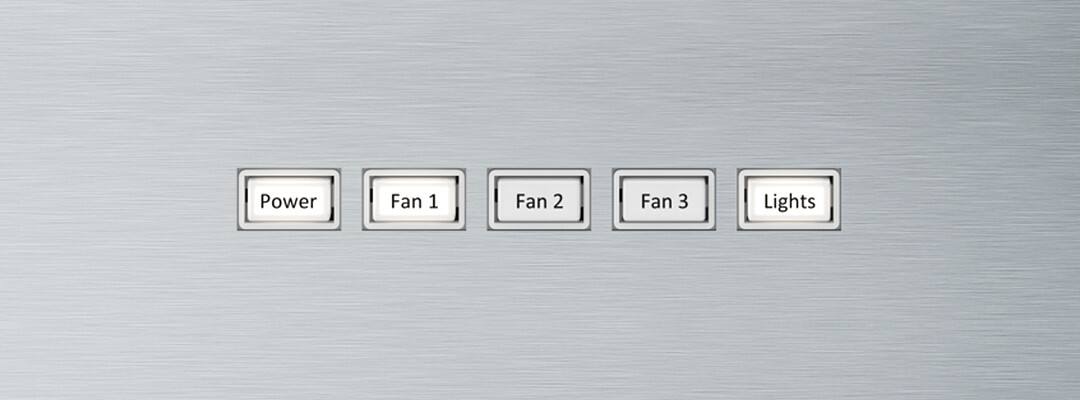

- Electronic Touch Controls: Electronic touch controls adjust the range hood blower and LED light levels, and enable the auto delay-off function.
- Airflow Control Technology (ACT): Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- LumiLight LED Lighting: LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours.
- Dishwasher Safe Aluminum Mesh Filters: High-quality, dishwasher-safe aluminum mesh filters for improved capture and performance.
- Dual-Level Lighting: The dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Optional Ductless Recirculating Kit: Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
- Optional Extension Duct Cover Kit: Extension duct cover kit to accommodate ceiling heights up to 12 ft see spec sheets for more details.
Whats Included
- Brisas 36 in. 600 CFM Curved Glass Wall Mount Range Hood with LED Lights in Stainless Steel
Q: What is the minimum installation height above the cooktop?
A: The minimum installation height above the cooktop is 24 inches.
Q: What is the maximum air flow capacity of the range hood?
A: The maximum air flow capacity of this range hood is 600 cubic feet per minute.
Q: How many fan speeds does the range hood have?
A: This range hood has three fan speeds.
Q: Can the range hood be used with both induction and gas ranges?
A: This range hood's 600-CFM motor is compatible with both induction and gas ranges.
Q: Is the range hood filter dishwasher-safe?
A: The range hood filter is dishwasher-safe.
