ZLINE - 30 inches - Convertible - Wall Range Hood - Stainless Steel
- Key Specs
- Color Finish: Stainless steel
- Product Height: 13 1/5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: ZLINE
- Model Number: 696-304-36
- Product Name: 36 in. Outdoor Wall Mount Range Hood
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 13 1/5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 30 inches
- Maximum Installation Height Above Cooktop: 36 inches
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 54 pounds (The out of box weight of the item.)
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Wall
- Number of Fan Speeds: 4
- Control Type: Button
- Display Type: LCD
- Integrated Light(s): true
- Performance
- Maximum Air Flow Capacity: 700 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 280 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Filter Info
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Electrical Specification
- Voltage: 110 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 0 years
- Other
- UPC: 814118022379

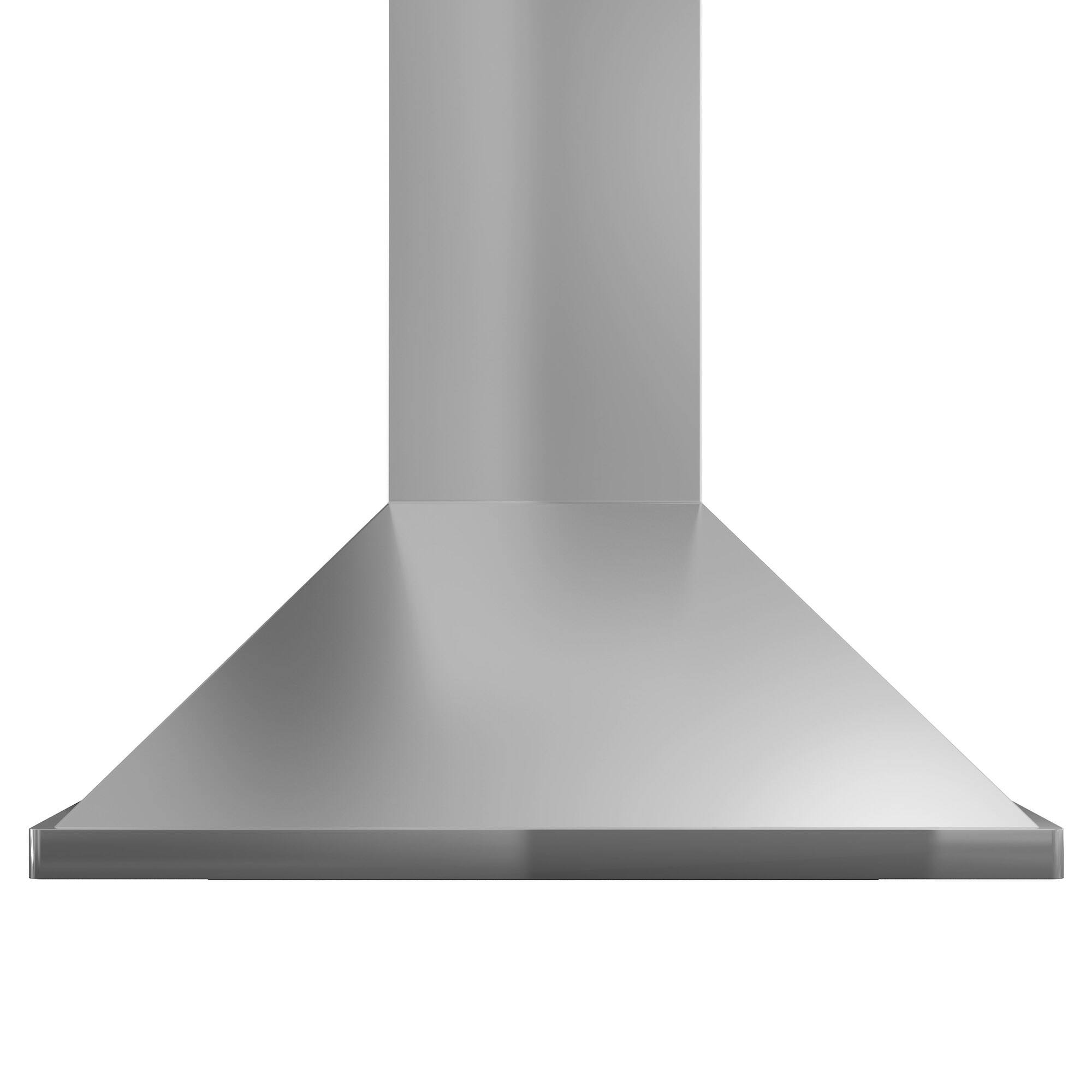

ZLINE 36 in. 700 CFM Outdoor Wall Mount Range Hood in Stainless Steel (696-304-36) has a modern design and built-to-last quality that would make it a great addition to any home or kitchen remodel. This hood’s high-performance 4-speed motor will provide all the power you need to quietly and efficiently ventilate your kitchen while cooking. High-quality 304 Grade Stainless Steel makes this hood approved for outdoor use. Modern features, including built-in lighting and dishwasher-safe stainless steel baffle filters for easy clean-up, will make using this hood a simple, enjoyable experience for years to come. ZLINE Hoods are ETL Listed and have one of the easiest installations in the industry. Includes two(2)-16 in. telescoping chimney pieces for approximately 8-9 ft. ceilings. Chimney Short Kits and Extensions (not included) are available for shorter or taller ceilings. ZLINE stands by all products with its Manufacturer Parts Warranty.
- Convertible: Vent out or recirculating (ductless) option with carbon filters (not included)
- Control Panel: Easy-to-use push button controls let's you easily control fan speed and lighting
- CFM: 4-speed fan control (120/360/480/700 CFM) let's you choose the appropriate air flow for your cooking situation
- Ductwork: Ductwork easily connects to the top of the range hood
- Baffle Filters: Dishwasher-safe Stainless Steel Baffle Filters
- Convertible: Vent out or recirculating (ductless) option with carbon filters (not included)
- Control Panel: Easy-to-use push button controls let's you easily control fan speed and lighting
- CFM: 4-speed fan control (120/360/480/700 CFM) let's you choose the appropriate air flow for your cooking situation
- Ductwork: Ductwork easily connects to the top of the range hood
- Baffle Filters: Dishwasher-safe Stainless Steel Baffle Filters
Q: what is the model # for vent covers to extend to 11' ?
A: Hi Chuck, Thanks for reaching out. Unfortunately, we only have an option for an extended chimney up to 9-10' ceilings. If we can be of further assistance in selecting the best items for your application, please don't hesitate to reach out at zlinekitchen.com/contact. Thank you.
Q: Wondering what size vent is needed for this hood?
A: Hi JD, Thanks for reaching out! This model uses 8" round ductwork. If there is anything else we can help you with, please feel free to reach out at zlinekitchen.com/contact. Thank you!
A: Hello, Thanks for reaching out! Yes, you are welcome to use this model indoors if you would like. There is no problem with that. We have multiple other models with 700 CFM too, so if we can be of further assistance, please reach out at zlinekitchen.com/contact. Thank you!
A: Hello, Thanks for reaching out! It looks like there is some conflicting information on this page. The highest amount of CFM this range hood can pull is 700. Fan speed one at 120 CFM is 20 dB, fan speed 2 at 360 CFM is 29 dB, fan speed 3 at 480 CFM is 34 dB, and fan speed 4 at 700 CFM is 41 dB. Please feel free to reach out at zlinekitchen.com/contact with any additional questions. Thank you!
