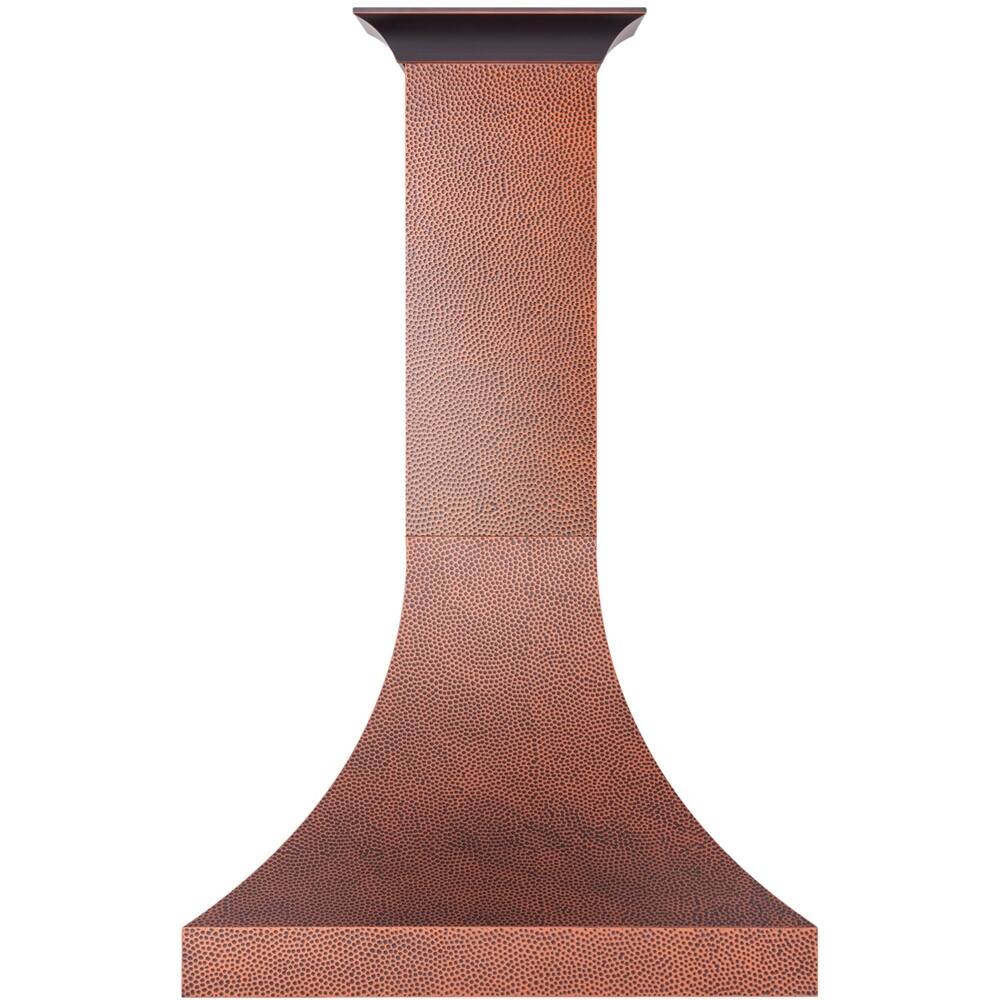

ZLINE - 48 inches - Externally Vented - Wall Range Hood - Hand Hammered Copper
- Key Specs
- Color Finish: Red
- Product Height: 74 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 48 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 23 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: ZLINE
- Model Number: 8632H-48
- Product Name: Designer Copper 48" Externally Vented Range Hood
- Color: Hand Hammered Copper
- Color Finish: Red
- Dimensions
- Product Height: 74 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 30 inches
- Product Width: 48 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 23 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 48 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 52 pounds (The out of box weight of the item.)
- Features
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Wall
- Number of Fan Speeds: 4
- Control Type: Button
- Integrated Light(s): true
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 6 watts
- Performance
- Maximum Air Flow Capacity: 700 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Filter Info
- Filter Material: Stainless steel
- Dishwasher-Safe Filter: true
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 812316030073
Eliminate odors in the kitchen with this 48-inch ZLINE Designer Series wall-mount range hood. The 700 CFM blower removes grease and excess steam, while the four-speed motor supports various airflow options. This ZLINE Designer Series wall-mount range hood has a stainless steel body for durability, and removable baffle filters for easy cleanup in the dishwasher.
How to Measure for a New Appliance
A little measuring now can help you avoid delivery headaches later.
Watch the video ›
- 700 CFM exhaust capacity: Quickly pull smoke and cooking odors out of the air.
- 4 fan-speed settings: Allow you to adjust ventilation to meet your needs.
- Pushbutton controls: Offer simple operation.
- Dual LED lights shine down on the cooktop: To illuminate your workspace.
- Dishwasher-safe grease filter: Dishwasher-safe filters trap unwanted grease and odors and wash easily for re-use.
- Handcrafted model with 304 grade stainless steel: Durable stainless steel providing fingerprint, rust, and scratch resistance.
- Hand hammered copper finish: Offers a stylish look.
- Designed to fit standard 6" round ductwork: For ease of installation.
- Sleek bell-shaped hood curvature and seamless custom crown molding: Emphasize the individuality of your kitchen.
- Shipping: This product ships in multiple boxes and will require minimal assembly upon arrival
- 700 CFM exhaust capacity: Quickly pull smoke and cooking odors out of the air.
- 4 fan-speed settings: Allow you to adjust ventilation to meet your needs.
- Pushbutton controls: Offer simple operation.
- Dual LED lights shine down on the cooktop: To illuminate your workspace.
- Dishwasher-safe grease filter: Dishwasher-safe filters trap unwanted grease and odors and wash easily for re-use.
- Handcrafted model with 304 grade stainless steel: Durable stainless steel providing fingerprint, rust, and scratch resistance.
- Hand hammered copper finish: Offers a stylish look.
- Designed to fit standard 6" round ductwork: For ease of installation.
- Sleek bell-shaped hood curvature and seamless custom crown molding: Emphasize the individuality of your kitchen.
- Shipping: This product ships in multiple boxes and will require minimal assembly upon arrival
Whats Included
- ZLINE Designer Copper 48" Externally Vented Range Hood
- ZLINE Designer Copper 48" Externally Vented Range Hood
Product Manuals
Q: How is this range hood controlled?
A: This range hood uses push-button controls for simple operation.
Q: How many fan speeds does this ZLINE range hood have?
A: This range hood offers four fan-speed settings.
Q: What type of lighting does this range hood use?
A: The ZLINE range hood uses dual LED lights to illuminate the cooktop.
Q: What is the maximum airflow capacity of this range hood?
A: This ZLINE range hood has a maximum airflow capacity of 700 CFM.
Q: Is the grease filter dishwasher safe?
A: Yes, the grease filter is dishwasher safe for easy cleaning.
Q: What is the primary material used in the construction of this range hood?
A: This range hood is handcrafted with 304 grade stainless steel.
Q: What type of ductwork is this range hood designed for?
A: It is designed to fit standard 6" round ductwork.
Q: Does the this vented range hood include the blower, or does that need to be purchased separately?
A: Hello! Thank you for reaching out to us. Externally vented range hoods are range hoods that need an external duct to expel air and contaminants. Additionally, the motor is installed to the base of the range hood itself, which is included and already installed with purchase. The difference between this externally vented range hood and a remote blower is that the range hood with a remote blower has the motor installed in an attic to reduce noise. Please let us know if you have any further questions that we can assist you with. Thank you!
