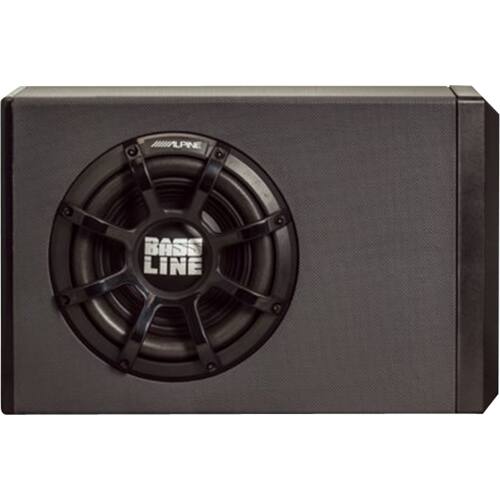

Alpine - Bassline 10" Single-Voice-Coil 2-Ohm Loaded Subwoofer Enclosure with Integrated 250W Amp - Black

Name: Alpine - Bassline 10" Single-Voice-Coil 2-Ohm Loaded Subwoofer Enclosure with Integrated 250W Amp - Black
Brand: Alpine
SKU: 5210500
Rating: 5 (5 reviews)

Model: PWA-S10V

SKU: 5210500

This item is no longer available in new condition. See similar items below

Key Specs
- RMS Power: 250 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 750 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Continuous Watts x Channel @ Ohms: 250 x 1 x 2
- Maximum Watts x Channel @ Ohms: 250 x 1 x 2 (This is the maximum load the speaker, subwoofer or amp can drive.)
- Impedance: 2 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Minimum Frequency Response: 26 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 0.4 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Sensitivity: 85 decibels
- Dual Voice Coils: false
- Woofer Size: 10 inches
General
- Product Name: Bassline 10" Single-Voice-Coil 2-Ohm Loaded Subwoofer Enclosure with Integrated 250W Amp
- Brand: Alpine
- Model Number: PWA-S10V
Audio Power
- RMS Power: 250 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 750 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Integrated Amplifier: true
- Continuous Watts x Channel @ Ohms: 250 x 1 x 2
- Maximum Watts x Channel @ Ohms: 250 x 1 x 2 (This is the maximum load the speaker, subwoofer or amp can drive.)
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
Audio
- Impedance: 2 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Minimum Frequency Response: 26 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 0.4 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Sensitivity: 85 decibels
- Signal-to-Noise Ratio (SNR): 105 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
Features
- Dual Voice Coils: false
- Grille Included: true
- MOSFET Power Supply: true (A specific type of power supply with the advantages of high switching speed and efficiency at low voltages.)
- Low-Pass Crossover: Variable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Fan Cooled: false
Dimensions
- Woofer Size: 10 inches
- Product Height: 16.4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 24.1 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 15.4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 32.41 pounds (The out of box weight of the item.)
Enclosure
- Enclosed: true
- Enclosure Type: Bandpass
- Box Material: Steel
- Box Covering Material: Other
Other
- UPC: 793276210098

Add a bit of oomph to your car stereo with this Alpine single power subwoofer, and enjoy pure bass from its 10-inch enclosure. Pre-amp and speaker level inputs let you connect your components with remote sensing automatic turn-on when the inputs are in use. Two metal mounting plates make installing this Alpine single power subwoofer simple.

Handles up to 750W peak power (250W RMS): To deliver rich sound
Steel angled enclosure box: Durable Box Construction with Textured Vinyl Finish
Built-In 250W RMS Class D amplifier: Ssubwoofer mounted with an MRV-M250 amplifier in a ported enclosure, eliminating the need to install a separate amplifier
Easy-access side panel: For RCA and auto sensing speaker inputs
Extremely flexible installation options: The all-in-one design of the PWA-S10V means you don’t have to give up trunk space for both a subwoofer and separate amplifier
2 ohms impedance: Conducts power evenly to keep the subwoofer at an appropriate level
