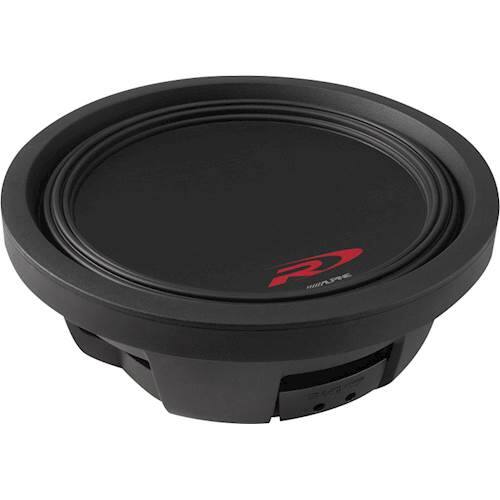

Name: Alpine - Type-R Thin 10" Single-Voice-Coil 4-Ohm Subwoofer - Black
Brand: Alpine
SKU: 4202777
Rating: 0 (0 reviews)

Key Specs
- RMS Power: 600 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 1800 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Impedance: 4 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Minimum Frequency Response: 28 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 0.2 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Sensitivity: 83 decibels
- Dual Voice Coils: false
- Woofer Size: 10 inches
- Mount Depth: 3.25 inches
- Woofer Composition: parabolic aluminum cone
- Woofer Surround Material: Santoprene
General
- Product Name: Type-R Thin 10" Single-Voice-Coil 4-Ohm Subwoofer
- Brand: Alpine
- Number of Subwoofers Included: 1
- Model Number: SWR-T10
Audio Power
- RMS Power: 600 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 1800 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
Audio
- Impedance: 4 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Minimum Frequency Response: 28 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 0.2 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Sensitivity: 83 decibels
Features
- Dual Voice Coils: false
- Grille Included: false
- Marine: false
Dimensions
- Woofer Size: 10 inches
- Cutout Diameter: 9.125 inches
- Mount Depth: 3.25 inches
- Magnet Size: 24 ounces
- Product Height: 8.7 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 7.1 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 3.9 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 14 pounds (The out of box weight of the item.)
Design
- Woofer Composition: parabolic aluminum cone
- Woofer Surround Material: Santoprene
- Frame Material(s): Other
Enclosure
- Enclosed: false
Other
- UPC: 793276601520

Get rich bass out of this 10-inch Alpine Type-R thin subwoofer. Its 3.25-inch depth enables shallow-mount installation in compact enclosures, and its segmented TPE spider design provides optimal peak excursion for maximum output. This 600W Alpine Type-R thin subwoofer produces powerful low-frequency details at 28-200Hz, and its FEA-optimized motor structure reduces distortion.

Geek Squad® Installation Recommended
Visit your local Best Buy store for more information.

Handles up to 1800W peak output at 4 ohms: Produces powerful sound.
28Hz-200Hz frequency response: Offers a wide range of accurate sound production.
9.1" mounting diameter and 3.25" mounting depth: For a proper fit.
4-ohm impedance: Conducts power evenly to keep the speaker at an appropriate level.
Radial vented VC heat sink and airflow management system: Actively manages voice coil temperatures by forcing air directly across the heat sink system.
FEA-optimized dual-sided machined CRC motor structure: Creates a symmetrical magnetic field with evenly distributed flux density to greatly reduce distortion while further improving power handling and output.
FEA-optimized injection-molded TPE spider with pass-through gap design: Provides the mechanical clearance needed for over 50mm of peak-to-peak excursion, unleashing massive output potential from a small package.
FEA-optimized HAMR Surround: The High Amplitude Multi-Roll (HAMR) Surround design allows for extreme excursions without sacrificing valuable cone area.
