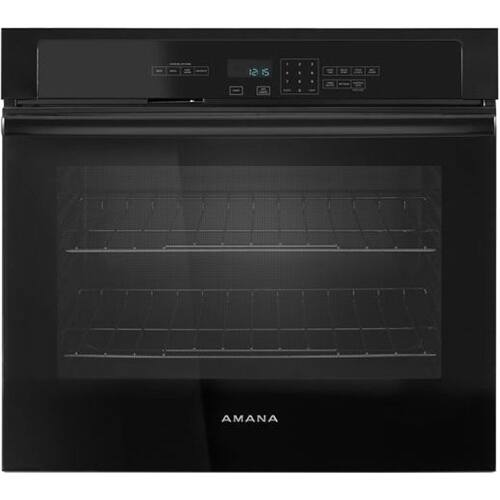

Amana - 30" Built-In Single Electric Wall Oven
Model: AWO6313SFB
SKU: 5055700
This item is no longer available in new condition. See similar items below
- Key Specs
- Product Height: 28 3/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 23 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Color Finish: Black
- General
- Product Name: 30" Built-In Single Electric Wall Oven
- Brand: Amana
- Model Number: AWO6313SFB
- Color Finish: Black
- Dimensions
- Product Height: 28 3/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 23 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Depth With Door 90 Degrees Open: 46 3/4 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Interior Oven Height: 18 inches
- Interior Oven Width: 25 inches
- Interior Oven Depth: 19 inches
- Product Weight: 245 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 28 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 28 1/2 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 23 1/4 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Oven Capacity: 5 cubic feet (Standard ovens typically have capacities of about 5 cubic feet, while wall ovens typically have about 3 cubic feet of space.)
- Features
- Oven Type: Single wall oven
- Oven Power Source: Electric
- Auto Shut-Off: false (Feature automatically turns off the product.)
- Clock Display: true
- Oven Light: true
- Functions
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Hidden Bake Element: true (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Time Bake: true (Allows you to program the appliance to run at a pre-determined time and automatically turn off when baking time is finished. Plan for mealtime or entertaining by setting your oven to start baking at a convenient time and reduce the worry of overcooking your food with the automatic shut off feature.)
- Rapid Preheat: false
- Dehydration Settings: false (This function sets the oven at a low temperature, typically under 200 degrees Fahrenheit, for an extended period of time. During this time, warm air circulates throughout the oven to draw moisture out of foods.)
- Bake Element: 2800 watts
- Broil Element: 3600 watts
- Oven Features
- Oven Convection: false (A cooking process that consistently circulates heated air to quickly and evenly cook food.)
- Oven Cleaning Method: Self-High Heat Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Oven Window: true
- Number of Oven Racks: 2
- Number of Rack Positions: 6
- Electrical Specification
- Amperage: 20 amperes (Strength of electrical current.)
- Voltage: 240 volts (Amount of power needed to support an electrical current.)
- Amperage At 208 Volts: true
- Amperage At 240 Volts: true
- Kilowatt Rating At 208 Volts: true
- Kilowatt Rating At 240 Volts: true
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Other
- UPC: 883049391175
Cook for your family without taking up valuable kitchen space with this Amana electric wall oven that features the FIT system for a perfect fit with your cabinet cutout. The large 5.0-cubic-foot capacity offers more than enough room for even large roasts, and this Amana electric wall oven uses TempAssure technology for thorough even heating.
- Electronic touch controls: Enable easy operation. Clock and kitchen timer help you coordinate cooking times. Preheat signal provides an audible alert when the oven is ready for use.
- 5.0 cu. ft. capacity: Provides plenty of cooking space. Two heavy-duty racks can be placed in 6 embossed positions to accommodate cookware of various shapes and sizes.
- Delay-bake: Allows you to preset the oven to start at a predetermined time. Proof and warm modes provide versatility to meet your cooking needs.
- Sabbath mode: Safely maintains a temperature for an extended period of time in order to comply with kosher cooking practices.
- Self-cleaning system: With steam and light-clean options makes cleaning the oven a simple chore. Delay-clean option lets you clean the oven while you run errands or attend to other tasks.
- Interior oven light: Two incandescent bulbs provide enough light to help you see every juicy detail.
- Oven windows: Includes extra large window.
Whats Included
- Amana 30" Built-In Single Electric Wall Oven
- Owner's manual
Product Manuals
Q: What is the maximum size opening in the wall will this unit except and the trim be able to cover
A: Hi Ken, please view the installation guide and the specifications section at http://bit.ly/2pKB7JX for information in regards to dimensions and location requirements.
Q: What year was this made? My serial no. Is 18327582wb
A: undefined
Q: Amana 30 " electric oven: What color are the display lights? Green or blue? LED?
A: Good question annmarie. This particular unit has blue in color display.
Q: What features? is it self cleaning ?
A: Is self cleaning
Q: Is this a stock item I can pick up
A: I had to order mine.
A: undefined
Q: How to turn off rapid preheat or is it a normal function?
A: undefined
A: You don't have to actually take the rack out of the oven, you just aren't supposed to put food on more than one rack after using that kind of rapid preheat.
