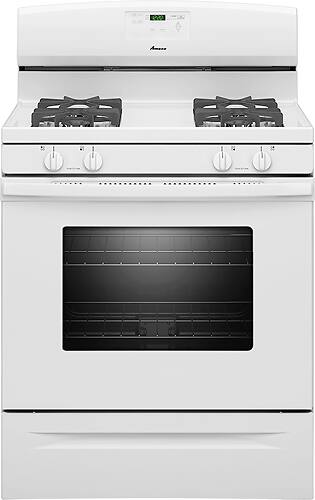

Amana - 5.0 Cu. Ft. Self-Cleaning Freestanding Gas Range - White
Model: AGR5630BDW
SKU: 6917038
This item is no longer available in new condition. See similar items below
- Key Specs
- Product Height: 46.88 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29.88 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27.88 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Oven Cleaning Method: Self-cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Single/Double Oven: Single Oven
- Color Finish: White
- General
- Product Name: 5.0 Cu. Ft. Self-Cleaning Freestanding Gas Range
- Brand: Amana
- Model Number: AGR5630BDW
- Color Finish: White
- Dimensions
- Product Height: 46.88 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29.88 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27.88 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 162 pounds (The out of box weight of the item.)
- Capacity
- Oven Capacity: 5 cubic feet (Standard ovens typically have capacities of about 5 cubic feet, while wall ovens typically have about 3 cubic feet of space.)
- Features
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Range Power Source: Gas
- Oven Control Location: Rear panel
- Oven Light: true
- Functions
- Sabbath Mode: false (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Oven Features
- Oven Cleaning Method: Self-cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Single/Double Oven: Single Oven
- Broiler Location: Oven
- Oven Window: true
- Cooktop Features
- Sealed Burners: true (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Specialty Burner(s): Simmer (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
- Grate Material: Porcelain
- Burner Rating
- Burner 1 Rating: 12500 british thermal units (An average home cooktop burner gives off about 7,000 BTUs of heating power. Burners with higher BTU ratings are better suited for searing or stir-fry cooking, while lower burner ratings are ideal for simmering.)
- Burner 2 Rating: 9500 british thermal units
- Burner 3 Rating: 9500 british thermal units
- Burner 4 Rating: 5000 british thermal units
- Other
- UPC: 883049285535
Amana 30" Self-Cleaning Slide-In Gas Convection Range: Cook multiple courses at once for large gatherings in a large oven with 2 adjustable oven racks. The SpillSaver cooktop and sealed burners, makes cleaning easy.
How to Prepare for Delivery and Installation
Learn how to get ready for the delivery and installation of your new gas range. Walk the path, check your hookups, order new parts, and empty your old range.
Watch the video ›
- 4 burners with varying BTU levels deliver flexible heating options: Two 9,500 BTU burners, one 5,000 BTU burner and one 12,500 BTU burner.
- Self-cleaning oven: Conveniently eliminates the need to scrub by doing the cleaning for you.
- 5.0 cu. ft. oven with 2 adjustable oven racks: Accommodates multiple courses simultaneously, so you can cook for a group in less time.
- Storage drawer: Provides a convenient place to store cookie sheets and cooling racks.
- Sealed burners: Eliminate the space between the burners and the cooktop to keep spills from spreading.
- SpillSaver upswept cooktop: Wipes down quickly and keeps spills contained for easy cleaning.
- Precise simmer burner for sauces and specialty foods: Delivers a low heat setting of 140° to slowly heat without scorching.
- Large window and interior oven light: Let you keep an eye on food being cooked without opening the oven door and letting heat escape.
Whats Included
- 30" Self-Cleaning Freestanding Gas Range
- Gas connector is not included
- Owner's manual
Q: Are the burner grates four separate gratesor one or two pieces
A: Hi Bud, on this Amana - 5.0 Cu. Ft. Self-Cleaning Freestanding Gas Range, there are two grates.
Q: What size is the gas line? Will it fit older homes (1940s)? Or does one need an adapter?
A: Jim- Here is a link to the instructions for installation. Gas line info is located on page 5. http://bit.ly/2vjiosD
