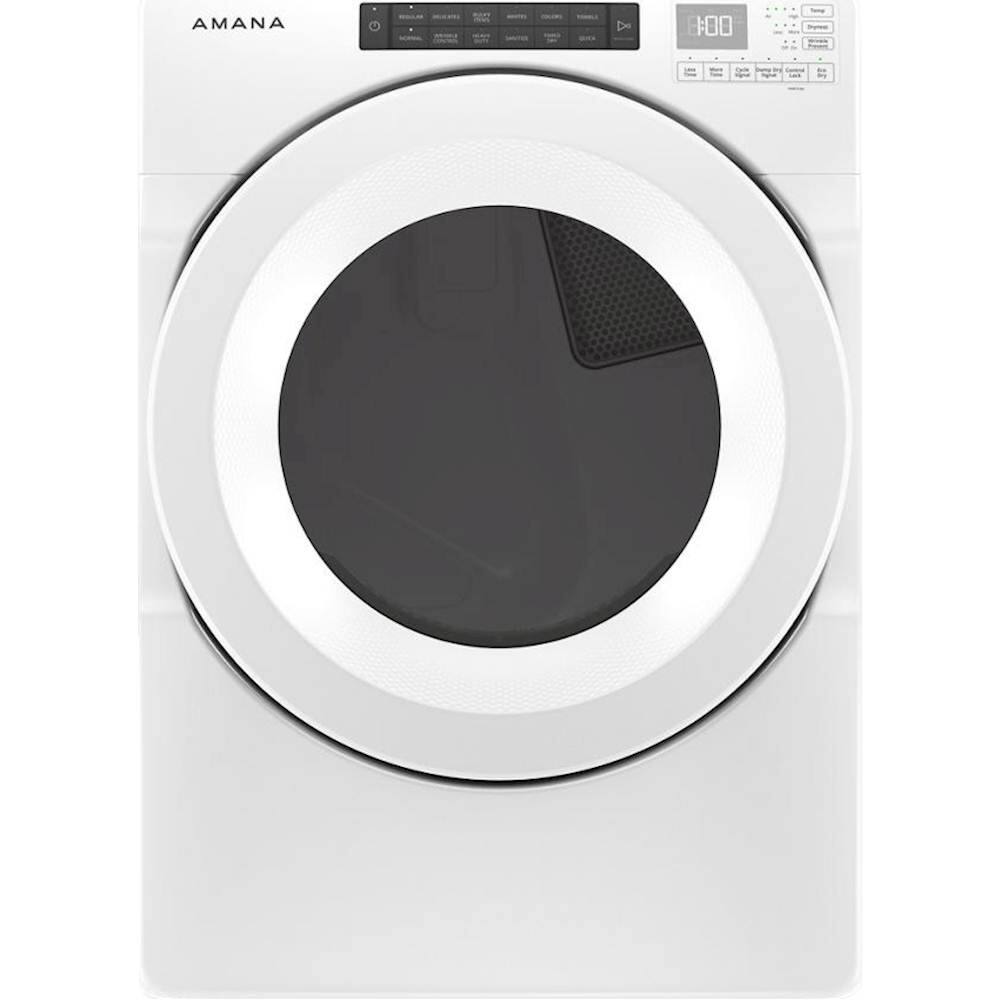

Amana - 7.4 Cu. Ft. Stackable Electric Dryer with Sensor Drying - White
Model: NED5800HW
SKU: 6373011
This item is no longer available in new condition. See similar items below
- Key Specs
- Product Height: 38 13/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 27 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 31 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth With Door Open: 54 1/2 inches (Measurement from the back of the product to its front, with door fully open.)
- Capacity: 7.4 cubic feet
- Steam Function: false (In washers, this feature may be employed before, during, or after the main wash cycle. Steam aids in stain removal, activating detergent, sanitizing, and softening wrinkles. In dryers, this feature can be used to remove wrinkles or quickly freshen clothing items.)
- Dryer Heating Source: Electric
- Moisture Sensor: true (This feature automatically senses moisture levels of the items in the cycle to determine the proper drying time.)
- Pedestal Model Compatibility: XHP1000XW, XHPC155XW
- Matching Washer Model Number: NFW5800HW
- Stackable: true (To stack with similar products, ensure that the necessary support and/or installation hardware is in place to reduce safety hazards.)
- Stacking Kit Model Compatibility: W10869845
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Color Finish: White
- General
- Product Name: 7.4 Cu. Ft. Stackable Electric Dryer with Sensor Drying
- Brand: Amana
- Commercial Merchandise: false
- Model Number: NED5800HW
- Color: White
- Color Finish: White
- Dimensions
- Product Height: 38 13/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 27 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 31 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth With Door Open: 54 1/2 inches (Measurement from the back of the product to its front, with door fully open.)
- Product Weight: 133 pounds (The out of box weight of the item.)
- Capacity
- Capacity: 7.4 cubic feet
- Features
- Steam Function: false (In washers, this feature may be employed before, during, or after the main wash cycle. Steam aids in stain removal, activating detergent, sanitizing, and softening wrinkles. In dryers, this feature can be used to remove wrinkles or quickly freshen clothing items.)
- Dryer Heating Source: Electric
- Moisture Sensor: true (This feature automatically senses moisture levels of the items in the cycle to determine the proper drying time.)
- Child Lock: false (Setting that allows appliance to be temporarily locked to prevent use.)
- End-Of-Cycle Signal: true (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
- Time-Remaining Display: true
- Vibration Reduction: false (Additional features, such as sensors that adjust spin speeds or weights that counter unbalanced loads, help to minimize vibration for smoother, quieter operation.)
- Interior Light(s): false
- Drying Type: Vented (Vented dryers take in room temperature air, heat it to dry clothing, then exhaust the resulting moisture-laden air outside through a duct, and typically have shorter trying times than ventless dryers. Ventless dryers (condenser and heat pump) do not require external ventilation. Instead, condensers cool the warm air and drain or store the resulting water. Heat pump systems reheat the cooled air for another cycle. Overall, ventless dryers are more energy efficient than vented.)
- Design
- Reversible Door Hinge: true
- Exhaust Vent Location: Bottom, Left, Rear, Right
- 4-Way Venting: true (The appliance has four possible vent locations (right, left, front, or rear), which allows for placement versatility.)
- Control Type: Touchpad, Button
- Control Location: Front panel
- Display Type: LCD
- Compact Design: false
- Drum Material: Metal
- Drying Rack: false
- Window: true
- Cycle Specifications
- Number Of Drying Cycles: 12
- Drying Cycles: Colors, Wrinkle, Control, Delicates, Normal, Heavy Duty, Bulky Items, Regular, Sanitize, Timed Dry, Quick Dry, Towels, Whites (Dryers typically have multiple pre-programmed drying cycles to accommodate various fabrics and materials. These often include Normal/Regular, Permanent Press/Wrinkle Reduction, Heavy Duty, and Delicate/Gentle.)
- Options and Programs: Control Lock, Cycle Signal, Eco Dry, Wrinkle Prevent, Damp Dry Signal
- Number of Temperature Settings: 4
- Temperature Settings: High, Low, Medium, Air Only
- Compatibility
- Pedestal Available: true
- Pedestal Model Compatibility: XHP1000XW, XHPC155XW
- Matching Washer Available: true
- Matching Washer Type: Front load
- Matching Washer Model Number: NFW5800HW
- Stackable: true (To stack with similar products, ensure that the necessary support and/or installation hardware is in place to reduce safety hazards.)
- Stacking Kit Included: false
- Stacking Kit Model Compatibility: W10869845
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Filter Info
- Self-Cleaning Filter: false (Filter that requires little to no cleaning maintenance.)
- Lint Filter Full Indicator: false
- Electrical Specification
- Amperage: 30 amperes (Strength of electrical current.)
- Voltage: 240 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Consortium for Energy Efficiency (CEE) Rating: CEE Tier 1
- Connectivity
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 883049546711
This 7.4 cu. ft. Amana front-load dryer uses Sensor Drying to detect how much moisture is left, so the cycle ends when it needs to, helping prevent overdrying. It features four temperature settings to help meet the needs of every load. With a 7.4 cu. ft. capacity, you can take on large loads.
- Sensor drying: Sensors detect moisture levels and prevent overdrying.
- Temperature controls: Provide up to four temperature settings that help meet the drying needs of every load.
- Stackable washer and dryer: Fits tight spaces with the available stacking kit.
- Status indicator: Find out exactly where your clothes are in the drying process.
- Sanitize cycle: Provides care for your clothes in the dryer while eliminating most common household bacteria.
- Eco Dry option: Use less energy while getting great drying performance with the Eco Dry option. It saves energy by using less heat and an extended cycle time.
- Quad baffles: Four baffles tumble clothes in a randomized pattern, allowing items to open up freely. This helps increase the effectiveness of the dryer for small loads.
- Laundry pedestals: Raise your dryer for easier loading and unloading. Optional laundry pedestals also provide space-saving storage for detergent, dryer sheets, and other supplies.
- ENERGY STAR certified: ENERGY STAR certified models exceed government standards to help conserve natural resources and save money on your utility bills.
Whats Included
- Amana 7.4 Cu. Ft. 12-Cycle Front-Load Electric Dryer with Sensor Drying
- Owner's manual
Product Manuals
Q: Are the doors on the washer and matching dryer reversible for opening?
A: Hello TimB, the doors on the dryer are reversible. However, the washer door is not. We hope this helps.
Q: Does this come with any manufacturer warranty?
A: This Amana® Dryer comes with a 1-year manufacturer's warranty. Please visit https://bit.ly/3A4Oysq for more information.
Q: Does it have an interior light?
A: sesame, this does not have an interior light
Q: Do they still make heating elements for these?
A: Hello Lou! You may visit www.amanaparts.com to find and purchase parts online, chat with an agent, or call (844)200-5463 7AM - Midnight - 7 days a week, to speak with a part specialist and order by phone.
Q: Is the outside supposed to get hot
A: You may notice the outside of the Dryer get warm.
Q: what kind of prung does the amana dryer use
A: Hello Robc! This model requires a UL Listed 30 A power supply cord, rated 120/240 V minimum. The cord should be type SRD or SRDT and be at least 4 ft. (1.22 m) long. The wires that connect to the dryer must end in ring terminals or spade terminals with upturned ends.
A: Squirt, the drum material is a Powder Coat. Hopefully, this information is beneficial to you. Thank you for your inquiry regarding our Amana appliances!
A: Yes this is stackable. Your stack kit is W10869845.
