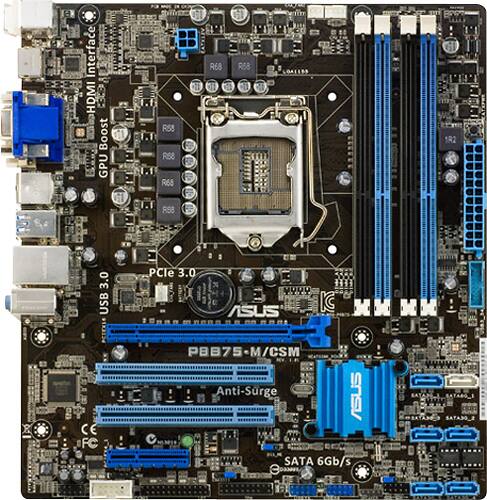

ASUS - Micro ATX Motherboard 1600/1333/1066MHz (Socket 1155) - Multi
Model: P8B75-M/CSM
SKU: 5717159
This item is no longer available in new condition. See similar items below
- Key Specs
- Chipset: Intel® B75
- Form Factor: microATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1155 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 32 gigabytes
- General
- Product Name: Micro ATX Motherboard 1600/1333/1066MHz (Socket 1155)
- Brand: ASUS
- Model Number: P8B75-M/CSM
- Compatibility
- Chipset: Intel® B75
- Form Factor: microATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1155 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel
- Slot
- Number Of Memory Slots: 4
- Dimensions
- Product Length: 279.4 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 279.4 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 0.4 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 32 gigabytes
- Other
- UPC: 610839185269
Enhance your system's performance with this Asus micro ATX motherboard that features up to 1600MHz system speed and 4 DDR3 DIMM slots that support up to 32GB of memory for fast operation. The 8-channel, high-definition audio support ensures rich sound.
- Supports Intel® processors: Including 2nd and 3rd Gen Core™ i3, i5 and i7 and Pentium® and Celeron® in an LGA 1155 socket.
- 1600/1333/1066MHz system speed: With an Intel® B75 chipset for high-speed computing.
- 4 dual-channel DDR3 memory sockets: Support up to 32GB of system memory.
- LucidLogix Virtu MVP technology: With HyperFormance Technology offers lush images with stunning detail.
- Supports VIA VT1708S 8-channel, high-definition audio: For excellent sonic performance.
- Realtek 8111F-VB-CG Gigabit LAN: With an RJ-45 connector for easy connection to the Internet.
- Peripheral interfaces: Include 4 USB 3.0 (2 rear, 2 via internal headers), 6 USB 2.0 (4 rear, 2 via internal headers), 2 PS/2, 1 DVI, 1 D-sub, 1 HDMI, 1 SATA 6 Gbps, 5 SATA 3 Gbps and 3 audio.
- Expansion capabilities: Include 1 PCI Express 3.0/2.0 x16, 1 PCI Express 2.0 x4 and 2 PCI connectors.
Whats Included
- Asus Micro ATX Motherboard 1600/1333/1066MHz (Socket 1155)
- SATA 3 Gbps cable, SATA 6 Gbps cable
- I/O shield
- Asus Utilities, Asus Update, antivirus software and drivers disc
- Owner's manual
