Key Specs
- Chipset: Intel B250
- Form Factor: Mini-ITX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1151 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number Of Memory Slots: 2
- Maximum Memory Supported: 32 gigabytes
General

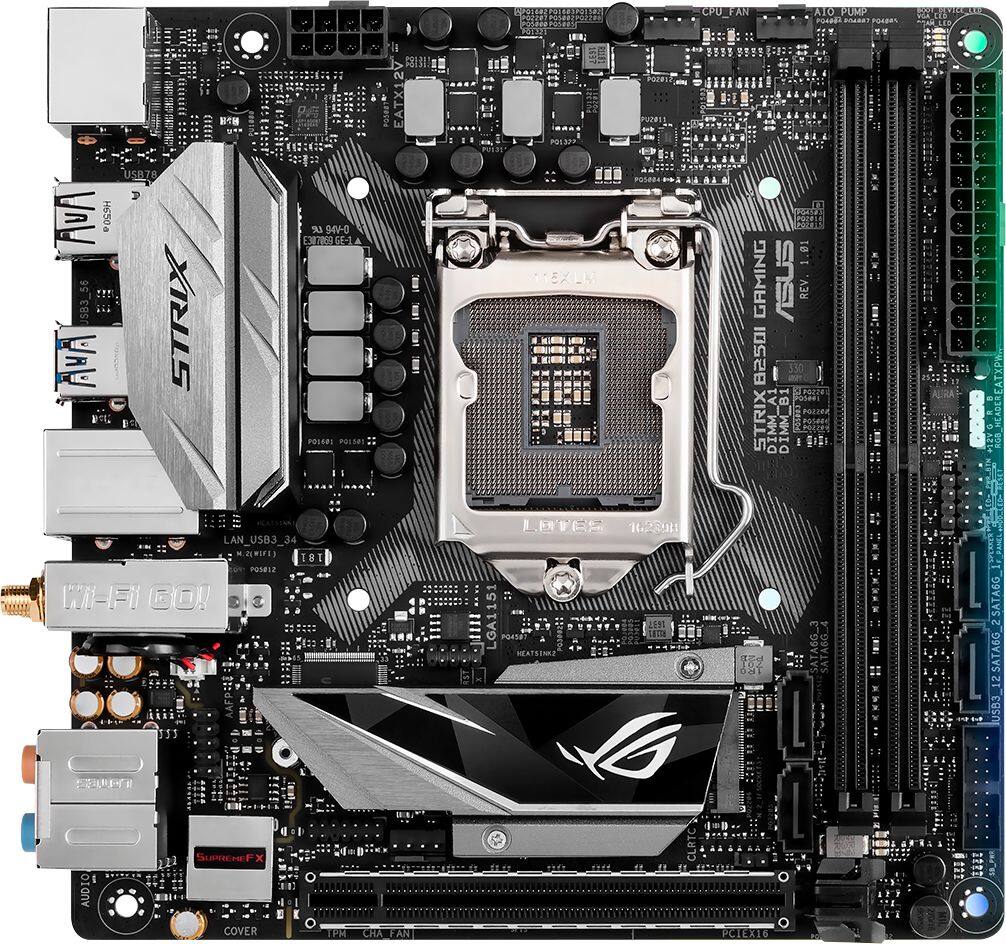

- Product Name: Asus - ROG STRIX B250I GAMING (Socket LGA1151) USB 3.1 Gen 1 Intel Motherboard - Black
- Brand: ASUS
- Model Number: STRIX B250I GAMING
Compatibility
- Chipset: Intel B250
- Form Factor: Mini-ITX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1151 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel Pentium, Intel Celeron, Intel Core i5, Intel Core i3, Intel Core i7
Connectivity
- Power Connector: 24-pin main power connector, 8-pin ATX12V connector (The configuration of the connector as it connects the motherboard to a power supply unit.)
Slot
- Number Of Memory Slots: 2
Dimensions
- Product Length: 6.7 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 6.7 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 5.23 ounces (The out of box weight of the item.)
Memory
- Maximum Memory Supported: 32 gigabytes
- Memory Slot Type: 288-pin DIMM
Other
- UPC: 889349677087

Build your gaming rig from the ground up with this MSI Gaming Pro motherboard. DDR4 Boost with Steel Armor takes the performance of your RAM to the next level, and it's VR Boost eliminates latency and minimizes motion sickness. Audio Boost 4 on this MSI Gaming Pro motherboard produces studio-quality sound.

Supports Intel® processors: Including Pentium®, Celeron®, Core™ i5, Core™ i3 and Core™ i7 in an LGA 1151 socket.
Up to 2400MHz system speed: With an Intel® B250 chipset for efficient operation.
Two 288-pin DDR4 SDRAM DIMM sockets: Support up to 32GB of system memory.
Supports 8-channel SupremeFX (S1220A) audio: For high-definition sound.
Peripheral interfaces: Include 1 HDMI, 1 DisplayPort, 1 LAN (Gigabit Ethernet), 4 USB 3.1 Gen 1, 2 USB 2.0, 1 audio line-in, 1 audio line-out, 1 microphone, 1 audio line-out (center/subwoofer), and more.
Expansion capabilities: Include 1 PCI Express 3.0 x16.

Whats Included

ASUS ROG STRIX B250I GAMING
Cable ties, cable labels, ASUS 2T2R Wi-Fi moving antennas, I/O back cover, ROG fan stickers, 2 x M.2 screws, RGB (RGBW) LED strip extension cable
Software

Product Manuals

Q: Does this support 8 GB DDR4-2133 SDRAM memory?

A: This motherboard supports up to 32gb of ram at speeds up to 2400mhz, so the answer is yes.

Q: On the motherboard I have one green light and one orange light when I start it up.

A: undefined

Q: When starting up this computer I get a American megatrends think that pops up and it tells me to open bios but my motherboard is not picking up my keyboard or mouse that are plugged in.

A: undefined

Q: I'm slowly building a mini rig and already got my ram in and its 3200Mhz speed and I have this board already coming in which I didn't notice till of late that it can only go up to 2400Mhz so will it boot or downgrade from 3200 to 2400Mhz in the bios.

A: The motherboard takes 6th and 7th generation CPU. The 7th gen CPU supports up to 2400Mhz. Based on the Intel chipset B250, there is no overclock, either CPU or RAM. Z series chipset support overclocked CPU and RAM.

Q: How many USBs, VGAs, HDMIs, etc. go with this motherboard?

A: undefined

Q: Is this a ATX motherboard?

A: It is Mini-ITX

Q: what ram ddr3 or ddr4 ??

A: DDR4

Q: how much Ram can it take. and at what speed

A: Maximum is 32GB (2x16GB). If you install a 7th Gen CPU, it can support up to 2400Mhz. This is because the memory controller is built-in the CPU. Hope this helps you.
