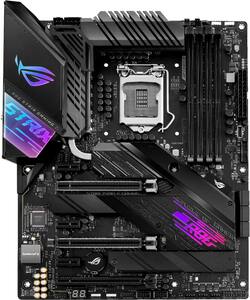

ASUS - ROG STRIX Z490-E GAMING Socket 1200 USB 3.2 Intel Motherboard - Black
- Key Specs
- Chipset: Intel® Z490 Chipset
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1200 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number Of Memory Slots: 4
- General
- Product Name: ROG STRIX Z490-E GAMING Socket 1200 USB 3.2 Intel Motherboard
- Brand: ASUS
- Model Number: ROG STRIX Z490-E GAMING
- Compatibility
- Chipset: Intel® Z490 Chipset
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1200 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium Quad-Core
- Connectivity
- Power Connector: 1 x 24-pin main power connector (The configuration of the connector as it connects the motherboard to a power supply unit.)
- Slot
- Number Of Memory Slots: 4
- Dimensions
- Product Length: 305.05 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 244.09 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 2.8 ounces (The out of box weight of the item.)
- Other
- UPC: 192876671634
The ROG Strix Z490-E Gaming motherboard is designed to cope with the demands of 10th Generation Intel® Core™ processors, with boosted power delivery and an optimized cooling design providing more surface area for heat dissipation. ROG Strix Z490-E Gaming features AI enhancements and intuitive dashboards to help you overclock and tweak various parameters easily
- Processor compatibility: Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
- Speed: 4 x DIMM
- Graphics: Integrated Graphics Processor
- Memory: 128GB, DDR4
- Audio: ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Interfaces: Rear USB Port ( Total 10 ) / 4 x USB 3.2 Gen 2 port(s)(3 x Type-A +1 x USB Type-C®) / 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) / 4 x USB 2.0 port(s) / Front USB Port ( Total 7 ) / 1 x USB 3.2 Gen 2 port(s)(1 x USB Type-C®) / 2 x USB 3.2 Gen 1 port(s) / 4 x USB 2.0 port(s)
- Expansion slots: Intel® 10th Gen Processors / 2 x PCIe 3.0 x16 (x16 or dual x8) / Intel® Z490 Chipset / 1 x PCIe 3.0 x4 (x4 mode) / 3 x PCIe 3.0 x1
- AI Networking: GameFirst VI optimizes and organizes network bandwidth, effectively reducing jitter and eliminating spike lag to ensure smooth online gameplay
- Operating System: Windows® 10 64-bit
Q: What processed do I need to use this motherboard?
A: U need the 10th gen Intel.I would recommend i 7 10700k
Q: does it work with the core i9-10900k
A: It does work well with the i9-10900k,& if you want to make sure all you pc parts are compatible just check it out on a pc build site.Mine is working very well ,I love the Board and the I9
Q: Will i have to upate the bios of this motherboard if i want to use the intel core i9 10850K ?
A: no, you do not need to update your bios in order to used the intel 10850k, keep in mind that updating your bios to the latest firmware is always recommended is order to keep your system running in optimal performance . Hardware updates—Newer BIOS updates will enable the motherboard to correctly identify new hardware such as processors, RAM, and so on. ... Increased stability—As bugs and other issues are found with motherboards, the manufacturer will release BIOS updates to address and fix those bugs
Q: Are any of the RTX 30 series GPU compatible with this motherboard?
A: I have an RTX 3090 and it works great. All of the 30xx cards are compatible.
A: Yes, this motherboard supports the M.2 2280 form factor. https://www.asus.com/us/Motherboards/ROG-STRIX-Z490-E-GAMING/specifications/
Q: does this board have Bluetooth? does it support i7-9700k?
A: This board does have Bluetooth, but does not support that CPU. Please refer to the CPU QVL here. https://www.asus.com/us/Motherboards/ROG-STRIX-Z490-E-GAMING/HelpDesk/
A: Yes, they are both compatible.
A: You can populate both slots, however please note that with the bottom slot in use SATA ports 5 and 6 will be disabled. https://rog.asus.com/motherboards/rog-strix/rog-strix-z490-e-gaming-model/spec
