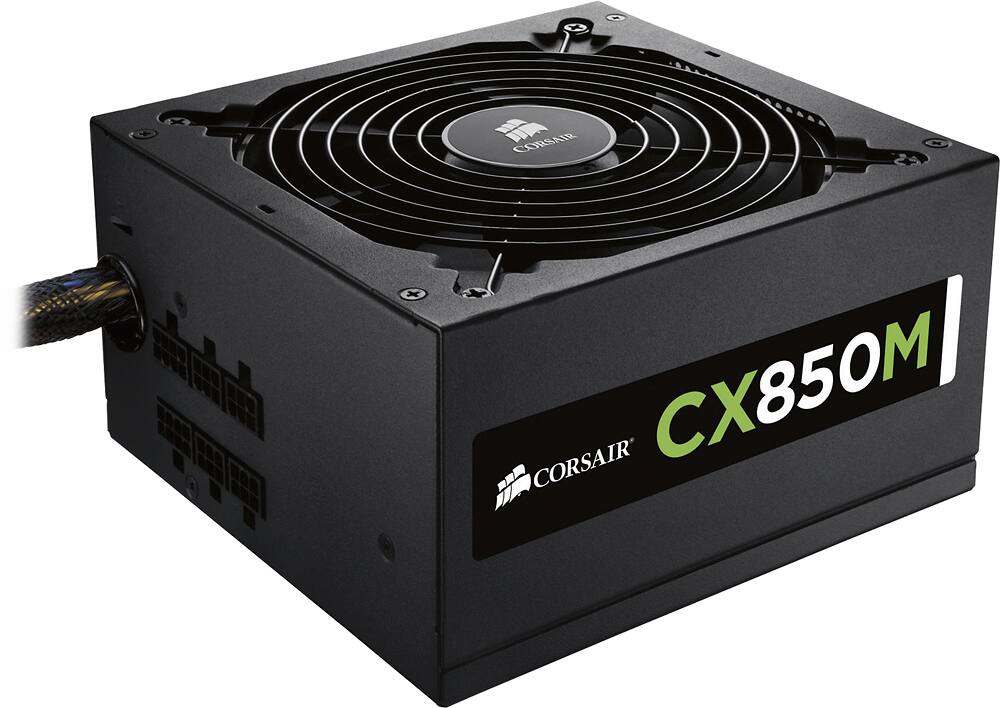

CORSAIR - CX Series 850W Semi-Modular Power Supply - Black
- Key Specs
- Wattage: 850 watts (Measurement of electrical power.)
- Product Length: 5.9 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- General
- Product Name: CX Series 850W Semi-Modular Power Supply
- Brand: CORSAIR
- Model Number: CX850M
- Power
- Wattage: 850 watts (Measurement of electrical power.)
- Overload Protection: true (Features intended to protect the product from damage and overheating caused by overload.)
- Dimensions
- Product Height: 3.39 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 6.3 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 5.9 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 95.04 ounces (The out of box weight of the item.)
- Other
- UPC: 843591054539
Build your own computer with this Corsair CX Series CX850M power supply, which is ATX 12V compliant for use with most ATX motherboards and cases. A thermally controlled fan helps dissipate heat while maintaining low noise levels.
- 850W power supply: With 130W maximum output and 25-amp maximum load at 3.3V and 5V, 840W maximum output and 70-amp maximum load at 12V, 9.6W maximum output and 0.8-amp maximum load at -12V and 15W maximum output and 3-amp maximum load at 5Vsb.
- Designed for basic system builds and desktop PC upgrades: For reliable, low-noise installation.
- ATX 12V v2.3 compliant: Backward compatible with ATX 12V v2.2 and ATX 12V v2.01 for use in most ATX motherboards and cases. A dedicated 12V rail provides compatibility with a wide variety of components.
- Thermally controlled fan: Keeps components cool and produces minimal noise.
- Over- and under-voltage, over-power and short-circuit protection: To safeguard your system.
- 80 PLUS Bronze certified: For minimal heat, noise levels and energy consumption.
- Semi-modular cable management: Allows you to use only the cables you need.
- 0.99 Active Power Factor Correction: Promotes clean, reliable power.
- 100-240V AC input: With input current between 12 and 6 amps and 47-63Hz frequency for wide-ranging use.
Whats Included
- CX Series 850W Semi-Modular Power Supply
- Owner's manual
Q: what type and how much memory is recommended for this power supply?
A: The type and amount of memory is dependent upon the Motherboard you're using, rather than the PSU (Power Supply Unit). There's no memory requirement for a PSU, as it is basically only supplying power to your components. You will need to reference the technical guide for your PC or Motherboard packaging (if it were purchased individually) to find out what type and capacity your PC can accept. The information will look similar to this; "Compatable Memory - 240pin DDR3 1333/1600/1866 (OC) - 32Gb maximum capacity."
Q: Will this frun two NVidia GTX 970s in SLI?
A: Yes the corsair Power supply with run 2 video cards without an issue. but you also need to have the jumper board to connect both video cards together if you want it to work together.
