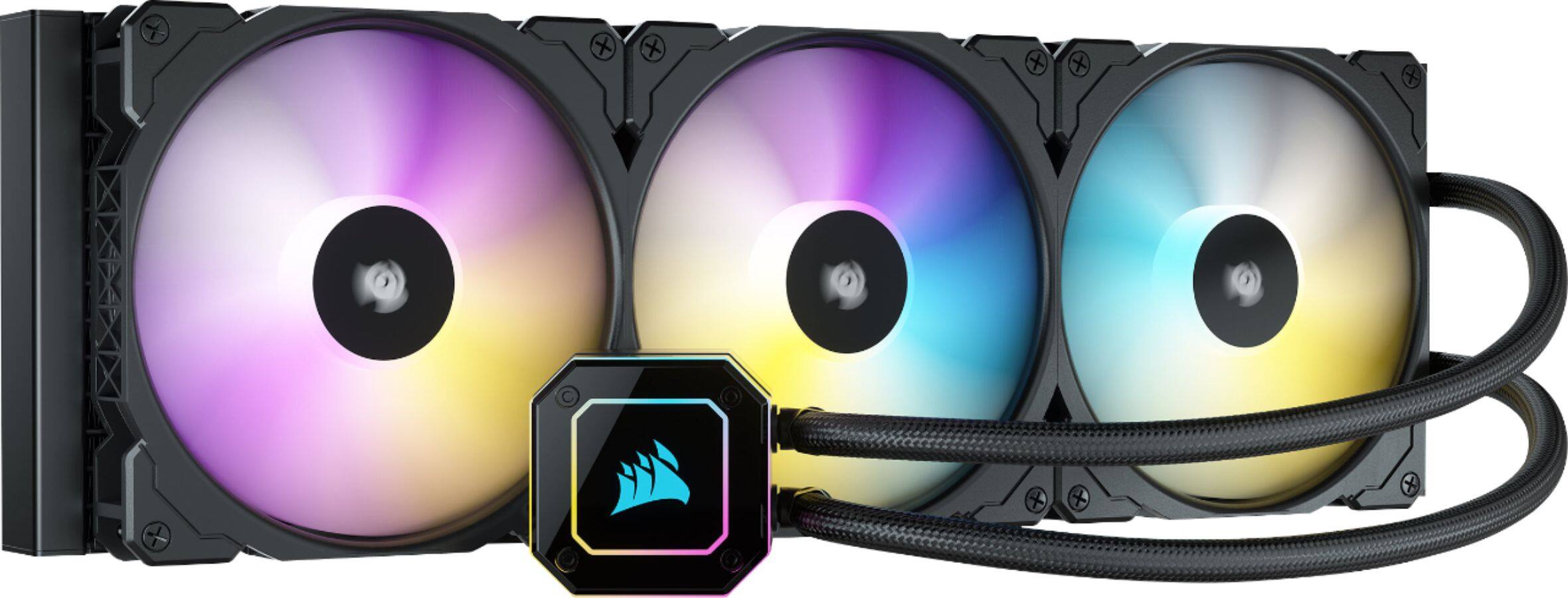

CORSAIR - iCUE H170i ELITE CAPELLIX Liquid CPU Cooler With RGB Lighting

SKU: 6468105
This item is no longer available in new condition. See similar items below
  • General
    • Product Name: iCUE H170i ELITE CAPELLIX Liquid CPU Cooler With RGB Lighting
    • Brand: CORSAIR
  • Other
    • UPC: 840006643432

The CORSAIR iCUE H170i ELITE CAPELLIX Liquid CPU Cooler delivers powerful, low-noise cooling for the largest and most ambitious PC builds, with a massive 420mm radiator and three CORSAIR ML140 RGB PWM fans controllable between 400 and 2,000 RPM. 33 CAPELLIX LEDs on the pump head and eight RGB LEDs per fan let you completely personalize your CPU cooler’s look. Connect to the included CORSAIR iCUE COMMANDER CORE and powerful CORSAIR iCUE software to orchestrate synchronized RGB lighting, adjust fan speeds, and enable Zero RPM mode on up to six RGB PWM fans. Easy to install on most major CPU sockets, with a thermally optimized split-flow cold plate and low-noise centrifugal pump, the H170i ELITE CAPELLIX puts the spotlight on high-end CPU cooling.

  • High-Performance RGB Pump Head: Powerful, low-noise cooling for your CPU, lit by 33 ultra-bright CAPELLIX RGB LEDs.
  • CORSAIR’s Largest All-In-One Radiator: A massive 420mm radiator provides maximum surface area for extreme cooling.
  • CORSAIR iCUE COMMANDER CORE Included: A smart RGB lighting and fan speed controller gives you precise speed and lighting control for up to six RGB PWM fans.
  • Magnetic Levitation RGB Fans: Three 140mm CORSAIR ML RGB Magnetic Levitation PWM fans deliver immense airflow to cool the most powerful systems with the latest high-performance components, with eight RGB LEDs per fan.
  • Extreme CPU Cooling: Incredible cooling fan performance controllable via PWM, from 400 to 2,000 RPM while in operation.
  • All-in-One Automated Cooling: Everything you need to keep your CPU running at peak performance, including fans, coolant, and radiator, in a completely sealed system with minimal maintenance.
  • Zero RPM Mode: Zero RPM cooling profiles in CORSAIR iCUE software allow fans to stop entirely at low temperatures, virtually eliminating fan noise.
  • Powerful CORSAIR iCUE Software: Adjust fan and pump speeds, control and synchronize your cooler’s RGB lighting with all iCUE-compatible devices, and monitor CPU and coolant temperatures, all from a single intuitive interface.
  • Split-Flow Copper Cold Plate: An optimal cold plate design and a high-density stack of 128 micro-skived fins-per-inch provides highly efficient cooling at all loads.
  • Low-Noise Centrifugal Pump: Delivers a flow rate of up to 0.82L/min while generating less than 20 dBA, for extreme cooling with low noise.
  • Easy to Install: Modular, tool-free mounting bracket for quick and painless installation on all modern Intel and AMD sockets.
Whats Included
  • CORSAIR iCUE H170i ELITE CAPELLIX Liquid CPU Cooler
  • CORSAIR Commander Core
  • Mounting kit for all modern CPU sockets
  • Three ML RGB Series PWM 140mm fans
  • Fan and radiator mounting screws
  • Thermal compound (pre-applied)
  • Alternative Pump Cap
  • Cap Removal Tool
  • Quick Start Guide

Q: Is this compatible with an intel i9-13900k in the Airflow 7000D case with an MSI Z790 motherboard?

A: Hello, The cooler is indeed compatible in the 7000D, please do refer to our product page for the case right on our site, or reach out to our team at any time for further questions. -Art

Q: Is this am5 comparable? Also what corsair fans are on this aio i want to keep it all the same fans in my build.

A: Hi, Yes, this cooler is compatible with AM5. You would use the provided AM4 mounting hardware for AM5 installation. For video guidance on installation, please feel free to refer to our installation video on our CORSAIR LAB YouTube channel. The fan part number is CW-8960065. If you have any additional questions, please feel free to contact support via our website. -Albert

Q: Does the heatsink cover the entire surface of amds 3960x threadripper gen 3 processor?

A: Hi Mike, This would cover the main cores and be enough to properly cool your CPU. If you'd like assistance with installation, please feel free to contact our support team: support.corsair.com -Brian

Q: What size screws are used for the radiator and fans? Mine did not come with the screws so I was just going to buy some.

A: Hi Isaac, Do contact our team directly on our site at any time, they should be able to send you the missing parts. -Art

Q: Will this fit in a nzxt h710 case? and is it compatible with amd ryzen 5 series 5600x?

A: Hi, The cooler is definitely compatible with Ryzen 5 series CPUs. As for fitment, confirm on NZXT's site that a 420mm cooler does fit in it! -Art

Q: Will this work with the MSI - PRO B760M-A motherboard and intel core-i7-12700k processor? I've been trying to see if I need to buy anything else or if everything is in the box

A: Hello, You'd need to purchase a retrofit kit for the LGA1700 platform while using this cooler, please go to the product page on our site for more info. -Art

Q: Are these things still being shipped without the screws necessary for LGA1700 chips? Or are these complaints out of date? If not, come on Corsair...

A: Hi, If you do not receive the LGA 1700 Retrofit Kit in your packaging, please contact support via our website regarding the kit and we'll happily assist you. -Albert
