Defender - 16-Channel, 8-Camera Wired 1080p 2TB DVR Surveillance System - Black/White
- Key Specs
- Camera Resolution: 1920 x 1080 (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Field Of View: 75 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
- Night Vision: true
- Number Of Cameras Included: 8
- Works With: Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
- Number Of Channels: 16
- Recording Resolution: 1920 x 1080, 1024 x 768, 1280 x 1024, 1440 x 900 (Refers to the number of pixels, both horizontally and vertically, used to capture video. The higher the resolution the finer the video detail that can be seen.)
- Storage Type: DVR
- Minimum Operating Temperature: 14 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 131 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- Audio Communication: 1-way (1-way communication devices allow a user to hear detected audio, while 2-way communication adds the ability for a user to talk back through the device.)
- General
- Product Name: 16-Channel, 8-Camera Wired 1080p 2TB DVR Surveillance System
- Brand: Defender
- Model Number: HD2T16B8
- Camera
- Camera Resolution: 1920 x 1080 (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Field Of View: 75 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
- Night Vision: true
- Night Vision Distance: 98 feet
- Number Of Cameras Included: 8
- Number Of Cameras Supported: 16
- Frame Rate: 30 frames per second (The frequency at which consecutive images can be captured. The higher the frame rate, the more detail that can be captured.)
- Day/Night Mode: true (Captures images/video with optimal clarity by automatically adjusting settings to various light levels.)
- Minimum Required Illumination: 0.05 lux (Refers to the minimum amount of light needed to view objects. Generally, the lower the number, the better the camera can detect objects in little to no light.)
- Number of IR LEDs: 12 (Quantity of infrared (IR) LED lights for emitting IR light and allowing the camera to detect objects in low light.)
- Camera Infrared Distance: 98 feet (The distance over which the camera's infrared, or night vision, capabilities can detect objects.)
- Image Sensor Type: CMOS (CCD and CMOS are the two main technologies used in image sensors. CCD, the older of the two types, turns analog light signals into digital pixels. This conversion happens without distortion, resulting in high-quality images. Newer CMOS sensors use transistors at each pixel to move electrical charges. CMOS sensors are typically less expensive, but also require more light to create distortion-free images.)
- Camera Mount Type: Other
- Compatibility
- Camera Compatibility: Defender HD Security Cameras
- Operating System Compatibility: Android, Apple iOS
- Works With: Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
- Connectivity
- Camera Connectivity: Wired (Security system cameras can be set up in several ways. Wired cameras require cables for power and footage transmission, while wire-free cameras don't need cables for either. Wireless cameras still require cables for receiving power but are able to transmit footage via a wireless network.)
- Recording & Playback
- Streaming Video: true (The ability to transmit a live video feed from the product.)
- Records Audio: true
- Number Of Channels: 16
- Video Compression Type: H.264
- Recording Resolution: 1920 x 1080, 1024 x 768, 1280 x 1024, 1440 x 900 (Refers to the number of pixels, both horizontally and vertically, used to capture video. The higher the resolution the finer the video detail that can be seen.)
- Storage
- Storage Type: DVR
- DVR Storage Capacity: 2000 gigabytes
- Internal Storage Capacity Upgradeable Upto: 8000 gigabytes
- Performance
- Minimum Operating Temperature: 14 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 131 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- Features
- Audio Communication: 1-way (1-way communication devices allow a user to hear detected audio, while 2-way communication adds the ability for a user to talk back through the device.)
- Mobile Notifications: true
- Auto-On Detection: Motion
- Dimension
- Camera Height: 2.5 inches
- Camera Width: 2.6 inches
- Camera Depth: 6.8 inches
- DVR Cord Length: 3.2 feet
- Sensor
- Sensors: Motion sensor (Detects stimuli such as heat, light, sound, motion, or pressure and responds accordingly by operating a control or initiating a function of the device.)
- Output
- DVR Output(s): HDMI, VGA, RCA audio, USB
- Included
- Camera(s) Included: true
- DVR Included: true
- Monitor Included: false
- Remote Control Included: true
- Cable(s) Included: true
- Warranty
- Manufacturer's Warranty - Parts: 1 year
- Manufacturer's Warranty - Labor: 1 year
- Other
- UPC: 061783264454
Get a complete security setup in one easy-to-install package with this Defender 16-channel security system. Eight cameras can be set all around the perimeter of your business so you never miss a potential threat. This Defender 16-channel security system offers continues or scheduled monitoring, and you can view from a monitor, your phone or even a television screen.
- Motion-activated design: Automatically records once motion is detected.
- Monitor your property with 8 cameras: Also includes DVR, remote control, mouse, 4 security stickers and power adapters.
- Set and forget with hard drive storage: Record continuously from 16 channels with a 2TB hard drive.
- Capture everything in HD: Vivid 1920x1080, 1024x768, 1280x1024 and 1440x900 resolution allows you to see small details on your screen.
- Infrared night vision lets you see in the dark: Keep an eye on things up to 98' away when there's little to no light.
- Viewing angle up to 75°: Expertly captures a wide angle of your property for exceptional security at all times.
- HDMI and VGA outputs: Connect to a wide range of compatible displays for versatile viewing, including your HDTV, LCD or plasma TV. USB connectivity makes it easy to transfer stored footage.
- Experience live or recorded video from your desktop, TV or mobile device: Intuitive icons and straightforward recording options.
- HD 1080p bullet cameras: Made of ultra-lightweight polycarbonate resin, built to protect against vandals. IP66 rated for dust and heavy rainfall protection.
- 128-bit encryption: Keep your footage private and secure.
- Free Defender app: Receive push notifications, check your live stream, and review your footage, right on your phone. Available at the App Store and Google Play.
- Continuous record: Set a schedule, or enable motion detection to give you the peace of mind you need.

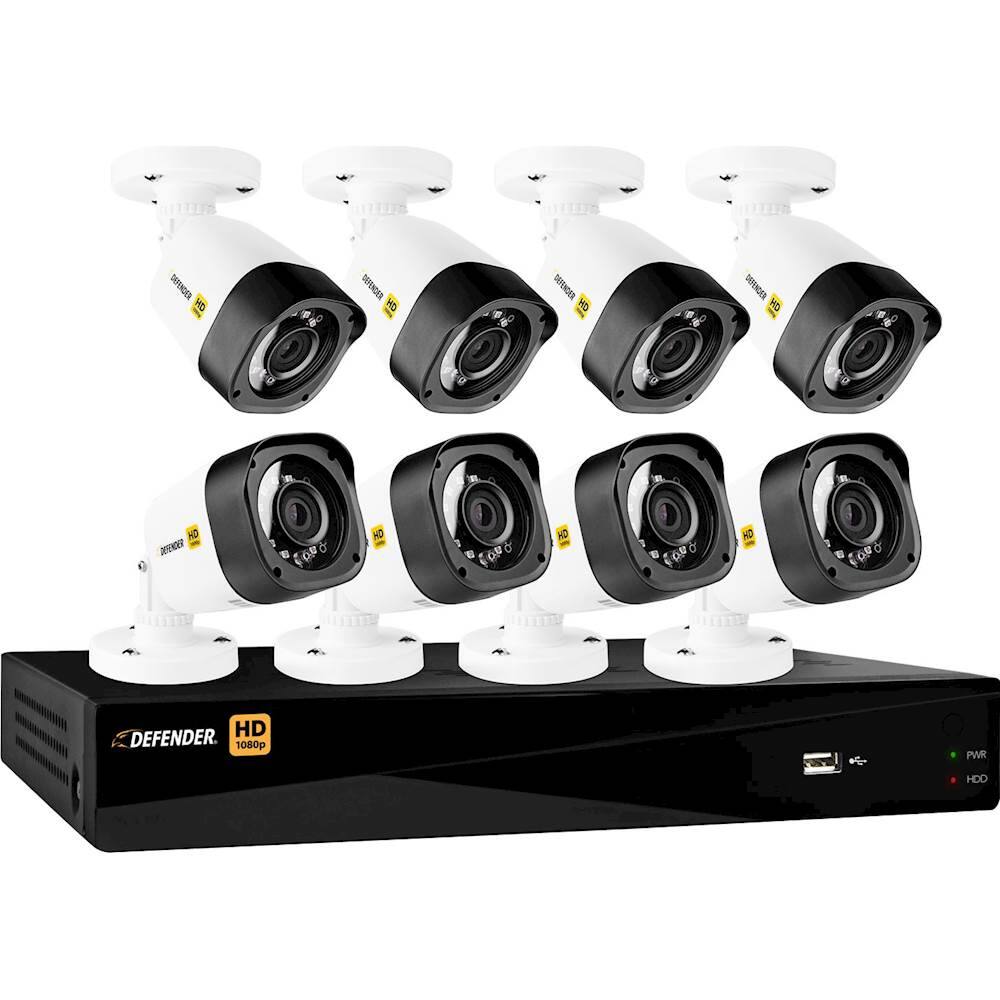

Whats Included
- DVR
- 2TB HDD
- 8 x bullet cameras
- 8 x 60ft camera cables, HDMI cable (1meter/3.2ft), Ethernet cable (1meter/3.2ft)
- DVR power supply (1meter/3.2ft), 2 x camera power supply (1meter/3.2ft)
- 2 x 4-14 power splitter
- USB mouse
- IR remote control with batteries
- 4 x window warning stickers
- Quick start guide
Product Manuals
A: Thanks for a couple of great questions! The DVR does require a wired Ethernet connection to your modem or router for smartphone viewing. In terms of temperature, the listed values are what we've test the camera down to, they can work in cooler temperatures, but length of time exposed may be a factor.
A: Great question HorizontalMike. The DVR has four RCA audio inputs to which microphones can be connected. The cameras included do not have microphones built in, you would need to purchase them from another manufacturer. Audio recording can be turned on or off as needed. Be sure to review local laws regarding audio recording.
A: Great question Cooker! The answer to both questions is absolutely YES! Motion alerts can be sent to your smartphone and you can schedule your cameras in any combination you like!
Q: Does the system record in color or just black in white?
A: Great question Richg. The DVR is capable of recording in full colour. Black/White refers to the color of the camera body itself. Daytime vision is shown and recorded in colour. Nightvision is recorded in black and white infrared.
A: Great question Gil! With this system you can record in motion only giving you the ability to save time by only recording relevant events! Thank you for your interest in Defender, whichever model you choose, you’ll get the peace of mind you’re looking for with Defender!
Q: Is daytime footage in color ?
A: Thanks for your question Steveo. These cameras record full colour during the day in a bright setting. Once night falls or the room is dark, black and white infrared will activate.
Q: Does this system record audio? If it doesn't can you recommend a system that does?
A: The head unit has connection for audio but the cameras in this kit do not have audio outputs .
A: Great question. You would need to connect the DVR directly to the monitor. If you connect it to a laptop or a computer tower, those connections are usually video outputs and do not accept video from other devices.
