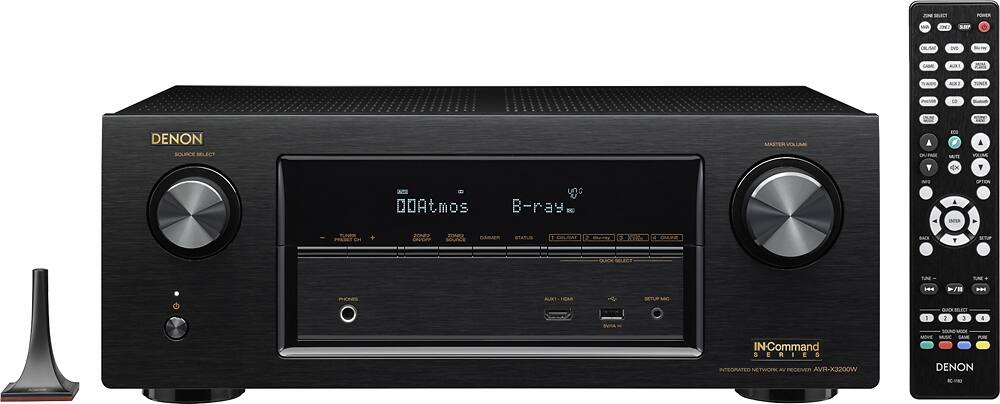

Denon - AVR-X3200W 1505W 7.2-Ch. 4K Ultra HD and 3D Pass-Through A/V Home Theater Receiver - Black
Model: AVR-X3200W
SKU: 3516521
This item is no longer available in new condition. See similar items below
- Key Specs
- Continuous Watts x Channel @ Ohms: 105 watts x 7 channels @ 4 ohms
- Number of Channels: 7.2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Number of Audio Zones: 2 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)
- Audio Only Inputs: 1 x Phono
- Maximum Supported Resolution (Video Passthrough): 2160p (4K) (The highest video resolution supported by the device for passing through video to another device.)
- Audio/Video Outputs: 2 x HDMI (The number and type of HDMI outputs the product has.)
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- General
- Product Name: AVR-X3200W 1505W 7.2-Ch. 4K Ultra HD and 3D Pass-Through A/V Home Theater Receiver
- Brand: Denon
- Model Number: AVR-X3200W
- Color: Black
- Audio
- Continuous Watts x Channel @ Ohms: 105 watts x 7 channels @ 4 ohms
- Number of Channels: 7.2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Number of Audio Zones: 2 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)
- Surround Sound Supported: DTS, DTS-ES, DTS-HD, Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Other (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Speaker A/B Switching: true (Allows a user to select between one of two sets of primary speakers.)
- DSP Modes: 7 (Available sound modes that alter how the audio is processed and played back. A common example is a mode that allows stereo audio to be played on all available surround sound speakers, creating a simulated surround sound effect.)
- Equalizer: true (Allows for the control of different frequencies within an audio signal, such as adjusting treble and bass levels.)
- Tuner Type(s): AM/FM
- Inputs
- Audio Only Inputs: 1 x Phono
- Video Only Inputs: 2 x Component video (The number and type of video signal only inputs the product has.)
- Number of HDMI Inputs (Total): 8
- Number of USB Inputs: 1
- Video
- Maximum Supported Resolution (Video Passthrough): 2160p (4K) (The highest video resolution supported by the device for passing through video to another device.)
- Outputs
- Video Only Outputs: 1 x Component video, 1 x Composite video (The number and type of video signal only outputs the product has.)
- Audio/Video Outputs: 2 x HDMI (The number and type of HDMI outputs the product has.)
- Speaker Connection Type: Binding posts
- Number of HDMI Outputs (Total): 2
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Features
- Auto Calibration: true (Home theater systems and receivers with an autocalibration function can automatically determine basic settings like speaker volume, crossover point, equalization, and more.)
- Digital Content Protection: HDCP 2.2 (High-bandwidth Digital Content Protection (HDCP) is designed to prevent copying of digital audio and video content as it travels across connections. Newer versions of HDCP support more connection types, increase security, and resolve weaknesses of previous versions.)
- Remote Control Included: true
- Connectivity
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Dimensions
- Product Height: 6.6 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17.1 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 15.3 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 24.5 pounds (The out of box weight of the item.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Other
- UPC: 883795003711
Enjoy high-quality audio and video streaming with this Denon AVR-X3200W receiver, which features Bluetooth. Includes HDMI 4K Ultra HD and 3D pass-through technologies for compatibility with 3D TVs, Blu-ray players and gaming consoles and 4K Ultra HD TVs.
- Connect to the Internet: Access music services, such as Pandora, Spotify Connect, vTuner, SiriusXM and more.
- Bluetooth and Wi-Fi-enabled: For easy connection to a variety of devices and content. Compatible with Apple® AirPlay and DLNA 1.5 technologies.
- 1505W total power: 215W x 7 @ 6 ohms, 1kHz, 1-channel driven for powerful sound; 735W RMS power (105W x 7 @ 8 ohms, 20Hz-20kHz, 0.08% THD).
- Surround sound decoders: DTS, DTS-HD, DTS 96/24, DTS-ES, DTS-HD Master Audio, DTS-HD High Resolution Audio, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, Dolby Surround, DTS:X (Update) and DTS Neural:X (Update).
- Speaker A/B switching: Lets you connect and switch between multiple speakers to expand your listening environment.
- Automatically upconverts the input signal: Enjoy up to 4K Ultra HD upscaling, as well as analog signal in up to 1080p HD resolution for playback on your compatible TV.
- 2 audio zones: Allow you to select different audio sources for listening and watching in different locations.
- Audyssey MultEQ XT: Automatically calibrates the receiver output for optimal sound.
- AM/FM tuner: With 104 presets (52 AM, 52 FM) for saving your favorite stations.
- Front USB port: Provides easy connection of your MP3 player.
Whats Included
- AM/FM antennas
- AVR-X3200W 1505W 7.2-Ch. 4K Ultra HD and 3D Pass-Through A/V Home Theater Receiver
- Audyssey microphone, foldable microphone stand, wire labels
- Owner's manual
- Quick-start guide
- Remote, batteries
Q: What does 3D pass through mean and provide
A: 3D pass thru allows you to watch 3D content on your 3D tv.
Q: is there an input for phono/turntable?
A: No, it does not.
Q: why does the audio system quit working when using tv arc ?
A: undefined
