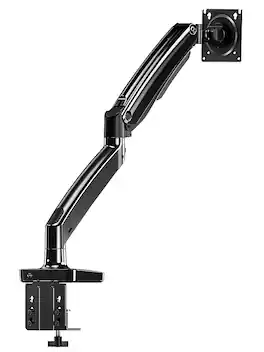

ErgoAV - Single Monitor Desk Mount with Docking Station for Monitors up to 34" - Black
FREE shipping to
More Buying Options
Related Item
About This Item
- General
- Brand: ErgoAV
- Model Number: ERDHM1-01B
- Product Name: Single Monitor Desk Mount with Docking Station for Monitors up to 34"
- Color: Black
- Assembly Required: Partial
- Features
- Mount Profile: Recessed (The view of the product when seen attached to a wall or surface.)
- Mount Style: Full Motion, Rotating, Swiveling, Tilting, Full Motion
- Pan: 180° (Angles to the left or right for customized viewing and/or accessibility.)
- Tilt: ±45° (Angles upward or downward for customized viewing and/or accessibility.)
- Rotation: 360° (Orientation can be rotated for customized viewing and/or accessibility.)
- Indoor or Outdoor Use: Indoor
- Motorized: false
- Adjustable Height: true
- Cord Storage: true
- Number Of Shelves Included: 0
- Number of Monitors Supported: 1
- Compatibility
- Maximum Weight Capacity: 22 pounds (The maximum load that can be supported by the product.)
- Compatibility: Monitors 13-34″
- Mount Location: Desktop
- Maximum Television Size: 34 inches
- Minimum Television Size: 13 inches
- VESA Wall Mount Standard: 75mm x 75mm, 100mm x 100mm (VESA wall mount standards refer to the spacing of screw holes built into a TV in order to fit with standard TV wall mounts. These standards are implemented into most TVs and monitors.)
- Dimensions
- Product Height: 22.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 22.8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 6.9 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Maximum Extension: 26 inches
- Product Weight: 8.4 pounds (The out of box weight of the item.)
- Included
- Hardware Included: true
- Material
- Mount Material: Metal
- Warranty
- Warranty - Parts: 5-year Limited
- Warranty - Labor: None
- Other
- UPC: 810082201185
The ERDHM1-01B is a single monitor desk mount with a 7-way built-in docking station for monitors up to 34″ and 22 lbs. Inputs include two USB-C, two USB-A, one HDMI port, one ethernet port, and one 3.5mm AUX port. Supports up to 75W USB-C charging for laptops, phones, and tablets. Stream media up to 4K resolution via HDMI. Integrated cable management helps to create a streamlined look. Enhance your workspace with mount technology that complements today’s sleek monitor designs.
- Built-In Docking Station: ErgoLink Monitor Mounts feature a built-in 7-way hub to enhance your workspace with mount technology that complements today’s sleek monitor designs.
- Universal Compatibility: Fits most 13-34″ monitors that weigh between 4.4 and 22 lbs with 75 x 75 or 100 x 100mm VESA mounting hole patterns.
- Versatile Mounting Options: Includes desk clamp and grommet mounting hardware for a variety of desk types. Compatible with 0.79″ to 3.54″ thick desktops.
- Fully Adjustable: Height, swivel, extension, and tilt adjustments allow monitors to be placed in the optimal position.
- Premium Heavy-Duty Gas Spring Arm: Our premium heavy duty gas spring arms offer a sleek design with height adjustment up to 22.5″.
- Premium Heavy-Duty Gas Spring Arm: Provides arm extension up to 26″.
- 360° Rotation: Easily rotate your monitor from a horizontal view to vertical.
- Monitor Tilt: Provides +45° to -45° tilt for the best viewing angles.
- Built-In Media Hub: Inputs include two USB-C ports, one HDMI port, two USB-A ports, one Ethernet port, and a 3.5 mm AUX.
- Charge Multiple Devices: Supports up to 75W charging for your laptop via USB-C port with a 20W USB-C power delivery port for phone or tablet charging.
- Laptop Screen Connection: Stream media to a single monitor in stunning 4K@60Hz via HDMI port.
- Data Transmission: Use the USB-C power delivery port or USB-A 3.0 port to transfer files at up to 5 Gbps.
- Cable Management: Integrated cable management allows cables to be neatly organized for a clean look.
- Hassle-Free Assembly: Step-by-step instructions and labeled hardware kit are included.
- Built-In Docking Station: ErgoLink Monitor Mounts feature a built-in 7-way hub to enhance your workspace with mount technology that complements today’s sleek monitor designs.
- Universal Compatibility: Fits most 13-34″ monitors that weigh between 4.4 and 22 lbs with 75 x 75 or 100 x 100mm VESA mounting hole patterns.
- Versatile Mounting Options: Includes desk clamp and grommet mounting hardware for a variety of desk types. Compatible with 0.79″ to 3.54″ thick desktops.
- Fully Adjustable: Height, swivel, extension, and tilt adjustments allow monitors to be placed in the optimal position.
- Premium Heavy-Duty Gas Spring Arm: Our premium heavy duty gas spring arms offer a sleek design with height adjustment up to 22.5″.
- Premium Heavy-Duty Gas Spring Arm: Provides arm extension up to 26″.
- 360° Rotation: Easily rotate your monitor from a horizontal view to vertical.
- Monitor Tilt: Provides +45° to -45° tilt for the best viewing angles.
- Built-In Media Hub: Inputs include two USB-C ports, one HDMI port, two USB-A ports, one Ethernet port, and a 3.5 mm AUX.
- Charge Multiple Devices: Supports up to 75W charging for your laptop via USB-C port with a 20W USB-C power delivery port for phone or tablet charging.
- Laptop Screen Connection: Stream media to a single monitor in stunning 4K@60Hz via HDMI port.
- Data Transmission: Use the USB-C power delivery port or USB-A 3.0 port to transfer files at up to 5 Gbps.
- Cable Management: Integrated cable management allows cables to be neatly organized for a clean look.
- Hassle-Free Assembly: Step-by-step instructions and labeled hardware kit are included.
Whats Included
- Single Monitor Desk Mount
- Clamp and grommet mount
- Mounting hardware
- User manual
- USB-C cable
- Single Monitor Desk Mount
- Clamp and grommet mount
- Mounting hardware
- User manual
- USB-C cable
Q: Can I charge my laptop with this monitor mount?
A: Yes, this monitor mount supports up to 75W charging for your laptop via the USB-C port.
Q: What is the maximum weight capacity of this monitor mount?
A: The maximum weight capacity of this monitor mount is 22 lbs.
Q: What kind of mounting options does this monitor mount offer?
A: This monitor mount includes desk clamp and grommet mounting hardware for a variety of desk types.
Q: What is the maximum resolution supported by the HDMI port?
A: The HDMI port supports media streaming up to 4K resolution at 60Hz.
Q: What size monitors is this mount compatible with?
A: This monitor mount is compatible with most monitors between 13 and 34 inches.
Q: Does this monitor mount come with a built-in docking station?
A: Yes, this monitor mount features a built-in 7-way hub.
Q: How much can I rotate the monitor with this mount?
A: This mount allows you to rotate your monitor 360 degrees.
Q: My desk is 5" thick. Will this clamp fit?
A: Hello, this mount supports desktop thicknesses ranging from 0.79" to 3.54".
