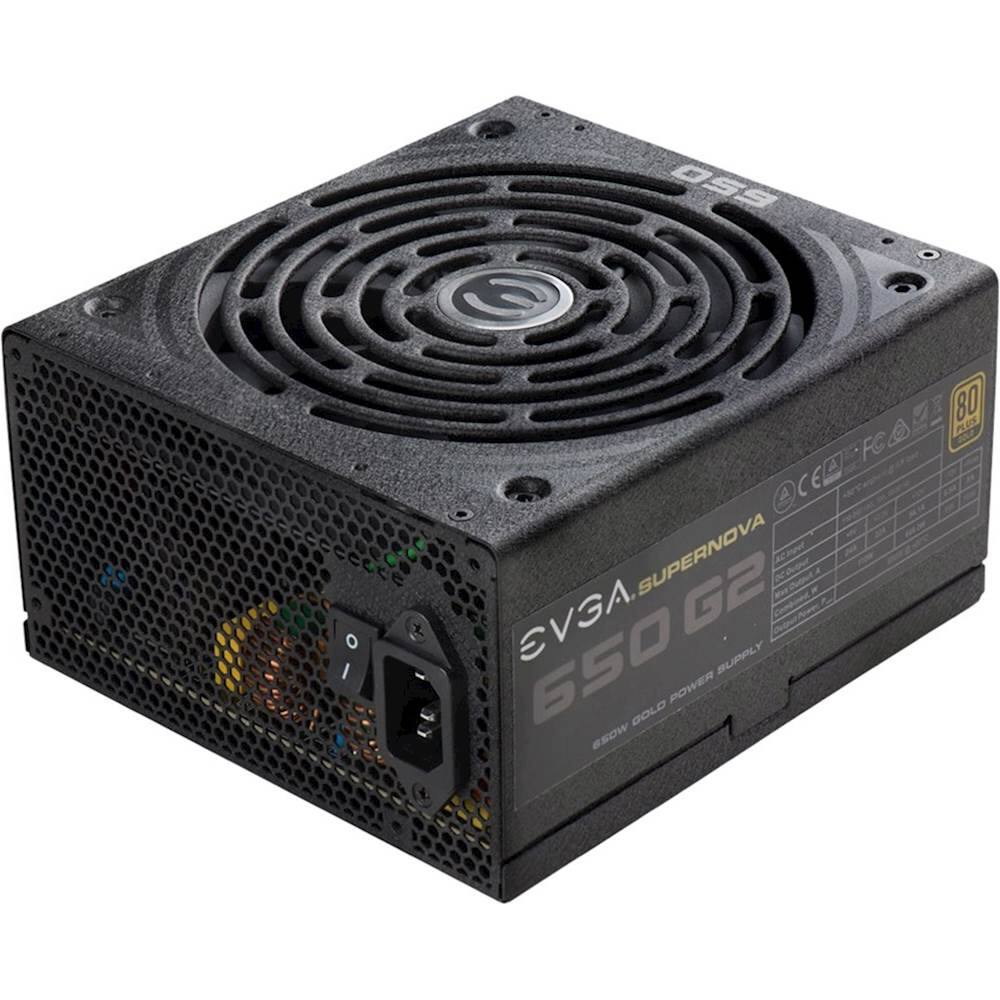

EVGA - 650W ATX 80 Plus Gold Modular Power Supply - Black
Model: 220-G2-0650-Y1
SKU: 5622822
This item is no longer available in new condition. See similar items below
- Key Specs
- Wattage: 650 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- ATX Connector: 24 Pin (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 2x 8pin (6+2), 2x 6pin (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 6 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 9x (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Product Length: 165.1 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- General
- Product Name: 650W ATX 80 Plus Gold Modular Power Supply
- Brand: EVGA
- Model Number: 220-G2-0650-Y1
- Color: Black
- Power
- Wattage: 650 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- Specification Compliance: 24 PIN ATX
- Overload Protection: true (Features intended to protect the product from damage and overheating caused by overload.)
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Cord Length: 4.9 feet
- Connectivity
- ATX Connector: 24 Pin (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- Floppy Connector: true (The configuration of the connector as it connects a computer power supply unit to a floppy disk drive.)
- PCIe Connector: 2x 8pin (6+2), 2x 6pin (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 6 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 9x (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Dimensions
- Product Height: 83.82 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 149.86 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 165.1 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 95.9 ounces (The out of box weight of the item.)
- Cooling
- Cooling Fan Type: Air
- Other
- UPC: 843368034894
Drive your computer with this EVGA SuperNOVA power supply. Its fully modular wiring system provides simple cable management, and the single +12V rail provides output stability and works with the latest components. The double ball bearing fan of this 650W EVGA SuperNOVA power supply operates quietly and more efficiently when running in ECO mode.
- 650W power supply: Delivers the power needed to run your PC.
- AC 100-240V input: With input 50 - 60Hz frequency for wide-ranging use.
- ATX compliance: Meets industry standards.
- 140 mm dual ball bearing cooling fan: Dissipates heat to help the power supply remain working at optimal temperature levels.
- Solid capacitors: Ensure reliable operation.
- Maximum safety to your critical system components: Provides overcurrent, overvoltage, overpower, undervoltage and short-circuit protection.
- 80 PLUS Gold Certification: Delivers 90% (115VAC) / 92% (220-240VAC) energy efficiency at real world load conditions.
- Single 12V rail: For optimal performance.
- Modular cable management: Allows you to use only the cables you need.
Whats Included
- EVGA 650W ATX 80 Plus Gold Modular Power Supply
