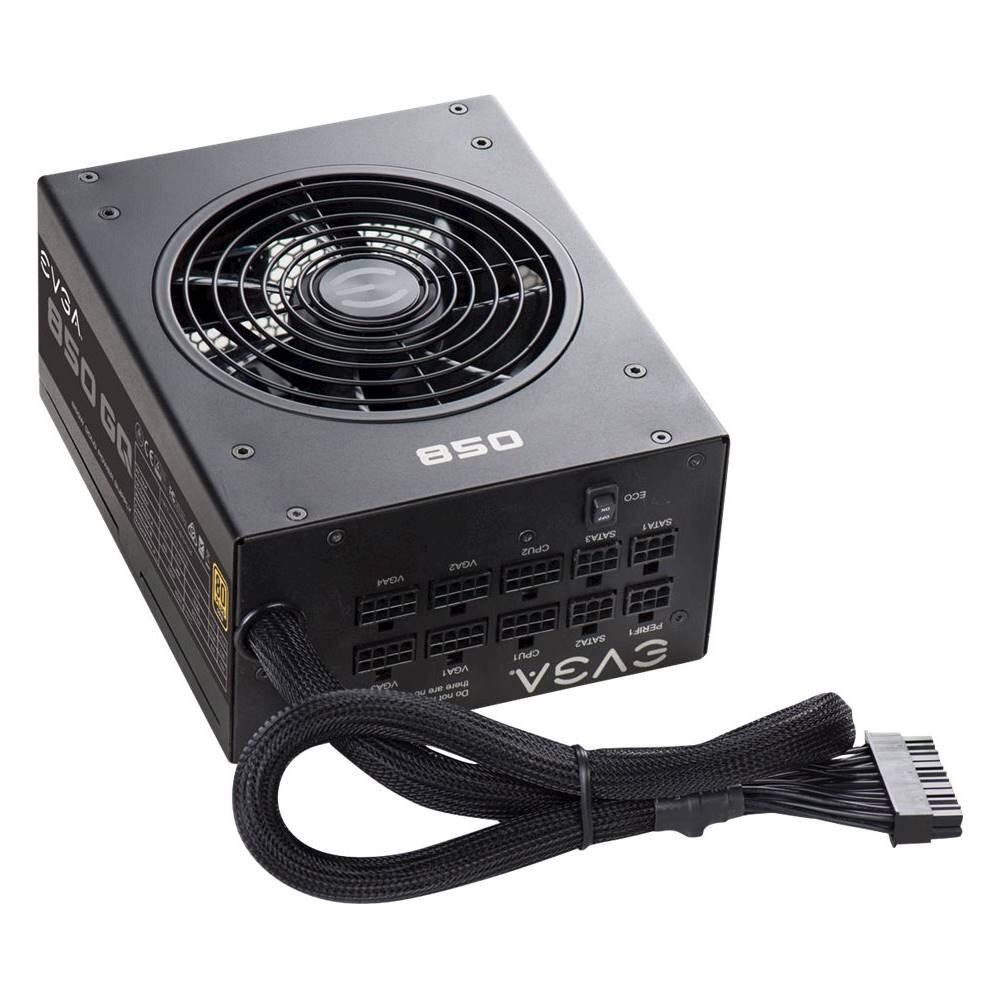

EVGA - GQ Series 850W ATX12V/ EPS12V 80 Plus Gold Modular Power Supply - Black
- Key Specs
- Wattage: 850 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- ATX Connector: 24 Pin (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 8x 8pin (6+2) (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 3 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 9x (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Product Length: 180.34 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- General
- Product Name: GQ Series 850W ATX12V/ EPS12V 80 Plus Gold Modular Power Supply
- Brand: EVGA
- Model Number: 210-GQ-0850-V1
- Color: Black
- Power
- Wattage: 850 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- Specification Compliance: ATX12V / EPS12V
- Overload Protection: true (Features intended to protect the product from damage and overheating caused by overload.)
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Cord Length: 5.02 feet
- Connectivity
- ATX Connector: 24 Pin (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- Floppy Connector: true (The configuration of the connector as it connects a computer power supply unit to a floppy disk drive.)
- PCIe Connector: 8x 8pin (6+2) (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 3 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 9x (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Dimensions
- Product Height: 83.82 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 149.86 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 180.34 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 112.9 ounces (The out of box weight of the item.)
- Cooling
- Cooling Fan Type: Other
- Other
- UPC: 843368035624
Introducing the latest in the EVGA power supply lineup; the GQ series. These power supplies take some of the best features from EVGA�s award winning power supplies, like EVGA ECO fan mode for near silent operation, Japanese Capacitor Design and a highly efficient design, at an excellent value. These new power supplies are 80 Plus Gold rated and offer an outstanding 5 Year Warranty that�s backed by world class EVGA support.
- 850W power supply: Delivers the power needed to run your PC.
- AC 100-240V input: With input 50 - 60Hz frequency for wide-ranging use.
- ATX12V and EPS12V compliance: Meets industry standards.
- 4th generation Intel® Core™ processor ready: Supports Intel Haswell and Z87 motherboards.
- 135mm fluid dynamic bearing cooling fan: Dissipates heat to help the power supply remain working at optimal temperature levels.
Whats Included
- EVGA 850W ATX12V / EPS12V 80 Plus Gold Modular Power Supply
A: The motherboard cable is the only one preattached so I guess it can be considered semi_ modular.
A: Yes it will work perfectly with your graphics card. It has 2 pcie cables both with 8pin connectors.
A: You can use it with a 4 pin connection because the 8 pin CPU connector is actually a 4+4-pin connector designed to power 2 CPU s or overclock one CPU. Just plug it into your MB at either end of the 8 pin connector. This power supply comes with two of these cables in case you want or need to heavy overclocking or for Dual CPU Boards.
A: Yes comes with more than enough! All cables are Black with Velcro cable bundle wraps. Hard Lined for MB 1 x ATX 20+4-Pin the rest of the cables are modular. CPU1, CPU2 2 x EPS/ATX12v 8(4+4)-Pin VGA1, VGA2, VGA3, VGA4 4 x PCI-E 8(6+2)-Pin x 2 SATA1, SATA2, SATA3 3 x SATA 5-Pin x 3 PERIF1 1 x Molex 4-Pin x 3 FDD 1 x Molex to FDD Adapter
Q: Does this power supply come with a sata to molex adaptor??
A: No adapter, however, it comes w/ 3 SATA cables and 1 Molex 4-Pin x 3 cable and a Molex to FDD Adapter.
Q: How many rails dose this power supply have? is it a single rail or a dual-rail?
A: JLStrange, You’re checking out a darn good supply. Single rail at over 70A. Check out the attached screenshot from EVGA’s website.
Q: Does it have 12-Pin Cable for Nvidia 30-series cards in the box?
A: It does not, but you can order one on EVGA’s website!
