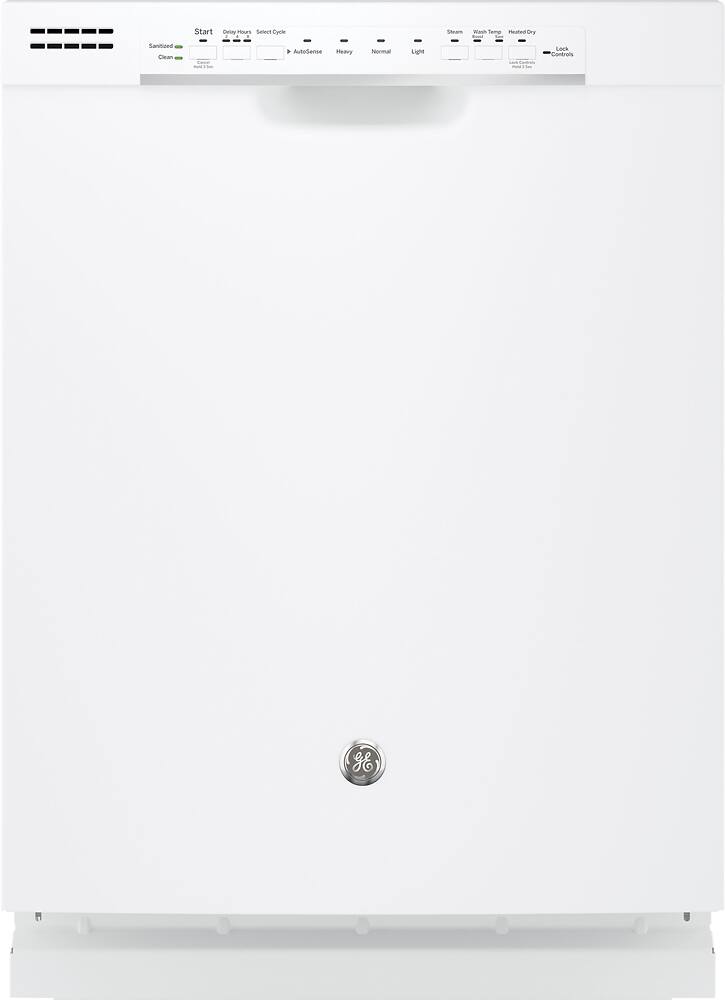

GE - 24" Front Control Tall Tub Built-In Dishwasher
- Key Specs
- Product Height: 34 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23.75 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Number Of Racks: 2
- Tub Finish: Plastic (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Color Finish: White
- General
- Product Name: 24" Front Control Tall Tub Built-In Dishwasher
- Brand: GE
- Model Number: GDF520PGJWW
- Color Finish: White
- Dimension
- Product Height: 34 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23.75 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth With Door Open: 51.5 inches (Measurement from the back of the product to its front, with door fully open.)
- Product Weight: 62 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 33.5 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 24 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Hard Food Disposer: true (This feature has blades to chop and disintegrate hard food particles, making them small enough to easily drain away. This prevents them from being recirculated back onto dishware and allows for easy maintenance.)
- Delay Start: true (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- End-Of-Cycle Signal: true (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
- Cycle Status Lights: true (Lights on the control panel that indicate which cycle is in use and/or its current status. Know when to unload with a simple glance.)
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- Water Soil Sensor: true (Feature that measures how dirty the water is throughout the wash cycle and adjusts the energy and water usage as needed. This can increase washing efficiency and may reduce energy costs.)
- Cycle Specifications
- Dishwasher Cycles: Auto Sense, Heavy Wash, Light Wash, Normal Wash
- Options and Programs: Child Lock, Delay Start 2/4/8 Hr., Heated Dry, Sani (NSF Certified), Start/Reset, Steam PreWash, Wash TempBoost
- Sensor Wash: true (Feature that automatically senses the load's soil levels and adjusts the wash cycle as needed. This often results in reduced water usage, which in turn may reduce energy costs.)
- Steam Cleaning: true (Wash cycle that primarily uses steam to loosen food debris and clean fragile dishware without force.)
- NSF-Certified Sanitization Cycle: true (Meets the National Sanitation Foundation (NSF) standards for performance and cleaning effectiveness. When operated on the sanitizing cycle, an NSF-Certified dishwasher reaches a final rinse temperature of 150⁰ Fahrenheit and achieves a minimum 99.999% percent reduction of bacteria.)
- Rack Features
- Number Of Racks: 2
- Upper Rack Features: Adjustable height, Ball-tipped tines, Removable (Aspects of upper rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, cup clips, and stemware holders.)
- Lower Rack Features: Ball-tipped tines (Aspects of lower rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Design
- Dishwasher Type: Built-in dishwashers
- Tub Finish: Plastic (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Control Location: Front control
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Electrical Specification
- Estimated Annual Electricity Use: 270 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 32 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Amperage: 7.1 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Wattage: 800 watts (Measurement of electrical power.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Warranty
- Manufacturer's Warranty - Parts: 1 year limited
- Manufacturer's Warranty - Labor: 1 year limited
- Other
- UPC: 084691814993
GE Built-In Dishwasher: Easily clean up after meals with this efficient dishwasher, which features a Piranha hard food disposer with a removable filter to help eliminate the need for pre-rinsing. Plus, a Steam PreWash option loosens stuck-on food, so you don't have to soak your dishes.
- Piranha™ hard food disposer with removable filter: To ensure consistently clean items, this stainless steel blade rotates at 3,600 RPM to pulverize food particles and helps to prevent large particles from clogging the wash arms
- Steam PreWash: Loosens tough soils before any cycle, virtually eliminating the need for soaking or pre-rinsing dishes
- Sanitize option (NSF Certified): High-temperature rinse sanitizes and reduces by 99.999% the bacteria found on dishes
- SpaceMaker® silverware basket: Enjoy table-ready silverware and loading flexibility with this unique basket that can be placed on the rack or onto the door
- Pearlescent dark gray racks with ball tip tines: Offer durability and secure dishes
- 54 dBA with status light on door: A dishwasher this quiet has a multi-colored status light to let you know it is running
- 2/4/8-hour Delay Start: Wash dishes at your convenience
- Dedicated Silverware Jets: Get table-ready silverware thanks to powerful jets that focus on silverware baskets in multiple locations
- Cabinet depth installation: Achieving an attractive, flush appearance that complements and blends in with cabinetry is possible with a unique design that doesn't reduce rack capacity
- Clean design inner door: The clean, attractive appearance features no visible hardware, so it’s also easy to maintain
- Built-up floor capable: Installation over built-up floors is simple with the ability to adjust the dishwasher height
- Auto sense cycle: Automatically adjusts to soil level to maximize energy savings and ensure clean dishes
- American gray plastic interior: Heavy-duty material is designed for years of dependability and has an attractive finish
- 4-pass wash and dry element: Items come out consistently clean and dry with the help of this element, which evenly heats water for washing and air for drying
- Chrome accents on control panel: Enjoy a touch of modern style with this chrome accent on the control panel
- Top or side mount installation brackets: Enjoy flexible installation options with brackets that can be used to mount the dishwasher under the countertop or to the cabinets on the side
- Two-pump system: One efficient pump for washing/rinsing and one powerful low-energy pump to remove soils provide excellent wash performance with reduced sound
- Audible end-of-cycle signal: The dishwasher makes a sound to tell you when the load is complete and dishes are ready to unload
- ENERGY STAR® qualified / CEE qualified: Meets or exceeds federal guidelines for energy efficiency for year-round energy and money savings
Whats Included
- 24" Front Control Tall Tub Built-In Dishwasher
- Dishwasher hookup kit is not included
- Owner's manual
Documents
- Energy_Guide_PDF
Q: How do cancel a cycle on my dishwasher
A: Hi Vicki- Thanks for choosing GE! To cancel a wash cycle, press and hold the Start pad for 3 seconds. The dishwasher will drain, emit a beep sound, and the wash cycle light will turn OFF. For reference, see page 8 of the Owner's Manual at the following link: http://products.geappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=49-55117.pdf - We hope this is helpful. Keep in touch! SUEatGEA
A: The connection is on the left side.
A: Hi - Thanks for continuing to make GE Appliances a part of your home! Yes, both models are the same Bisque color and install in the same standard cabinet space (24" Wide x 24" Deep Cutout). We suggest to view the Quick Specs at the following link: http://products.geappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=GDF520PGJ_PSJ_c2.pdf - We appreciate your loyalty. Enjoy! SUEatGEA
A: Hello Michael, I am happy to help. The dishwasher can be adjusted from 33-3/8" MIN. adj to 34-5/8" MAX. Please see the specs below: http://products.geappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=31-31572.pdf http://products.geappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=GDF520PGJ_PSJ_c2.pdf We appreciate you checking with us. Lisa from GE Appliances.
Q: How do i reset the wash settings on my GE Profile
A: Hello BRUBER, Thank you for reaching out. We're happy to answer your question. The dishwasher can not be reset once operation has begun, but the cycle can be cancelled and setting can be changed. To stop a cycle, simply press and hold the start pad for three seconds and close the door. The dishwasher will drain, beep, and the wash cycle will turn off. We hope this helps. Best wishes. Mike@GEA
Q: Does this dishwasher have a rinse only cycle?
A: Hello CDSJ - Thank you for reaching out about this excellent dishwasher. We apologize for the delay in getting back to you but will be happy to help. The model GDF520PGJWW does not offer a Rinse only cycle. It does have a light wash setting for smaller messes. Stay safe and keep in touch! - John@GEA
A: Hi - We are happy to provide assistance. You will need to use less detergent if you have a water softener. The amount of detergent you use will be determined by the hardness of your water. Also, adjust the rinse aid dispenser to reduce the amount of rinse agent (turn counterclockwise). See page 9 of the Owner' Manual. See the chart on page 10 of the Owner's Manual: https://products.geappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=49-55117.pdf - Sandy grit left on dishes is from water not being hot enough to dissolve liquid or dry detergent. The water coming into the dishwasher should be a minimum of 120 degrees Fahrenheit. To check the water temperature, run the hot water at the kitchen sink and measure the temperature of the running water with a canning or meat thermometer. Adjust the temperature of the water heater accordingly. To be sure that the dishwasher is filling with the hottest possible water, run the hot water faucet at the kitchen sink prior to operating the dishwasher. Also, avoid running the dishwasher while hot water is being used for other activities. Play Video: https://products.geappliances.com/appliance/gea-support-search-content?contentId=21548 - DISHWASHER DETERGENT USE AND WATER HARDNESS: https://products.geappliances.com/appliance/gea-support-search-content?contentId=17470 - Keep in touch! SUE@GEA
