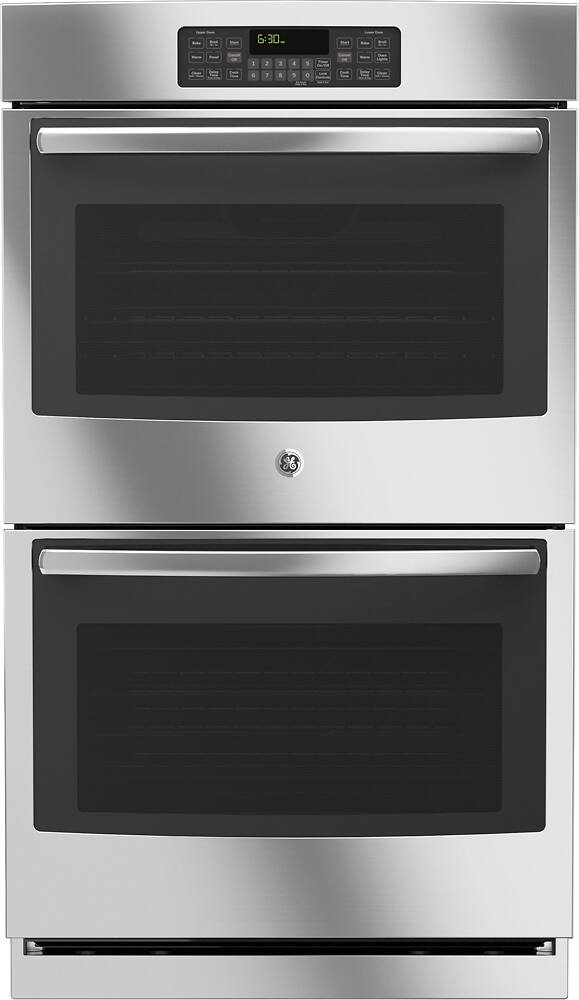

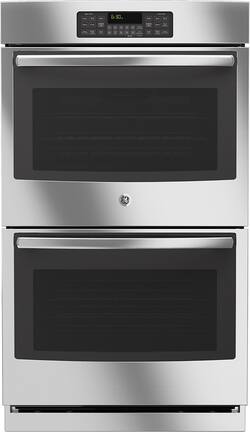

GE - 30" Built-In Double Electric Wall Oven
- Key Specs
- Product Height: 53 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 26 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Oven 1 Convection: false (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Convection: false (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Color Finish: Stainless steel
- General
- Product Name: 30" Built-In Double Electric Wall Oven
- Brand: GE
- Model Number: JT3500SFSS
- Color Finish: Stainless steel
- Dimensions
- Product Height: 53 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 26 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 237 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 50 1/4 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 28 1/2 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 23 1/2 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Oven 1 Capacity: 5 cubic feet
- Oven 2 Capacity: 5 cubic feet
- Features
- Oven Type: Double wall oven
- Oven Power Source: Electric
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Clock Display: true
- Oven Light: true
- Functions
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Hidden Bake Element: true (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Time Bake: false (Allows you to program the appliance to run at a pre-determined time and automatically turn off when baking time is finished. Plan for mealtime or entertaining by setting your oven to start baking at a convenient time and reduce the worry of overcooking your food with the automatic shut off feature.)
- Rapid Preheat: false
- Dehydration Settings: false (This function sets the oven at a low temperature, typically under 200 degrees Fahrenheit, for an extended period of time. During this time, warm air circulates throughout the oven to draw moisture out of foods.)
- Oven 1 Specification
- Oven 1 Location: Upper
- Oven 1 Interior Height: 17 3/8 inches
- Oven 1 Interior Width: 25 inches
- Oven 1 Interior Depth: 20 1/4 inches
- Oven 1 Convection: false (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 1 Window: true
- Oven 1 Cleaning Method: Self-Steam Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 1 Rack Positions: 6
- Number of Oven 1 Racks: 2
- Oven 1 Bake Element: 2850 watts
- Oven 1 Broil Element: 4000 watts
- Oven 2 Specification
- Oven 2 Location: Lower
- Oven 2 Interior Height: 17 3/8 inches
- Oven 2 Interior Width: 25 inches
- Oven 2 Interior Depth: 20 1/4 inches
- Oven 2 Convection: false (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Window: true
- Oven 2 Cleaning Method: Self-High Heat Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 2 Rack Positions: 6
- Number of Oven 2 Racks: 2
- Oven 2 Bake Element: 2850 watts
- Oven 2 Broil Element: 4000 watts
- Electrical Specification
- Amperage: 40 amperes (Strength of electrical current.)
- Voltage: 240 volts (Amount of power needed to support an electrical current.)
- Wattage: 2850 watts (Measurement of electrical power.)
- Amperage At 208 Volts: true
- Amperage At 240 Volts: true
- Kilowatt Rating At 208 Volts: true
- Kilowatt Rating At 240 Volts: true
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Other
- UPC: 084691249856
Featuring two 5.0 cu. ft. ovens, each with 2 heavy-duty racks, this GE JT3500SFSS double electric wall oven makes it easy to cook meals for a large group. The electronic touch controls simplify operation.
- Fit Guarantee: Replacing a similar wall oven from GE or another brand? GE wall ovens are guaranteed for an exact fit to make replacement easy. See offer criteria and details
- Self-clean with Steam Clean option (both ovens): Clean your oven the way you want
- Self-clean, heavy-duty oven racks: Conveniently clean your oven and racks together
- Ten-pass bake element: Even baking is assured with heat that covers more surface area
- Eight-pass broil element: Get full broil coverage and even browning from edge to edge
- Double oven 10.0 cu. ft. total oven capacity (5.0 cu. ft. both ovens): Large meals are easy with capacity that fits more at one time
- Black gloss oven interior: Enjoy a clean and sleek appearance
- Electronic touch controls: Confidently operate the oven with one easy touch
- Hidden bake oven interior: Make cleanup easy by eliminating hard-to-reach areas
- Audible preheat signal: Know when the oven is ready
- Certified Sabbath mode: Prepare foods by kosher standards
Whats Included
- GE 30" Built-In Double Electric Wall Oven
- Owner's manual
Product Manuals
Q: Are either or both ovens self cleaning?
A: Yes, both ovens have Self-Clean with STEAM CLEAN Option.
Q: Is this oven is convection oven.
A: Hi Al - Both ovens have Traditional cooking technology. Our GE® 30" Built-In Convection Double Wall Oven JTD5000SNSS has a True European Convection upper oven and Traditional lower oven. Thanks for your interest! Sue
Q: Is the motherboard in front of the oven or the back of the oven?
A: hhi - The Oven Control is located in front behind the control panel. You can view a parts diagram online at: https://www.geapplianceparts.com/store/parts/KeywordSearch?q=JT3500SFSS - Keep in touch! Sue
Q: Does this model have shabath mode?
A: Hi Dina - The oven has Certified Sabbath Mode. Learn more at the following link- WALL OVEN SABBATH MODE: https://products.geappliances.com/appliance/gea-support-search-content?contentId=17709 - Keep in touch! SUE@GEA
Q: Can you get this unit in natural gas ?
A: Hi - Model JT3500EJES is not available in gas. We currently offer GE® 24" Built-In Gas Oven JGRP20SENSS (Stainless), JGRP20BEJBB (Black), JGRP20WEJWW (White). Keep in touch! SUEatGEA
Q: Does this oven have self clean .
A: Hi patriciagolf5126 - Yes, both ovens feature Self-clean with Steam Clean option so you can clean your oven the way you want. Play Video: https://www.youtube.com/embed/2EMLPJKNkkE?rel=0 - Thanks for choosing GE. Enjoy! SUEatGEA
A: Hello Bobbi, I am happy to help. The high gloss model refrigerator will have a similar finish as your dishwasher. http://www.bestbuy.com/site/ge-profile-series-25-4-cu-ft-side-by-side-refrigerator-with-thru-the-door-ice-and-water-high-gloss-black/1071175.p?id=1219465274554&skuId=1071175 I hope this helps. Thanks for checking.
Q: How to measure for a double wall built in oven? Currently, microwave and single oven is there.
A: Hi Lady331- Thanks for considering our GE® 30" Built-In Double Wall Oven JT3500SFSSJ! The Cutout Dimensions are as follows: (WxHxD) (in.) 28-1/2 x 51-13/16 x 23-1/2. We encourage you to view the Quick Specs at the following link for details on measuring for the double wall oven: http://products.geappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=320152_jt3500sf_c2.pdf - Also, see the following link MEASURING FOR A NEW WALL OVEN: http://www.geappliances.com/ge/wall-oven/wall-oven-installation-guide.htm - We hope this is helpful. Keep in touch! SUEatGEA
