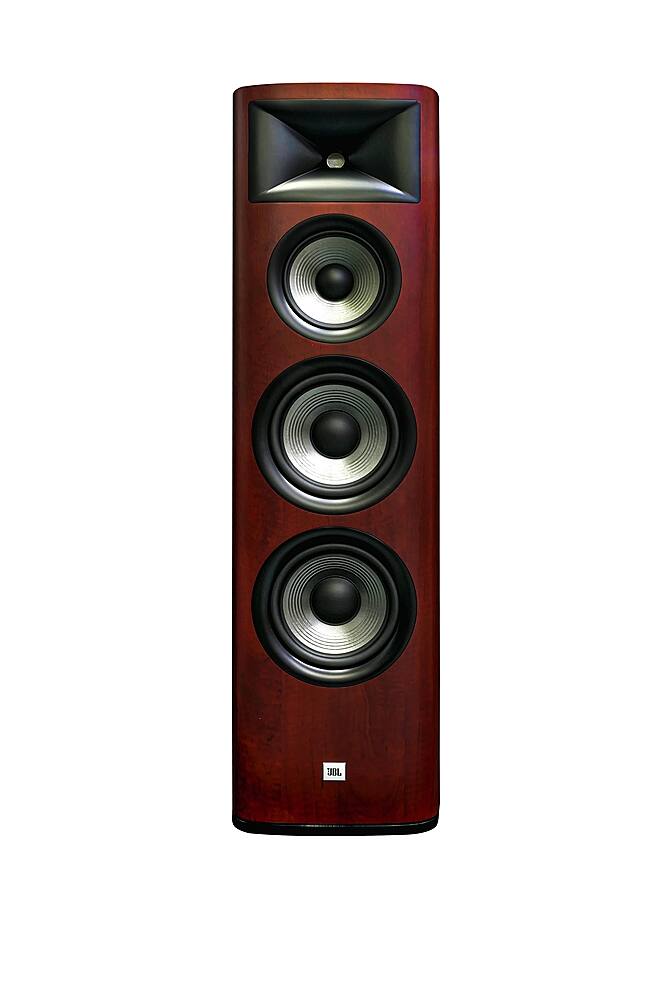

JBL - Studio 698 Dual 8" Woofer 6" Mid 3-Way Compression Driver Floorstanding Loud Speaker (Each) - Wood
Model: JBLS698W
SKU: 6547540
This item is no longer available in new condition. See similar items below
- Key Specs
- Speaker Type: Floorstanding
- General
- Product Name: Studio 698 Dual 8" Woofer 6" Mid 3-Way Compression Driver Floorstanding Loud Speaker (Each)
- Brand: JBL
- Model Number: JBLS698W
- Color: Wood
- Audio
- Speaker Type: Floorstanding
- Enclosure Type: Ported
- Peak Power Handling: 250 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Impedance: 6 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Minimum Frequency Response: 36 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 40 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Sensitivity: 90 decibels
- Tweeter Type: Horn
- Number of Tweeters: 1
- Tweeter Size: 1 inches
- Number of Midranges: 1
- Midrange Size: 6 inches
- Number of Woofers: 2
- Woofer Size: 8 inches
- Connectivity
- Wireless Multi-Room Audio: false (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Features
- Indoor Or Outdoor Use: Indoor (Indicates the appropriate environment product was designed to be used in.)
- Dimensions
- Product Height: 41.65 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 11.81 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 15.75 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 79 pounds (The out of box weight of the item.)
- Material
- Tweeter Material: Polymer
- Midrange Material: Other
- Woofer Material: Other
- Included
- Speaker Wire Included: false
- Warranty
- Manufacturer's Warranty - Parts: 5
- Manufacturer's Warranty - Labor: 5
- Other
- UPC: 050036351478
The JBL Studio 698 is a high-performance floorstanding loudspeaker utilizing JBL's 2414H-1 1-inch compression driver mated to a High-Definition Imaging horn complemented with a 6-inch midrange driver and dual 8-inch PolyPlas cone woofers. The elegant cabinet design includes a magnitically attached grille and brings an element of sophistication to any room. The Studio 6 Series delivers big dynamics, detailed sound, and powerful bass for true high-fidelity sound.
- JBL Compression Driver: JBL high output low distortion professional compression drivers deliver impactful performance just like the at the cinema or concert. Feel like you are in the front row, wherever you, or your speakers, are in the room.
- High Definition Imaging (HDI) waveguide: The patented JBL HDI waveguide delivers crisp and precise sound with low distortion and broad dispersion. This means that dialog will be clear and accurate, and all listeners, regardless of seating location, will receive even, balanced sound.
- Polyplas woofer: JBL’s woofer design uses rigid and lightweight materials to produce accurate mid-bass and deep low frequencies for balanced sound no matter the content or placement. Easy to install with a sturdy design that minimize vibration, and fit seamlessly into your space
- Rigid, modern cabinet: The Studio 698 enclosure incorporates a bass reflex design with dual rear-firing, computer-optimized flared ports, and a sophisticated curved cabinet
Whats Included
- JBL Studio 698 Floorstanding Loudspeaker
- 1 x Owner’s Manual
- l 1 x Warranty Card
- 4 x Carpet Spikes
- 4 x Feet Pads
Product Manuals
Q: Is this speaker sold as a pair?
A: undefined
Q: When will you have these in the Red Wood finish?
A: Thanks for reaching out. Our JBL Studio 698 is a specialty audio product handled by our Luxury Audio Department. For more information about this product, please contact our customer support via our toll-free hotline at (888) 691-4171.
