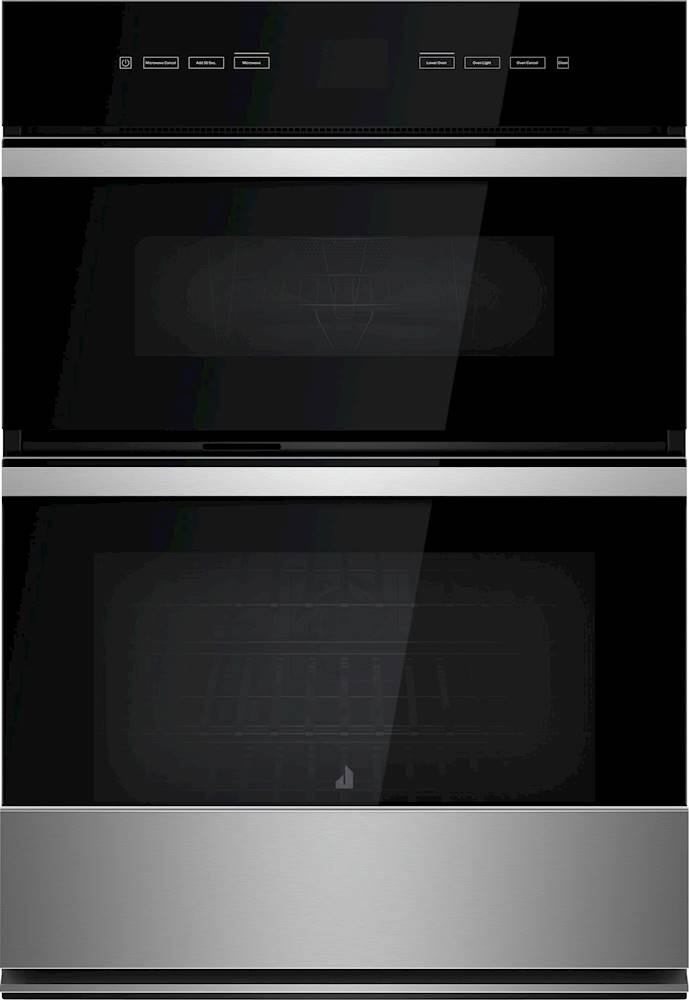

JennAir - NOIR 30" Single Electric Convection Wall Oven with Built-In Microwave - Floating glass black

Model: JMW2430IM
SKU: 6351800
This item is no longer available in new condition. See similar items below
  • Key Specs
    • Product Height: 43 13/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 23 5/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • Depth Without Handle: 24 3/10 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
    • Depth With Handle: 26 2/5 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
    • Oven 1 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
    • Oven 2 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
    • Color Finish: Black
  • General
    • Product Name: NOIR 30" Single Electric Convection Wall Oven with Built-In Microwave
    • Brand: JennAir
    • Model Number: JMW2430IM
    • Color Finish: Black
  • Dimensions
    • Product Height: 43 13/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 23 5/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
    • Depth Without Handle: 24 3/10 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
    • Depth With Handle: 26 2/5 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
    • Depth With Door 90 Degrees Open: 45 2/5 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
    • Product Weight: 268 pounds (The out of box weight of the item.)
  • Cut-Out Dimensions
    • Cut-Out Height: 41 1/2 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
    • Cut-Out Width: 28 1/2 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
    • Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
  • Capacity
    • Oven 1 Capacity: 1.4 cubic feet
    • Oven 2 Capacity: 5 cubic feet
  • Features
    • Oven Type: Microwave and wall oven combination
    • Oven Power Source: Electric
    • Auto Shut-Off: true (Feature automatically turns off the product.)
    • Clock Display: true
    • Oven Light: true
    • Turntable Diameter: 14 1/10 inches
    • Removable Turntable: true
    • Turntable: true (Rotating plate within the microwave cooking cavity that helps foods cook more evenly.)
  • Functions
    • Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
    • Hidden Bake Element: true (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
    • Time Bake: true (Allows you to program the appliance to run at a pre-determined time and automatically turn off when baking time is finished. Plan for mealtime or entertaining by setting your oven to start baking at a convenient time and reduce the worry of overcooking your food with the automatic shut off feature.)
    • Rapid Preheat: true
  • Oven 1 Specification
    • Oven 1 Location: Upper
    • Oven 1 Cavity Material: Stainless steel
    • Oven 1 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
    • Oven 1 Convection Type: Convection (Convection adds a fan system to the two heating elements for continuous air motion and efficient cooking. True convection adds a third heating element to the fan system, for even more uniform heating.)
    • Oven 1 Window: true
    • Oven 1 Cleaning Method: Manual (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
    • Number of Oven 1 Rack Positions: 1
    • Number of Oven 1 Racks: 1
    • Oven 1 Broil Element: 1600 watts
  • Oven 2 Specification
    • Oven 2 Location: Lower
    • Oven 2 Interior Height: 18 inches
    • Oven 2 Interior Width: 25 inches
    • Oven 2 Interior Depth: 19 inches
    • Oven 2 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
    • Oven 2 Convection Type: Convection (Convection adds a fan system to the two heating elements for continuous air motion and efficient cooking. True convection adds a third heating element to the fan system, for even more uniform heating.)
    • Oven 2 Window: true
    • Oven 2 Cleaning Method: Self-High Heat Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
    • Number of Oven 2 Rack Positions: 6
    • Number of Oven 2 Racks: 3
    • Oven 2 Bake Element: 2800 watts
    • Oven 2 Broil Element: 4000 watts
  • Electrical Specification
    • Amperage: 40 amperes (Strength of electrical current.)
    • Voltage: 240 volts (Amount of power needed to support an electrical current.)
    • Wattage: 8000 watts (Measurement of electrical power.)
    • Amperage At 240 Volts: true
    • Kilowatt Rating At 208 Volts: true
    • Kilowatt Rating At 240 Volts: true
  • Included
    • Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
  • Other
    • UPC: 883049516172

Beyond a veil of dark glass in the lower cavity, the power of the MultiMode® convection system caresses every morsel with even heat. Above, let your appetite run wild with microwave and convection energy. With curated recipe presets and full-color images, an intuitive, guided culinary experience awaits your touch.

Range, Cooktop and Wall Oven Buying Guide

  • MultiMode® vertical dual-fan convection: Steady heat is circulated by whirling metal blades, weaving around every flat tine. Wield your cooking prowess from marbled meats to succulent roasts.
  • Convection and microwave combination cooking: Let your appetite run wild - broil, bake, or warm with convection and microwave energy.
  • Auto convection conversion: Bake with abandon. The oven automatically converts temperature and cook time to make any recipe a convection recipe.
  • Auto convection modes: Savor taste that leaves you wanting more. Choose your food type, and temperature and airflow automatically adjust for baking, broiling, or roasting.
  • Manual convection modes: Select from presets such as Convect Bake, Convect Roast, and Convect Broil to let the cooking method guide you.
  • Self-cleaning cycle: Conveniently eliminates the need to scrub by doing the cleaning for you.
  • 1.4 cu. ft. microwave capacity: Explore your options. There's room for whatever you're craving.
  • 5.0 cu. ft. oven capacity: Big on entertaining. Generous capacity to cook multiple dishes at once.
  • Glide rack: Smooth moves. Glides in and out fluidly and quietly even when fully loaded.
  • Irresistible interior: Captivation cloaked in black. Beyond a dark glass expanse, cinematic lighting illuminates smooth racks, flat tines, and an enticing jet-black interior.
  • Cinematic lighting: Lights, camera, cook. Halogen lighting increases to full intensity, minimizing shadows and dramatically showcasing food.
  • Smooth-close door: Quiet, soft, secure. Your oven gently pulls the door closed.
  • Keep Warm™ option: Reward anticipation. Low heat keeps tempting dishes ready and waiting for the right moment.
  • 3200W convection element: Power, controlled. Evenly bake breads and cook main dishes in a controlled environment powered by this 3200W convection element.
  • 2800W hidden bake element: Unleash hidden power. This 2800W bake element is concealed beneath the oven floor, providing even heat and a smooth surface that is easy to clean.
  • 4000W broil element: Tap into high-watt, even heat designed to broil meats with this 4000W element for savory, caramelized crust.
  • 8-pass reflective broil element: Maximum coverage. Even heat distribution. Beneath a stainless steel broil plate, this element radiates heat back onto cookware and food.
  • 900W microwave element: Harness 900W of microwave energy to rapidly cook and reheat a variety of foods.
  • 1200W microwave convection element: Surrounds your cravings with circulating, consistent heat until baked to your satisfaction.
  • 1600W grill element: Indulge in tastes and textures unattainable with microwave technology alone. Working together with a crisp pan, this element grills, toasts, and browns.
  • Crisp pan: Revel in your desire for foods crisped and browned to your liking with a special crisp pan that works with microwave energy and the broil element.
  • 4.3" full-color LCD: A highly interactive, full-color LCD touch screen is packed with dynamic features that allow you to navigate effortlessly through settings and cooking options, including temperature and cooking mode.
  • Sabbath mode: Select this function to bypass the oven's automatic shutoff when observing the Sabbath and other religious holidays.
  • Sensor cooking: An intuitive sensor responds to humidity levels, altering time and power for results that aim to please.
  • Temperature probe: Know when dinner is done without ever opening the door. Four points of contact deliver temperature readings visible on the LCD screen.
Whats Included
  • Jenn-Air NOIR 30" Single Electric Convection Wall Oven with Built-In Microwave
  • Owner's manual
