Name: Key Digital - HDMI Switcher - Black
Brand: Key Digital
SKU: 6412882
Rating: 4.5 (8 reviews)

General
- Product Name: HDMI Switcher
- Brand: Key Digital
- Model Number: KD-S4X1X
- Color: Black
Features
- Selector Switch Box Type: Rack
- Indicator Lights: true
- Surround Sound Supported: DTS-HD Master Audio, Dolby Atmos, Dolby Digital Plus, Dolby TrueHD (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
Connectivity
- Input(s): HDMI
- Output(s): 3.5mm audio, HDMI, S/PDIF
Dimensions
- Product Height: 1.1 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 6.25 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 3.1 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
Other
- UPC: 815996021034

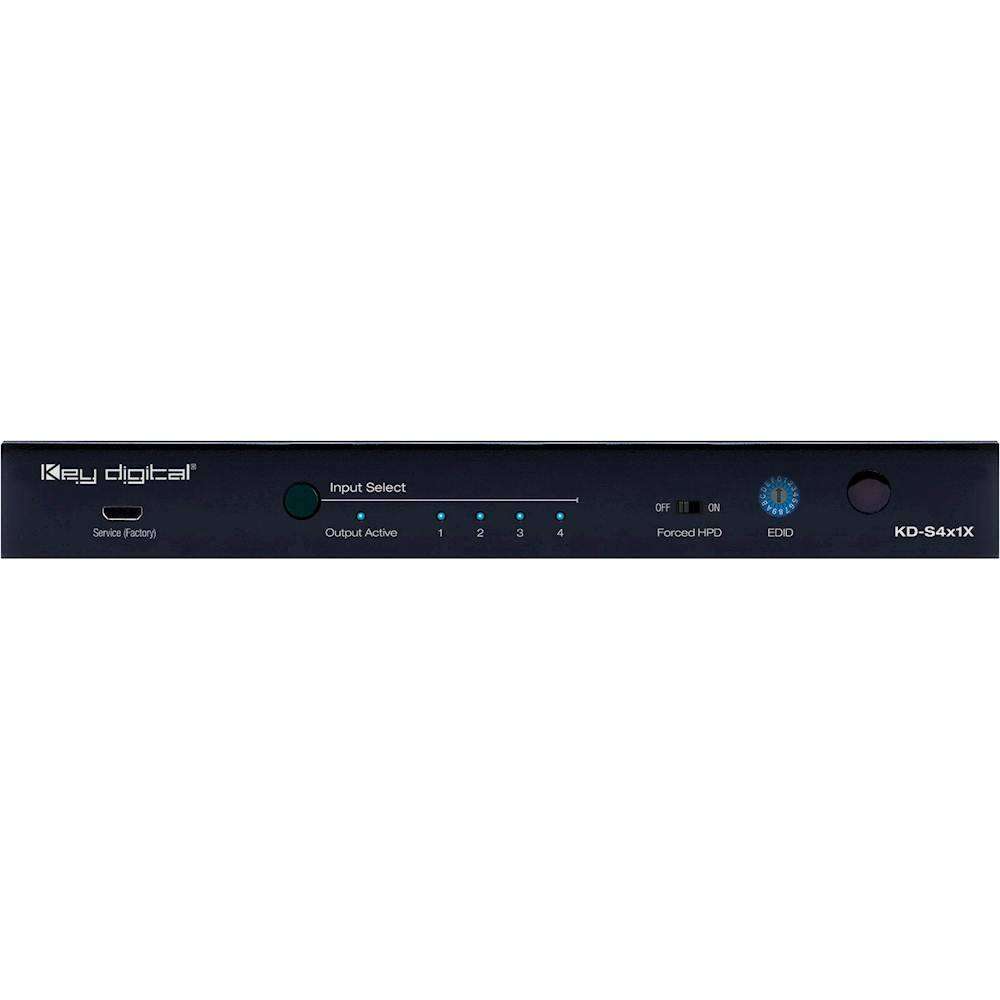

Navigate through your presentation displays easily with this Key Digital 4x1 4K HDMI switcher. The UHD support for up to 4096 x 2160 maximum resolution delivers sharp images, while the audio de-embedding lets you distribute audio signals to external speakers. This Key Digital 4x1 4K HDMI switcher features Auto-Sensing technology for selecting newly detected sources, and the Full Buffer System technology manages TMDS re-clocking to deliver fluid signals.

HDMI switching: Connects four HDMI sources to one HDMI output.
Ultra HD/4K support: Supports signals up to 4096 x 2160 or 3840 x 2160 24/25/30/60Hz at 4:4:4 (signals up to 18 Gbps bandwidth).
HDCP licensing: Fully licensed and compatible with HDCP 2.2.
HDR10 (High Dynamic Range): Provides more lifelike images through a greater range of luminance levels.
Resolution support: Supports all SD, HD, VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA), and up to 4096 x 2160 resolution.
Deep color support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bits.
De-embedding audio and video matrix: Audio of the selected HDMI input is output at the digital optical and analog 3.5mm stereo connectors.
Full Buffer System: Manages TMDS re-clocking/signal re-generation, HDCP authentication to source and display, and EDID Control handshake.
EDID capabilities: Internal library with 15 default EDID configurations for input in addition to native EDID data for any output/display.
Lossless compressed digital audio: Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Master Audio™, and Dolby Atmos support.
Control system support: Compass Control® Pro-ready. Fully controllable by all IR supported control systems.
