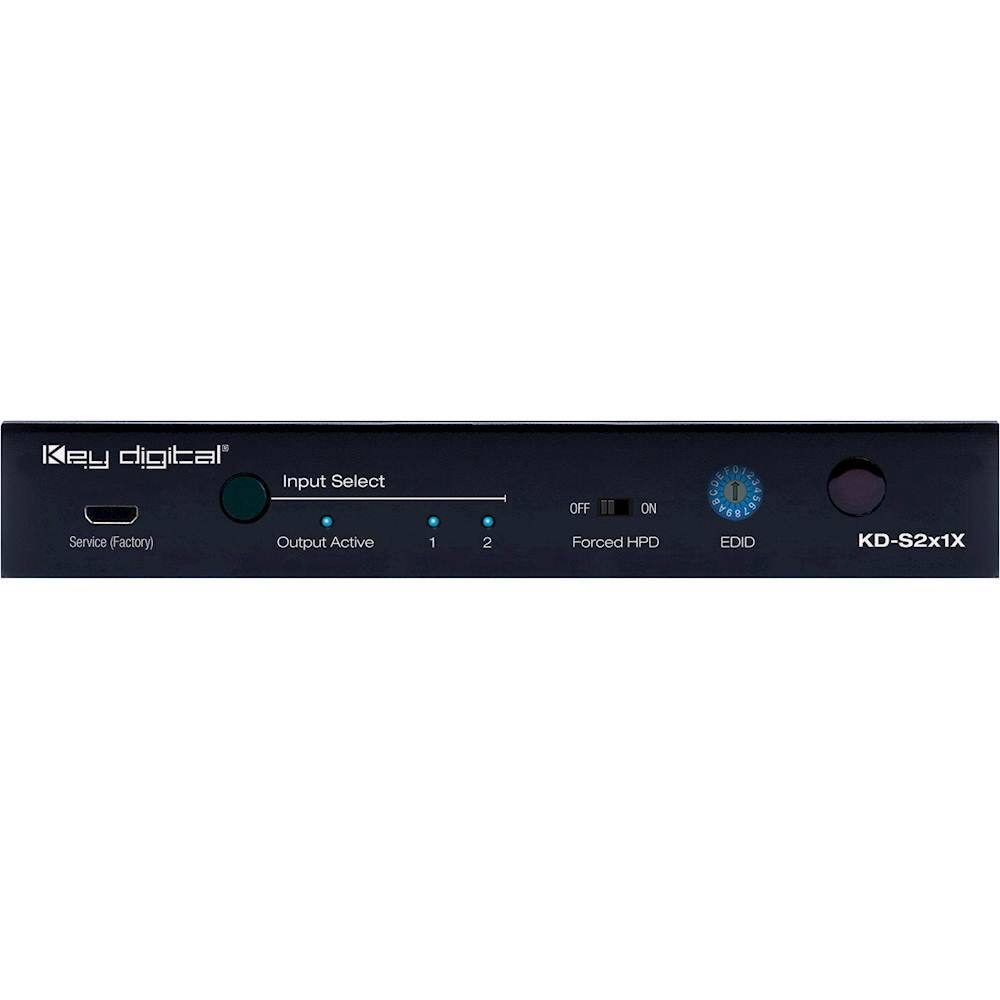

Key Digital - HDMI Switcher - Black
Model: KD-S2X1X
SKU: 6412886
This item is no longer available in new condition. See similar items below
- General
- Product Name: HDMI Switcher
- Brand: Key Digital
- Model Number: KD-S2X1X
- Color: Black
- Features
- Selector Switch Box Type: Rack
- Indicator Lights: true
- Surround Sound Supported: DTS-HD Master Audio, Dolby Atmos, Dolby Digital Plus, Dolby TrueHD (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Connectivity
- Input(s): HDMI
- Output(s): 3.5mm audio, HDMI, S/PDIF
- Dimensions
- Product Height: 1.1 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 4.3 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 2.8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Other
- UPC: 815996021027
Control multiple AV devices with this Key Digital HDMI switcher kit. Support for SD to 4K video offers compatibility with updated equipment, while the audio output facilitates de-embedding from the video data to external stereo connectors. This Key Digital HDMI switcher kit supports up to 4K UHD images for immersive visuals.
- HDMI switching: Connects two HDMI sources to one HDMI output.
- Ultra HD/4K support: Supports signals up to 4096 x 2160 or 3840 x 2160 24/25/30/60Hz at 4:4:4 (signals up to 18 Gbps bandwidth).
- HDCP licensing: Fully licensed and compatible with HDCP 2.2.
- HDR10 (High Dynamic Range): Provides more lifelike images through a greater range of luminance levels.
- Resolution support: Supports all SD, HD, VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA), and up to 4096 x 2160 resolution.
- Deep color support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bits.
- De-embedding audio and video matrix: Audio of the selected HDMI input is output at the digital optical and analog 3.5mm stereo connectors.
- Full Buffer System: Manages TMDS re-clocking/signal re-generation, HDCP authentication to source and display, and EDID Control handshake.
- EDID capabilities: Internal library with 15 default EDID configurations for input in addition to native EDID data for any output/display.
- Lossless compressed digital audio: Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Master Audio™, and Dolby Atmos support.
- Control system support: Compass Control® Pro-ready. Fully controllable by all IR supported control systems.
Whats Included
- Key Digital HDMI Switcher
- Power supply
- IR remote control
- Mounting brackets
- Owner's manual
