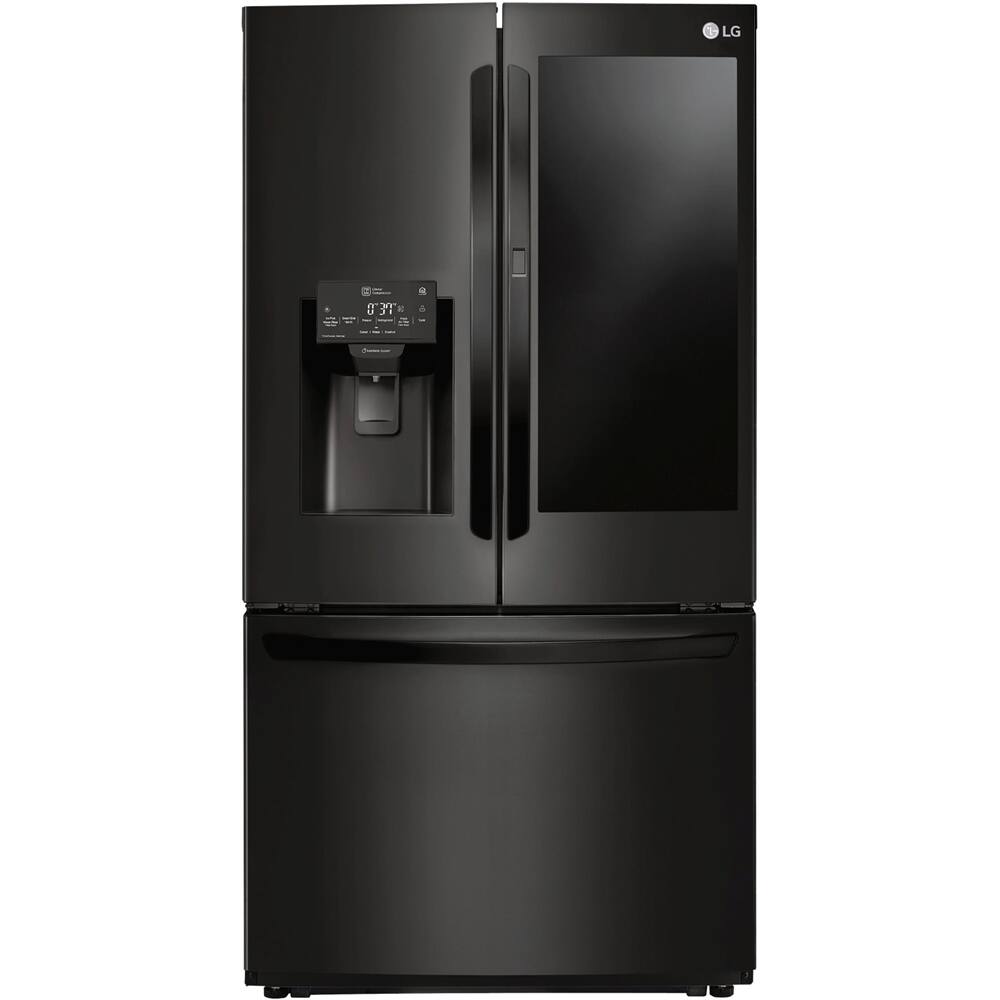

LG - 21.9 Cu. Ft. French InstaView Door-in-Door Counter-Depth Refrigerator
- Key Specs
- Product Height: 69 3/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 68 3/8 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 69 3/4 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Depth Without Handle: 28 3/4 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 31 1/4 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Total Capacity: 21.9 cubic feet
- Refrigerator Style: French Door
- Lighting Type: LED
- Ice Maker: Yes
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
- Color Finish: Matte Black
- General
- Product Name: 21.9 Cu. Ft. French InstaView Door-in-Door Counter-Depth Refrigerator
- Brand: LG
- Model Number: LFXC22596M
- Color Finish: Matte Black
- Dimensions
- Product Height: 69 3/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 31 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 68 3/8 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 69 3/4 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Counter Depth: true (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Depth Without Handle: 28 3/4 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 31 1/4 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth Without Door: 24 3/4 inches (Measurement from the back of the product to its front, not including the door.)
- Depth With Door 90 Degrees Open: 43 1/2 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Product Weight: 289 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 70 3/4 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 36 1/4 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 33 1/4 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Total Capacity: 21.9 cubic feet
- Refrigerator Capacity: 14.6 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Freezer Capacity: 7.3 cubic feet (Total amount of space within the freezer compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Features
- Configuration: Freestanding (The size, arrangement, and physical configuration of the product.)
- Refrigerator Style: French Door
- Door-Open Alarm: true
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Temperature Control Type: Electronic
- Defrost Type: Manual (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Lighting Type: LED
- Ice & Water
- Ice Maker: Yes
- Daily Ice Production: 6.5 pounds (Maximum quantity of ice that can be produced within 24 hours.)
- Storage
- Quick Access Door: true (A door-within-door that provides convenient access to your favorite food and drink items without opening the main door.)
- Humidity-Controlled Crisper: true
- Refrigerator Shelf Material: Tempered Glass
- Freezer Info
- Freezer Compartment: true
- Freezer Location: Bottom
- Freezer Shelf Material: Other
- Freezer Interior Light: true
- Filter Info
- Water Filtration: true
- Water Filter Model Number: LT1000P (The water filter model(s) recommended for use with the product.)
- Electrical Specification
- Estimated Annual Electricity Use: 664 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 80 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
- Other
- UPC: 048231797221
Store fresh and frozen food at the right temperatures with this 36-inch counter-depth LG InstaView refrigerator. The door-in-door design lets you peer inside without letting out cold air, and the interior lights turn on at a knock. This 22 cu. ft. LG InstaView refrigerator has dual ice makers to simplify preparation of up to 6.5 lbs. of ice a day.
- Large Capacity, 22 cu ft.: Great size in a feature-packed refrigerator.
- Counter Depth: Create seamless, built-in look with this counter-depth refrigerator.
- InstaView™ Door-in-Door®: InstaView™ Door-in-Door® refrigerators have a sleek glass panel that allows you to see inside the easy access door without letting the cold air out. Simply knock twice on the glass to illuminate the contents within.
- Door-in-Door®: The LG Door-in-Door® provides quick and easy access to foods and beverages.
- ColdSaver™ Panel: Door-in-Door® with ColdSaver™ Panel reduces cold air loss to extend the freshness of food.
- PrintProof™ Finish: Beautiful, easy-to-clean finishes are fingerprint and smudge resistant.
- Matte Black Stainless Steel: LG’s exclusive matte black stainless steel upgrades any kitchen style.
- LG SmartThinQ® Technology: Control key refrigerator features from anywhere, at any time with LG SmartThinQ® Technology.
- Door Cooling+: The Door Cooling+ air duct helps keep door contents at peak freshness.
- Dual Ice Maker: Dual ice makers maximize ice production and storage for so you never run out.
- Slim SpacePlus® Ice System: The LG Slim SpacePlus® Ice System provides the most shelf space.
- Glide N' Serve® Drawer: Two humidity-controlled crisper drawers, a full-width Glide-N-Serve® drawer, and a bonus drawer for fruits and vegetables make party preparations easy.
- Smart Cooling® System: Smart Cooling® system is designed to monitor and maintain conditions to help keep food fresh.
- Smart Pull® Handle: Get in and out of the freezer easily with the Smart Pull® Handle.
- Fresh Air Filter: Cleaner, fresher air thanks to the Fresh Air Filter.
- SmartDiagnosis™: Troubleshoot quickly and efficiently with SmartDiagnosis™.
- Tall Ice & Water Dispenser® with Pharmaceutical Water Filter: Finally, an ice & water dispenser that can accommodate just about any container.
- ENERGY STAR® Qualified: Save money and energy with this ENERGY STAR® qualified LG refrigerator that exceeds energy standards.
- 10-Year Manufacturer's Limited Warranty on Linear Compressor: LG confidently backs the Linear Compressor with a 10-year limited warranty.
Whats Included
- LG LFXC22596M
- Drawer divider
Documents
- Energy_Guide_PDF
A: Very quiet, very cool, you will love it!
A: The LFXC22596S has an automatic defrost but is not listed as frost free. Yes, the LFXC22596S has a dual ice maker. The automatic freezer icemaker produces 12 cubes at a time, 50-110 pieces within a 24 hour period if conditions are favorable.
Q: the light inside only comes on when u open the door
A: When you open the door the light come on inside the main compartment. As for the instaview door, The light comes on when you open that compartment door or knock on the window of the door.
A: The ENERGY STAR® Qualified LG 21.9 Cu. Ft. French InstaView™ Door-in-Door® Counter-Depth Refrigerator, Model # LFXC22596S comes with the LG 6 Month / 200 Gallon Capacity Replacement Refrigerator Water Filter (Part ADQ74793501), Model # LT1000P installed. IT has a built-in bypass filter. If you install a Reverse Osmosis Water Filtration System, the pressure needs to be a minimum of 40–60 psi (2.8 – 4.2 kgf/cm2,or less than 2–3 seconds to fill a cup of 7 oz capacity). If the water pressure from the reverse osmosis system is less than 20 psi or 138 kPa or 1.4 kgf/ cm2(takes more than 4 seconds to fill a cup of 7 oz or 198 cc capacity), check to see if the sediment filter in the reverse osmosis system is blocked. Replace the filter if necessary. If the water pressure remains low, call a licensed, qualified plumber...^IFV
Q: Can I use the glide and serve drawer as meat drawer ?
A: According to the Owner's Manual, some models have a variable temperature control in the glide and serve drawer. Our model, LFXC22596S, does not. "This drawer can be used for large party trays, deli items and beverages". We use it for packaged meats and cheeses. Have not stored strictly raw meat, but don't see why you couldn't. However note the drawer is not quite 3 1/2" tall, so larger meats won't fit. We love ours and find it has much more room that we envisioned. The door in door case for often used items is a favorite!
A: The water does not have to be turned of to change the filter. Replacing the water filter causes a small amount of water (around 1 oz. or 25 cc) to drain. Wrap a cloth around the front end of the water filter cover to collect any leaking water. Hold the water filter upright, once it is removed, to prevent any remaining water from spilling out of the water filter. ^Daphane
A: Yes, the freezer icemaker can be turned off. There is a power switch on the icemaker. ^Daphane
