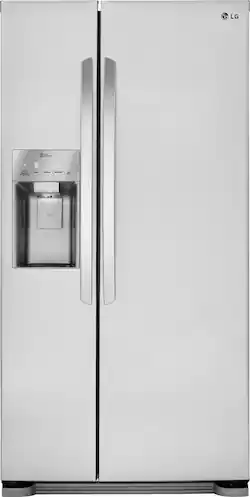

LG - 22.1 Cu. Ft. Side-by-Side Refrigerator with Thru-the-Door Ice and Water
- Key Specs
- Product Height: 66.75 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 32.75 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 65.625 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 66.75 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Depth Without Handle: 34.33333333 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 35.625 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Total Capacity: 21.86 cubic feet
- Refrigerator Style: Side-by-Side
- Lighting Type: LED
- Ice Maker: Yes
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Color Finish: Stainless steel
- General
- Product Name: 22.1 Cu. Ft. Side-by-Side Refrigerator with Thru-the-Door Ice and Water
- Brand: LG
- Model Number: LSXS22423S
- Color Finish: Stainless steel
- Dimensions
- Product Height: 66.75 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 32.75 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 35.625 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 65.625 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 66.75 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Standardized Width: 33 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Counter Depth: false (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Depth Without Handle: 34.33333333 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 35.625 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth Without Door: 28.625 inches (Measurement from the back of the product to its front, not including the door.)
- Depth With Door 90 Degrees Open: 49.5 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Product Weight: 250 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 67.75 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 33.25 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 37.625 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Total Capacity: 21.86 cubic feet
- Refrigerator Capacity: 15.1 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Freezer Capacity: 7.0 cubic feet (Total amount of space within the freezer compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Features
- Configuration: Freestanding (The size, arrangement, and physical configuration of the product.)
- Refrigerator Style: Side-by-Side
- Dual Evaporation: false (A cooling system that works to create a stable climate for the refrigerator and freezer separately. This ensures that each compartment is able to maintain a separate humidity and temperature level ideal for the respective stored items. Freezers tend to require lower humidity while refrigerators require higher humidity to keep foods fresher for longer.)
- Door-Open Alarm: true
- Sabbath Mode: false (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Defrost Type: Manual (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Hinge Setting: Fixed left, Fixed right
- Lighting Type: LED
- Ice & Water
- Ice Maker: Yes
- Ice Maker Location(s): Freezer
- Daily Ice Production: 3 pounds (Maximum quantity of ice that can be produced within 24 hours.)
- Ice and Water Dispenser: Ice and water
- Dispensed Water Type: Cold Water
- Storage
- Number of External Doors/Drawers: 3
- Number of Refrigerator Shelves: 4
- Refrigerator Shelf Style: Adjustable
- Quick Access Door: false (A door-within-door that provides convenient access to your favorite food and drink items without opening the main door.)
- Dairy Center: true (Designated storage with closure for dairy items such as butter, yogurt, and cream cheese, helps keep these items accessible and may reduce the risk of cross-contamination.)
- Gallon Door Storage: true (Designated storage space for gallon-sized containers, such as milk, juice, and water.)
- Humidity-Controlled Crisper: true
- Deli Meat Drawer: true (Designated storage for deli and other meats helps keep these items accessible and may reduce the risk of cross-contamination.)
- Refrigerator Shelf Material: Spill-proof glass
- Freezer Info
- Freezer Compartment: true
- Freezer Location: Left
- Freezer Door Type: Swing Door
- Freezer Shelf Material: Wire
- Freezer Interior Light: true
- Quick Freeze: false (Feature that allows you to quickly reduce the temperature when needed, perfect for chilling drinks or freezing large quantities of fresh food. Fast freezing may help maintain food quality.)
- Filter Info
- Water Filtration: true
- Water Filter Model Number: LT800P (The water filter model(s) recommended for use with the product.)
- Air Filter: false (A filter that works to remove odors and contaminants from the air within the appliance.)
- Electrical Specification
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 220 volts (Amount of power needed to support an electrical current.)
- Estimated Annual Electricity Use: 606 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 73 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 048231786652
Designed to fit in compact spaces, this LG refrigerator has enough room for all your groceries, even though it measures under 66 height and 33 width. With features like LED lighting, a door alarm, and more, this fridge makes a classic addition to any kitchen.
- 21.86 cu. ft. capacity: A place for everything. There are 3 Spill Protector™ tempered glass shelves and 2 humidity-controlled crispers for fruits and vegetables in the fridge. The freezer has 6 shelves, 3 door bins, and 1 drawer.
- Multi-Air Flow Cooling: Control conditions to keep food fresh. 4 temperature sensors work with the compressor to create a cool, crisp environment throughout the fridge.
- Premium LED lighting: Keep every inch illuminated. Gentle LED lighting uses less heat and energy. Plus, a door alarm will alert you if the door is left open.
- SpacePlus® Ice System: Use up to 3 lbs. of ice per day. The compact ice maker leaves plenty of room for shelving, door bins, and ample storage in the fridge.
- Tall Ice & Water Dispenser®: Chill a beverage or fill a pitcher with water and ice straight from the refrigerator door. The LT800P filter provides fresh, clean water for 3 to 6 months.
Product Manuals
Documents
- Energy_Guide_PDF
Q: is there a separate grilled tray to catch excess water spills when dispensing??
A: There is not and there should be. Tray needs a paper towel to catch the overflow or water runs down the front of refrig.
Q: Are the refrigerator shelves adjustable? What is the maximum spacing between shelves?
A: The only shelves that are adjustable are those on the door. The top shelf is about 10.25 inches tall.
Q: What do I do when the ice maker does not extract the ice cubes?
A: If your ENERGY STAR® Qualified 22 cu.ft. Side-by-Side Refrigerator, 33” Width, Under 66” Height, Model # LSXS22423S is producing ice but not dispensing it, that might be due to ice clumping which may result from infrequent use of the ice dispenser over time. You will need to break the ice up with a rubber spatula taking care not to break anything. You'll also want to make sure that the ice chute is not clogged with clumped ice either. To prevent the ice from clumping again, you should dispense at least one glass of cubed ice a day...^IFV
Q: Is this refrigerator quite? I'm looking to very quite one.
A: I think you mean quiet. And yes it is
Q: Is the water coming out of the door cold or room temperature ?
A: water is cold
Q: Why water is leaking from the refrigerator?
A: It's hard to determine why the water is leaking from your LG 22 cu.ft. Side-by-Side Refrigerator, 33” Width, Under 66” Height, Model # LSXS22423S without knowing where exactly it is leaking. If the water is leaking inside, it could be from something that may have spilled, water from the water filter or from the ice maker. Check that the door to the ice maker compartment is shut all the way. If the compartment is not shut properly, air can escape and melt the ice causing it to leak. You may also want to check the water filter. Check the 'O' rings at the end of the filter to make sure that they are not cracked, stretched or seated incorrectly and while you're checking that, make sure that there aren't any cracks or damage to the filter compartment. If the water pressure is too high, that can also result in water overflowing in the ice tray and in that case, you can try reducing the size of the ice cubes, turn down the home valve to partially close the water supply or install a water pressure regulator...^IFV
Q: Are the ice and water unsanitary without use of the water filter?
A: If your water is safe to drink from the tap, I don't see why the fridge water wouldn't be safe. You should realize that it is possible for the filter to get clogged over time and the water pressure from the fridge tap will be reduced.
A: Yes, this has a deli drawer.
