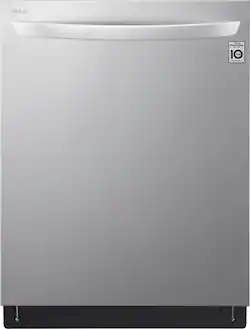

LG - 24" Top Control Smart Built-In Tub Dishwasher with 3rd Rack, TrueSteam, and 42 dba - Stainless Steel
- Key Specs
- Product Height: 33 5/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 5/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Operating Sound Level: 42 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Number Of Racks: 3
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Place Setting Capacity: 15 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
- Color Finish: Stainless steel
- General
- Product Name: 24" Top Control Smart Built-In Stainless Steel Tub Dishwasher with 3rd Rack, TrueSteam, and 42 dba
- Brand: LG
- Model Number: LDT7808SS
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 33 5/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 5/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 24 5/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 26 13/16 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth With Door Open: 50 1/2 inches (Measurement from the back of the product to its front, with door fully open.)
- Product Weight: 92.2 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 33 5/8 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 24 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Hard Food Disposer: false (This feature has blades to chop and disintegrate hard food particles, making them small enough to easily drain away. This prevents them from being recirculated back onto dishware and allows for easy maintenance.)
- Drying Method: Condenser drying (Appliances that use heat to dry the dishes will include a heating element or minerals which transform moisture into heat. A fan or vent then circulates the hot dry air throughout the tub during the drying cycle. This may reduce drying time and the risk of water spots. Appliances that use minerals to produce heat are considered more energy efficient than those that include a heating element. Appliances that use condensation drying are considered more energy efficient than those that use heated drying. Instead, high temperature water is produced during the final rinse cycle which warms the interior and eventually condensates and drains out of the machine.)
- Operating Sound Level: 42 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Delay Start: true (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- End-Of-Cycle Signal: true (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
- Cycle Status Lights: true (Lights on the control panel that indicate which cycle is in use and/or its current status. Know when to unload with a simple glance.)
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- Filtered Water: false (Internal water filter(s) remove minerals and chemicals from hard water before the wash cycle. Filtered water is less likely to leave mineral deposits or stains, meaning your dishware will look cleaner for longer.)
- Water Soil Sensor: true (Feature that measures how dirty the water is throughout the wash cycle and adjusts the energy and water usage as needed. This can increase washing efficiency and may reduce energy costs.)
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Cycle Specifications
- Number of Cycles: 10 (Standard dishwashers have at least 3 cycles, each with different water pressure, speed, and temperature settings designed for particular loads.)
- Dishwasher Cycles: Auto, Heavy, Delicate, Refresh, Normal, Turbo, Download Cycle, Machine Clean, Rinse, Express
- Options and Programs: Energy save, half load, delicate wash, normal, auto, rinse, heavy wash, high temperature wash, Turbo, steam, extra dry, refresh, machine cleaning
- Sensor Wash: true (Feature that automatically senses the load's soil levels and adjusts the wash cycle as needed. This often results in reduced water usage, which in turn may reduce energy costs.)
- Steam Cleaning: true (Wash cycle that primarily uses steam to loosen food debris and clean fragile dishware without force.)
- Steam Pre-Wash: true (Loosens food debris by creating steam inside the washer before the primary wash cycle, allowing for an easier, gentler clean of dishware.)
- NSF-Certified Sanitization Cycle: true (Meets the National Sanitation Foundation (NSF) standards for performance and cleaning effectiveness. When operated on the sanitizing cycle, an NSF-Certified dishwasher reaches a final rinse temperature of 150⁰ Fahrenheit and achieves a minimum 99.999% percent reduction of bacteria.)
- Water Consumption Per Cycle: 2.8 gallons (Estimated amount of water used during a standard wash cycle. Most standard-size dishwashers today use an average of 3-6 gallons.)
- Rack Features
- Number Of Racks: 3
- Third Rack Features: Adjustable height, Glide rail, Rack handle, Removable, Utensil separator (Aspects of third rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Upper Rack Features: Adjustable height, Adjustable tines, Ball-tipped tines, Cup shelf, Glide rail, Rack handle, Removable, Stemware holders (Aspects of upper rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, cup clips, and stemware holders.)
- Lower Rack Features: Adjustable tines, Ball-tipped tines, Glide rail, Rack handle, Removable, Removable silverware basket, Utensil separator (Aspects of lower rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Rack Material: Metal, Nylon
- Design
- Panel Ready: false (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Dishwasher Type: Built-in dishwashers
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Control Type: Touchpad
- Control Location: Top control
- Display Type: LED
- Handle Type: Bar handle
- Fingerprint Resistant: true
- Place Setting Capacity: 15 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Integrated Water-Softener: false (A built-in water softener that automatically filters minerals from hard water to clean your dishes, reducing clouding, streaks, hard-water stains, or mineral deposit build-up.)
- Electrical Specification
- Estimated Annual Electricity Use: 258 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 31 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Wattage: 258 watts (Measurement of electrical power.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Consortium for Energy Efficiency (CEE) Rating: CEE Tier 1
- Compatibility
- Works With: Amazon Alexa, Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
- Other
- UPC: 048231341165
Post-dinner party cleanup? Let your LG dishwasher do the heavy lifting. LG QuadWash provides maximum cleaning coverage making it easier than ever to get your dishes clean, and with TrueSteam technology, you get up to 60% less water spots.¹ The Glide Rail keeps the upper rack on track while the Ball-bearing wheel provides a smooth lower rack glide for easier loading and unloading. Need more room? No problem. The EasyRack Plus system and height-adjustable 3rd rack provide the flexibility you need to fit more dishes.
- Dynamic Dry Enhanced with TrueSteam: Heat generated during the final rinse combined with the cooler walls of the tub turn moist air into water droplets that drain away. Dishes dry without using extra energy or extending drying cycles.
- QuadWash: QuadWash with Multi-Motion spray arms provides maximum coverage to get things clean the first time.
- TrueSteam: LG's TrueSteam technology, offers maximum steam coverage to give you 60% less water spots for the most sparkling clean dishes.¹
- ThinQ Care: Keep your appliances running smoothly with ThinQ Care, now in the ThinQ app. Get notifications about usage, maintenance, plus early diagnosis right on your phone. ThinQ Care will help you understand your appliance needs, avoid potential problems, and keep your appliance running its best.
- LG ThinQ technology: Save the cleanup for later - or do it now. Monitor your LG dishwasher cleaning cycle remotely using ThinQ technology.
- Glide Rail and Ball-bearing Wheel design: Even your heaviest dish loads glide in and out smoothly with the help of LG's Glide Rail and Ball Bearing Wheel design.
- EasyRack Plus: Easy to adjust on-the-fly, this racking system can shift to handle any challenge your dishes can serve up.
- LED Tub Light: Interior LED tub lights automatically illuminate your dishwasher so you can easily check on dishes.
- Height Adjustable 3rd Rack: The height adjustable 3rd rack gives you more space to fit everything from long flatware to small espresso cups.
- LoDecibel operation (42 dba): Among the quietest dishwashers in its class.
- PrintProof finish: Beautiful, easy-to-clean finishes are fingerprint and smudge resistant.
- Dual Zone: Automatically varies the intensity in the upper and lower racks, accommodating different items in the same load.
- Half Wash Mode: Saves water and energy by enabling users to wash only items in either the lower or upper rack.
- Auto Cycle: Senses the amount of grime on your dishes and sets the best wash cycle for optimal cleaning.
- 15 Place-Setting Capacity: Provides ample space to accommodate lots of dishes and stemware, in a variety of sizes.
- Top Control Panel With LED Display: Sleek, hidden controls and clear digital readout make it easy to choose the exact settings you need.
- 3-Stage Filter System: LG's advanced filtration system is tough on dirty dishes, while offering quiet, efficient operation.
- Hybrid Condensing Drying System: Safe and gentle, the Hybrid Condensing Drying System gives you dry dishes right out of the dishwasher.
- ENERGY STAR rated: Among the most energy-efficient dishwashers in its class.
- 10-Year Warranty on Inverter Direct Drive Motor: Rely on your LG dishwasher with a 10-year warranty on the Direct Drive Motor.
- Required for Installation: All dishwasher purchases require a dishwasher hookup kit be purchased from Best Buy. Without a hookup kit, your installation will not be completed. Find a hookup kit in the accessories section on this page.
Whats Included
- LG LDT7808BD 24" Top Control Smart Built-In Stainless Steel Tub Dishwasher
- Cutlery basket
- Owner's manual
Product Manuals
Documents
- Energy_Guide_PDF
Q: We just bought this dishwasher and it does not dry what do we do
A: HI Mak. We regret to read that your recently purchased LG - 24" Top Control Smart Wi-Fi Dishwasher - QuadWash - TrueSteam - Steel Tub with Light - Stainless steel, Model # LDT7808ST is not drying and apologize for any inconvenience. This dishwasher uses a Hybrid Drying System which does not use a heating element during the drying process. ; instead, it relies on the heat that is retained by the dishes and the tub during the wash and rinse cycles to turn the moisture in the tub into humidity. Warm, moist air in the dishwasher is then pulled into a condensing duct in the door by a fan. The air then cools, which causes the humidity to condense. Room temperature air is also drawn into the duct to help the air cool down faster. When this moisture condenses into a liquid, it is drained out. Your water supply temperature should be a minimum of 120°F (49°C) and Rinse aid is strongly recommended to enhance the drying performance of the dishwasher because it plays an integral role in the drying process. If a rinse aid is not used, water may remain on the dishes and the tub. Rinse aid helps to ensure that the majority of the water has been sheeted off of the dishes at the end of the rinse and that the load is ready for the dry cycle. Drying performance is directly affected by the amount of heat that remains in the tub after the heated rinse is performed. If your dishwasher is far away from your home’s hot water heater, it may be necessary to run the hot water tap in the sink before starting a wash cycle, to ensure that cool water is purged from the hot water lines. This will ensure your dishwasher has a consistent supply of hot water from start to finish. Using the High Temp setting also aids in keeping the inner drum temperature and dishes hotter before drying begins. If a rinse aid is used and the performance still needs a boost, adjust the amount of rinse aid used. 2 is the default setting, but if necessary set the level to 3 so more rinse aid is used. Water tends to bead rather than sheet off plastic and nonstick surfaces, making them more difficult to dry. If washing plastic items in a Normal cycle, select the Extra Dry or Night Dry option or both for better drying results. When the rinse aid is empty, the Extra Dry option is selected automatically. Allow the dishwasher to completely finish the dry cycle before opening the door . If the door is opened in the middle of the dry cycle, the heat that is necessary for the hybrid dry system to work will escape. This will cause all of the dishes inside to remain wet once the cycle finishes...^IFV
Q: Does this model have a self-cleaning filter? Also, does it clean dishes that haven't been rinsed?
A: No, the filter is not self-cleaning. A self cleaning filter is a close relative of a garbage disposal, I have read. It uses more electricity and is noisier. Instead there is a filter in the front bottom about the size of a large can of baked beans. You reach in, give it a twist, pull it out and empty it into your garbage disposal, rinse and return it. It is a matter of philosophy, rather than saving money. They made this thing to be very quiet and very low energy use. I am looking for every convenience I can get, but this seemed like a decent trade-off. I haven't had any it leave behind any food yet, so I imagine it is mostly a matter of the less you scrape/rinse the sooner you have to empty the filter.
A: This dishwasher is amazing, you do not have to prewash, just make sure you use a steam setting.
A: This dishwasher dries better than any other that I've had. If you want to be sure, set the cycle option "Extra Dry" and they will be pretty much bone dry.
Q: Is the stainless steel hard to clean on the front? What do you use to clean it?
A: The man who installed it used Sprayway Stainless Steel Polish and Cleaner. I haven't bought a can yet because I already had another brand, but the stainless steel polish works fine to clean the front.
Q: Can the 10Year Warranty emblem on the door be removed? I don't like the way it looks.
A: Yes - my wife was able to remove it, and you cannot tell it was there. It's basically just a sticker, and a little lemon oil removes the sticky residue.
A: This is the only LG model that comes in black matte. If you want an LG without a handle in black stainless or stainless without a handle, check out models LDP7808BD or LDP7808SS by LG. It has the same features as this model. If you aren’t interested in LG, check out Samsung, Kitchen Aid, and Bosch. They all have models with no handles.
