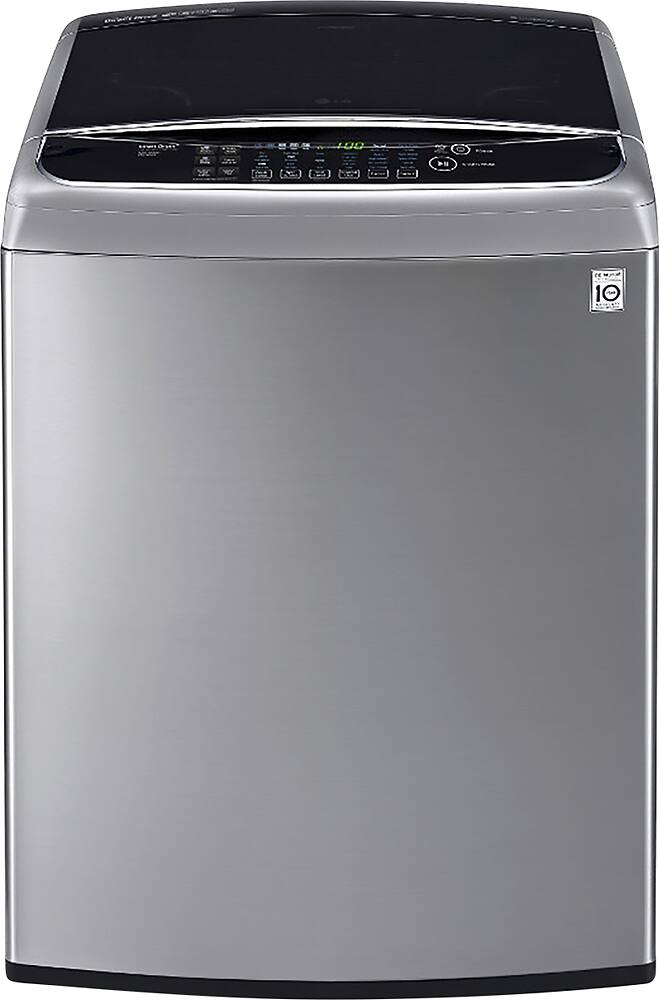

LG - 4.9 Cu. Ft. 12-Cycle High-Efficiency Top-Loading Washer - Graphite Steel
- Key Specs
- Product Height: 40.16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 27 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 28.38 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height With Door Open: 55.13 inches (Measurement from the bottom of the product to its top, with lid fully open.)
- Capacity: 4.9 cubic feet
- Steam Function: false (In washers, this feature may be employed before, during, or after the main wash cycle. Steam aids in stain removal, activating detergent, sanitizing, and softening wrinkles. In dryers, this feature can be used to remove wrinkles or quickly freshen clothing items.)
- Agitator Type: None (A single-action agitator typically rotates one way to circulate clothes throughout the washer. A dual-action agitator has two parts that rotate differently; the top rotates to push clothes down toward the bottom of the tub while the bottom continues to move clothes in a circular motion. Triple-action agitators work similarly, but add a third up-and-down motion to the dual rotation.)
- Washer Load Type: Top load
- Matching Dryer Model Number: DLGY1702V
- Color Finish: Silver
- General
- Product Name: 4.9 Cu. Ft. 12-Cycle High-Efficiency Top-Loading Washer
- Brand: LG
- Model Number: WT1701CV
- Color Finish: Silver
- Dimensions
- Product Height: 40.16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 27 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 28.38 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height With Door Open: 55.13 inches (Measurement from the bottom of the product to its top, with lid fully open.)
- Product Weight: 137.3 pounds (The out of box weight of the item.)
- Capacity
- Capacity: 4.9 cubic feet
- Features
- Steam Function: false (In washers, this feature may be employed before, during, or after the main wash cycle. Steam aids in stain removal, activating detergent, sanitizing, and softening wrinkles. In dryers, this feature can be used to remove wrinkles or quickly freshen clothing items.)
- Vibration Reduction: true (Additional features, such as sensors that adjust spin speeds or weights that counter unbalanced loads, help to minimize vibration for smoother, quieter operation.)
- Maximum Spin Speed: 1100 revolutions per minute (This is the maximum spin speed of the tub in the final cycle. Higher revolutions per minute (RPM) will remove the water out of the clothes more quickly and effectively which can reduce drying time.)
- Out-Of-Balance Detection: true
- Internal Water Heater: false
- Automatic Temperature Control: true (This feature regulates hot and cold temperatures of the water or air within the appliance in order to keep them in the optimal range for each cycle.)
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- Delay Start: true (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- End-Of-Cycle Signal: true (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
- Time-Remaining Display: true
- Bleach Dispenser: true
- Fabric Softener Dispenser: true
- Pre-Wash Detergent Dispenser: false
- Design
- Agitator Type: None (A single-action agitator typically rotates one way to circulate clothes throughout the washer. A dual-action agitator has two parts that rotate differently; the top rotates to push clothes down toward the bottom of the tub while the bottom continues to move clothes in a circular motion. Triple-action agitators work similarly, but add a third up-and-down motion to the dual rotation.)
- Washer Load Type: Top load
- Control Type: Digital
- Tub/Drum Material: Stainless steel
- Window: true
- Compatibility
- Matching Dryer Available: true
- Matching Dryer Model Number: DLGY1702V
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Fill Hoses Included: false
- Drain Hose Included: true
- Electrical Specification
- Estimated Annual Electricity Use: 113 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 9 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Amperage: 10 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- NSF Listed: true (Meets the National Sanitation Foundation's standards for public health protection.)
- Warranty
- Manufacturer's Warranty - Parts: 1 year limited; 10 years limited: motor; Lifetime limited: drum
- Manufacturer's Warranty - Labor: 1 year limited
- Other
- UPC: 048231013635
LG 4.9 Cu. Ft. 12-Cycle High-Efficiency Top-Loading Washer: Wash large loads quickly with this mega-capacity washer. TurboWash technology saves time by rapidly washing and rinsing laundry, while the TrueBalance antivibration system minimizes disruptive noise.
Measure Twice, Deliver Once
Learn how to measure your space and check connections for a new washer and dryer.
Watch the video ›
How to Prepare for Delivery and Installation
Learn how to get ready for the delivery and installation of your new washing machine. Walk the path, check your hookups, order new parts, and empty your old washing machine.
Watch the video ›
- Save time even when washing larger loads: TurboWash technology uses powerful sprays, high-pressure rinsing and rapid drum movement to wash and rinse clothes fast.
- SmartDiagnosis lets you troubleshoot issues from your smartphone: The washer connects with your smartphone to perform an immediate diagnosis and offer quick solutions.
- Mega 4.9 cu. ft. capacity: Lets you do more laundry in fewer loads and provides enough room for king-size comforters and sleeping bags.
- 12 wash cycles for customized cleaning: Lets you choose the perfect cycle for your load. Includes Cotton/Normal, Bulky/Bedding, Permanent Press, Delicates, Speed Wash, Tub Clean and more.
- Get cold water savings with warm water performance: The ColdWash option uses different washing motions to penetrate deep into fabrics giving you an energy-efficient clean.
- Choose the perfect water temperature for your clothes: 5 temperature settings help you ensure the water will never be too hot for your fabrics or too cold for your detergent to work properly.
- Keep germs out of your bedding and clothes: The NSF-certified Sanitary Cycle heats water up to 158 degrees to help remove stains and bacteria.
- Quiet operation: LG's TrueBalance antivibration system reduces washer noise and vibration, so you can use your washer with little disruption to other household activities.
- Top-load design: Lets you load and unload from a standing position. Plus, you can easily add forgotten items to the load once it's started.
- Easily operate your washing machine: Electronic controls with a dual LED display makes it easy to adjust settings.
- Free delivery on appliance orders $399 and up: Installation is included with delivery when you also purchase the required parts. If required parts are not purchased, delivery will not include installation.
- Required parts sold separately: Find essential parts for installation in the accessories section on this page.
- Need more information?: See what's included with home delivery and installation.
Whats Included
- LG 4.9 Cu. Ft. 12-Cycle High-Efficiency Top-Loading Washer
- Owner's manual
Documents
- Energy_Guide_PDF
Q: Can you make it so you can add more water?
A: The reason why they made it smart because it senses the right amount of water to clean your clothes. Make sure to use HE detergent and put the right amount to your load. Also, heavy stains should always be sprayed with stain remover first and rub by hand. I'm sure there is no existing washer that could wash away heavy stains. If you want to add more water you could pause the washer and pour more water in, but that defeats the purpose of the washer being smart enough to know the right amount of water it should use. That's just my 2 cents.
A: Thank you for your interest in the LG 5.0 cu. ft. 12-Cycle Mega-Capacity High Efficiency Top- Loading Washer Model # WT1701CW. There is absolutely nothing wrong with the model. It is not unusual for the unit to get phased out after a year in the market. This happens to every Electronic product that you see in stores throughout the country. Products usually are in the market for a year and then they get discontinued as newer models are introduced...IFV
Q: what does amperage indicate in the specification?
A: Thank you for your inquiry. The amperage listed in the specifications for the LG - 5.0 Cu. Ft. 12-Cycle Mega-Capacity High-Efficiency Top-Loading Washer - Model # WT1701CW is probably one of the more important specifications for the washer, more so than the voltage. Amperage is a component of electricity that is a unit of electron flow or current in a conductor. Your circuit board has fuses in it that have different amperages and when you have too much current flowing through the circuit, the breaker will trip. The Amps (short for ampere) listed for the unit (reads as 5 Amps but should be 10 Amps) let you know that the socket into which you're plugging the washer into must have a breaker that at least matches that of the unit so that it doesn't trip...IFV
Q: Does water remain in the washer causing mold-mildew?
A: Hello Nana. Thank you for your inquiry. Regardless of what type of washer you use, there is always going to be a certain amount of water left. Water has cohesive properties so it will stick to the insides of the wash tub. The LG - 5.0 Cu. Ft. 12-Cycle Mega-Capacity High-Efficiency Top-Loading Washer - Model # WT1701CW, being a Top-Load Washer will have lees water remaining after the water drains out compared to a Front Loader, but if the washer will not be used for several days, leave the lid open overnight to allow the tub to dry. What really leads to mildewy or musty smells are some environmental or usage conditions that can cause residue to build up in the tub. This washer has a Tub Clean cycle that is specially designed to remove this buildup using bleach or another cleaners designed specifically for cleaning washing machines. It is recommended that you run the Tub Clean cycle once a month, or more often under heavy use conditions or if odor is present...IFV
