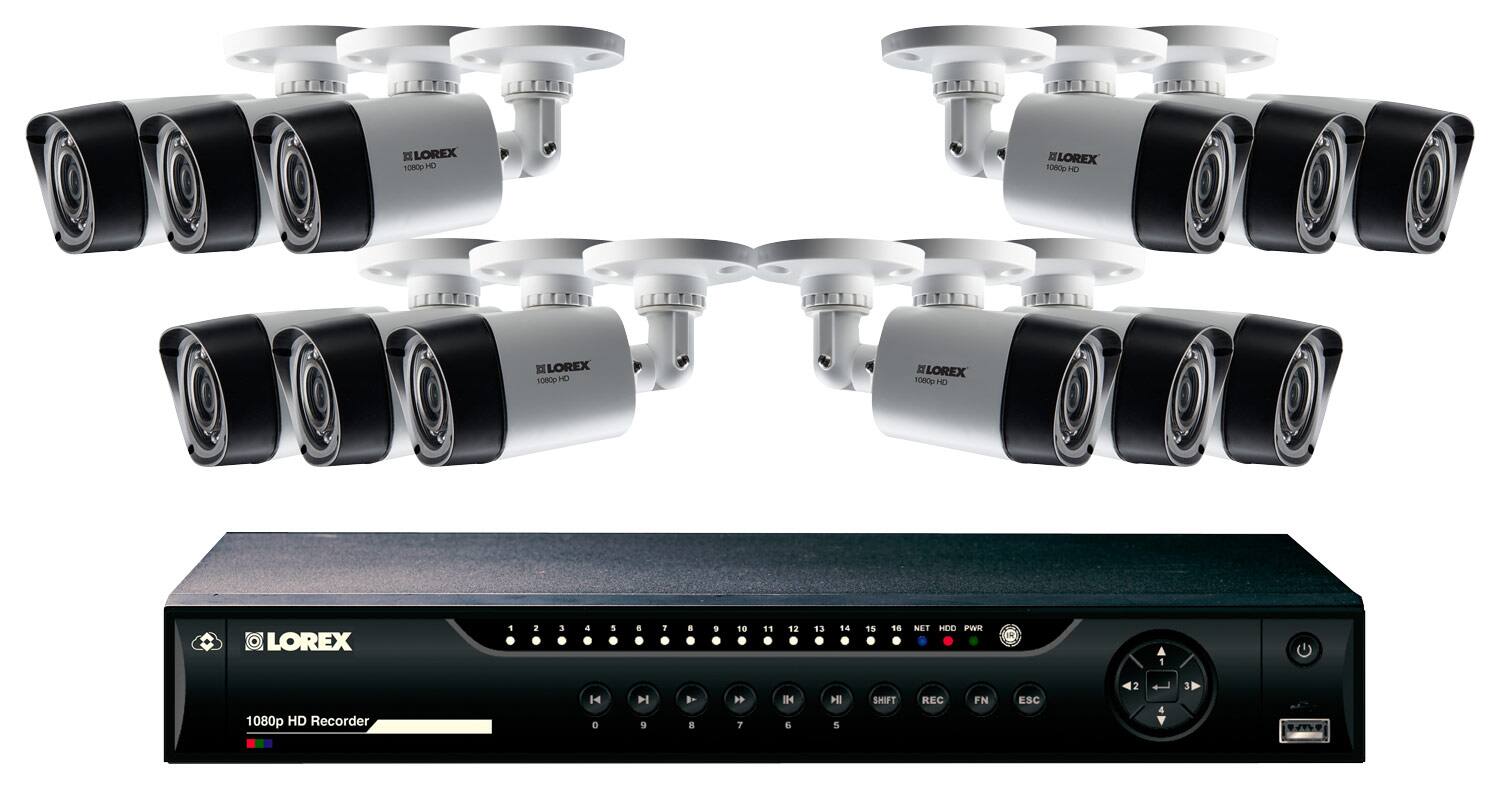

Lorex - 16-Channel, 12-Camera Indoor/Outdoor High-Definition DVR Surveillance System - White/Black

Model: LHV22163TC12
SKU: 4350914

Not yet reviewed

This item is no longer available in new condition. See similar items below
  • Key Specs
    • Camera Resolution: 1080 (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
    • Field Of View: 70 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
    • Night Vision: true
    • Number Of Cameras Included: 12
    • Number Of Channels: 16
    • Indoor Or Outdoor Use: Outdoor, Indoor (Indicates the appropriate environment product was designed to be used in.)
    • Maximum Operating Temperature: 122 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
  • General
    • Product Name: 16-Channel, 12-Camera Indoor/Outdoor High-Definition DVR Surveillance System
    • Brand: Lorex
    • Model Number: LHV22163TC12
  • Camera
    • Camera Resolution: 1080 (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
    • Field Of View: 70 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
    • Night Vision: true
    • Night Vision Distance: 130 feet
    • Number Of Cameras Included: 12
    • Day/Night Mode: true (Captures images/video with optimal clarity by automatically adjusting settings to various light levels.)
    • IP Camera: No (An Internet Protocol (IP) camera is able to record and display image/video data via the internet, without need for a local recording device.)
    • Minimum Required Illumination: 0 lux (Refers to the minimum amount of light needed to view objects. Generally, the lower the number, the better the camera can detect objects in little to no light.)
    • Number of IR LEDs: 12 (Quantity of infrared (IR) LED lights for emitting IR light and allowing the camera to detect objects in low light.)
    • Camera Iris: Automatic (The iris is the opening on a camera that controls how much light reaches its image sensor, which in turn affects image/video clarity. Fixed and manual irises are generally suited for locations with consistent levels of light. Automatic and "P" (precise) irises automatically adjust in response to changing levels of light and are suited for a wider variety of environments. "P" irises feature additional capabilities for improving footage clarity.)
    • Image Sensor Type: CMOS (CCD and CMOS are the two main technologies used in image sensors. CCD, the older of the two types, turns analog light signals into digital pixels. This conversion happens without distortion, resulting in high-quality images. Newer CMOS sensors use transistors at each pixel to move electrical charges. CMOS sensors are typically less expensive, but also require more light to create distortion-free images.)
  • Compatibility
    • Camera Compatibility: Select Lorex wired cameras
    • Operating System Compatibility: Android, Apple iOS, Mac, Windows, Windows Mobile
  • Connectivity
    • Camera Connectivity: Wired (Security system cameras can be set up in several ways. Wired cameras require cables for power and footage transmission, while wire-free cameras don't need cables for either. Wireless cameras still require cables for receiving power but are able to transmit footage via a wireless network.)
  • Recording & Playback
    • Records Audio: false
    • Number Of Channels: 16
  • Storage
    • DVR Storage Capacity: 3000 gigabytes
  • Performance
    • Indoor Or Outdoor Use: Outdoor, Indoor (Indicates the appropriate environment product was designed to be used in.)
    • Maximum Operating Temperature: 122 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
  • Features
    • Audio-Only Option: false
    • 3-Axis Adjustable: false
    • Auto-On Detection: Motion
  • Dimension
    • DVR Height: 1.8 inches
    • DVR Width: 14.8 inches
    • DVR Depth: 11.5 inches
  • Display
    • Camera Color Display: false
  • Included
    • Camera(s) Included: true
    • DVR Included: true
    • Monitor Included: false
    • Cable(s) Included: true
  • Warranty
    • Manufacturer's Warranty - Parts: 1 year; 90 days: accessories, components
    • Manufacturer's Warranty - Labor: 1 year
  • Other
    • UPC: 695529004259

Lorex 16-Channel, 12-Camera Indoor/Outdoor High-Definition DVR Surveillance System: There's no need to worry about your property when you're out and about with notifications and the ability to view live or recorded footage on your smartphone. Night vision up to 130' provides sharp images any time.

  • Notifications help you stay informed: Download the Flir Cloud app for your smartphone to receive alerts on the go and set up your system in just 3 simple steps.
  • Monitor your property with 12 cameras: Includes 12 cameras for recording high-definition video. Each camera's night vision range extends up to 130' in ambient lighting (up to 90' in total darkness).
  • View and record from up to 16 channels: Add up to 4 more cameras for 16-channel simultaneous monitoring. Compatible with select wired Lorex cameras (sold separately).
  • Set and forget with hard drive storage: Record continuously from up to 16 channels with a 3TB hard drive.
  • Capture everything in HD: CMOS sensors capture crisp, clear footage with 1080p resolution.
Whats Included
  • 12 cameras
  • 16-channel DVR
  • Twelve 60' BNC/power cable extensions, HDMI cable, Ethernet cable
  • Remote, mouse, 4-way power splitter, 8-way power splitter
  • Mounting hardware
  • Owner's manual

Q: Are these IP cameras? Do they have PoE capability? I am trying to find the right system for my home with the best quality but also providing convenient install. I have the home pre-wired with RJ45 wires.

A: Hello, The cameras in this bundle are BNC/Video connection cameras, and are not NVR/Network IP Cameras. These cameras will not connect directly to your RJ45 cables without 3rd party adapters. Lorex model LNR1141TC4 sold on Best Buy is a network NVR system with PoE and IP style cameras. Thanks, Lorex

Q: How do I get audio AND video on this system?

A: Hello, The cameras that come with the systems and accessory cameras are video only, and do not include audio microphones. This system has 1 audio in, so a separate 3rd party accessory powered microphone could be added to supplement the system by installing it near one of your cameras. Thanks, Lorex

Q: I have a older Q-See system. They have BNC connections. Can I just plug these cameras into the BNC connections/wires from these old cameras or do I have to run new wires?

A: The system uses high performance BNC video/power cables. If they are the same type of cable it should work however we cannot guarantee as they are not Lorex cables
