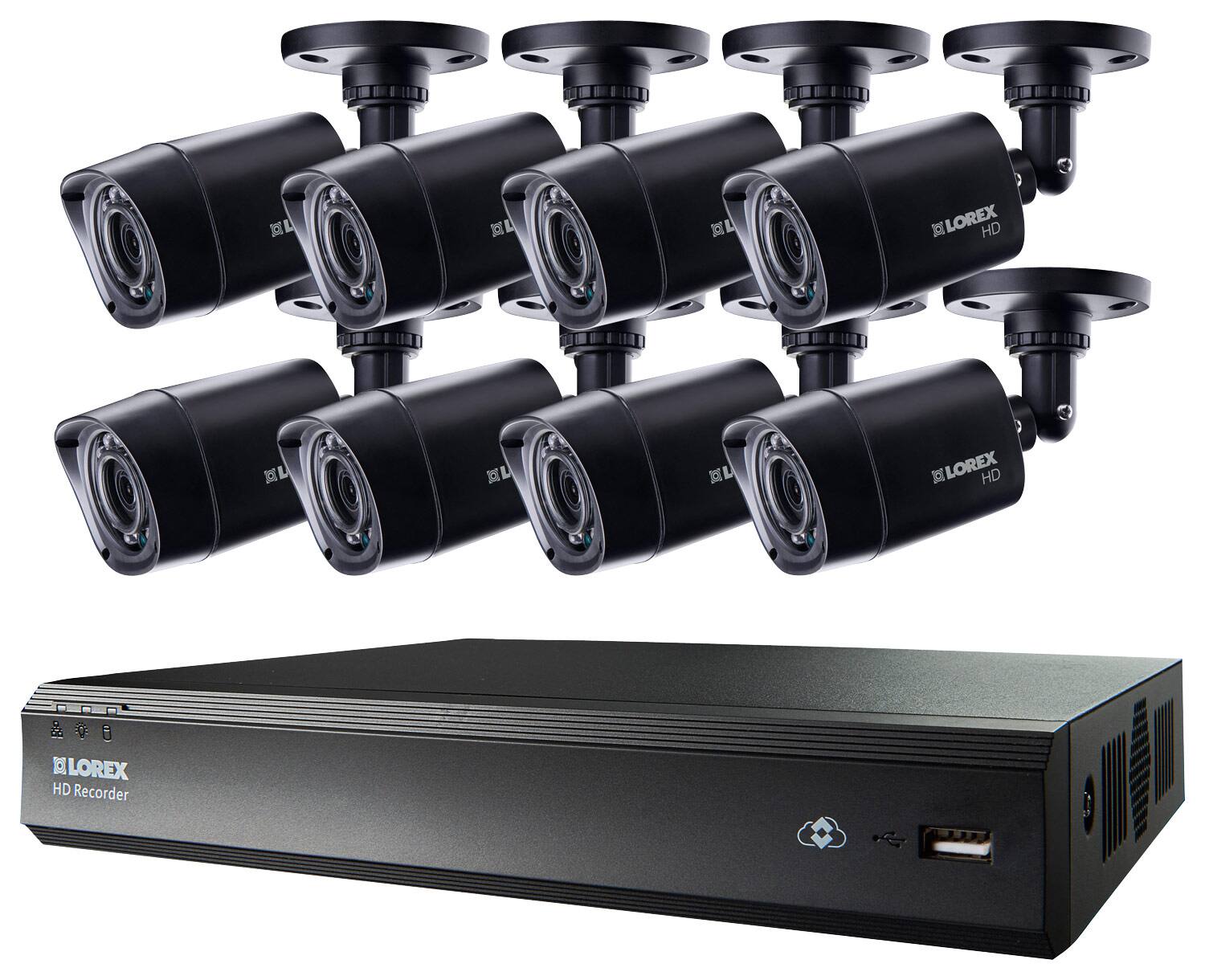

Lorex - 16-Channel, 8-Camera Indoor/Outdoor High-Definition DVR Security System - Black
Model: LHV00161TC8B
SKU: 4713902
This item is no longer available in new condition. See similar items below
- Key Specs
- Camera Resolution: 720 (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Field Of View: 55 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
- Night Vision: true
- Number Of Cameras Included: 8
- Camera Power Source: AC/DC Power (plug-in)
- Number Of Channels: 16
- Recording Resolution: 720 (Refers to the number of pixels, both horizontally and vertically, used to capture video. The higher the resolution the finer the video detail that can be seen.)
- Storage Type: Cloud, DVR
- Indoor Or Outdoor Use: Indoor and outdoor (Indicates the appropriate environment product was designed to be used in.)
- Maximum Operating Temperature: 122 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- Audio Communication: 1-way (1-way communication devices allow a user to hear detected audio, while 2-way communication adds the ability for a user to talk back through the device.)
- General
- Product Name: 16-Channel, 8-Camera Indoor/Outdoor High-Definition DVR Security System
- Brand: Lorex
- Model Number: LHV00161TC8B
- Camera
- Camera Resolution: 720 (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Field Of View: 55 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
- Night Vision: true
- Night Vision Distance: 130 feet
- Number Of Cameras Included: 8
- Number Of Cameras Supported: 16
- Day/Night Mode: true (Captures images/video with optimal clarity by automatically adjusting settings to various light levels.)
- IP Camera: Wired (An Internet Protocol (IP) camera is able to record and display image/video data via the internet, without need for a local recording device.)
- Minimum Required Illumination: 0 lux (Refers to the minimum amount of light needed to view objects. Generally, the lower the number, the better the camera can detect objects in little to no light.)
- Number of IR LEDs: 12 (Quantity of infrared (IR) LED lights for emitting IR light and allowing the camera to detect objects in low light.)
- Camera Iris: Automatic (The iris is the opening on a camera that controls how much light reaches its image sensor, which in turn affects image/video clarity. Fixed and manual irises are generally suited for locations with consistent levels of light. Automatic and "P" (precise) irises automatically adjust in response to changing levels of light and are suited for a wider variety of environments. "P" irises feature additional capabilities for improving footage clarity.)
- Image Sensor Type: CMOS (CCD and CMOS are the two main technologies used in image sensors. CCD, the older of the two types, turns analog light signals into digital pixels. This conversion happens without distortion, resulting in high-quality images. Newer CMOS sensors use transistors at each pixel to move electrical charges. CMOS sensors are typically less expensive, but also require more light to create distortion-free images.)
- Camera Mount Type: Wall mount
- Power
- Camera Power Source: AC/DC Power (plug-in)
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Camera Compatibility: Lorex NTSC-HD
- Operating System Compatibility: Android, Apple iOS, Mac, Windows, Windows Mobile
- Connectivity
- Camera Connectivity: Wired (Security system cameras can be set up in several ways. Wired cameras require cables for power and footage transmission, while wire-free cameras don't need cables for either. Wireless cameras still require cables for receiving power but are able to transmit footage via a wireless network.)
- Recording & Playback
- Records Audio: true
- Number Of Channels: 16
- Video Compression Type: H.264
- Simultaneous Operation: Pentaplex (Refers to the number of operations (live view, record, playback, back up, remote control, etc.) the DVR can perform simultaneously. For example, a simplex DVR can perform only one task at a time, such as recording or playback of footage, while a pentaplex DVR can multitask up to 5 functions.)
- Recording Resolution: 720 (Refers to the number of pixels, both horizontally and vertically, used to capture video. The higher the resolution the finer the video detail that can be seen.)
- Storage
- Storage Type: Cloud, DVR
- DVR Storage Capacity: 1000 gigabytes
- Performance
- Indoor Or Outdoor Use: Indoor and outdoor (Indicates the appropriate environment product was designed to be used in.)
- Protective Qualities: Water resistant
- Maximum Operating Temperature: 122 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- Features
- Audio Communication: 1-way (1-way communication devices allow a user to hear detected audio, while 2-way communication adds the ability for a user to talk back through the device.)
- Audio-Only Option: false
- 3-Axis Adjustable: true
- Auto-On Detection: Motion
- Dimension
- Camera Height: 2.7 inches
- Camera Width: 2.7 inches
- Camera Depth: 6 inches
- Camera Weight: 0.3 pounds
- DVR Height: 2 inches
- DVR Width: 12.8 inches
- DVR Depth: 9.6 inches
- DVR Weight: 1.7 pounds
- DVR Cord Length: 5 feet
- Output
- DVR Output(s): VGA, HDMI, Analog audio, USB
- Display
- Clock Display: false
- Camera Color Display: true
- Included
- Camera(s) Included: true
- DVR Included: true
- Monitor Included: false
- Remote Control Included: true
- Cable(s) Included: true
- Warranty
- Manufacturer's Warranty - Parts: 1 year; 90 days: accessories
- Manufacturer's Warranty - Labor: 1 year
- Other
- UPC: 695529005652
Lorex 16-Channel, 8-Camera High-Definition DVR Security System: This security system's remote monitoring app for Apple® and Android devices makes it easy to achieve peace of mind for your home or business. The water-resistant housing enables outdoors use.
- Stay informed on the go: Instant notifications alert you to unauthorized movements via e-mail with video clip attachments for review.
- Keep your property safe with 8 included cameras: CMOS sensors capture detailed images.
- Monitor up to 16 channels simultaneously: Add up to 8 additional cameras for enhanced security (additional cameras sold separately).
- Set and forget with hard drive storage: 1TB hard drive offers significant storage space for recorded video.
- Watch everything in HD: 720p resolution creates a detailed picture, even in low lighting conditions.
Whats Included
- 1TB HD DVR, eight 720p indoor/outdoor cameras, eight 60' BNC cables, 8 power adaptors, mouse, HDMI cable
- Mounting Hardware
- Owner's manual
A: These units are not wireless.
A: You should be able to get approximately 1.5 weeks of recording if your system is set to record at 720p with 15 frames per second.
Q: Can you listen audio? Is the Audio in each camera?
A: The included cameras do not have built in audio but the DVR supports audio on 1 channel (for 1 camera) so you could add a camera that has audio or use the microphone accessory - model #ACCMIC1
Q: doesn it have an app, so i can view away from home ?
A: It does, you can search lorex in app store
Q: What is the resolution of these cameras?
A: The resolution of the cameras is 720p (1280×720 px)
A: Yes it is.
Q: What is the POE (Power over Ethernet) class for the cameras? Class 3 or 0 or lower?
A: Hello, This system is a DVR system and the cables are BNC (Coax type) with a power connection lead within the cable. They do not run on PoE as it is not an NVR system bundle. Thanks, Lorex Technology
