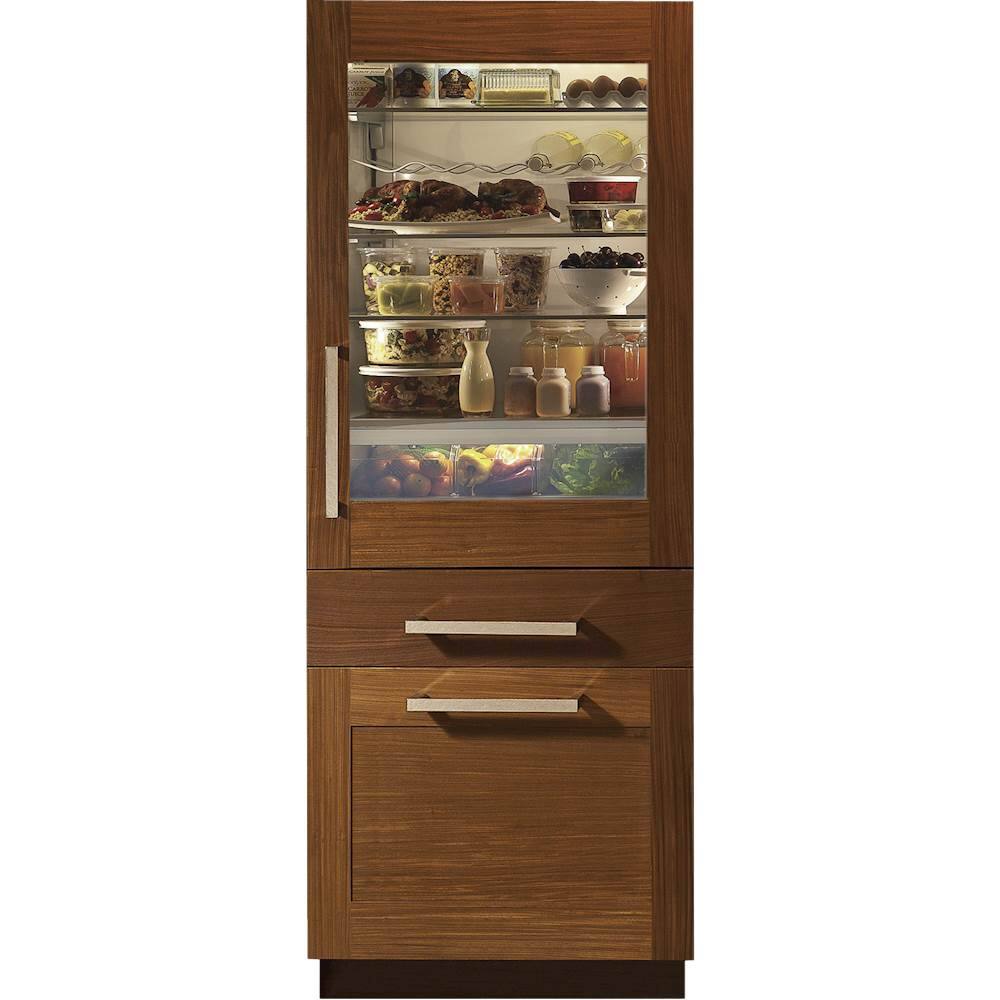

Monogram - 14.3 Cu. Ft. Bottom-Freezer Built-In Refrigerator
Model: ZIK30GNHII
SKU: 4330634
This item is no longer available in new condition. See similar items below
- Key Specs
- Product Height: 80 2/5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 4/5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Door Hinge: 80 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Total Capacity: 14.62 cubic feet
- Refrigerator Style: Bottom Freezer
- Lighting Type: LED
- Ice Maker: Yes
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Product Name: 14.3 Cu. Ft. Bottom-Freezer Built-In Refrigerator
- Brand: Monogram
- Model Number: ZIK30GNHII
- Dimensions
- Product Height: 80 2/5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 4/5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 23 4/5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Door Hinge: 80 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Counter Depth: true (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Product Weight: 486 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 84 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 30 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 25 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Total Capacity: 14.62 cubic feet
- Refrigerator Capacity: 10.64 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Freezer Capacity: 3.98 cubic feet (Total amount of space within the freezer compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Features
- Configuration: Built-in (The size, arrangement, and physical configuration of the product.)
- Panel Ready: true (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Refrigerator Style: Bottom Freezer
- Convertible Temperature Zone: false (Refrigerators with this feature include a separate compartment with independent temperature controls from the main product. These compartments offer a flexible space that allows you to change the temperature based on your additional storage needs. Whether it’s a place to chill beverages for an evening with friends, keep snacks cool, or even provide extra freezer space.)
- Defrost Type: Automatic (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Reversible Door Hinge: true
- Lighting Type: LED
- Ice & Water
- Ice Maker: Yes
- Ice and Water Dispenser: Ice and water
- Ice and Water Dispenser Location: External
- Storage
- Refrigerator Shelf Material: Glass
- Freezer Info
- Freezer Compartment: true
- Freezer Location: Bottom
- Freezer Door Type: Pull Out Drawer
- Filter Info
- Water Filtration: false
- Electrical Specification
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 115 volts (Amount of power needed to support an electrical current.)
- Estimated Annual Electricity Use: 587 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 70 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 084691262107
Keep produce fresh and chilled with this Monogram integrated glass door refrigerator. Its convertible lower drawer can be used as a fridge, freezer or crisper drawer, and its adjustable glass shelves provide flexible storage. This 30-inch Monogram integrated glass door refrigerator has an electronic ice maker and a removable ice storage bin for convenient serving.
- Framed glass refrigerator door: Enables simple visibility.
- Integrated panel-ready design: Blends seamlessly with surrounding cabinetry and accepts stainless steel European- and Professional-style panels.
- Illuminated electronic glass-touch controls: Make it easy to adjust interior lighting, temperature, control lock and other settings.
- 2.61 cu. ft. convertible lower drawer: With independent temperature controls, it allows you to easily store fresh food, frozen foods, wine or beverages.
- Dual refrigeration system with three independent temperature management zones: For easy storage of all your food at the optimum temperature.
- Self-closing vegetable drawer and removable beverage rack: Provide a convenient space to chill wines or sparkling water, and help preserve the freshness of your vegetables.
- Three adjustable door bins: Make it easy to organize and access beverages, condiments and other convenience items.
- 3 adjustable glass shelves with aluminum trim: Provide elegant and uncluttered appearance.
- GE water filtration system with filter change indicator: Provides clean, fresh-tasting ice cubes.
- LED interior lighting: Gradually brightens and dims when door or drawer is opened and closed, providing clean white illumination that's both attractive and energy-efficient.
- Factory-installed icemaker: Produces ice cubes for all your needs.
- Free delivery on appliance orders $399 and up: For new water line connections, special installation is required which is not included with delivery. Call 1-888-BEST BUY (1-888-237-8289) to find out more and to purchase installation.
- Required parts sold separately: Find essential parts for installation in the accessories section on this page.
- Need more information?: See what's included with home delivery and installation.
Whats Included
- Monogram 14.3 Cu. Ft. Bottom-Freezer Built-In Refrigerator
Documents
- Energy_Guide_PDF
