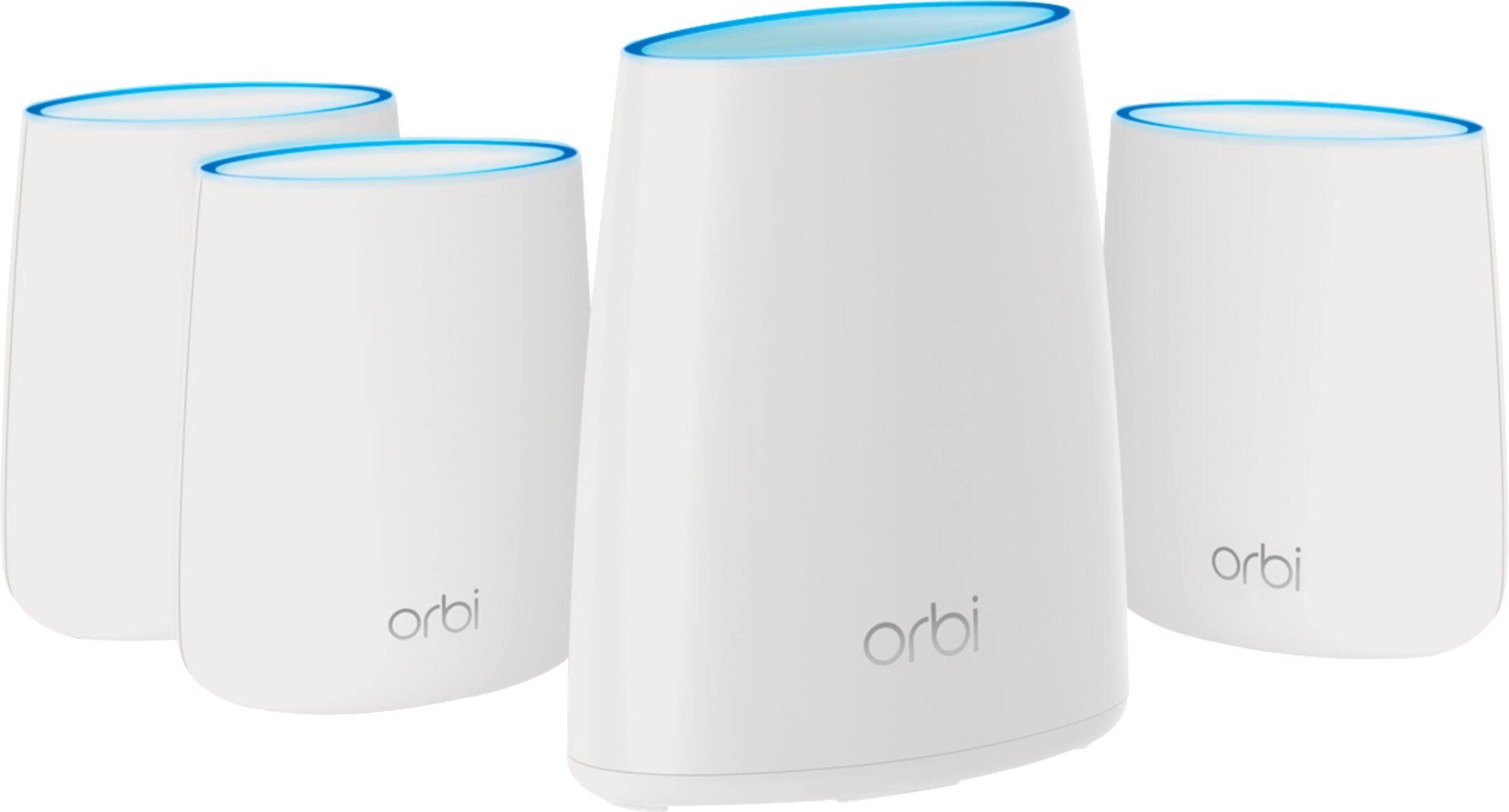

NETGEAR - Orbi AC2200 Tri-Band Mesh Wi-Fi System (4-pack)
Model: RBK44-100NAS
SKU: 6106001
This item is no longer available in new condition. See similar items below
- Key Specs
- Wi-Fi Mesh System: true (A single wireless network consisting of a main router (connected directly to a modem) that connects to a series of satellite modules or nodes placed around the home. Routers with this capability promote stronger, faster wireless signals as well as increase Wi-Fi coverage by reducing interference and eliminating dead zones.)
- Number of Wi-Fi Satellites Included: 4 (Quantity of Wi-Fi satellite modules/nodes for a Wi-Fi Mesh System that come with the product.)
- Number Of LAN Ports: 3 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- General
- Product Name: Orbi AC2200 Tri-Band Mesh Wi-Fi System (4-pack)
- Brand: NETGEAR
- Model Number: RBK44-100NAS
- Security
- Data Encryption: true
- Encryption Type: WPA2-PSK (The security protocols or certification programs that protect the Wi-Fi network.)
- Firewall Type: None (The method the firewall uses to filter and process data to increase network security, primarily by blocking malicious traffic requests while allowing legitimate traffic through.)
- Parental Controls: true (Allows user to block unwanted content, signals, channels, networks, etc. from being received or accessed.)
- Network
- Ethernet Standard: 10/100/1000 (Each standard is a variation of the IEEE 802.3 set of computer networking technologies known as Ethernet. New versions evolved to include higher bandwidth, different physical media, and other new and improved features. Standards are often denoted by speeds (in Megabits per second). For example, a 10/100/1000 Ethernet port transmits at 10 Mbps, 100 Mbps, and 1000 Mbps (1 Gbps).)
- Frequency Band: 2.4 GHz, 5.0 GHz (Bands may be grouped into categories such as low- and high-band VHF (Very High Frequency), low- and high-band UHF (Ultra High Frequency), or certain frequency channels (measured in MHz or GHz). Generally, higher frequencies transmit information faster but have shorter range than lower frequencies.)
- Wireless Networking Standard: Wi-Fi 5 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AC, N (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Number of 2.4Ghz Streams: 1 (A router's streams are like lanes on a highway. The more streams a router has, the less traffic congestion. Because the 2.4 GHz band is used to transmit wireless signals to a wide variety of devices, there is often high amounts of traffic on that stream. But with multiple streams, each can be designated to a specific device for optimal performance. For example, if one 2.4 GHz stream is assigned to one device, such as a desktop computer, it leaves the remaining streams open for guest users, devices that use more data, or devices with specific band compatibility.)
- Number of 5.0Ghz Streams: 2 (A router's streams are like lanes on a highway. The more streams a router has, the less traffic congestion. The 5.0 GHz band provides high speed, short-range data transmission and typically has less traffic than the 2.4 GHz band. With multiple streams, each can be designated to a specific device for optimal performance. For example, if one 5.0 GHz stream is assigned to one device, such as a streaming media player, it leaves the remaining streams open for guest users, devices that need less data, or devices with specific band compatibility.)
- Wi-Fi Mesh System: true (A single wireless network consisting of a main router (connected directly to a modem) that connects to a series of satellite modules or nodes placed around the home. Routers with this capability promote stronger, faster wireless signals as well as increase Wi-Fi coverage by reducing interference and eliminating dead zones.)
- Number of Wi-Fi Satellites Included: 4 (Quantity of Wi-Fi satellite modules/nodes for a Wi-Fi Mesh System that come with the product.)
- Number of Wi-Fi Satellites Supported: 4 (Maximum quantity of Wi-Fi satellite modules/nodes that are able to be connected to the main router in a Wi-Fi Mesh System.)
- Wired Backhaul: true (Also known as Ethernet backhaul or backbone, this capability can be enabled to directly wire a secondary router or satellite to the main router via Ethernet cable. This connection allows for faster and more stable data upload.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Features
- Beamforming: true (A signal processing technique that enables a router to focus a Wi-Fi signal in a specific direction. The router determines where a connected device in the network is located and projects a stronger signal in that specific direction. This can result in faster and higher quality data transfer as well as reduced signal interference.)
- Wireless: true
- Ports
- Port Type(s): RJ-45, USB (USB 2.0 connects external drives, gaming controllers, smartphones, MP3 players and other accessories.USB 3.0 transfers data faster than USB 2.0, but only when used with USB 3.0 devices.USB Type-C provides fast speeds and versatile power, featuring connectors with identical ends that plug in upside down or right side up. Adapters allow for video as well as backward compatibility.Thunderbolt provides ultra-high bandwidth for fast data transfer between devices featuring a Thunderbolt or MiniDisplayPort connection.HDMI allows you to connect a projector or display HD media on your HDTV or monitor.Media card slots allow you to transfer photos from your digital camera or camcorder.)
- Number Of LAN Ports: 3 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- Speed
- Wired Speed: 1000 megabits per second (The maximum rate at which data is transferred between a network device and router using an Ethernet cable.)
- Gigabit Ethernet Speed: true (Supports the gigabit Ethernet networking standard, which has a data rate of at least one gigabit per second, or 1,000 Mbps.)
- Dimensions
- Product Height: 8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 3.1 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 6.4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 1.6 pounds (The out of box weight of the item.)
- Warranty
- Manufacturer's Warranty - Parts: 1 year
- Manufacturer's Warranty - Labor: 1 year
- Other
- UPC: 606449131260
Orbi Whole Home WiFi System delivers up to 2.2Gbps high-performance WiFi. Sleek, modern design with high-gain internal antennas for up to 8,000 square feet of coverage. FastLane3 Technology creates a dedicated Tri-Band WiFi for seamless 4K streaming and gaming everywhere in your home. Keep a single WiFi name for uninterrupted connections as you move from room-to-room. Circle with Disney runs on Orbi Routers for a smart way for families to manage content and time online, on any connected device. Provide internet access to guests without sharing your personal network password. Orbi is ready right out of the box and compatible with your ISP. Just use the Orbi app to get started with better WiFi, everywhere in minutes.
- Whole Home WiFi Coverage up to 8,000 square feet: Orbi provides whole home WiFi coverage to prevent WiFi dead spots.
- Latest technology for fast, reliable speeds: The dedicated WiFi backhaul ensures 4K HD streaming, gaming, and even browsing perform at fast speeds.
- Single Network Name for easy setup: Enjoy the convenience of a single WiFi name for your whole home with a seamless connection as you move from room-to-room.
- Smart Parental Controls: Circle with Disney Smart Parental Controls lets you easily manage content & time online on any device.
- 9 Gigabit Ethernet ports for flexible connectivity: With a total of 9 Gigabit Ethernet ports, you are able to easily create a direct connection with your home media center, game consoles, and home office devices.
- Quick and Easy Setup with Orbi Mobile app: Use the Orbi app to setup whole home WiFi in minutes. The app enables you to share network credentials see connected device list, speed test, and more.
- Performance with Style: Sleek, modern design with four high-gain internal antennas in the Orbi Router increases wireless range in hard-to-reach areas of your home.
- Guest WiFi network: Provide internet access to friends and family without sharing your personal network password.
- Ready Right Out of the Box: Compatible with your internet service provider (ISP). Just connect to your modem to create high-speed WiFi for your whole home.
- Works with Amazon Alexa and the Google Assistant: Use voice commands to control your home network.
Whats Included
- 12V/2.5A power adapter
- 3x 12V/1.5A power adapter
- 3x Orbi Satellite (RBS20)
- Ethernet cable (6.56')
- Orbi Router (RBR40)
- Quick start guide
A: My home is 5100 sq ft L-shaped, two floors and made out of stone, brick and stucco with spray foam insulation in every wall, ceiling and attics. This is the strongest network that I have found after years of trying access points and extenders.
Q: What is he effective range of a single router? What is the effective range of a single satellite?
A: I can say I have my satellites 60 feet plus away from my router and I see no loss. I also test my speed over 200 feet away without loss.
Q: What is the range of the WiFi and do walls restrict the distance
A: i have a 4000sq ft house with many walls (4 bedrooms, 4 bathrooms, numerous closets and storage). This system hasn’t failed me yet. My only hiccup was getting wifi outside on my 2 acres. I just purchased the exterior extender last week. I installed it near by my pool area, about 50 feet from the main Orbi. So far its great but havnt gone to the end of the property yet. I was mainly wanting my pool area covered which this system was having a difficult time reaching the pool area. But inside, great coverage with over 30 devices connected to it.
Q: How are the satellites powered??
A: undefined
A: Yes, seems to be the same product, just a sky name difference for the additional satellite. I purchase the 4 and we are very happy with it’s performance.
A: Yes, but if you approve the connection on your phone App, no password is needed. FYI, the password is located on the sticker and underneath the main router.
A: You can add more or strategically placed the satellites. Believe the app has a tool to help assist with locating the satellites.
