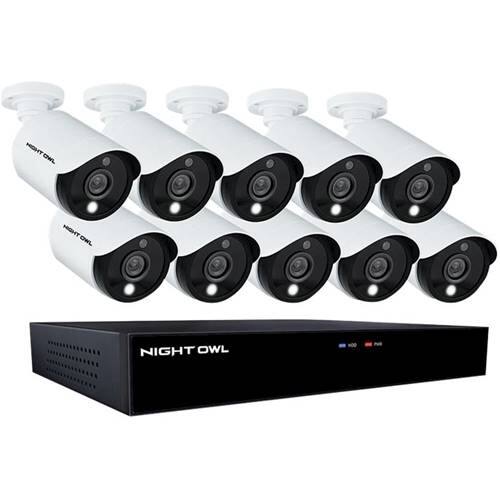

Night Owl - 16-Channel, 10-Camera Indoor/Outdoor Wired 1944p 1TB DVR Surveillance System - Black/White
- Key Specs
- Field Of View: 100 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
- Night Vision: true
- Number Of Cameras Included: 10
- Number Of Channels: 16
- Storage Type: DVR
- Minimum Operating Temperature: -4 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 140 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- General
- Product Name: 16-Channel, 10-Camera Indoor/Outdoor Wired 1944p 1TB DVR Surveillance System
- Brand: Night Owl
- Model Number: C50X-161-10L
- Camera
- Field Of View: 100 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
- Night Vision: true
- Night Vision Distance: 100 feet
- Number Of Cameras Included: 10
- Camera Infrared Distance: 100 feet (The distance over which the camera's infrared, or night vision, capabilities can detect objects.)
- Image Sensor Type: Specialty (CCD and CMOS are the two main technologies used in image sensors. CCD, the older of the two types, turns analog light signals into digital pixels. This conversion happens without distortion, resulting in high-quality images. Newer CMOS sensors use transistors at each pixel to move electrical charges. CMOS sensors are typically less expensive, but also require more light to create distortion-free images.)
- Camera Mount Type: Other
- Compatibility
- Camera Compatibility: Night Owl cameras
- Connectivity
- Camera Connectivity: Wired (Security system cameras can be set up in several ways. Wired cameras require cables for power and footage transmission, while wire-free cameras don't need cables for either. Wireless cameras still require cables for receiving power but are able to transmit footage via a wireless network.)
- Recording & Playback
- Number Of Channels: 16
- Storage
- Storage Type: DVR
- DVR Storage Capacity: 1000 gigabytes
- Internal Storage Capacity Upgradeable Upto: 8000 gigabytes
- Performance
- Minimum Operating Temperature: -4 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 140 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- Features
- Auto-On Detection: Motion
- Dimension
- Camera Height: 2.4 inches
- Camera Width: 2.4 inches
- Camera Depth: 5.3 inches
- DVR Height: 1.7 inches
- DVR Width: 9.3 inches
- DVR Depth: 10 inches
- DVR Weight: 3.3 pounds
- Sensor
- Sensors: Motion sensor (Detects stimuli such as heat, light, sound, motion, or pressure and responds accordingly by operating a control or initiating a function of the device.)
- Output
- DVR Output(s): HDMI, VGA, RCA audio, USB
- Included
- Camera(s) Included: true
- DVR Included: true
- Cable(s) Included: true
- Warranty
- Manufacturer's Warranty - Parts: 1 year
- Manufacturer's Warranty - Labor: 1 year
- Other
- UPC: 816522020545
Keep an eye on your property with this Night Owl 16-channel DVR surveillance system. The 10 cameras have motion-activated spotlights to improve image clarity for reliable visual evidence, while the 1TB hard drive provides ample storage space. This Night Owl 16-channel DVR surveillance system gives real-time alerts to let you know of potential intrusion.
- Motion-activated design: Automatically records once motion is detected.
- Monitor your property with 10 cameras: Also includes DVR, mouse, 3 security stickers, DVR power adapter, 3 camera power adapters, 3 x 4-way power splitters and 30 mounting hardware and screws.
- Set and forget with hard drive storage: Record continuously from 16 channels with a 1TB hard drive.
- High-resolution technology captures superior footage: Cameras use advanced image sensors to record larger, clearer full-screen video. They produce an image that is 2560 horizontal and 1944 vertical pixels in size.
- Infrared night vision lets you see in the dark: Keep an eye on things up to 100' away when there's little to no light.
- Viewing angle up to 100°: Expertly captures a wide angle of your property for exceptional security at all times.
- HDMI and VGA outputs: Connect to a wide range of compatible displays for versatile viewing, including your HDTV, LCD or plasma TV. USB connectivity makes it easy to transfer stored footage.
Whats Included
- Night Owl 16-Channel, 10-Camera Indoor/Outdoor Wired 1944p 1TB DVR Surveillance System
A: The cameras have up to 100 ft. of clear Night Vision. With our L2 Color Boost® Technology the cameras continue recording in full-color as light fades to darkness. Each surveillance camera captures full-color video in low-light settings, only switching to Night Vision if necessary. The low-light (L2) sensors produce detailed full-color video even as light fades away. When the light fades to darkness, the Wired Spotlight cameras continue recording using black and white Night Vision with up to 100 ft. of visibility. Thank you for choosing Night Owl!
Q: Can you download the video to a flash drive for external saving of videos?
A: There are multiple ways you can save recordings. For example, recordings can be saved via the Night Owl App on your Smart Device or CMS (Control Management Software) on your PC or Mac. Additionally, you can backup recordings from your systems pre-installed hard drive using a USB flash drive. Please view the following support page for more information on your particular product: https://support.nightowlsp.com/hc/en-us. Enter your product Series into the Search bar and you can access your full product manual which has more information on this process. Thanks for choosing Night Owl!
A: The cameras come with a 60 ft. BNC (Video/Power) Cable. The max range we recommend using BNC cable is 160 ft. (60 ft. included cable + 100 ft. extension). If you need to go further than that, please purchase our video balun. The video balun will convert the BNC connectors to Ethernet ports and allow you to use a single Ethernet cable run instead. Thank you!
Q: Are they nig5h vision because y got them and at night I don't see nothing everything is dark
A: You should have up to 100 ft of clear Night Vision with these cameras. There are a number of factors that determine the Night Vision distance you will receive with your camera. These factors include: 1) the amount of ambient light in the area the camera is located (more ambient lighting the better), 2) whether the camera is set on a fixed object (camera should not be pointing out into blankness but rather focused on something) and 3) the number of LEDs your camera has (the more LEDs the more Night Vision distance you will receive). Please visit support.nightowlsp.com and enter your product Series located on top of your DVR for further assistance. Thanks for choosing Night Owl!
Q: If I run Siamese cable from camera to DVR, is 275' to far?
A: We recommend not going further than 160 ft. from the DVR using BNC coaxial cable. If you want to go 275 ft., we would recommend you use a single Ethernet cable run and purchase a video balun for the camera. The video quality will be much better and you wont have power issues. https://www.amazon.com/Night-Owl-Security-Converters-VB-POE-BNC/dp/B00IXI51X2/ref=sr_1_5?dchild=1&keywords=night+owl+video+balun&qid=1591717403&sr=8-5
A: You can digitally zoom in and out, but these are fixed lens cameras. They do not have PTZ functionality. This system is not compatible with our wireless cameras. It is a wired solution compatible with our wired BNC cameras. Thank you!
A: The cameras included with this product are not audio enabled. Not all Night Owl cameras are audio enabled. Please check the product's specifications. While most DVR/NVRs are audio capable, they are not always sold with audio enabled cameras. If you are in need of some audio enabled cameras, please call our pre-sales team at 1-866-979-0580. Thank you!
A: Hi Juan. Our tech agents are standing by and always ready to assist with any issue you are having with you product. We thank you for choosing Night Owl!
