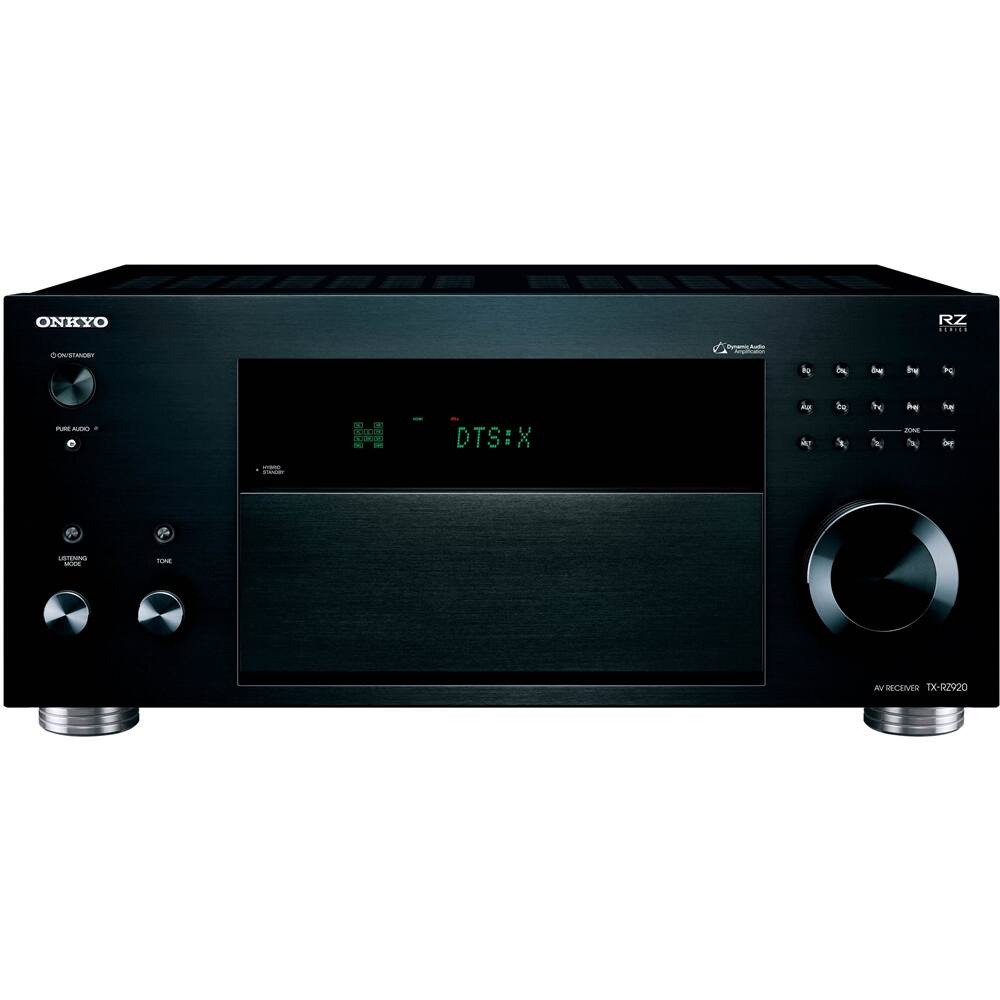

Onkyo - TX 9.2-Ch. Hi-Res 4K Ultra HD A/V Home Theater Receiver - Black
Model: TX-RZ920
SKU: 5947486
This item is no longer available in new condition. See similar items below
- Key Specs
- Number of Channels: 9.2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Video Pass-through: 2160 (4K) (Devices with this feature allow video signals to travel from their source to a target device without alteration. For example, a receiver with 4K pass-through would allow 4K video signal from a Blu-ray player to pass to a target TV with surround sound; without the pass-through ability, the receiver would not allow both 4K video and surround sound to be transmitted simultaneously.)
- General
- Product Name: TX 9.2-Ch. Hi-Res 4K Ultra HD A/V Home Theater Receiver
- Brand: Onkyo
- Model Number: TX-RZ920
- Audio
- Number of Channels: 9.2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- High Resolution Audio: true (Hear music the way musicians and sound technicians intended it to be heard. Products that support hi-res audio deliver audio signals with a dynamic range and bandwidth far greater than that of a standard CD so you'll be able to enjoy pure music with outstanding sound quality. The device supports high-resolution audio signals, which more closely resemble the quality of music as it was originally recorded, with more texture and detail than can be heard via typical music streaming services or CDs.)
- Number of Audio Zone Source Outputs: 2 (Multiple source outputs from the receiver mean different speakers are able to receive different sound sources from the receiver or preamp/processor. For every output, a different sound source can be accessed simultaneously in different zones. For example, two source outputs could be a streaming media player in one room and a Blu-ray player in another.)
- Surround Sound Supported: DTS 96/24, DTS Neo:6, DTS:X, Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Maximum Sampling Rate Supported: 11.2 MHz (Generally, the higher the sampling rate, the greater the quality of audio and/or video.)
- Speaker A/B Switching: true (Allows a user to select between one of two sets of primary speakers.)
- Supported File Formats: AIFF, Apple Lossless, DSD, FLAC, MP3, WAV, WMA
- Equalizer: true (Allows for the control of different frequencies within an audio signal, such as adjusting treble and bass levels.)
- Inputs
- Front Facing Inputs: HDMI
- Video
- Video Pass-through: 2160 (4K) (Devices with this feature allow video signals to travel from their source to a target device without alteration. For example, a receiver with 4K pass-through would allow 4K video signal from a Blu-ray player to pass to a target TV with surround sound; without the pass-through ability, the receiver would not allow both 4K video and surround sound to be transmitted simultaneously.)
- Outputs
- Speaker Connection Type: Binding posts
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Features
- Auto Calibration: true (Home theater systems and receivers with an autocalibration function can automatically determine basic settings like speaker volume, crossover point, equalization, and more.)
- Digital Content Protection: HDCP 2.2 (High-bandwidth Digital Content Protection (HDCP) is designed to prevent copying of digital audio and video content as it travels across connections. Newer versions of HDCP support more connection types, increase security, and resolve weaknesses of previous versions.)
- Remote Control Included: true
- Connectivity
- Wireless Multi-Room Audio: true (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Wireless Multi-Room Technology: Apple AirPlay, DTS Play-Fi, Google Cast (Proprietary technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- IP Control: true (Allows electronic devices to be controlled over a home network via a web-based interface. Typically refers to devices not traditionally controlled in this manner, such as A/V receivers.)
- Dimensions
- Product Height: 8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17.2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 17.9 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 35.9 pounds (The out of box weight of the item.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Warranty
- Manufacturer's Warranty - Parts: 3 years
- Manufacturer's Warranty - Labor: 3 years
- Other
- UPC: 889951001089
Produce multidimensional audio for your home theater with this 9.2-channel Onkyo A/V receiver. It has eARC support for Dolby TrueHD and DTS Master Audio formats, and it provides Zone 2 and Zone 3 powered and line-out options for multiroom setups. This THX-certified Onkyo A/V receiver has 11.2-multichannel pre-outs to support amplified surround sound systems.
- Connect to the Internet: Via built-in Wi-Fi for access to Pandora, Deezer, Spotify, TuneIn and TIDAL.
- Works seamlessly with Sonos: Add a Sonos Connect and when you open the Sonos app, hit 'play' on the zone where the Connect is, it will automatically turn on the receiver, switch the input and start playing the music you selected.
- Up to 4K HDMI passthrough: Transfers 4K video and audio signals from your set-top devices to the TV via the AV receiver.
- Surround sound decoders: Include Dolby Surround, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS-ES decoder, DTS 96/24 and more for crystal surround sound.
- Apple AirPlay support and DTS Play-Fi Technology: Support distributed audio playback in another room, so you can enjoy music throughout your home.
- x.v.Color and Deep Color technology: Produce vibrant hues for a lifelike picture.
- 0.08% total harmonic distortion: Ensures clear audio.
- Advanced surround modes: Include rock, action, sports and role playing game (RPG) for quality sound in almost any genre.
- Bass and treble controls: Enable simple sonic customization, so you can tailor the sound to suit your preferences.
- Hi-Res audio support: Lets you enjoy high-quality audio playback via LAN, USB, Bluetooth.
- Remote: Lets you control the receiver from afar.
- AM/FM tuner: With 40 station presets lets you program your favorites for simple one-touch recall.
- Headphone jack: Enables private listening.
- USB port: Enables simple connection of a variety of USB-enabled devices.
- Auxiliary input: Makes it easy to connect a variety of devices.
- 8 HDMI inputs, 2 HDMI outputs: HDMI cable not included. High-speed HDMI cable is the only connection that can deliver a full high-definition experience with a full 1080p picture and digital surround sound.
- Apple® iPod®, iPhone®, iPad® ready: So you can easily stream your music library.
- AccuEQ acoustic calibration: Ensures the sound is calibrated to your room's acoustics, including manual adjustments and presets.
- Bluetooth technology: Supports simple wireless music streaming via compatible devices. Advanced music optimizer technology promotes quality sound when streaming audio.
Whats Included
- Onkyo TX 9.2-Ch. Hi-Res 4K Ultra HD A/V Home Theater Receiver
A: The watts per channel RMS is 135 watts.
