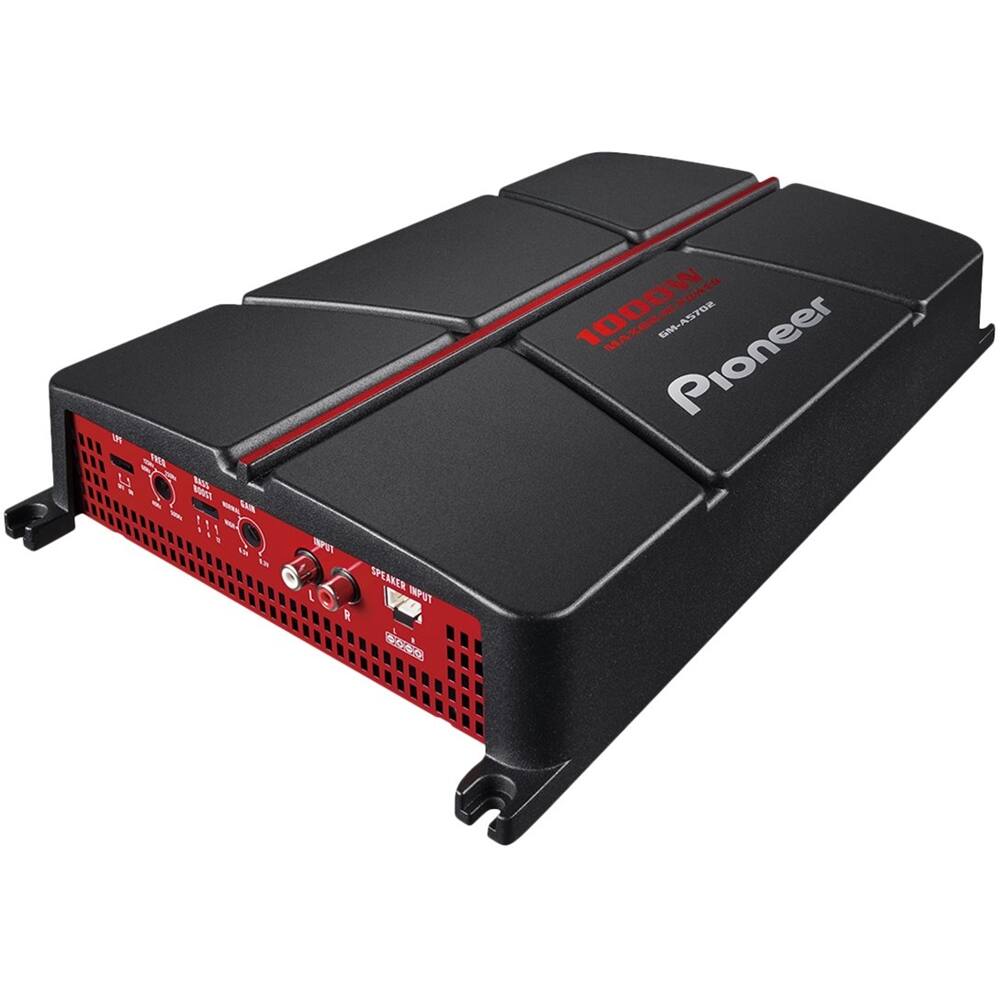

Pioneer - GM 1000W Class AB Bridgeable 2-Channel Amplifier with Variable Low-Pass Crossover - Red/Black
Model: GMA5702
SKU: 5622724
This item is no longer available in new condition. See similar items below
- Key Specs
- Continuous Watts x Channel @ Ohms: 240 W x 2 x 2 Ohms; 150 W x 2 x 4 Ohms; 480 W x 1 x 4 Ohms
- Maximum Watts x Channel @ Ohms: 300 W x 2 (This is the maximum load the speaker, subwoofer or amp can drive.)
- Amplifier Class: AB (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 2
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Bridgeable: true (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Low-Pass Crossover: Variable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- High-Pass Crossover: None (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- Compatibility
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- General
- Product Name: GM 1000W Class AB Bridgeable 2-Channel Amplifier with Variable Low-Pass Crossover
- Brand: Pioneer
- Mounting Hardware Included: true
- Model Number: GMA5702
- Color: Red/Black
- Audio Power
- Continuous Watts x Channel @ Ohms: 240 W x 2 x 2 Ohms; 150 W x 2 x 4 Ohms; 480 W x 1 x 4 Ohms
- Watts Per Channel RMS: 150 watts
- Maximum Watts x Channel @ Ohms: 300 W x 2 (This is the maximum load the speaker, subwoofer or amp can drive.)
- Watts Per Channel Maximum: 300 watts
- Amplifier Class: AB (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 2
- Minimum Frequency Response: 10 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 70 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Total Harmonic Distortion: 0.5 percent (Measurement of the harmonic sound distortion. The lower the percentage, the cleaner the sound.)
- Signal-to-Noise Ratio (SNR): 96 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features
- Bridgeable: true (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Low-Pass Crossover: Variable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- High-Pass Crossover: None (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- MOSFET Power Supply: true (A specific type of power supply with the advantages of high switching speed and efficiency at low voltages.)
- Bluetooth Enabled: false (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Remote Control Included: No
- Marine: false
- Fan Cooled: false
- Input
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- Output
- Preamp Outputs: true
- Dimensions
- Product Height: 2.4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 14 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 8.5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Other
- UPC: 884938340236
Enjoy a flexible audio setup in your car with this Pioneer GM amplifier. This bridgeable two-channel amp lets you adjust the frequency from 40 to 500Hz with its variable low-pass filter to suit your sound preference. The Bass Boost function of this Pioneer GM amplifier lets you adjust the booming impact of your sound from 0 to 12dB.
- 1000W total power: RMS rating of 240W x 2 @ 2 ohms, 2 channels driven for robust audio.
- Variable low-pass-filter crossover: Lets you easily adjust the audio frequency from 40 Hz to 500 Hz for flexible sonic customization.
- 4 ohms impedance: Conducts power evenly to keep the speaker at an appropriate level.
- 0.05% THD (Total Harmonic Distortion): Provides clean sound.
- 96dB signal-to-noise ratio: Offers crisp audio.
- 0-12dB bass boost: Lets you add punchy bass to your music.
- 2-channel output: Allows easy system expansion.
- Class AB circuitry: Ensures reliable power handling.
Whats Included
- Pioneer GM 1000W Class AB Bridgeable 2-Channel Amplifier with Variable Low-Pass Crossover
