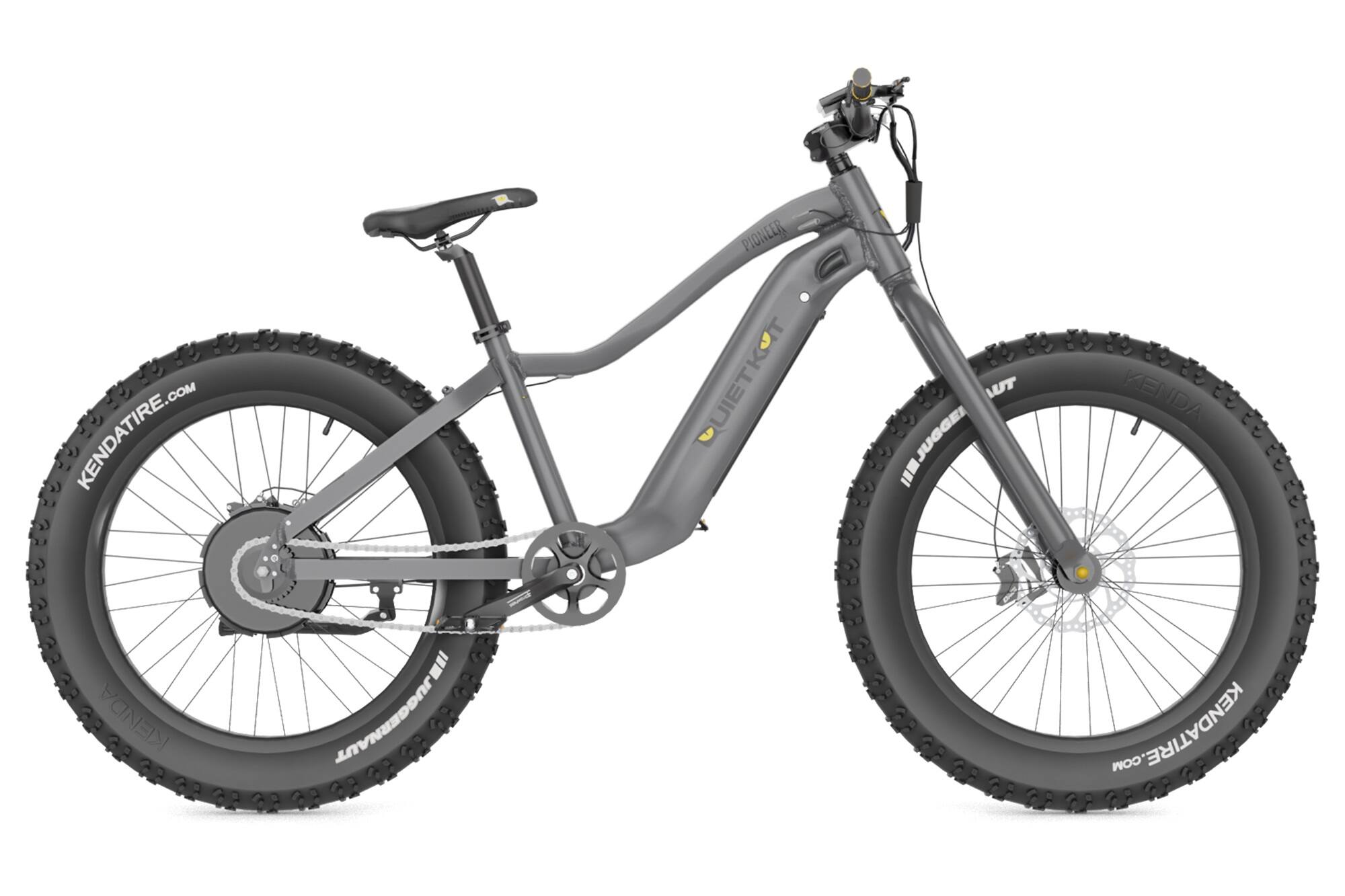

Name: QuietKat - Pioneer, 750w, One Size - Medium - Charcoal
Brand: QuietKat
SKU: 6505378
Rating: 0 (0 reviews)

Key Specs
- Product Weight: 61 pounds (The out of box weight of the item.)
- Maximum Operating Range: 38 miles
- Maximum Speed: 20 miles per hour
- Throttle Control Mechanism: Thumb
- Electric Bike Classification: Class 2 (Refers to the out of the box classification of the electric bike prior to any additional modifications. The three-tiered classification system is used to define and regulate the operation of the vehicle based on its speed capabilities. The use of these vehicles varies from state to state so it is important to check your local regulations prior to operating. Class 1: The bicycle is equipped with a motor that provides assistance only when the rider is pedaling, which ceases to assist when the e-bike reaches 20 miles per hour. Class 2: Bicycle equipped with a throttle-actuated motor that ceases to assist when the e-bike reaches 20 miles per hour. Class 3: The bicycle is equipped with a motor that provides assistance only when the rider is pedaling, which ceases to assist when the e-bike reaches 28 miles per hour.)
- Color: Charcoal
General
- Product Name: Pioneer, 750w, Charcoal, One Size
- Brand: QuietKat
- Electric Bike Classification: Class 2 (Refers to the out of the box classification of the electric bike prior to any additional modifications. The three-tiered classification system is used to define and regulate the operation of the vehicle based on its speed capabilities. The use of these vehicles varies from state to state so it is important to check your local regulations prior to operating. Class 1: The bicycle is equipped with a motor that provides assistance only when the rider is pedaling, which ceases to assist when the e-bike reaches 20 miles per hour. Class 2: Bicycle equipped with a throttle-actuated motor that ceases to assist when the e-bike reaches 20 miles per hour. Class 3: The bicycle is equipped with a motor that provides assistance only when the rider is pedaling, which ceases to assist when the e-bike reaches 28 miles per hour.)
- Bicycle Type: Adults bike
- Bike Style: Electric bikes
- Assembly Required: Partial
- Model Number: PIO-75-CHR-18
- Color: Charcoal
Dimensions
- Product Width: 13.78 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Height: 33.86 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 63.78 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 61 pounds (The out of box weight of the item.)
- Maximum Weight Capacity: 325 pounds (The maximum load that can be supported by the product.)
- Bicycle Size: Medium (The size of the bicycle as stated by the manufacturer.)
Connectivity
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
Display
- Display Type: LCD
- Information Displayed: Speed, Battery life, Assist mode
Performance
- Maximum Operating Range: 38 miles
- Maximum Speed: 20 miles per hour
Power
- Throttle Control Mechanism: Thumb
- Electric Bike Motor Type: Rear hub motor
- Batteries Included: true (Indicates whether the product comes with the required batteries for its operation.)
- Removable Battery: true
- Battery Charge Time: 6 hours (Battery charge time will vary depending on the product configuration, product model, applications loaded on the product, power management setting of the product and the product features used by the customer. Charging time will likely decrease with time and usage of the battery.)
- Battery Chemistry: Lithium-ion
- Battery Capacity: 614 watt hours (The amount of energy stored in the battery.)
- Battery Amperage: 12.8 ampere hours
- Battery Voltage: 48 volts
- On/Off Switch: true
- Battery Indicator Light: true
- Rear-Rack Mounted Battery: false
Features
- Padded Seat: true
- Adjustable Seat(s): true
- Adjustable Handlebar(s): true
- Kickstand: true
- Front Rack: false
- Rear Rack: true
- Fenders: false
Design
- Bicycle Frame Design: Step-over (Step-through frames, also known as open-frame or low-step bicycles, have a lower curved horizontal top tube which allow the rider to step through the frame when mounting and dismounting. Step-over frames, also known as diamond frames, have a horizontal top tube that connects to the seat tube and down tube to form a triangle. Riders must step over the frame when mounting and dismounting this style of bicycle.)
- Foldable Design: false
- Frame Material(s): Aluminum
- Gear Shifting Method: Trigger
- Derailleur: true
- Chain Guard: false
- Alloy Rims: true
Brakes
- Brake Style: Mechanical disc, Hydraulic disc
- Rear Brakes: true
Tires
- Wheel Diameter: 26 inches
- Wheel Thickness: 4 inches
Other
- UPC: 810095120374

The ultimate all-terrain electric bike at a price point anyone can afford. Go deeper into the backcountry with a 750w hub-drive motor with multiple levels of pedal assist.

Unbeatable durability: A lifetime frame warranty and robust components ensure a reliable ride on any adventure.
Quick-change battery: Swap to a spare battery in the field or upgrade to a larger 17.5Ah battery for extended range.
Premium braking: The Pioneer is equipped with Tektro two-piston mechanical disc brakes and large 203mm rotors, providing superior stopping power and control in all conditions.
All-terrain tires: Conquer various terrain with tires that deliver stability and traction on everything from pavement to soft sand, snow, and dirt roads.
110 Point Inspection: An industry-leading quality assurance inspection ensures every last bolt and connection is checked before it arrives. Period.
Motor: 750w (Hub-Drive)
Battery: 9.6Ah/48V | 614Wh
Frame: Alloy | Internal Cable Routing | Integrated Rack
Modes: Pedal Assist | Throttle | Walk Assist
Gears: Single-Speed
