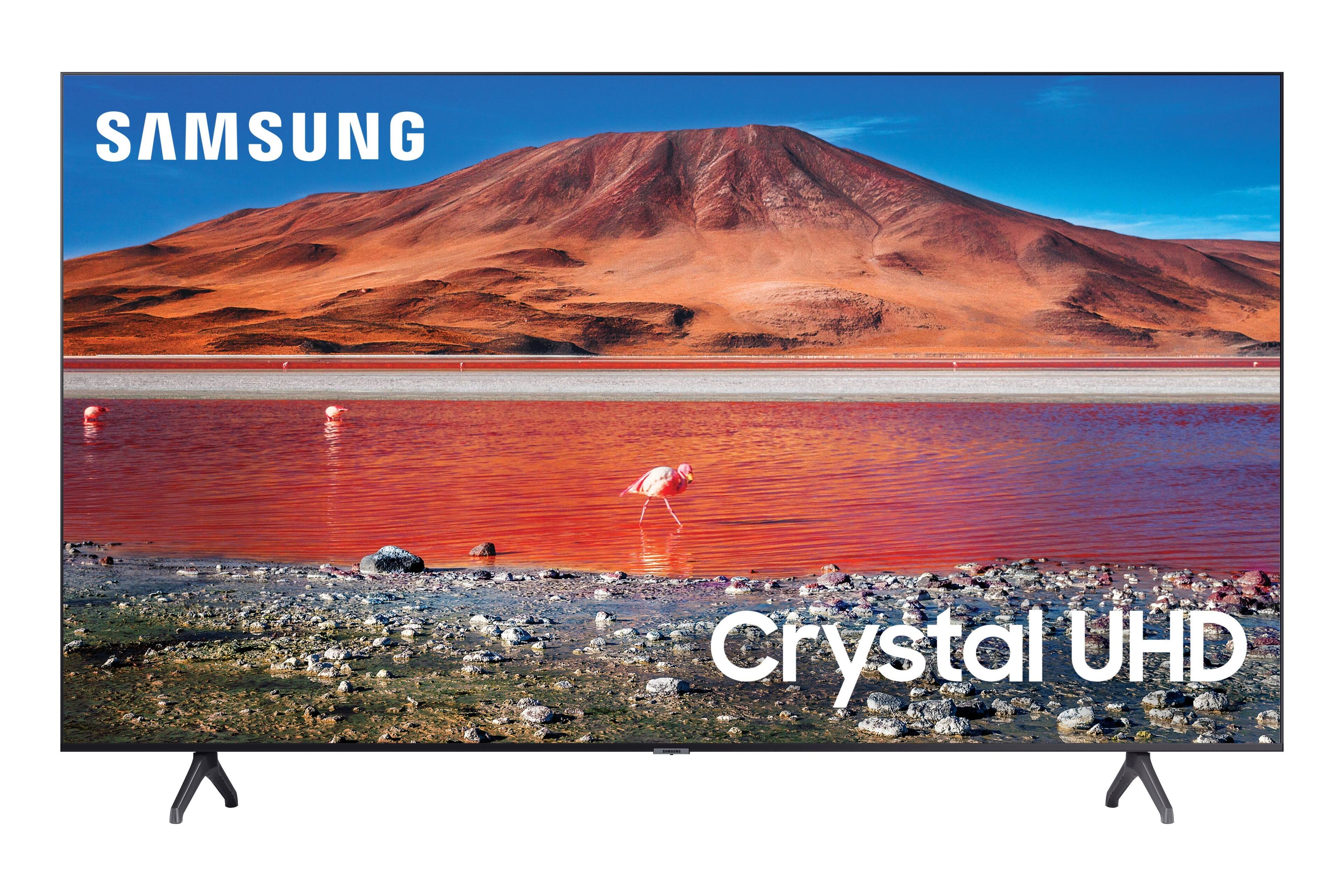

Samsung - 58" Class TU690T Crystal UHD 4K Smart Tizen TV
Model: UN58TU690TFXZA
SKU: 6512703
This item is no longer available in new condition. See similar items below
- Key Specs
- Display Type: LED
- Resolution: 4K (2160p) (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Screen Size Class: 58 inches (The group size measurement of a screen. This differs from a screen size measured diagonally from corner to corner.)
- High Dynamic Range (HDR): true (An HDR-compatible 4K TV or other HDR-compatible product displays HDR video content when it's available from sources like 4K Ultra HD Blu-ray Discs and 4K streaming services.)
- High Dynamic Range Format: HDR 10+ (There are a few HDR formats that tell the TV or other HDR-compatible product how to best utilize its capabilities to display HDR content. HDR technology can support one or multiple formats, each with various benefits to picture quality.)
- LED Panel Type: Standard LED
- Backlight Type: Direct Lit (Edge-lit: lights are on the edges of the display with ~10 zones of vertical LEDs. Direct-lit: lights are on the edges and behind the screen for more light uniformity than Edge-lit. Full array: direct-lit with local dimming for greater contrast with up to 100 zones of LEDs.)
- Refresh Rate: 60Hz (The number of frames per second the device can produce natively without enhancement. Higher rates help produce smooth, seamless pictures.)
- Motion Enhancement Technology: Motion Rate 120 (Proprietary technologies produced in addition to the Refresh Rate that smooth out faster moving pictures to reduce blur and pixelation.)
- Specific Manufacturer Technologies: Crystal Processor 4K, Digital Clean View, PurColor, Game Enhancer, LED Clear Motion (This is technology that's specific to a TV brand (sometimes called proprietary technology). Here you'll see terms related to picture quality, brightness, processors and more.)
- Smart Platform: Tizen (Just like a computer, a smart TV needs an operating system (also called a smart platform) in order to access the Internet, connect with entertainment apps, and play streaming content. Some common TV smart platforms are; Roku TV, Android TV, and Chromecast.)
- Featured Streaming Services: Disney+, ESPN+, Google Play Music, Netflix, Prime Video, Redbox, SHOWTIME, Sling TV, YouTube (Streaming services and other programs are available on this device. Keep in mind, there may be more services supported than just those shown here.)
- Number of HDMI Inputs (Total): 2
- TV Tuner Type: ATSC, Clear QAM
- Works With: Amazon Alexa, Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- General
- Product Name: 58" Class TU690T Crystal UHD 4K Smart Tizen TV
- Brand: Samsung
- Model Number: UN58TU690TFXZA
- Series: TU690T (Part of a group of the same product type with similar features.)
- Model Year: 2022
- Color: Titan Gray
- Dimensions
- Product Height With Stand: 32.3 inches
- Product Width: 50.8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth With Stand: 9.8 inches
- Product Height Without Stand: 29.5 inches
- Product Depth Without Stand: 2.4 inches
- Product Weight With Stand: 34 pounds
- Product Weight Without Stand: 33.5 pounds
- Stand Width: 39.9 inches (The horizontal measurement of the stand/base, or the distance from the outside of one leg to the outside of the opposite leg, as it is attached to the product.)
- Stand Depth: 9.8 inches
- Adjustable Stand Width: false (Whether the stand can adjust to have more than one measurement either between the legs or the base itself.)
- Display
- Display Type: LED
- Resolution: 4K (2160p) (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Screen Size: 58 inches (Size of the screen, measured diagonally from corner to corner.)
- Screen Size Class: 58 inches (The group size measurement of a screen. This differs from a screen size measured diagonally from corner to corner.)
- High Dynamic Range (HDR): true (An HDR-compatible 4K TV or other HDR-compatible product displays HDR video content when it's available from sources like 4K Ultra HD Blu-ray Discs and 4K streaming services.)
- High Dynamic Range Format: HDR 10+ (There are a few HDR formats that tell the TV or other HDR-compatible product how to best utilize its capabilities to display HDR content. HDR technology can support one or multiple formats, each with various benefits to picture quality.)
- Picture Quality Enhancement Technology: HDR Compatible
- LED Panel Type: Standard LED
- Backlight Type: Direct Lit (Edge-lit: lights are on the edges of the display with ~10 zones of vertical LEDs. Direct-lit: lights are on the edges and behind the screen for more light uniformity than Edge-lit. Full array: direct-lit with local dimming for greater contrast with up to 100 zones of LEDs.)
- Curved Screen: false
- Refresh Rate: 60Hz (The number of frames per second the device can produce natively without enhancement. Higher rates help produce smooth, seamless pictures.)
- Motion Enhancement Technology: Motion Rate 120 (Proprietary technologies produced in addition to the Refresh Rate that smooth out faster moving pictures to reduce blur and pixelation.)
- Synchronization Technology: Not Applicable (Generally, these technologies allow syncing between a computer/console game's frame rate and the device's refresh rate for a smoother display without tearing.)
- Closed Captioning: true (The text version of spoken audio displayed on the screen. Devices that can display closed captioning typically have the option to toggle the feature on or off.)
- Language(s) Displayed: English, French, Spanish (The available language options for displayed text or captions.)
- Features
- Remote Control Type: Standard
- Specific Manufacturer Technologies: Crystal Processor 4K, Digital Clean View, PurColor, Game Enhancer, LED Clear Motion (This is technology that's specific to a TV brand (sometimes called proprietary technology). Here you'll see terms related to picture quality, brightness, processors and more.)
- Smart Capable: true (Smart, or smart-capable devices are able to connect directly to your home network in order to stream content from the Internet, run Internet-based apps, or connect to other smart devices.)
- Smart Platform: Tizen (Just like a computer, a smart TV needs an operating system (also called a smart platform) in order to access the Internet, connect with entertainment apps, and play streaming content. Some common TV smart platforms are; Roku TV, Android TV, and Chromecast.)
- Featured Streaming Services: Disney+, ESPN+, Google Play Music, Netflix, Prime Video, Redbox, SHOWTIME, Sling TV, YouTube (Streaming services and other programs are available on this device. Keep in mind, there may be more services supported than just those shown here.)
- Screen Mirroring: true (Casts the screen of one device onto another wirelessly, using a common protocol (typically Bluetooth).)
- Screen Mirroring Technology: SmartShare, Apple AirPlay 2
- Content Sharing: Mobile to TV (The device is capable of connecting to another device in order to send or receive streaming content. Share content from your mobile device to your TV or vice versa.)
- Indoor Or Outdoor Use: Indoor (Indicates the appropriate environment product was designed to be used in.)
- Text-To-Speech: false (A system that converts language text into speech.)
- Video Description: false (Indicates whether the device features descriptive video service (DVS). This service provides narration of key elements in the program, such as actions, costumes, and scene changes, to help engage visually-impaired audiences.)
- V-Chip: true (Feature that blocks television programming if it has a content rating outside of the acceptable rating(s) configured by the user.)
- TV Tuner: Digital (The ATSC TV Tuner is a component built into conventional TV sets or other devices for receiving over-the-air broadcast TV without a cable/satellite box. Digital tuners may be purchased separately and connected to a device if it does not have one built in.)
- Connectivity
- Number of HDMI Inputs (Total): 2
- HDBaseT Receiver: false (An input that receives uncompressed HDMI signals over a category cable point-to-point, up to 100 meters, from a transmitter.)
- TV Tuner Type: ATSC, Clear QAM
- RF Antenna Input: true (This input is used to connect devices such as antennas or cable boxes to a TV via a coaxial cable.)
- Number Of USB Port(s) (Total): 1 (The total number of USB ports including all generations and versions.)
- Headphone Jack: false (The device features an interface that allows for the connection of headphones.)
- Compatibility
- VESA Wall Mount Standard: 400mm x 300mm (VESA wall mount standards refer to the spacing of screw holes built into a TV in order to fit with standard TV wall mounts. These standards are implemented into most TVs and monitors.)
- Works With: Amazon Alexa, Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Audio
- Built-In Speakers: true
- Surround Sound Supported: Dolby Digital Plus (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Speaker Output: 20 watts
- Number Of Speakers: 2
- Number of Audio Channels: 2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dialogue Enhancement: true (Improves clarity of dialogue in audio playback. This is typically achieved with dedicated speakers and/or technology that separates dialogue from the rest of the audio in order to make it clearer.)
- Automatic Acoustic Calibration: Room
- Power
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- EPEAT Qualified: false (The Electronic Product Environmental Assessment Tool (EPEAT) was designed to provide an environmental assessment tool for purchasers. In order to qualify for EPEAT, a product must meet all 23 required criteria.)
- Estimated Annual Operating Cost: 16 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Estimated Annual Electricity Use: 135 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Rechargeable Battery (Remote Control): false
- Battery Size (Remote Control): AAA (The battery size required for operation.)
- Number Of Batteries Required (Remote Control): 2
- Number of Batteries Included (Remote Control): 2
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Wattage: 165 watts (Measurement of electrical power.)
- Included
- Wall Mount Included: false
- Stand Included: true
- Box Dimension
- Height: 34.4 inches
- Width: 57 inches
- Depth: 6.8 inches
- CubicDimension: 13333 inches
- Other
- UPC: 887276704234
See how Crystal UHD with Smart TV elevates what you watch—at a value you’ll love. Go beyond HDTV to enjoy your content in 4K resolution, and in PurColor. And with Smart TV powered by Tizenbuilt in, it’s easy to find and stream the latest shows and movies in just a few clicks.
- 4K UHD Upscaling: See everything you watch instantly transformed to incredible 4K resolution.
- HDR: High Dynamic Range lets you enjoy a wide spectrum of colors and visual details, even in dark scenes.
- Smart TV powered by Tizen™: Stream your heart out and enjoy all you love with Smart TV powered by Tizen™.
- Crystal Processor 4K: Watch what you love upgraded to 4K resolution with this blazing fast processor.
- PurColor Crystal Display: Enjoy colors fine-tuned to how they were meant to be seen with PurColor.
- Direct Lit: See the blacks and whites fine-tuned for enhanced contrast by LED technology.
- Universal Guide: Get tailored recommendations for streaming and live TV all in one place.
- Works with: Make life more connected. Samsung TV works seamlessly with Amazon Alexa, Google Assistant and AirPlay 2.
- Amazon Alexa: Samsung TVs work with Alexa, making it easy to integrate with your Alexa-enabled devices. Ask Alexa to turn on your TV, change channels, control volume, and more.¹
- Google Assistant: Samsung TVs work with Google Assistant to get more done hands-free. Change channels, adjust the volume, control playback and more with just your voice.
- Apple AirPlay 2: With AirPlay 2, you can stream or share content from Apple devices to the big screen. Effortlessly play videos, music, photos and more from your iPhone, iPad and Mac on your Samsung TV.
Whats Included
- Samsung 58" Class TU690T Crystal UHD Smart Tizen TV
- Tabletop Stand
- Standard TM-1240A Remote Control
- Power Cable
- Owner's Manual
Product Manuals
Documents
- Energy_Guide_PDF
A: On your TV remote and press the Menu or Settings button. Select Picture > Expert Settings > Auto Motion Plus. Then, select Auto Motion Plus and toggle the setting off. It is so called "Soap opera" effect - good for sports, horrible for movies.
Q: Is this TV compatible with roku and direct TV?
A: Hi C, Yes, you can connect them via HDMI. ~Samsung Advisor
Q: Does this tv support new Samsung Gaming Hub?
A: Hi AngeU, The Samsung Gaming Hub is not available on the TV. It is available on the QN900B, QN800B, QN95B, QN90B, and the Q60B series TVs. ~Samsung Advisor
Q: Does this support Samsung Smart Things?
A: Hi Glll, You can use the SmartThings app on your smartphone to control this TV, but the TU690T TV does not support the SmartThings feature, which monitors and configures other smart devices in your home. This feature is found in our Q60B models and higher. ~Samsung Advisor
A: Hi Anthony, Best Buy and Samsung are working together to make this product available as soon as possible. Please continue to check the website or contact your local Best Buy for more information. ^Brie
A: Hi Mandy, if there is a protective film on your screen, it will be indicated with a large blue triangle in the upper left corner. The triangle will have an illustration showing how to remove the protective film. If you do not have a blue triangle in the upper left corner, then that means there is no protective film on the screen, so please do not try to peel off anything. You will damage what is actually the screen. ~Samsung Advisor
A: Hi Natethegreat, Great question! Both the TU690T and TU7000 both feature Crystal Displays for brilliant colors and exceptionally crisp, vivid images. Their Crystal 4K Processor further brings impressive clarity to all your content while upscaling everything you watch to stunning 4K definition, no matter the source. When stepping up to the TU7000, you'll gain Filmmaker Mode, which allows you to watch the source content (e.g., movie) just as the director intended, as well as Tap View, which allows you to cast content from your smartphone by simply tapping it to the side of the TV. ~Samsung Advisor
Q: What size screws are needed on the rear of tv to mount to wall bracket?
A: Hi Tony, For your 58" TU690T TV, you will need 4 x M8 screws, 20-22mm length, and 1.25mm pitch. ~Samsung Advisor
