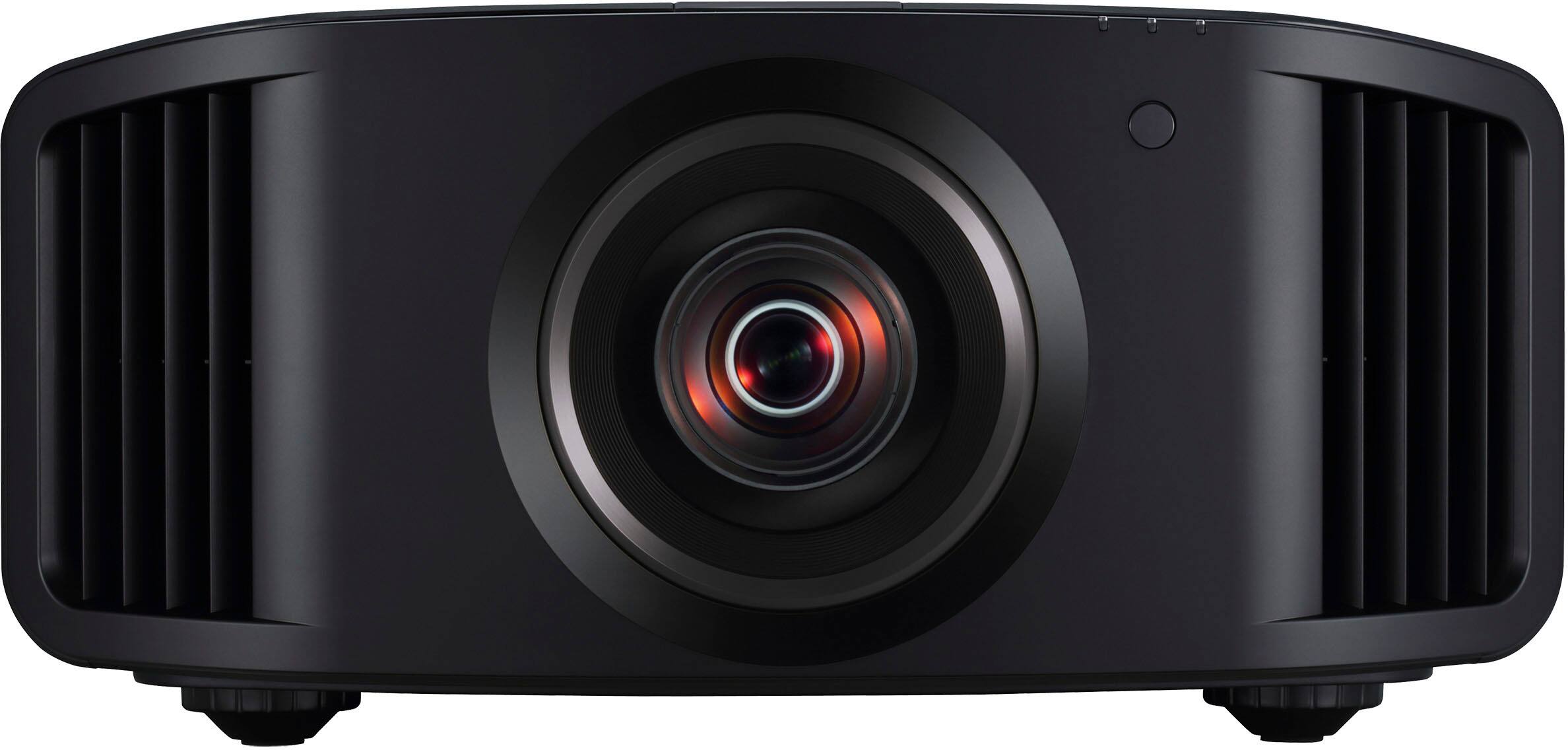

JVC - DLA-NP5 D-ILA 4K Home Theater Projector, 40,000:1 Native Contrast, 4K/120P, HDR, HDR10+, Frame Adapt HDR - Black
Model: DLA-NP5R
SKU: 6502209
This item is no longer available in new condition. See similar items below
- Key Specs
- Product Weight: 42.3 pounds (The out of box weight of the item.)
- Light Source: Lamp
- Resolution: 4K (2160p) (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Color Brightness (IDMS): 1900 lumens (Measurement of the device's color light output measured accordance with standards established by the Information Display Measurements Standard (IDMS). The more lumens, the brighter the output. In large and/or well-lit environments, such as auditoriums or rooms with plenty of natural light, a higher brightness improves the color quality of the projected image.)
- White Brightness (ISO): 1900 lumens (Measurement of the device's white light output measured in accordance with standards established by the International Organization for Standardization (ISO). The more lumens, the brighter the output. In large and/or well-lit environments, such as auditoriums or rooms with plenty of natural light, a higher brightness improves the quality of the projected image.)
- Contrast Ratio: 40,000:1 Native, 400,000:1 Dynamic Contrast Ratio (Measured difference between a displayed image's brightest whites and darkest blacks. The larger the first number, the more detail and color that can be displayed.)
- Projector Use: Home Theater, Gaming
- Projector Throw Type: Standard Throw (The distance from the screen that the projector can be placed to project images. Standard throw projectors typically need to be at least 6 feet away while short throw and ultra short throw projectors can be placed closer to the screen for use in smaller rooms.)
- Portability: Fixed (Fixed projectors are ideal when creating an authentic theater atmosphere in your home. Often designed to stay in one place they may require significant recalibration if moved. Portable projectors, weighing around 5 pounds, are easy to move, but will still require set-up calibration and often have technology to reduce the complexity. Ultra-portable projectors are very light, often battery-powered, and ideal for on-the-go use.)
- Smart Capable: true (Smart, or smart-capable devices are able to connect directly to your home network in order to stream content from the Internet, run Internet-based apps, or connect to other smart devices.)
- Smart Platform: Google TV (Just like a computer, a smart TV needs an operating system (also called a smart platform) in order to access the Internet, connect with entertainment apps, and play streaming content. Some common TV smart platforms are; Roku TV, Android TV, and Chromecast.)
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Display Connector(s): 2 x HDMI 2.1 (The number and type of connectors used to connect to an external display.)
- Power Source: Plug-in
- General
- Brand: JVC
- Model Number: DLA-NP5R
- Product Name: JVC DLA-NP5 D-ILA 4K Home Theater Projector, 40,000:1 Native Contrast, 4K/120P, HDR, HDR10+, Frame Adapt HDR
- Color: Black
- Projector Mount Pattern: Dedicated (Universal mounts can be adjusted to support a variety of devices. Dedicated mounts are designed to fit a specific device.)
- Dimensions
- Product Height: 9.21875 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 19.6875 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19.5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 42.3 pounds (The out of box weight of the item.)
- Display
- Light Source: Lamp
- Display Technology: D-ILA (Denotes the product’s visual process, sometimes manufacturer specific, used to display an image.)
- Resolution: 4K (2160p) (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Resolution (Native): 4096 x 2160 (4K) (Native resolution of a screen refers to its single, fixed resolution. Sometimes screens must scale an image up or down in order to fit the native resolution. This can cause a loss of resolution or detail.)
- 3-Chip Technology: true (Projectors with this technology are able to display images with optimal brightness, color, and detail. Because of their high-performance design, these projectors are primarily used in large venues and digital cinemas.)
- Color Brightness (IDMS): 1900 lumens (Measurement of the device's color light output measured accordance with standards established by the Information Display Measurements Standard (IDMS). The more lumens, the brighter the output. In large and/or well-lit environments, such as auditoriums or rooms with plenty of natural light, a higher brightness improves the color quality of the projected image.)
- White Brightness (ISO): 1900 lumens (Measurement of the device's white light output measured in accordance with standards established by the International Organization for Standardization (ISO). The more lumens, the brighter the output. In large and/or well-lit environments, such as auditoriums or rooms with plenty of natural light, a higher brightness improves the quality of the projected image.)
- High Dynamic Range (HDR): true (An HDR-compatible 4K TV or other HDR-compatible product displays HDR video content when it's available from sources like 4K Ultra HD Blu-ray Discs and 4K streaming services.)
- High Dynamic Range Format: HDR 10+, HDR 10, Hybrid Log-Gamma (HLG) (There are a few HDR formats that tell the TV or other HDR-compatible product how to best utilize its capabilities to display HDR content. HDR technology can support one or multiple formats, each with various benefits to picture quality.)
- Light Source Life (Normal Mode): 3500 hours (The light source's estimated length of operating time when normal operating mode is enabled.)
- Contrast Ratio: 40,000:1 Native, 400,000:1 Dynamic Contrast Ratio (Measured difference between a displayed image's brightest whites and darkest blacks. The larger the first number, the more detail and color that can be displayed.)
- Aspect Ratio: 17:9 (The measurement of the width of a screen compared to the height of a screen, expressed as a ratio.)
- Throw Ratio Range: 1.4:1 Minimum, 2.8:1 Maximum Screen Width (This measurement indicates what size of projected image can be produced from a certain distance. The smaller the ratio, the closer the projector can be to the screen while still producing a large image.)
- Digital Keystone Correction: true ("Keystone effect" refers to the distortion of an image when it is projected on an angled surface or when the projector is positioned too high or too low from the center of the display. Projectors with a digital keystone correction feature are able to scale the image as needed before it is projected, resulting in the correct image orientation no matter where it is displayed.)
- Horizontal Scan Rate: 4096 (Number of horizontal lines displayed per second on the device.)
- Vertical Scan Rate: 2160 (Number of vertical lines displayed per second on the device.)
- Response Time: 25 milliseconds (The speed at which pixels can change colors is called response time. It is measured in milliseconds (ms).)
- 3D Technology: true
- Viewing
- Minimum Projector Distance: 6.2 feet (Minimum distance that the projector can be placed from the screen to produce a display with acceptable visual performance.)
- Maximum Projector Distance: 42.5 feet (Maximum distance that the projector can be placed from the screen to produce a display with acceptable visual performance.)
- Minimum Viewable Screen Size: 60 inches
- Maximum Viewable Screen Size: 200 inches
- Features
- Projector Use: Home Theater, Gaming
- Projector Throw Type: Standard Throw (The distance from the screen that the projector can be placed to project images. Standard throw projectors typically need to be at least 6 feet away while short throw and ultra short throw projectors can be placed closer to the screen for use in smaller rooms.)
- Portability: Fixed (Fixed projectors are ideal when creating an authentic theater atmosphere in your home. Often designed to stay in one place they may require significant recalibration if moved. Portable projectors, weighing around 5 pounds, are easy to move, but will still require set-up calibration and often have technology to reduce the complexity. Ultra-portable projectors are very light, often battery-powered, and ideal for on-the-go use.)
- Smart Capable: true (Smart, or smart-capable devices are able to connect directly to your home network in order to stream content from the Internet, run Internet-based apps, or connect to other smart devices.)
- Smart Platform: Google TV (Just like a computer, a smart TV needs an operating system (also called a smart platform) in order to access the Internet, connect with entertainment apps, and play streaming content. Some common TV smart platforms are; Roku TV, Android TV, and Chromecast.)
- Remote Control Included: true
- TV Tuner: false (The ATSC TV Tuner is a component built into conventional TV sets or other devices for receiving over-the-air broadcast TV without a cable/satellite box. Digital tuners may be purchased separately and connected to a device if it does not have one built in.)
- Minimum Noise Level: 24 decibels
- Exposure Control
- Focus Adjustment: Powered (The method used to focus the device in order to view or display a sharper image.)
- Optical Zoom: 2x (The optical zoom uses a combination of lenses that magnify the image prior to it being registered at high resolution by the imaging sensor.)
- Digital Zoom Capability: true (Projectors with this feature allow for digital adjustment to the projected image size without changing the location of the projector.)
- Connectivity
- Number of HDMI Inputs (Total): 2
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Display Connector(s): 2 x HDMI 2.1 (The number and type of connectors used to connect to an external display.)
- Network Connector(s): 1 x RS-232
- Audio Only Outputs: No audio only outputs
- Number of USB Port(s): 1
- Audio
- Integrated Speaker(s): false
- Speaker(s) Included: false
- Compatibility
- Voice Assistant Built-in: Not Applicable, Not Applicable (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Operating System Compatibility: Windows, Mac
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Power
- Power Source: Plug-in
- Voltage: 100 volts (Amount of power needed to support an electrical current.)
- Other
- UPC: 046838002762
The DLA-NP5 D-ILA projector features 48Gbps, native 4K 120p inputs making the projector ideal for 4k 120p gaming platforms when combined with Low Latency mode. The projector is driven by three 0.69-inch native 4K D-ILA devices, high-quality 17-element, 15-group 65mm glass lens, and Ultra-High Contrast Optics that contribute to deliver optical brightness of 1900 lumens and 40,000:1 native contrast ratio. This 265 watt lamp based projector contributes to project the high-resolution 4K image with full depth and dimensionality. Compatible with the latest HDR10+ content, JVC's exculsive "Frame Adapt HDR" feature provides true dynamic tone mapping with industry leading HDR performance.
- 4K HDR PROJECTOR FOR HI-RES CONTENT: With (3) 0.69-inch native 4K D-ILA devices and a premium 17-element, 15-group 65 mm all-glass lens, the JVC DLA-NP5 D-ILA home theater projector delivers optical brightness of 1,900 lumens and longevity of approximately 3,500 lamp hours.
- VIBRANT IMAGES: See Native 4K content with (2) 48Gbps HDMI/HDCP 2.3 inputs (4K/120p) & low-latency mode for improved picture and lag-free gaming. Available 3D glasses (not included).
- HIGH-CONTRAST: JVC's high power lamp (PKL2618U) light source offers depth and dimension to 4K imagery even on larger screens. With a native contrast of 40,000:1 to a dynamic contrast of 400,000:1. The wide color gamut and cinema filter images will be 93% of the DCI-P3 color space.
- AUTO TONE MAPPING: The screen projector features Frame Adapt HDR Dynamic Tone Mapping that instantly analyizes any HDR10 content frame-by-frame & automatically adjusts to achieve optimal images close to reality. Supports HDR formats HDR10, and HDR10+ content.
- QUICK SET UP: Theater Optimizer custominzes the projector settings specific to the environment. Installation mode offers 10 profiles for lens control, pixel adjustment, masking, aspect ratios, and more. Control4 SDDP/LAN/RS-232C/IR/12V Screen Trigger Output/3D Sync Output.
- 4K HDR PROJECTOR FOR HI-RES CONTENT: With (3) 0.69-inch native 4K D-ILA devices and a premium 17-element, 15-group 65 mm all-glass lens, the JVC DLA-NP5 D-ILA home theater projector delivers optical brightness of 1,900 lumens and longevity of approximately 3,500 lamp hours.
- VIBRANT IMAGES: See Native 4K content with (2) 48Gbps HDMI/HDCP 2.3 inputs (4K/120p) & low-latency mode for improved picture and lag-free gaming. Available 3D glasses (not included).
- HIGH-CONTRAST: JVC's high power lamp (PKL2618U) light source offers depth and dimension to 4K imagery even on larger screens. With a native contrast of 40,000:1 to a dynamic contrast of 400,000:1. The wide color gamut and cinema filter images will be 93% of the DCI-P3 color space.
- AUTO TONE MAPPING: The screen projector features Frame Adapt HDR Dynamic Tone Mapping that instantly analyizes any HDR10 content frame-by-frame & automatically adjusts to achieve optimal images close to reality. Supports HDR formats HDR10, and HDR10+ content.
- QUICK SET UP: Theater Optimizer custominzes the projector settings specific to the environment. Installation mode offers 10 profiles for lens control, pixel adjustment, masking, aspect ratios, and more. Control4 SDDP/LAN/RS-232C/IR/12V Screen Trigger Output/3D Sync Output.
Whats Included
- Remote
- Batteries
- Power Cord
- Lens Cover
- Remote
- Batteries
- Power Cord
- Lens Cover
Product Manuals
Q: does this have full manufacturers warranty?
A: The projector does come with a 3 year manufactures warranty. Make sure when purchased to keep your sales receipt as this is what JVC will need to validate your warranty.
A: Yes, the full 3 year warranty comes with the open-box units, this has been verified by JVC (even if they do not like the lower open-box prices that these have been selling for). The included accessories will vary from unit to unit when it comes to open-box.
Q: What type of ceiling mount will work with this projector? Does Best Buy sell one?
A: I am using a Da-Lite AV cart.
A: There is no advantage nor any disadvantage.
Q: Do I need to download the latest firmware update?
A: It has firmware 2.0, the latest which I don't have deals with a special kind of HDMI. I think its fiber optics.
