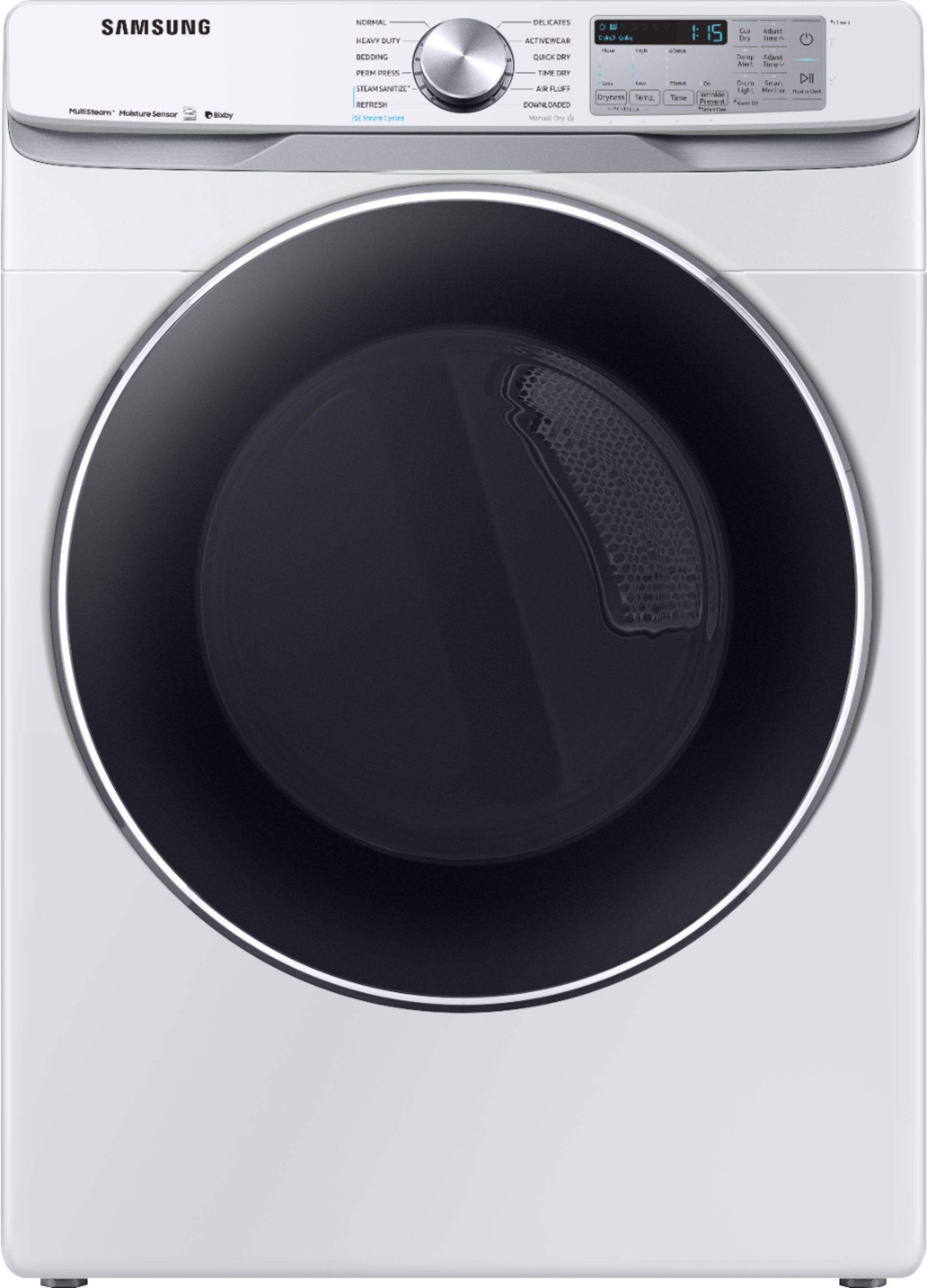

Samsung - 7.5 Cu. Ft. Stackable Smart Gas Dryer with Steam and Sensor Dry - White
- Key Specs
- Product Height: 38 4/5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 27 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 31 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth With Door Open: 52 7/10 inches (Measurement from the back of the product to its front, with door fully open.)
- Capacity: 7.5 cubic feet
- Steam Function: true (In washers, this feature may be employed before, during, or after the main wash cycle. Steam aids in stain removal, activating detergent, sanitizing, and softening wrinkles. In dryers, this feature can be used to remove wrinkles or quickly freshen clothing items.)
- Dryer Heating Source: Gas
- Moisture Sensor: true (This feature automatically senses moisture levels of the items in the cycle to determine the proper drying time.)
- Pedestal Model Compatibility: WE402NW/A3
- Matching Washer Model Number: WF45R6300AW/US
- Stackable: true (To stack with similar products, ensure that the necessary support and/or installation hardware is in place to reduce safety hazards.)
- Stacking Kit Model Compatibility: SKK-8K
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Bixby, SmartThings, Amazon Alexa, Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
- Color Finish: White
- General
- Product Name: 7.5 Cu. Ft. Stackable Smart Gas Dryer with Steam and Sensor Dry
- Brand: Samsung
- Model Number: DVG45R6300W
- Color: White
- Color Finish: White
- Dimensions
- Product Height: 38 4/5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 27 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 31 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth With Door Open: 52 7/10 inches (Measurement from the back of the product to its front, with door fully open.)
- Product Weight: 123 pounds (The out of box weight of the item.)
- Capacity
- Capacity: 7.5 cubic feet
- Features
- Steam Function: true (In washers, this feature may be employed before, during, or after the main wash cycle. Steam aids in stain removal, activating detergent, sanitizing, and softening wrinkles. In dryers, this feature can be used to remove wrinkles or quickly freshen clothing items.)
- Water Source: Fill hose
- Dryer Heating Source: Gas
- Propane (LP) Convertible: true
- Automatic Temperature Control: true (This feature regulates hot and cold temperatures of the water or air within the appliance in order to keep them in the optimal range for each cycle.)
- Moisture Sensor: true (This feature automatically senses moisture levels of the items in the cycle to determine the proper drying time.)
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- Delay Start: true (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- End-Of-Cycle Signal: true (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
- Time-Remaining Display: true
- Vibration Reduction: true (Additional features, such as sensors that adjust spin speeds or weights that counter unbalanced loads, help to minimize vibration for smoother, quieter operation.)
- Interior Light(s): true
- Design
- Reversible Door Hinge: true
- Exhaust Vent Location: Rear, Bottom, Right
- 4-Way Venting: false (The appliance has four possible vent locations (right, left, front, or rear), which allows for placement versatility.)
- Control Type: Touchpad, Dial
- Control Location: Front panel
- Display Type: LED
- Drum Material: Anodized steel
- Window: true
- Cycle Specifications
- Number Of Drying Cycles: 12
- Drying Cycles: Refresh, Steam Sanitize+, Normal, Heavy Duty, Permanent Press, Active Wear, Bedding, Delicates, Time Dry, Air Fluff, Quick Dry, Downloaded (Dryers typically have multiple pre-programmed drying cycles to accommodate various fabrics and materials. These often include Normal/Regular, Permanent Press/Wrinkle Reduction, Heavy Duty, and Delicate/Gentle.)
- Options and Programs: Damp Alert, Wrinkle Prevent, Smart Control, Adjust Time (Up), Adjust Time (Down), Eco Dry, Drum Light, Child Lock, Smart Care, Alarm Off
- Number of Temperature Settings: 5
- Temperature Settings: High, Medium High, Medium, Medium Low, Low
- Compatibility
- Pedestal Available: true
- Pedestal Model Compatibility: WE402NW/A3
- Matching Washer Available: true
- Matching Washer Type: Front load
- Matching Washer Model Number: WF45R6300AW/US
- Stackable: true (To stack with similar products, ensure that the necessary support and/or installation hardware is in place to reduce safety hazards.)
- Stacking Kit Included: false
- Stacking Kit Model Compatibility: SKK-8K
- Included
- Fill Hoses Included: true
- Propane Conversion Kit Included: false
- Filter Info
- Lint Filter Full Indicator: false
- Electrical Specification
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Connectivity
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Bixby, SmartThings, Amazon Alexa, Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Other
- UPC: 887276300511
Whether you’re at home or on the go, our Smart front load washer lets you start, stop, and schedule cycles easily from your smartphone with the SmartThings app.
- Bixby Enabled: Wi-Fi connected so you can remotely start or stop your cycle, schedule laundry on your time, receive end of cycle alerts, and more right from your smartphone.
- Steam Sanitize+: The Steam Sanitize+ cycle removes 99.9% of germs and bacteria, over 95% of pollen, and kills 100% of dust mites. Multi-Steam Technology steams away wrinkles, odors, and static.
- Sensor Dry: Automatically optimizes the time and temperature of your drying cycle to protect your clothes from heat damage, while avoiding excess energy use.
- Vent Sensor: Continuously monitors the condition of the air duct and notifies you of any lint build-up.
- ENERGY STAR Certified: Eco-friendly and energy-efficient.
- Interior Drum Light: Put an end to stray socks or smaller laundry items that are hard to spot.
- Reversible Dryer Door: Improved drum pattern extracts more water more quickly.
- Lint Filter Indicator: Provides a helpful reminder when it's time to clean the filter.
- Closet Depth Fit: Designed to fit a 40" installation depth, great for flexible installation in any laundry space.
- ADA Compliant: ADA Compliant when using Samsung 27" wide riser model: WE272NV or WE272NW.
- AUI and Braille Accessibility: Designed for easy use for everyone.
- 12 Preset Drying Cycles: More cycles to best suit your drying needs.
- 10 Additional Drying Options: Further options to enhance your drying cycle, providing optimal care for all fabric types.
- 5 Temperature Levels: Select the ideal temperature to dry your clothes gently and thoroughly.
- Wrinkle Prevent: Tumbles your laundry even after the cycle is complete to prevent wrinkles.
- Flexible Venting Options: 3-way venting options allow your dryer to be vented on multiple sides.
- Matching pedestal: WE402NW model.
Whats Included
- 7.5 Cu. Ft. Stackable Smart Gas Dryer with Steam and Sensor Dry
- Y-connector, short water hose
- Owner's manual
Product Manuals
A: Yes they are both included

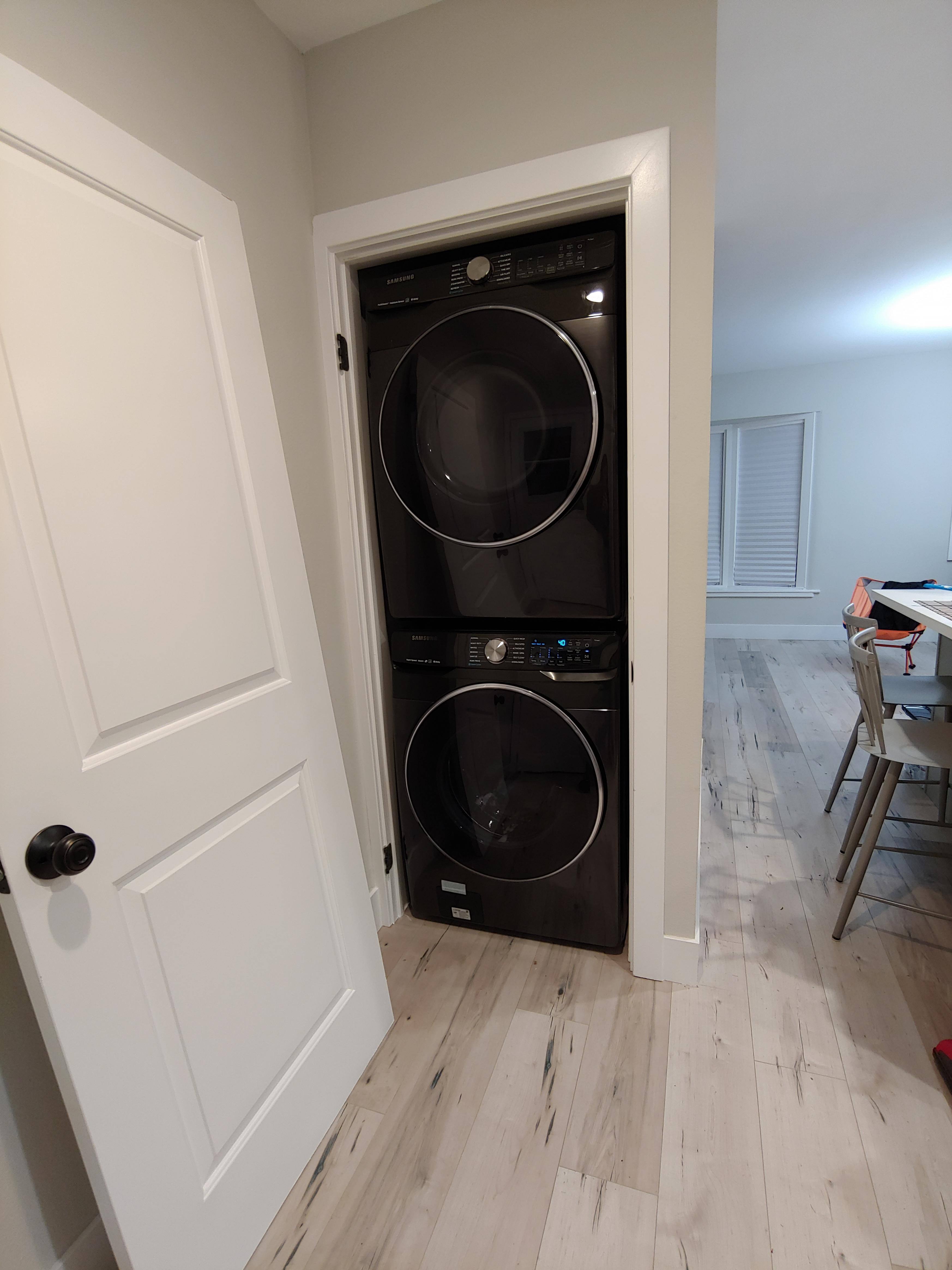

Q: Can this dryer be used as a standalone or does it have to be stacked?
A: Great question, Debbie. Yes, the dryer can stand alone and does not need to be stacked to function. Please see the link for more details. Installation Specifications on page 2 https://image-us.samsung.com/SamsungUS/samsung/us/home-appliance/pdf/07012019/DVG45R6300V_V4.pdf Have a great day. ^Charles
Q: Is this dryer comes with a Shoe dryer rack?
A: Thank you for asking, Marisol! This model does not come with a dryer rack. ^Jecca
A: Hi Alex, Thank you for reaching out to us. We appreciate your interest regarding if the Stackable Smart Gas Dryer can be stacked on your Frigidaire Washer. To answer your question, the unit is stackable, but it's only stackable with the unit that has a Stacking Kit Model No. SKK-8K. Since we don't have the information on your Frigidaire Affinity Washer, we won't be able to verify if it will be compatible. Kindly visit the User's Manual on Page 17 for reference: https://downloadcenter.samsung.com/content/UM/202101/20210108101259759/DV6300_DC68-03381T-11_EN_CFR_MES.pdf Should you need assistance, you may reach us via the following for immediate support: 1. Facebook Messenger: http://m.me/Samsungsupport 2. Twitter: https://twitter.com/messages/compose?recipient_id=18768513 3. Samsung Community: https://us.community.Samsung.com/t5/Samsung-Community/ct-p/us Reference Number: 1144761204 Thank you for choosing Samsung. Have a great day! ^Chrystel
Q: Can i use this dryer wiith lp without convertion kit?
A: Hi Johnny. Thank you for reaching out regarding your Samsung - 7.5 Cu. Ft. Stackable Smart Gas Dryer with Steam and Sensor Dry if you can use a L.P. without a convertion kit. Regarding your concern, here are the requirements for using an L.P. gas. Use only natural or L.P. (liquid propane) gases. • The installation must be conformed with local codes, or in the absence of local codes, with the national fuel gas code, ANSI Z223.1/NFPA 54, latest revision(for the UNITED STATES), or with the natural gas and propane installation code, C.S.A. B149.1(for Canada). • Gas dryers are equipped with a burner vent for use with natural gas. If you plan to use your dryer with L.P. (liquid propane) gas, it must be converted for safe and proper performance by a qualified service technician. (L.N.G. models only) You must check the burner of your model and use the proper LP Kit accordingly. To check the detail information of the burner, open the door and check the rating label location on the door frame. - 20,000 BTU: LPKIT-4/XAA (DC98-04114A) - 22,000 BTU: LPKIT-3/XAA (DC99-00792A) • A 1/2” (1.27 cm) gas supply line is recommended and must be reduced to connect to the 3/8” (1 cm) gas line on your dryer. The National Fuel Gas Code requires that an accessible, approved manual gas shut-off valve be installed within 6” of your dryer. • Gas dryers installed in residential garages must be raised 18 inches (46 cm) above the floor. • Additionally, a 1/8” (0.3 cm) N.P.T. (National Pipe Thread) plugged tapping, accessible for test gauge connection, must be installed immediately upstream of your dryer’s gas supply connection. • Your dryer must be disconnected from the gas supply pipe system during any pressure testing of the system. • Do not reuse old flexible metal gas lines. Flexible gas lines must be designed and certified by the standard for connectors for Gas Appliances, ANSI Z21.24 • CSA 6.10. Here is the link to your user manual for further assistance. Please go to page 20. https://downloadcenter.samsung.com/content/UM/202101/20210108101259759/DV6300_DC68-03381T-11_EN_CFR_MES.pdf Should you need more assistance, please feel free to get back to us via the following options: 1. Facebook Messenger: http://m.me/samsungsupport 2. Twitter: https://twitter.com/messages/compose?recipient_id=18768513 3. Samsung Community: https://us.community.samsung.com/t5/Samsung-Community/ct-p/us Thank you for being a valued customer of Samsung. Have a great day. Reference Ticket Number: 1144265501 ^Camille
Q: Why does my clothes and inside the gas dryer smells like gas or kerosene when I run it?
A: Hi Kirbs! We'd like to help you with this. Here is a link (https://bit.ly/3FxkEjP) to our guide on what steps to take if your dryer has a gas smell. ^Jecca
Q: Is the supplied Y-connector plastic or metal?
A: undefined
A: It sure does! In fact, we've even included instructions on how to reverse the door on page 36 of the user manual (https://bit.ly/3wrTIMF). ^Jecca
