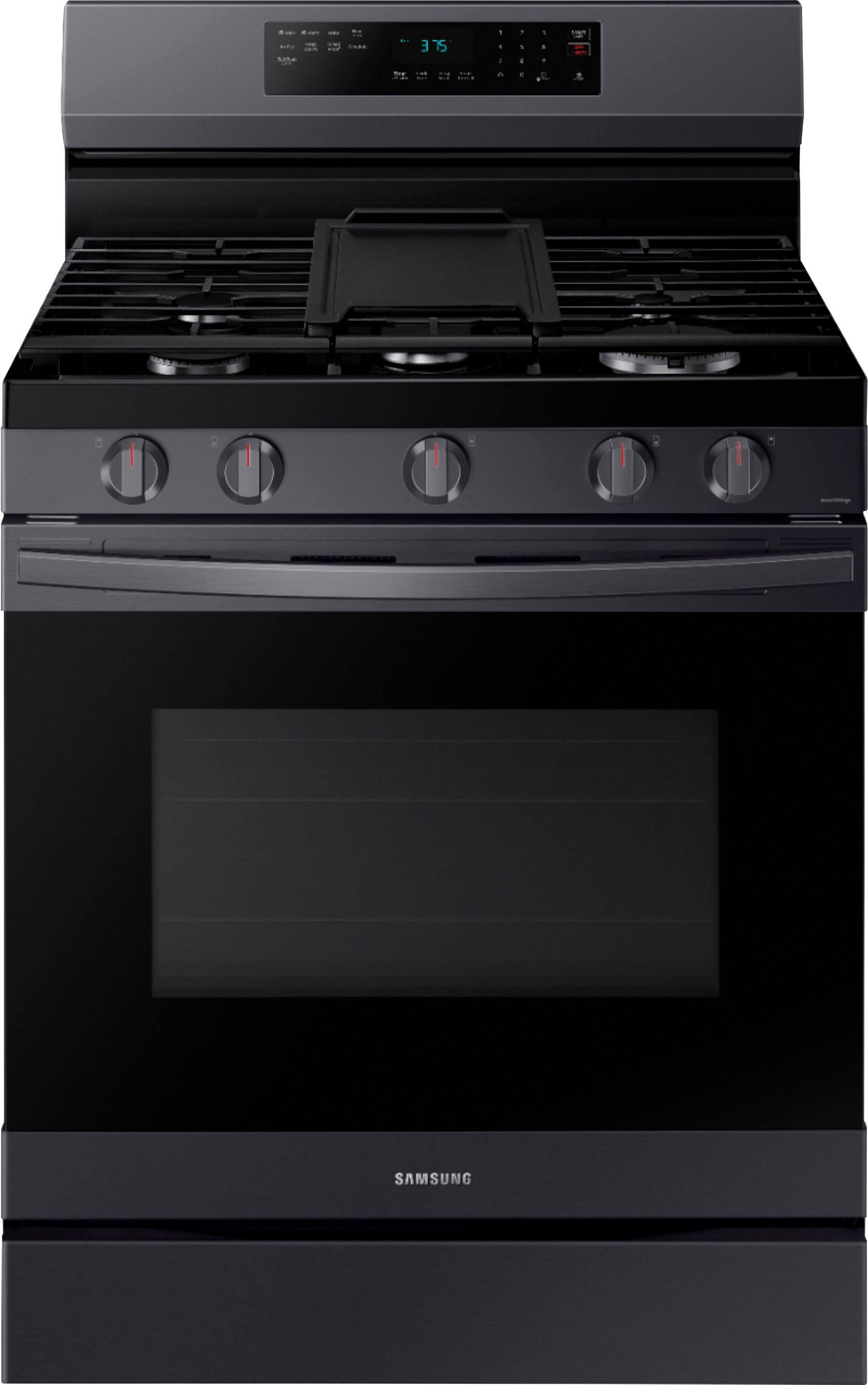

Samsung - OBX 6.0 cu. ft. Freestanding Gas Range with WiFi, No-Preheat Air Fry & Convection
Model: OBX NX60A6511SG/AA
SKU: 6511962
This item is no longer available in new condition. See similar items below
- Key Specs
- Product Height: 47 1/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 28 11/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 24 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 28 11/16 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Oven Cleaning Method: Self-cleaning high heat (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Single/Double Oven: Single Oven
- Number of Burners: 5
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Bixby, Google Assistant, SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- Color Finish: Black stainless steel
- General
- Product Name: OBX 6.0 cu. ft. Freestanding Gas Range with WiFi, No-Preheat Air Fry & Convection
- Brand: Samsung
- Model Number: OBX NX60A6511SG/AA
- Color Finish: Black stainless steel
- Dimension
- Product Height: 47 1/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 28 11/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 24 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 28 11/16 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Product Weight: 185 pounds (The out of box weight of the item.)
- Capacity
- Oven Capacity: 6 cubic feet (Standard ovens typically have capacities of about 5 cubic feet, while wall ovens typically have about 3 cubic feet of space.)
- Features
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Range Power Source: Gas
- Gas Type: Natural gas
- Fingerprint Resistant: true
- Control Type: Touchpad, Knob
- Oven Control Location: Rear panel
- Clock Display: true
- Oven Light: true
- Propane (LP) Convertible: true
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Function
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Hidden Bake Element: false (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Oven Cooking Modes: Convection, Air fry, Bake, Broil, Roast
- Oven Settings: Delay Bake Option, Keep Warm Setting, Timer, Variable Broil
- Oven Features
- Convection Type: Single-fan (Convection adds a fan system to the two heating elements for continuous air motion and efficient cooking. True convection adds a third heating element to the fan system, for even more uniform heating.)
- Oven Cleaning Method: Self-cleaning high heat (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Single/Double Oven: Single Oven
- Drawer Type: Storage (Many ranges have a drawer located beneath the oven. In some models, this drawer functions as a broiler for high-heat cooking and browning. Other models have warming drawers to keep prepared foods warm until serving. If the drawer has no cooking function, it serves as convenient storage for pans and baking sheets.)
- Broiler Location: Oven
- Number of Oven Racks: 2
- Oven Window: true
- Cooktop Features
- Cooktop Surface Material: Porcelain
- Number of Burners: 5
- Sealed Burners: true (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Specialty Burner(s): Dual Power Burners, Simmer Burner (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
- Grate Material: Cast iron
- Griddle Included: true
- Griddle Type: Integrated, Removable (A griddle surface may either replace the burner grates on the cooktop or be able to be placed on top. Either type can typically be attached and removed as needed. Some griddles also feature a ribbed, grill-like side that can be reversed for even more cooking options.)
- Burner Rating
- Burner 1 Rating: 17000 british thermal units (An average home cooktop burner gives off about 7,000 BTUs of heating power. Burners with higher BTU ratings are better suited for searing or stir-fry cooking, while lower burner ratings are ideal for simmering.)
- Burner 2 Rating: 9500 british thermal units
- Burner 3 Rating: 18000 british thermal units
- Burner 4 Rating: 5000 british thermal units
- Burner 5 Rating: 10000 british thermal units
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Gas Connector Included: false
- Propane Conversion Kit Included: true
- Certifications Listings & Approvals
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Warranty
- Manufacturer's Warranty - Parts: 1 year
- Manufacturer's Warranty - Labor: 1 year
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Bixby, Google Assistant, SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- Other
- UPC: 400065119622
Elevate the look of your kitchen with Samsung’s Smart Freestanding Gas Range. Upgraded technology makes cooking simple and fun.
- Stainless Steel Design: An elevated design and a slim control panel give a modern look to any kitchen. Ergonomic knobs are easy to grip comfortably for precise temperature control. If that’s not enough, tinted glass on the oven door gives your range the upgrade you deserve
- Air Fry: Cooking with a crunch just got healthier with Air Fry.¹ Using little to no oil, you can quickly prepare your favorite fried foods right in your oven. No preheating required.
- Wi-Fi and Voice Control: Monitor your cooktop and adjust time and temperature of your oven from wherever you are with your smartphone.² Conveniently use voice to control your oven whether it’s Alexa, Bixby or Google.³
- Convection: Powerful convection saves you time by cooking food fast and more evenly. Fan circulates hot air in the oven for perfect baking and roasting.
- Large Oven Capacity: This large 6.0 cu. ft. oven can fit multiple dishes at one time and can easily accommodate big casserole dishes and large roasting pans.
- 18K BTU Dual Ring Power Burner: Boil fast with a dual ring burner that has unbelievable power. Whether it's boiling a pot of water or searing meats evenly and fast, this burner has the power you need for what you like to cook.
- Fingerprint Resistant Finish: Fingerprint resistant for an everyday beautiful finish.
- Flexible 5-Burner Cooktop: This 5-burner cooktop includes 2 power burners and continuous cast iron edge-to-edge grates, allowing you to easily slide your pots and pans across more usable cooktop space and adding a more premium look to your kitchen. Use the simmer burner to cook your favorite sauces
- Bread Proof, Dehydrate, Keep Warm and Favorite Cook Settings: Prepare a variety of foods with the aid of easy preset buttons. With a simple push of a button, you can proof bread, dehydrate your favorite jerky and keep meals warm in the oven with precision.
- SmartThings Cooking: Samsung’s SmartThings Cooking service⁵ makes meal planning a seamless process. Search, plan, purchase and prep weekly meals via the SmartThings app on your Family Hub™ or smartphone.
- Removable Non-stick Griddle: A removable non-stick griddle is included with your cooktop and perfectly sized to fit the griddle burner. Grill your family’s favorite foods and when done, conveniently store the griddle in the range storage drawer.
- Self Clean: Keep your oven spotless with Self Clean which deep cleans by heating to a high temperature to burn off grease and food residue.
Q: does it have a bottom drawer
A: Hi there, Yes, this range model has a bottom drawer. For reference, check the link below and see page 14 (Layout). User manual: https://downloadcenter.samsung.com/content/UM/202405/20240517165152446/01._DG68-01339A-07_NX60A6511SS_AA_EN.pdf Have a great day, -Ernest-
