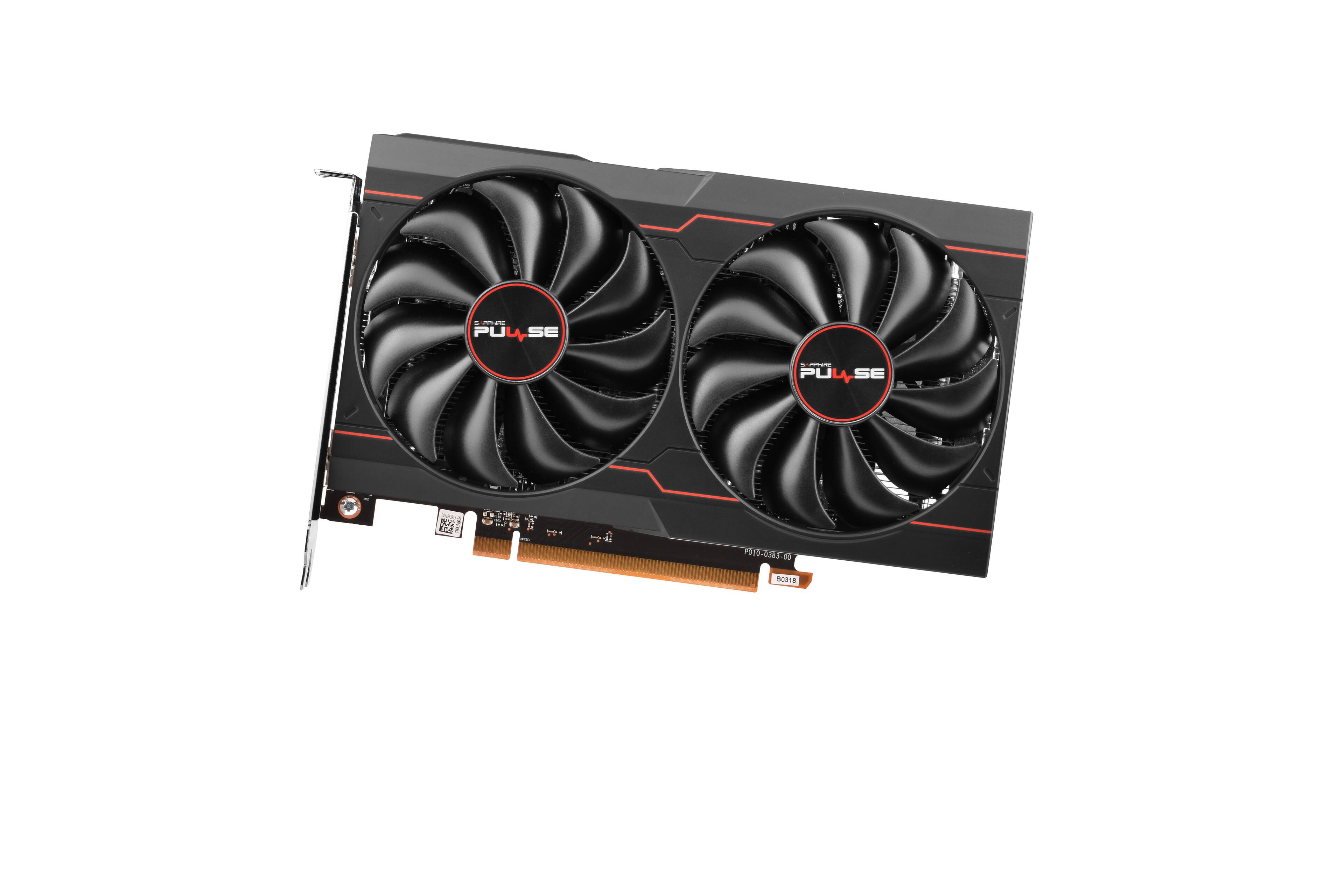

Sapphire - PULSE AMD Radeon RX 6500 XT 4GB DDR6 PCI Express 4.0 Graphics Card - Black

Name: Sapphire - PULSE AMD Radeon RX 6500 XT 4GB DDR6 PCI Express 4.0 Graphics Card - Black
Brand: Sapphire
SKU: 6502663
Rating: 4.2 (6 reviews)

Model: 11314-01-20G

SKU: 6502663

This item is no longer available in new condition. See similar items below

Key Specs
- GPU Base Clock Frequency: 2.685 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.825 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- DisplayPort Ports: 1 x DisplayPort 1.4 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI (The number and type of HDMI outputs the product has.)
- Maximum Number of Displays Supported: 1
- Advanced Graphics Rendering Technique(s): RIS (Radeon Image Sharpening) (Imaging technology designed to improve graphics rendering.)
- GPU Video Memory (RAM): 4 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- Slot Size: 2-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- Product Height: 39.88 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 106.93 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 193.8 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Graphics Processing Unit (GPU): AMD Radeon RX 6500 XT (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
General
- Product Name: PULSE AMD Radeon RX 6500 XT 4GB DDR6 PCI Express 4.0 Graphics Card
- Brand: Sapphire
- GPU Chipset Manufacturer: AMD
- Graphics Processing Unit (GPU): AMD Radeon RX 6500 XT (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- Model Number: 11314-01-20G
- Color: Black
Performance
- GPU Base Clock Frequency: 2.685 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.825 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- Cooling System: Fan (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
Connectivity
- DisplayPort Ports: 1 x DisplayPort 1.4 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI (The number and type of HDMI outputs the product has.)
Display
- Maximum Number of Displays Supported: 1
- Advanced Graphics Rendering Technique(s): RIS (Radeon Image Sharpening) (Imaging technology designed to improve graphics rendering.)
Memory
- GPU Video Memory (RAM): 4 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- GPU Video Memory Base Clock Frequency (RAM): 14 gigahertz
Compatibility
- Slot Size: 2-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- System Requirements: Minimum 8GB of system memory. 16GB recommended, Minimum 400 Watt Power Supply, 1 x 6-pin Power Connector, PCI Express based PC is required with one X16 lane graphics (The software that a product must have for it to be able to integrate with another product.)
- Operating System Compatibility: Windows, Linux
Power
- Total Graphics Power: 130 watts
- Recommended Power Supply: 400 watts
Dimensions
- Product Height: 39.88 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 106.93 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 193.8 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 1.5 pounds (The out of box weight of the item.)
Other
- UPC: 840777087398

The SAPPHIRE PULSE AMD Radeon RX 6500 XT Graphics Card runs on the powerful Dual-X Cooling Technology coupled with Intelligent Fan Control to keep temperatures low and fan noise low. The refined PCB design delivers stable, reliable, and steady performance, which efficiently lowers PCB temperature and component signal noise.

Graphics Processing Unit (GPU)/Clock Speed: Up to 2825MHz
On-board Memory/Memory Type/Processors/Memory Bandwidth: 4GB/64 bit DDR6. 18 Gbps Effective
Interface/Interface Compatibility: PCI-Express 4.0
AMD FidelityFX Super Resolution(FSR): Boosts your frame rates 2.4X on average in FSR supported games with high-quality, high-resolution gaming experience
Supported Video Format: Video Streaming up to 8K
API (Application Programming Interface) Support: DirectX 12 Ultimate support
Operating System Compatibility: Linux, Windows 7, Windows 10, and Windows 8.1. 64-bit operating system required
