Schumacher Electric - Level 2 50A 240V Hardwired EV Wall Charger with Wi-Fi/Bluetooth Connection and J1772 Connector - Gray
Installation: Get your EV charger professionally installed by our service partner Helm Smart Energy
General
Product NameLevel 2 50A 240V Hardwired EV Wall Charger with Wi-Fi/Bluetooth Connection and J1772 ConnectorBrandSchumacher ElectricModel NumberSEV1600HWColorGray
Power
Electric Vehicle Charging LevelLevel 2Input Wiring TypeHardwiredCharging Cable Length25 feet
Connectivity
Connector Type(s)SAE J1722 (Type 1)Wireless ConnectivityWi-Fi, Bluetooth
Compatibility
App CompatibleYes
Features
Number of Vehicles Charged Simultaneously1Mount TypeWall
Certifications Listings & Approvals
ENERGY STAR CertifiedNo
Dimensions
Product Height12.00 inchesProduct Width17.50 inchesProduct Depth19.50 inchesProduct Weight24.4 pounds
Warranty
Manufacturer's Warranty - Parts3 years limitedManufacturer's Warranty - Labor3 years limited
Other
UPC026666816007
For EV owners, Level 2 home charging offers faster charging and the convenience of charging in their own garage or driveway during time spent at home. The Schumacher SEV1600HW Hardwired Level 2 EV Wall Charger has a configurable current up to 50A, allowing the unit to charge up to eight times faster than standard Level 1 chargers. A charging gun with an SAE-J1772 (universal) connector is compatible with most North American EVs. Tesla vehicles will need an adapter (sold separately). The charger is also easy to use. Simply plug the charging gun into your EV’s charging port and charging is automatic. Integrated Wi-Fi and Bluetooth then lets users connect to the SchuPower app to monitor and schedule charging. A low-profile design and built-in cord management with the flexible cable cradle prevent the unit from cluttering up the garage, giving users plenty of clearance when pulling a vehicle into or out of the space. There is also an interchangeable dock with dual docking capability letting homeowners customize their usage for added comfort and convenience. A 25-foot charging cable allows user to easily charge vehicles parked in their garage or driveway whether the charger is installed indoors or outdoors. The Schumacher SEV1600HW Level 2 EV Wall Charger must be installed by a licensed electrician. Any changes to the wall charger’s electrical settings must also be made by a licensed electrician.
Rapid Charging
The SEV1600HW employs Level 2 charging, which is up to eight times faster than a level 1 charger.
Adds Range Quickly
The Schumacher Level 2 EV charger can add from 15 to 48 miles of range per hour.
Industry Leading Power
With output power of 240V and a rated current of 50A, the SEV1600HW is one of the fastest chargers on the market.

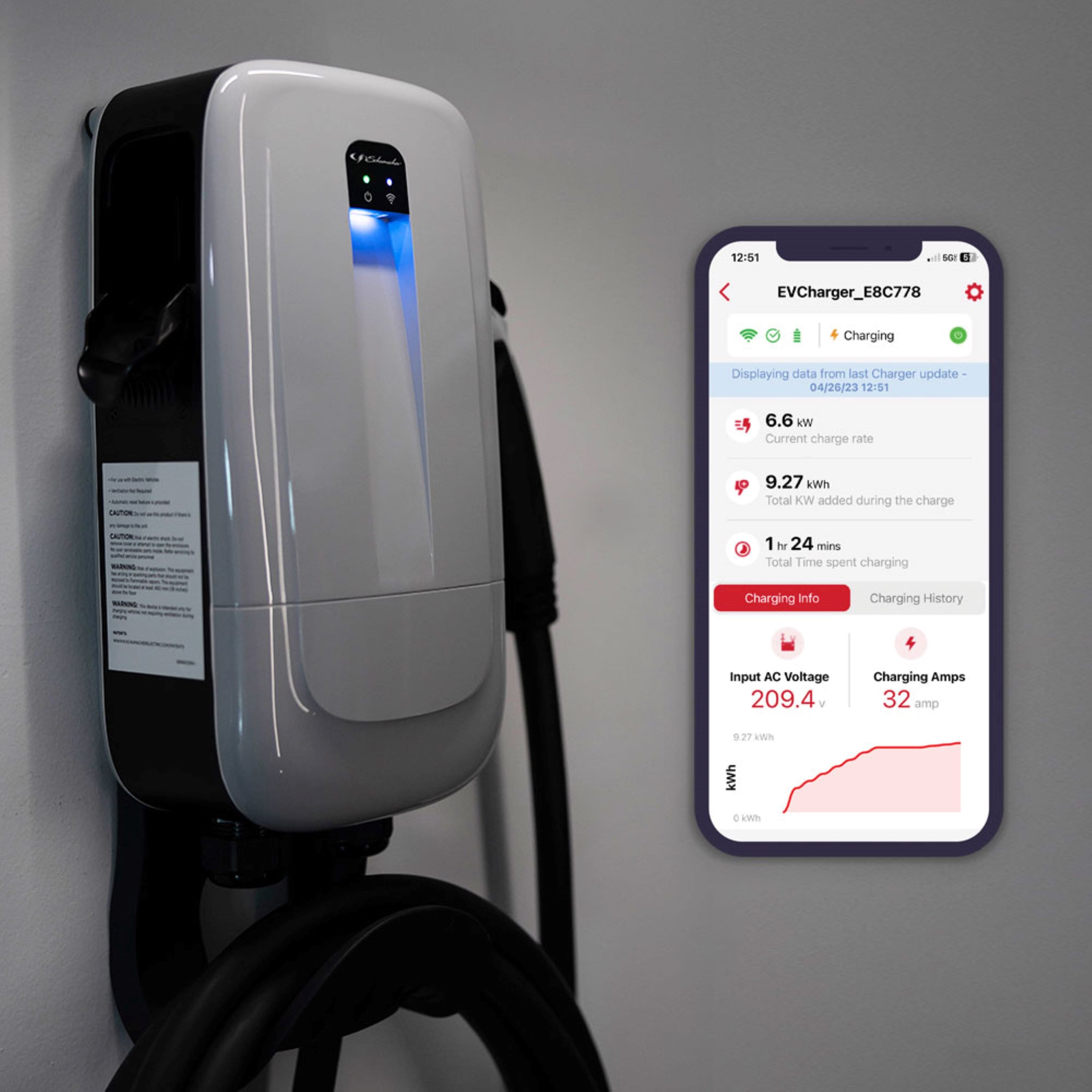

Bluetooth/Wi-Fi Connected
The integrated Wi-Fi and Bluetooth provide a secure connection to the SchuPower App.
SchuPower App
The SchuPower App allows users to schedule charging, start and stop a charging session in real time, track charging history, see any faults or errors that occur during charging, and monitor charging in real time with a “pull down to refresh” feature.

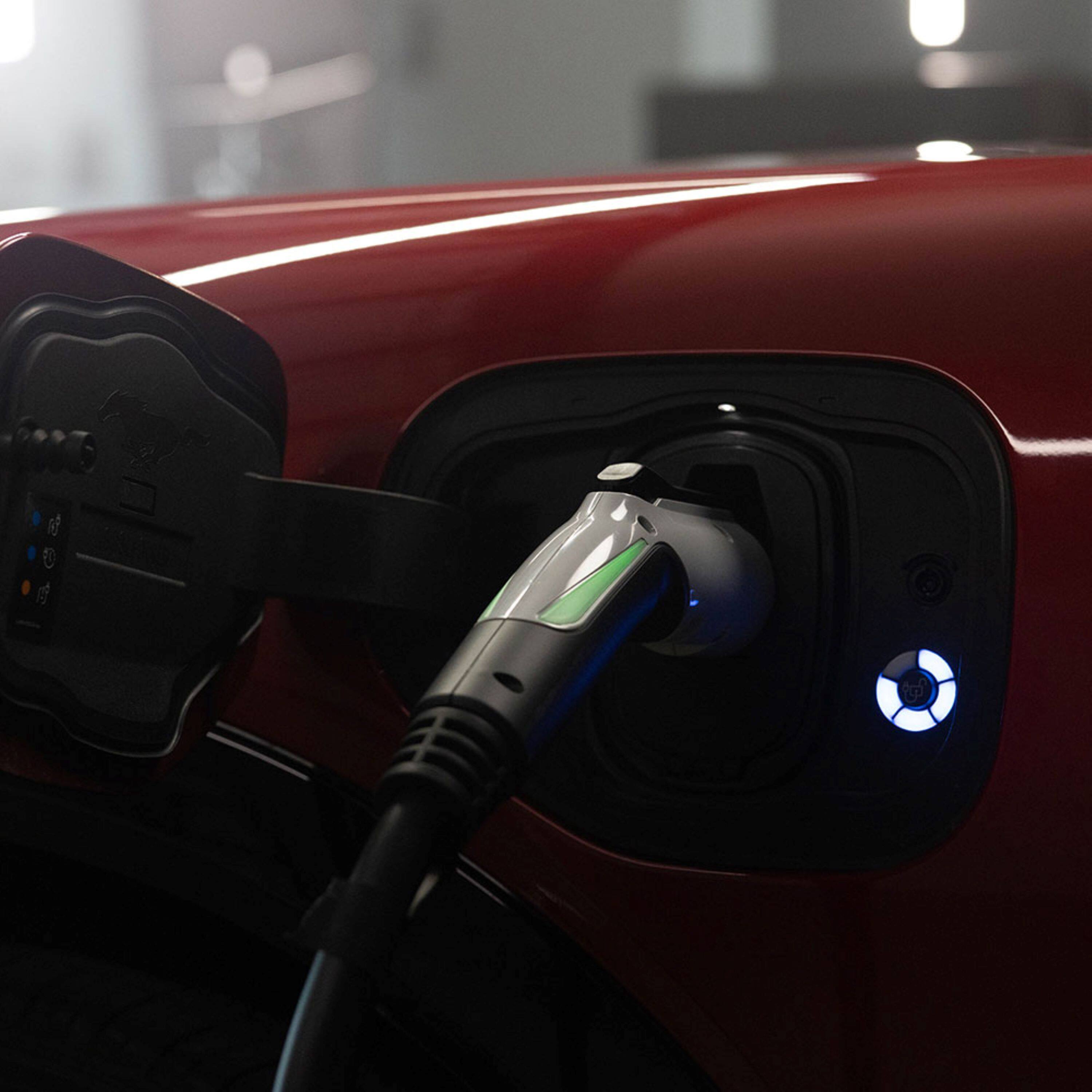

Universal Connector
The charging gun features a J1772 universal connector that is compatible with most North American EVs. Tesla vehicles will need an adapter (sold separately).
Extra-long Charging Cable
With an impressive 25-foot charging cable, the SEV1600HW can be installed nearly anywhere in a garage or driveway and still provide easy charging of multiple vehicles.
Configurable Current
The unit’s current can be configured to work with your home’s power system with current settings of 16A, 24A, 32A, 40A, 48A, and 50A.
Configurable Power
The unit’s power can be configured to work with your home’s power system with power settings of 3.8kW, 5.8kW, 7.7kW, 9.6kW, 11.5kW, and 12.0kW.
Cord Management
Easily store the charging cable in the built-in cable cradle.

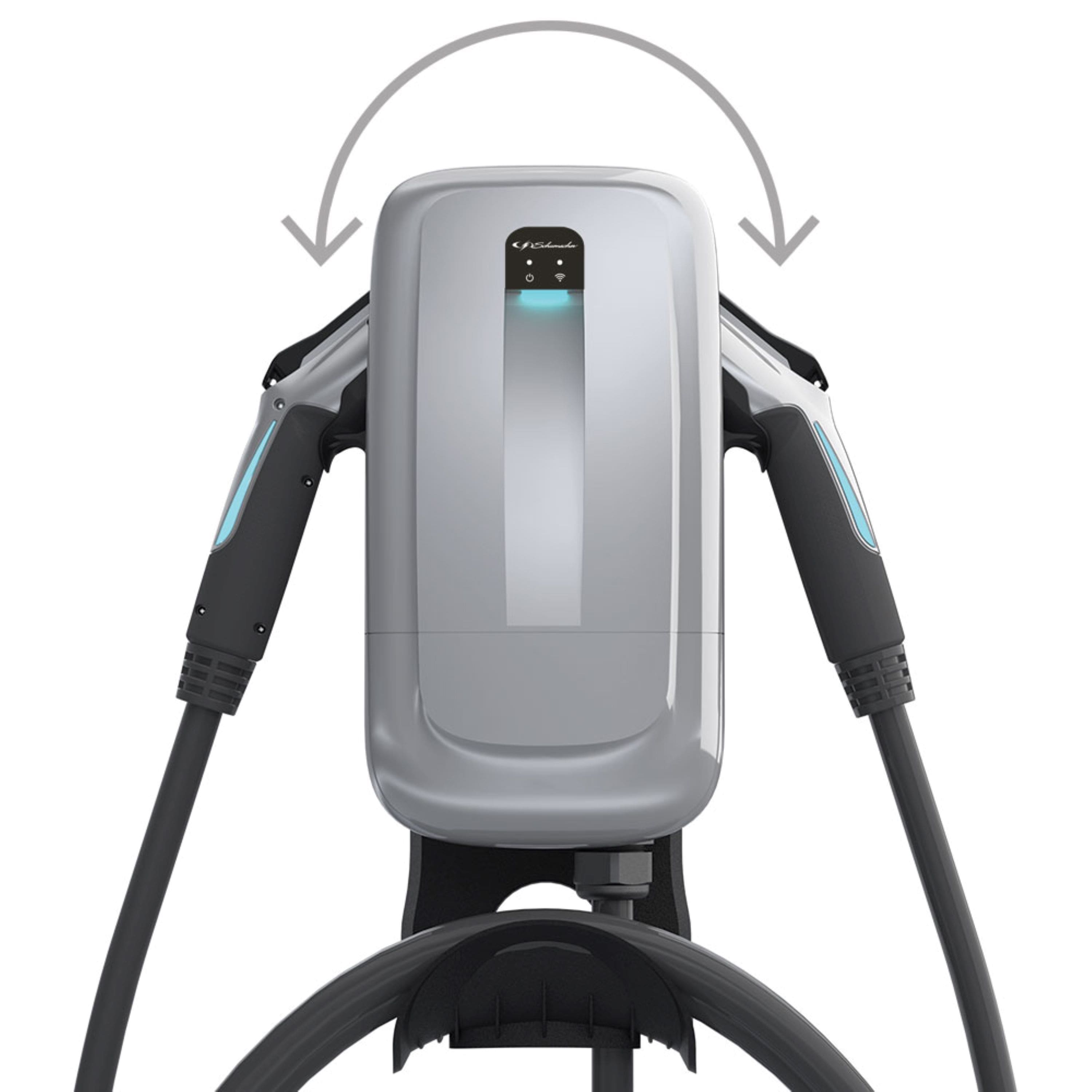

Interchangeable Dock
The interchangeable dock lets you store the charging gun on either side of the unit.
Low-Profile Design
The compact design ensures that the unit only extends 4.25 inches from the wall to allow plenty of clearance for vehicles.
Weather-Resistant
The weather-resistant enclosure allow homeowners to install the charger indoors or outdoors with peace of mind
Tax Credits and Rebates
The SEV1600HW may be eligible for federal, state, and local tax credits and rebates.
Energy Star and MET Certified
The Schumacher SEV1600HW is certified by Energy Star for energy efficiency and MET for safety.
Three-year Warranty
The Schumacher SEV1600HW features a three-year manufacturer warranty.
What's Included
Schumacher Electric SEV1600HW Level 2 50A 240V Hardwired EV Wall Charger with Wi-Fi/Bluetooth Connection and J1772 Connector
Output cable with EV charging gun
Cable cradle
(2) 5.5 mm (0.22 in.) x 50 mm (2 in.) lag screws for wall mounting
(2) 4 mm (0.16 in.) x 16 mm (0.63 in.) self-tapping screws to attach the cable cradle
Mounting template
User manual
