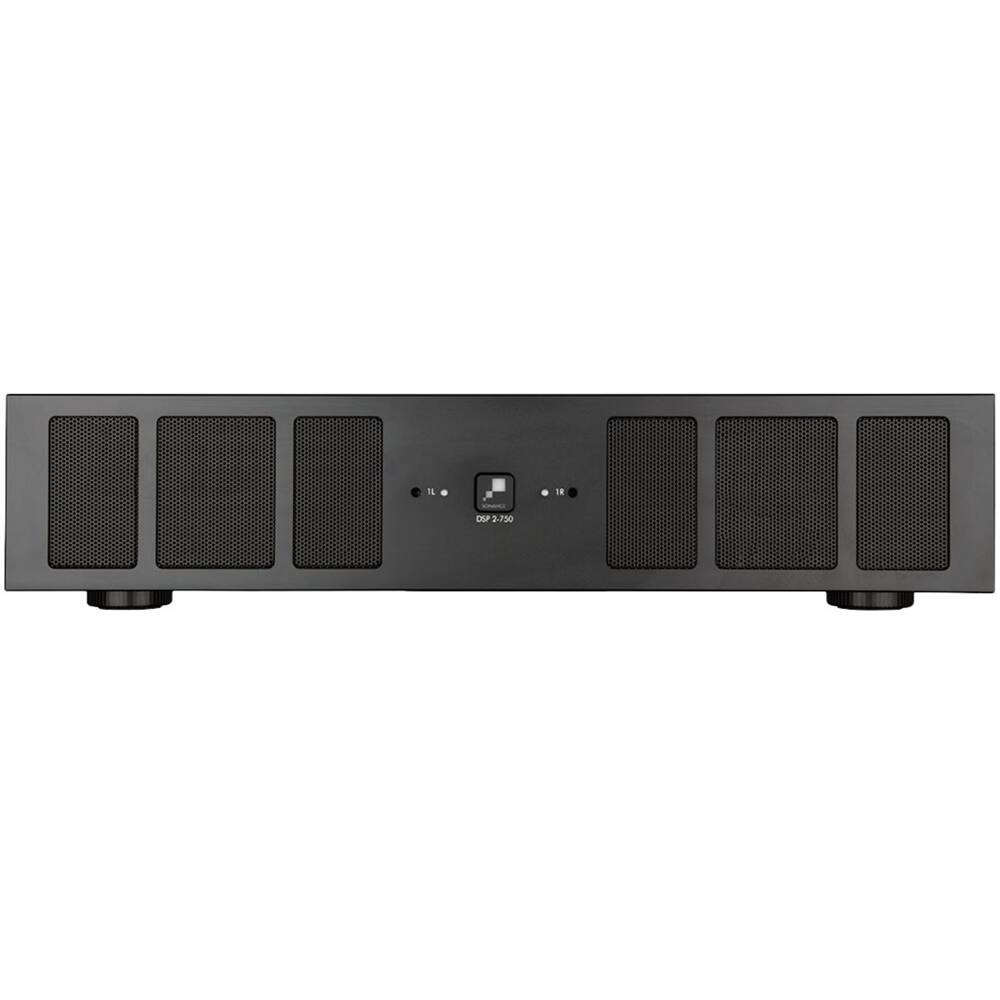

Sonance - Sonamp 1500W 2.0-Ch. DSP Power Amplifier - Black
- Key Specs
- Continuous Watts x Channel @ Ohms: 750 Watt x 2 @ 4 Ohm
- Number of Channels: 2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- General
- Product Name: Sonamp 1500W 2.0-Ch. DSP Power Amplifier
- Brand: Sonance
- Model Number: SONAMP DSP-2-750 MKll
- Color: Black
- Audio
- Continuous Watts x Channel @ Ohms: 750 Watt x 2 @ 4 Ohm
- Total Power Handling: 2000 watts (How much amplifier (amplified) power (wattage) that can be handled before damaging the product.)
- Number of Channels: 2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Minimum Frequency Response: 5 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 50 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Signal-to-Noise Ratio (SNR): 102 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Audio
- Impedance: 4 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Inputs
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Features
- Bridgeable: true (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Dimensions
- Product Height: 3.9 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17.2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 17.2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 23.4 pounds (The out of box weight of the item.)
- Other
- UPC: 041093930959
The line of DSP amplifiers feature SONARC (Sonance Advanced Room Correction), which offers hundreds of EQ presets designed specifically for Sonance speakers through simple pull-down menus. The presets enable effortless DSP without the need for additional hardware, software, and more importantly time. Additionally, should there be a need for further customization, SONARC provides a 10-band parametric EQ to optimize sonic performance in any space.
- 1000W total power: RMS rating of 500W x 2 @ 8 ohms, 2 channels driven for robust audio.
- Sonance Advanced Room Correction (SonARC): Provides a 10-band parametric EQ to optimize sonic performance in any space.
- 8 ohms impedance: Efficiently conducts power.
- Rack-mountable design: For flexible placement options.
Whats Included
- Rack ears
- Sonance Sonamp 1500W 2.0-Ch. DSP Power Amplifier
Product Manuals
Q: How do I install and program Sonance - Sonamp 1500W 2.0-Ch. DSP Power Amplifier - Black
A: Hi Olaf, I believe that the amplifier you're asking about is our model DSP 2-750. Installation is very straightforward with analog inputs and traditional left/right speaker connections. It's unique in that it operates in both 70 volt (750 watts times 2 channels) and 8 ohm (500 watts times 2 channels). It ships in 70 volt mode as it's most often used with our Landscape Series outdoor speaker system. The change to 8 ohm mode is done via our software set up. There is also an optional Digital Input Module (DIM $150) that allows direct connection digital sources. I hope this is helpful, and thanks for asking.
