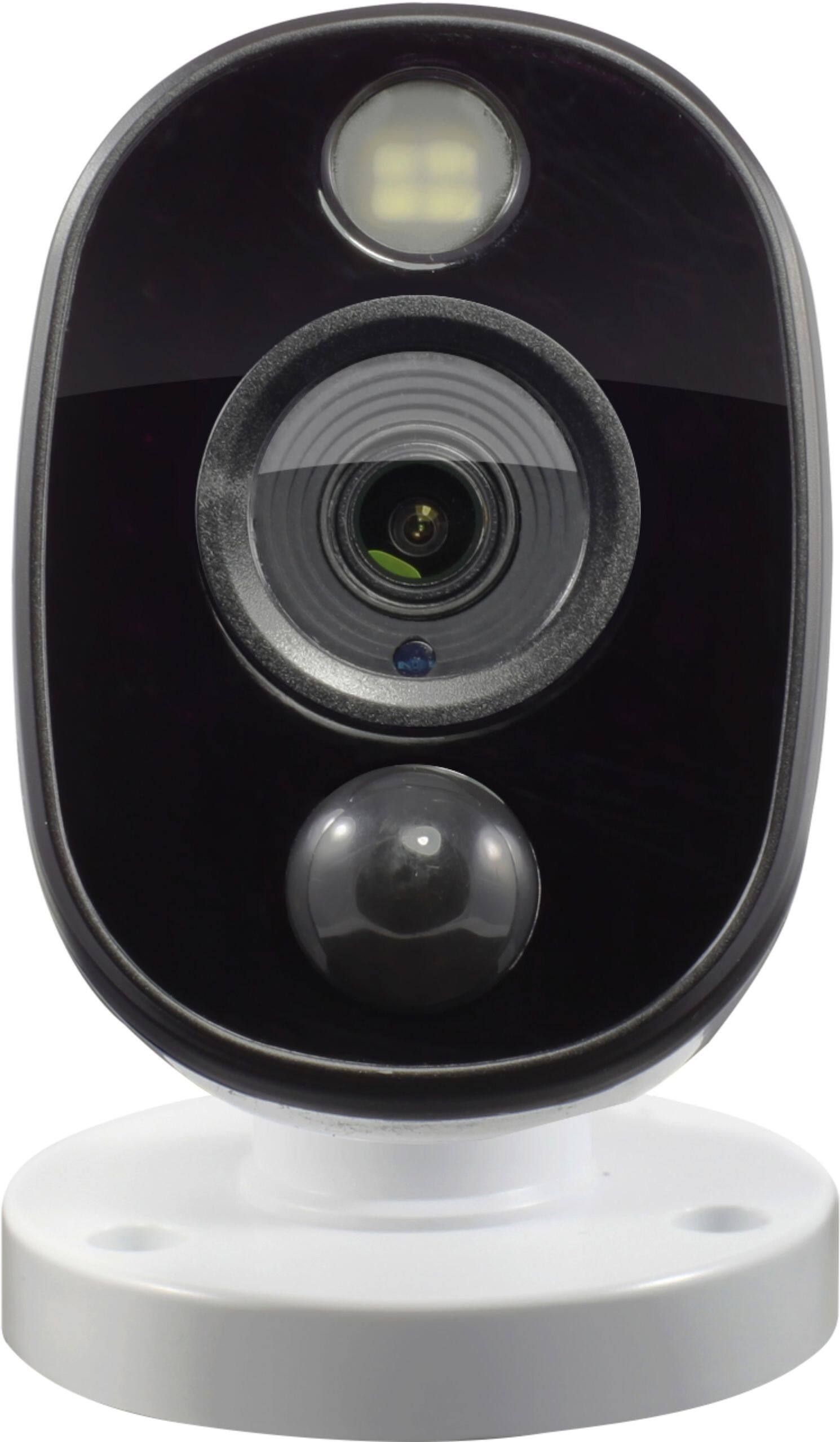

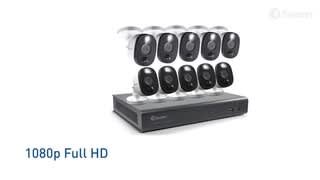

Swann - 16-Channel, 10-Camera Indoor/Outdoor Wired 1080p 1TB DVR Surveillance System - Black/Gray/White
Model:SWDVK-1645810WL-US
SKU:6331753
Specifications
Key Specs
Camera Resolution1920 x 1080Field Of View90 degreesNight VisiontrueNumber Of Cameras Included10Works WithAmazon Alexa, Google AssistantNumber Of Channels16Storage TypeDVRIndoor Or Outdoor UseIndoor and outdoorMinimum Operating Temperature-4 degrees fahrenheitMaximum Operating Temperature122 degrees fahrenheit
General
Product Name16-Channel, 10-Camera Indoor/Outdoor Wired 1080p 1TB DVR Surveillance SystemBrandSwannModel NumberSWDVK-1645810WL-US
Camera
Video Camera ResolutionFull HD (1080p)Camera Resolution1920 x 1080Field Of View90 degreesNight VisiontrueNight Vision Distance98 feetCamera MovementPan, TiltNumber Of Cameras Included10Day/Night ModetrueCamera Infrared Distance98 feetCamera IrisAutomaticImage Sensor TypeSpecialtyCamera Mount TypeWall mount
Power
Battery Backupfalse
Compatibility
App CompatibletrueCamera CompatibilitySwann camerasOperating System CompatibilityAndroid, Apple iOS, Mac, WindowsWorks WithAmazon Alexa, Google AssistantVoice Assistant Built-inNo
Connectivity
Camera ConnectivityWired
Recording & Playback
Streaming VideotrueSubscriptionOptional and includedNumber Of Channels16
Storage
Storage TypeDVRDVR Storage Capacity1000 gigabytesInternal Storage Capacity Upgradeable Upto4000 gigabytes
Performance
Indoor Or Outdoor UseIndoor and outdoorProtective QualitiesWater resistantMinimum Operating Temperature-4 degrees fahrenheitMaximum Operating Temperature122 degrees fahrenheit
Features
3-Axis AdjustabletrueAuto-On DetectionMotionAlarm TypeVisualAlarm LocationOn camera
Dimension
Camera Height5.7 inchesCamera Width2.2 inchesCamera Depth3.1 inchesDVR Height1.9 inchesDVR Width11.8 inchesDVR Depth8.5 inches
Sensor
SensorsMotion sensor
Output
DVR Output(s)HDMI, VGA, RCA audio, USB 2.0
Included
Camera(s) IncludedtrueDVR IncludedtrueCable(s) Includedtrue
Warranty
Manufacturer's Warranty - Parts1 yearManufacturer's Warranty - Labor1 year
Other
UPC840236125425
Questions & Answers (293)
- A: Hello, Thank you for reaching out to us with your question. Yes, these units can be remotely accessed on your smart phone via the Swann Security application available for IOS/Android devices. You can do this while at or way from home. Please let us know how we may further assist you, Thank you. JV Swann Customer Support
- A: Hello GoldenRealtor, Thank you for your question. Yes, when set up you can have both video and still images uploaded to your DropBox Cloud. Please let us know how we may further assist you, Thank you, JV Swann Customer Support
- A: Hello Ray, Thank you for reaching out to us with your question. The camera will require power with the supplied adapter. This will plug into the 60 foot BNC cable. You will receive 1 BNC cable per camera. Please let us know how we may further assist you, Thank you. JV Swann Customer Support
Q: Can you view the surveillance system from a nap while you're away on your phone? (2 answers)
A: Yes you can. It’s good for close up or distance. I’ve attached photos of both examples and also the screen with all camera views. Hope this helps. It gives you a step by step instruction guide. I’ve been using Swann for 5 years. I’ve had a total of 5 systems for both of my stores. I’ve replaced one twice but only because the quality continues to get better and I finally broke down and got the big system. That is the way to go if you have a need for 5 or more cameras. Hope this helps. Feel free to ask anymore questions. -Tracy. PS, one thing I will say is the image isn’t as crisp on my phone as it is on the monitor attached to the system. I’m imagining it’s because of the 1080p resolution. It’s super crisp on my monitor. So crisp that the police have commented on it and actually used it in a homicide investigation. (Sorry to go dark there but it just says a lot about the resolution.)Q: Is there a monthly fee with Swann systems? (2 answers)
A: Hello JBD, Thank you for reaching out to us with your question. Swann does not charge any monthly installments for our systems. Consumers want smart security solutions that prevent crime, interconnect with one another, and offer value with no recurring fees, and this is what we are delivering with the new Swann Security products. Please let us know how we may further assist you, Thank you. JV Swann Customer SupportQ: Does the swann have sound that you can talk through it or listen from it? (2 answers)
A: No, this model does not have audio capturing.Q: Can this system be set to record all the time or is it strictly motion detection? (2 answers)
A: Hello, Thank you for reaching out to us. Yes, this kit can be set to continuously record onto its 1 TB hard drive. Please let us know how we may further assist you, Thank you. JV Swann Customer Support- A: Hello Jojo, Thank you for reaching out to us with your question. No, this system does not require an internet connection in order to record into its 1 TB hard drive. This can be accessed while connected to a monitor using the HDMI/VGA cords on the back of the unit. Please be advised that an internet connection is required when remotely accessing your unit. Please let us know how we may further assist you, Thank you. JV Swann Customer Support
