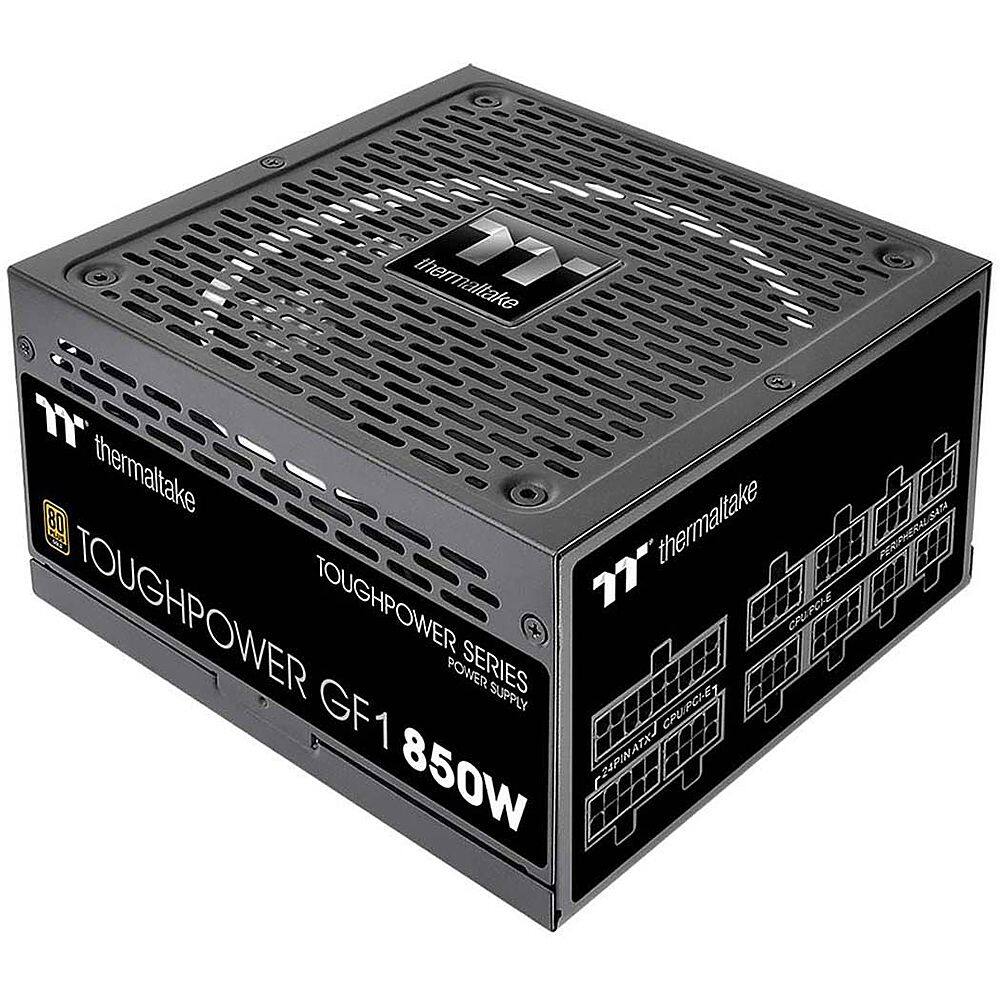

Thermaltake - Toughpower GF1 850W 80 PLUS Gold Fully Modular Power Supply - Black
- Key Specs
- Wattage: 850 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- ATX Connector: ATX 12V 4+4Pin (650mm) x2 (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: PCI-E 6+2pin connectors (500mm + 150mm) x 2 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: Peripheral connectors (500mm + 150mm + 150mm + 150mm) x 4 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: SATA connectors (500mm + 150mm + 150mm + 150mm) x 12 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: ATX 12V 4+4Pin (650mm) x2 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 4.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Product Length: 160 1/50 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- General
- Product Name: Toughpower GF1 850W 80 PLUS Gold Fully Modular Power Supply
- Brand: Thermaltake
- Model Number: PS-TPD-0850FNFAGU-1
- Color: Black
- Power
- Wattage: 850 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- Specification Compliance: ATX12V/EPS12V
- Overload Protection: true (Features intended to protect the product from damage and overheating caused by overload.)
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Connectivity
- ATX Connector: ATX 12V 4+4Pin (650mm) x2 (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- Floppy Connector: Peripheral to Floppy adapter cable (150mm) x 1 (The configuration of the connector as it connects a computer power supply unit to a floppy disk drive.)
- PCIe Connector: PCI-E 6+2pin connectors (500mm + 150mm) x 2 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: Peripheral connectors (500mm + 150mm + 150mm + 150mm) x 4 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: SATA connectors (500mm + 150mm + 150mm + 150mm) x 12 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: ATX 12V 4+4Pin (650mm) x2 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 4.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Dimensions
- Product Height: 86 9/25 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 5 9/10 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 160 1/50 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 96 ounces (The out of box weight of the item.)
- Cooling
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Cooling Fan Type: 140mm Hydraulic Bearing Fan
- Number of Fans Included: 1
- Features
- Lighting Type: None
- Other
- UPC: 841163006597
The fully modular Toughpower GF1 series is available in 650W - 850W models and built to deliver 80 PLUS Gold efficiency. The series features a 140mm hydraulic bearing fan, Japanese capacitors and other premium components to help deliver a continuous and stable power with an ambient temperature up to 50°C, while near silent operation and reliable performance are guaranteed. With an ample 10-year warranty, the Toughpower GF1 is able to satisfy the market, where PC enthusiasts are looking for a premium power supply with all the latest features.Zero Cable Platform Farewell to messy cables! We have connected the back panel and the PCB with a copper plate for better heat dissipation and impressive output power quality. Ultra Quiet 140mm Hydraulic Bearing Fan Featuring a 140mm hydraulic bearing fan with intelligent RPM controls to help guarantee superior cooling performance and near silent operation. ?30mV Low Ripple Noise All ripples are lower than 30mV on +12V, +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components to function reliably for longer. Extremely Strict Voltage Regulation ?±2% The voltage regulation, more strict than Intel's standard ±5% for major rails and ±10% for -12V, is set to no more than ±2% for major rails to meet the highest performance. Fully Modular Low-Profile Flat Cable Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cable makes cable management easier, reduces clutter and increases airflow inside the chassis. Premium Japanese 105°C/221°F Capacitors Providing great durability as well as offering the highest stability, while remaining reliable. High Amperage Single +12V Rail Powerful single +12V rail ensures a stable and reliable supply to other PC components. 80 PLUS Gold Certified and Intel C6/C7 States Ready Toughpower GF1 series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. The series has been optimized to work with all generations of Intel's processors to achieve maximum energy saving.
- Fully Modular: Only connect the cables your system needs, making clean and tidy builds easier.
- 850 W Power Supply: Delivers the power needed to run your PC.
- ToughPower GF1 Power Supply: For your convenience and optimal usage.
- Form Factor: Internal form factor for added reliability and dependability.
- Cooling Fan: 1 fan effectively separates hot and cold zones to prevent the mixture of air, thus increasing cooling efficiency.
- Output Voltage: 3.3 V DC output voltage ensures steady and uninterrupted power supply to your device/equipment.
- Specification Compliance: Provides dependable and authentic adherence to ATX12V/EPS12V compliance specification guidelines to ensure safe and reliable usage.
- Limited Warranty: 10 Year limited warranty details allow dependable replacement and time-efficient services for your maximum convenience.
Whats Included
- Thermaltake ToughPower GF1 TTP-850AH3FCG Power Supply
- Owner's manual
Product Manuals
Q: is this power supply compatible with 6516372 and will it fit
A: Hello, We can't guarantee compatibility with manufactured PCs. The reason for this is companies like Dell and HP sometimes change little things to make third party parts either hard to find or totally incompatible. You would need to try it out at your own risk. Best Regards, Thermaltake Support
