Wallbox - Cable Pulsar Plus J1772 Level 2 Hardwired Electric Vehicle (EV) Charger up to 48A - 25' - Black
Installation: Get your EV charger professionally installed by our service partner Helm Smart Energy
Specifications
General
Product NameCable Pulsar Plus J1772 Level 2 Hardwired Electric Vehicle (EV) Charger up to 48A - 25'BrandWallboxModel NumberPUP1-U-1-6-C-002ColorBlack
Power
Electric Vehicle Charging LevelLevel 2Input Wiring TypeHardwiredPower Requirements240/208VCircuit Breaker Needed60ACharging Rate11.5kWCharging Cable Length25 feetSurge ProtectionYes
Connectivity
Connector Type(s)SAE J1722 (Type 1)Wireless ConnectivityWi-Fi, Bluetooth
Compatibility
App CompatibletrueWorks WithAmazon Alexa, Google Assistant
Features
Overload ProtectiontrueNumber of Vehicles Charged Simultaneously1Display TypeNoneMount TypeWall
Certifications Listings & Approvals
ENERGY STAR CertifiedtrueCertifications and StandardsULProduct Safety Certifications and Standard(s)UL Listed
Environmental
Indoor or Outdoor UseIndoor, OutdoorMinimum Operating Temperature-22 degrees fahrenheitMaximum Operating Temperature104 degrees fahrenheitMaximum Operating Altitude6500 feetNEMA Enclosure RatingType 4Ingress Protection (IP) RatingIP56
Dimensions
Product Height10.4 inchesProduct Width18.7 inchesProduct Depth15.5 inchesProduct Weight20.94 pounds
Warranty
Warranty - Parts3 yearsWarranty - Labor3 years
Other
UPC860004620853
Features
The Wallbox Pulsar Plus level 2 smart EV charger offers the best of both small size and powerful performance for faster electric vehicle charging at home. This unit is for hardwiring only. Designed for easy installation, Pulsar Plus’ J1772 connector can charge any electric car on the market today up to 8x faster than standard (120v) charging cables that come with most EVs. This home EV charging station is simple and efficient with the integrated myWallbox app, which allows you to control your electric vehicle charger from your smart devices via WiFi or Bluetooth. With Pulsar Plus, you are in control of your energy use. Schedule and manage your charging sessions to maximize efficiency and save money when electrical demand and rates are low. Get the Pulsar Plus EV charger and start charging smarter.

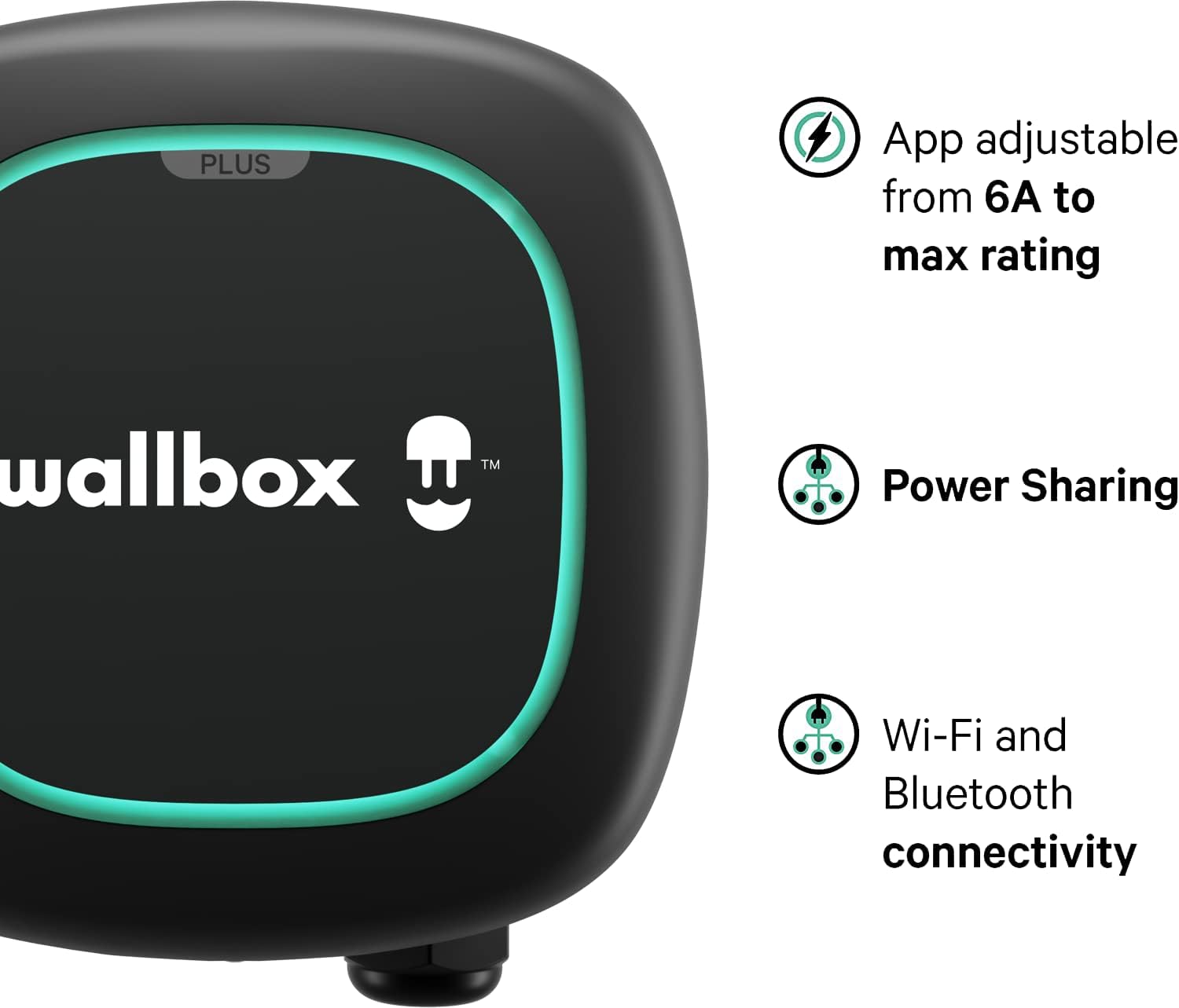

Compact design, powerful performance
240V, Level 2 charging technology in an incredibly small size. Adjustable capacity from 16A to 48A. Charges 8x faster than the standard Level 1 (120V) charging cables.
Connected and Smart
Connect Pulsar Plus to your smart devices using the myWallbox app to wirelessly control and monitor your charger via Wi-Fi or Bluetooth.
Power Sharing
Connect two or more Pulsar Plus chargers to the same electrical circuit to safely charge multiple EVs at one time.
Onboard Intelligence
Pulsar Plus lets you plug in, charge, and manage your schedules even when you can’t connect to the internet.
Safe and Reliable
UL listed for electrical safety, NEMA Type 4 rated for dust/water resistance, backed by a 3-year warranty.
Rebate Eligible
Pulsar Plus is widely eligible for federal, state, and local tax credits and rebates where available.
Savings
Save money by scheduling your charging sesssions when energy is cheapest.
Voice control-enabled
When connected to your home Wi-Fi network, you can control and manage your Pulsar Plus charger using Amazon Alexa or Google Assistant.
myWallbox app
Control your wallbox through the myWallbox app.
Remote Control
Monitor the status of your charger and control it from anywhere via your smart devices.
Real-time Statistics
Get energy use and spending statistics in real-time.
Security at your fingertips
Secure your charger with remote locking and unlocking.
Energy Management Solutions
Pulsar Plus comes standard with Energy Management Solutions from Wallbox built inside. With the addition of a power meter (available from Wallbox), you can take control over your home energy use, including integrating your EV charging with your rooftop solar PV.
Eco-Smart: Integrated EV charging and PV power management
Connect your EV charging to your home rooftop solar energy system and choose how to charge your EV--with 100% green power for maximum sustainability or with a blend of solar and grid power for maximum charging speed.
Power Boost
With Power Boost you can dynamically balance power delivery to your connected EV in harmony with your overall household energy consumption. Power Boost allows homeowners to install their Wallbox Pulsar Plus up to full power (either 40A or 48A) and not be limited by panel bandwidth.
What's Included
Charging Cord, Device, Adapter
Manuals & Guides
Energy Ratings
Questions & Answers (12)
Q: Does this charger come with a charging cable? (1 answers)
A: Yes, this charger comes with a 25-foot charging cable.Q: How is this charger controlled remotely? (1 answers)
A: You can monitor and control the charger remotely using the myWallbox app on your smart devices via WiFi or Bluetooth.Q: Can I use this charger outdoors? (1 answers)
A: This unit is designed for indoor use only.Q: Is this EV charger compatible with solar panel systems? (1 answers)
A: Yes, the Pulsar Plus offers integrated EV charging and PV power management, allowing you to connect it to your home's solar energy system.Q: Does this charger work with voice assistants? (1 answers)
A: Yes, when connected to your home Wi-Fi network, you can control and manage the Pulsar Plus charger using Amazon Alexa or Google Assistant.Q: What is the maximum amperage for this EV charger? (1 answers)
A: The Wallbox Pulsar Plus has an adjustable capacity from 16A to 48A.Q: What does hardwired mean and what is the advantage? (1 answers)
A: Hardwired means it is connected directly to your electrical panel and must be installed by an electrician. Typically this means the connection is more efficient and you can reach higher power than a connection with an outlet.Q: Does this charger have internal GFCI protection? (1 answers)
A: Is this a CCS charger?
